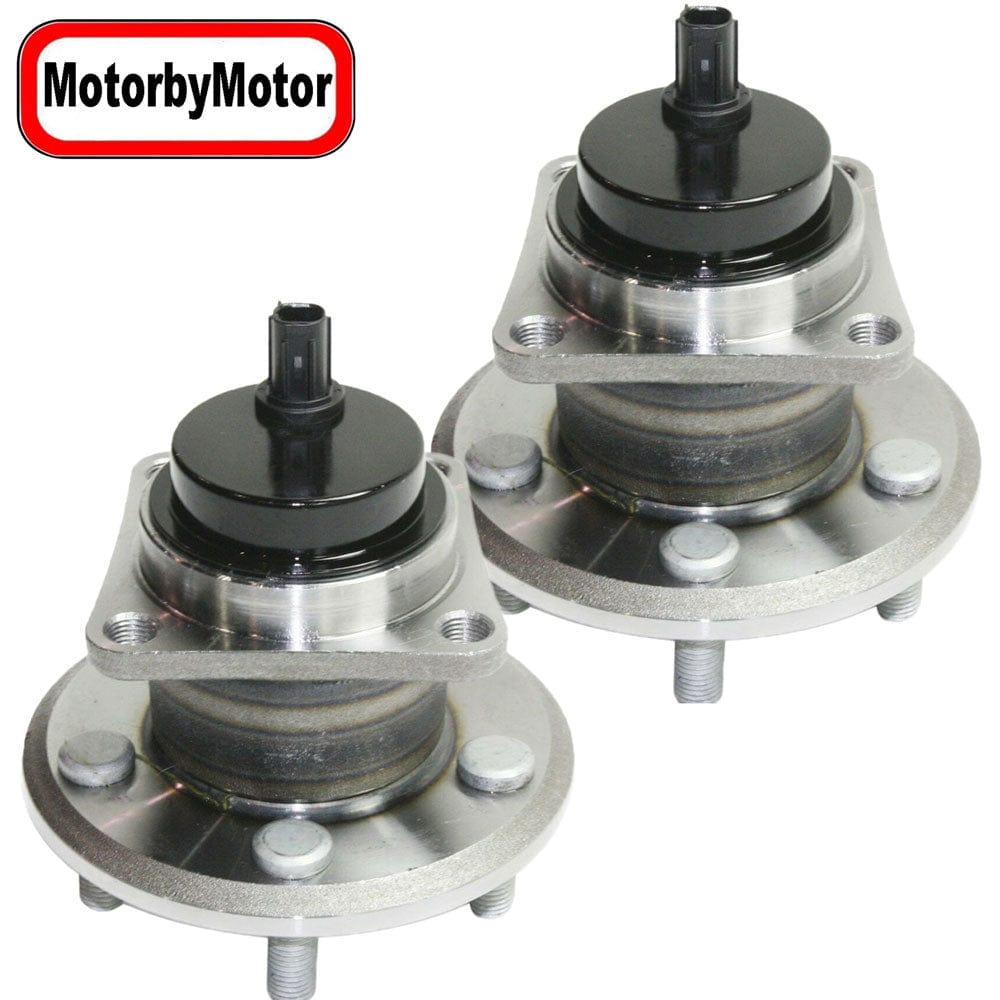

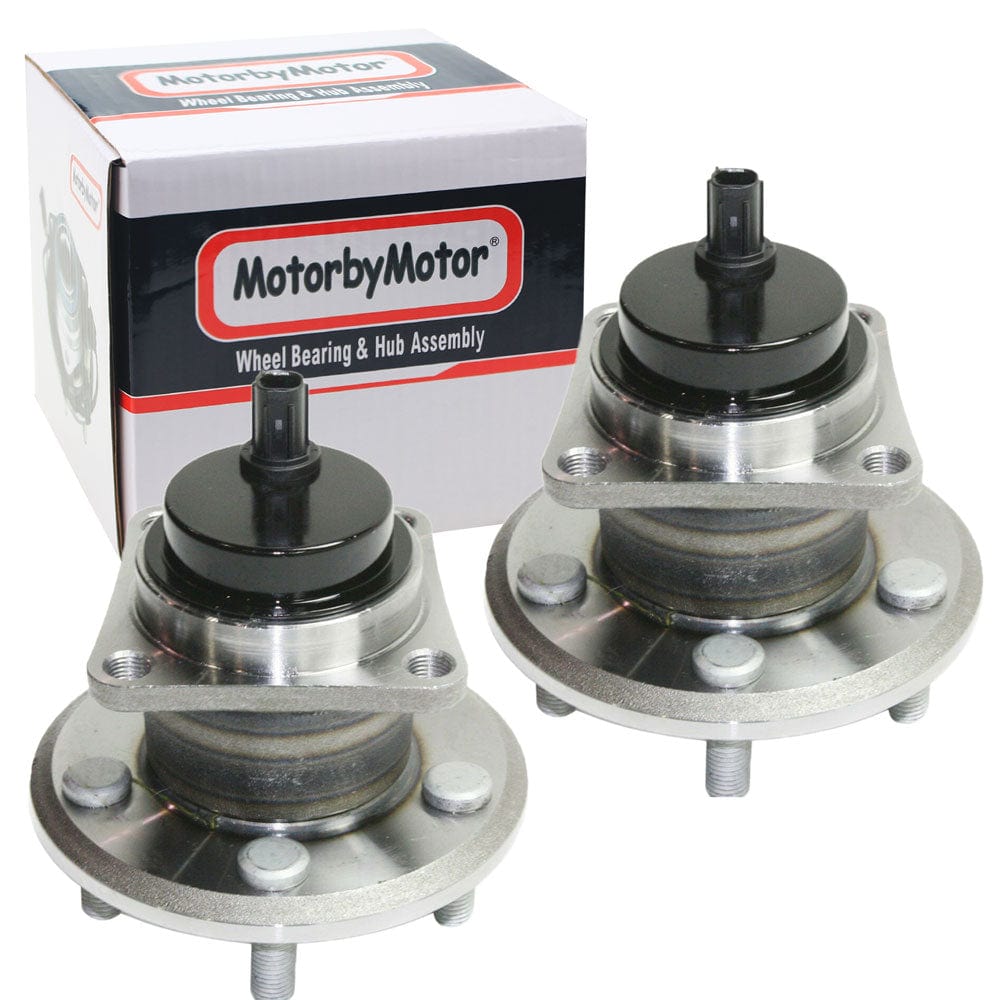

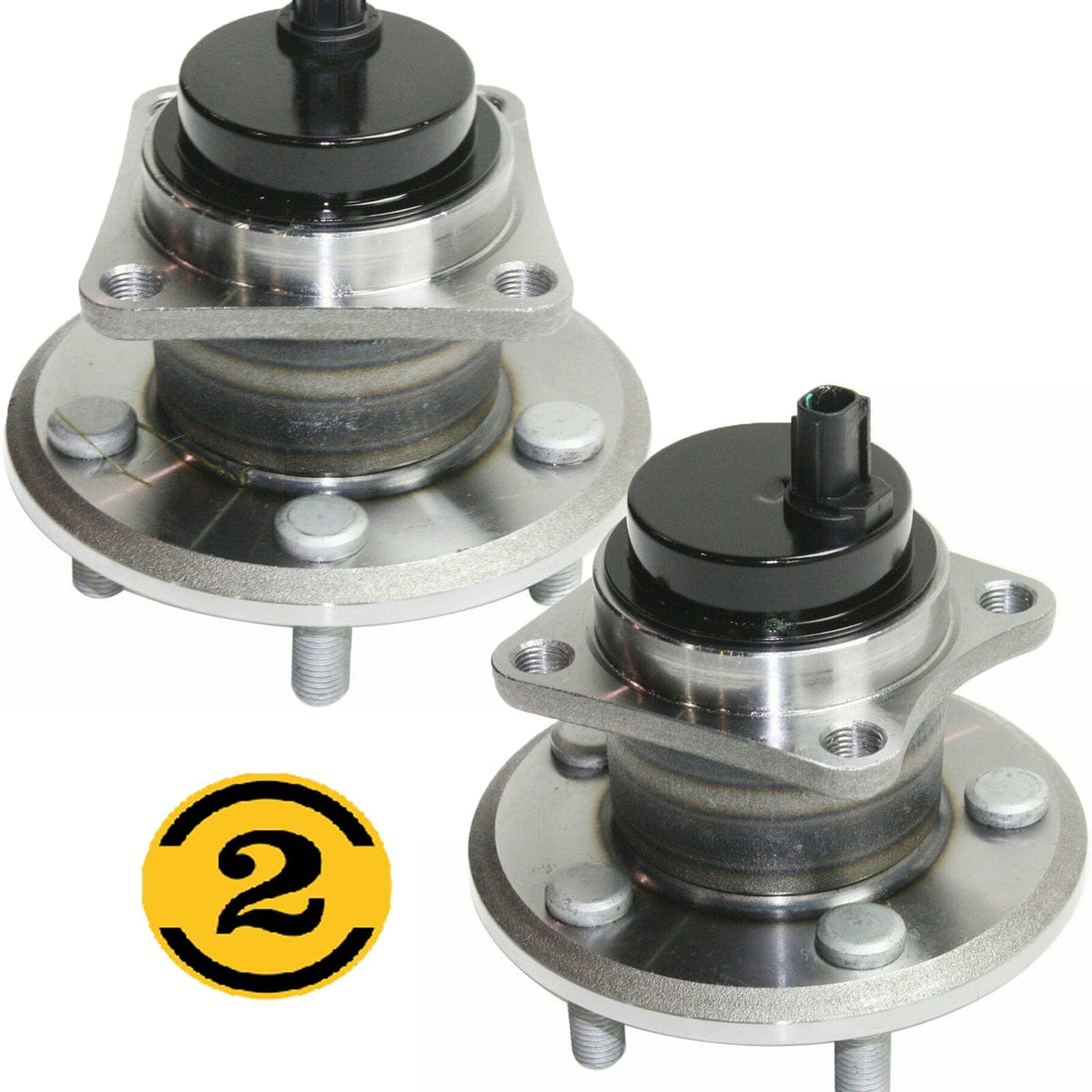

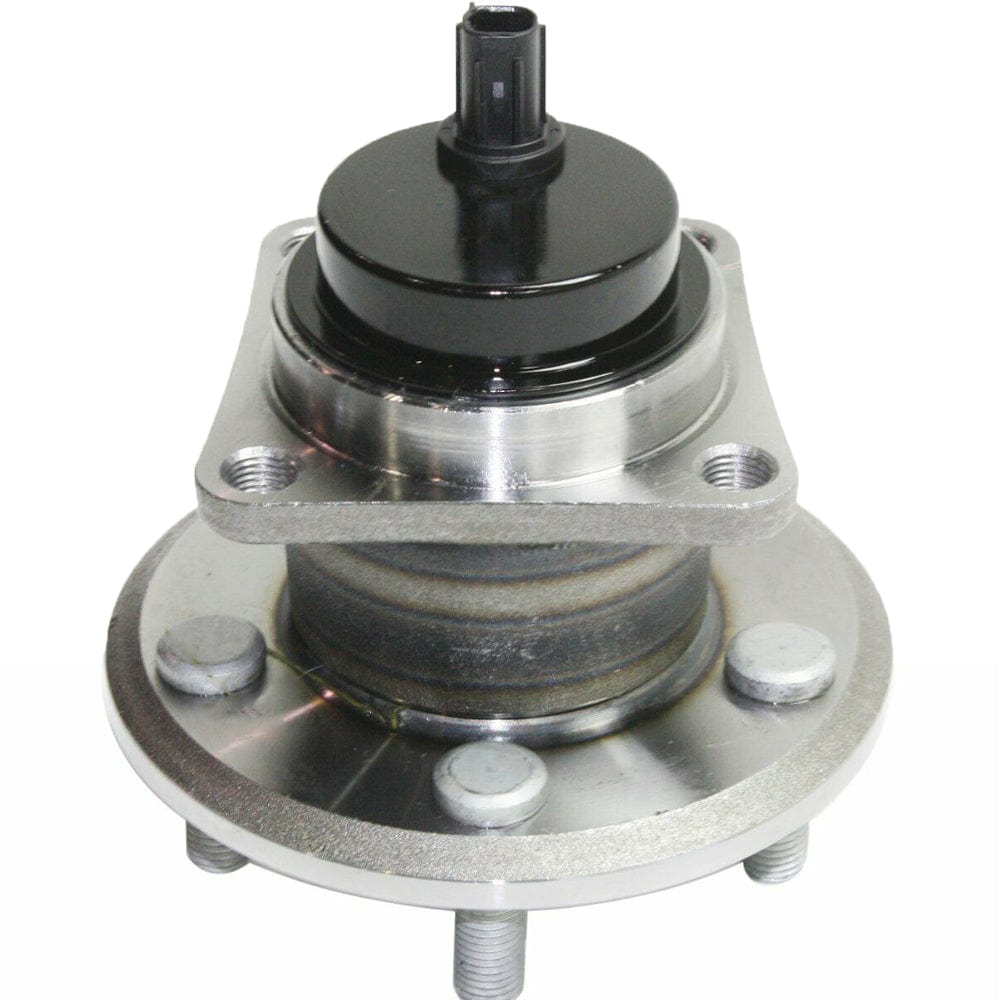

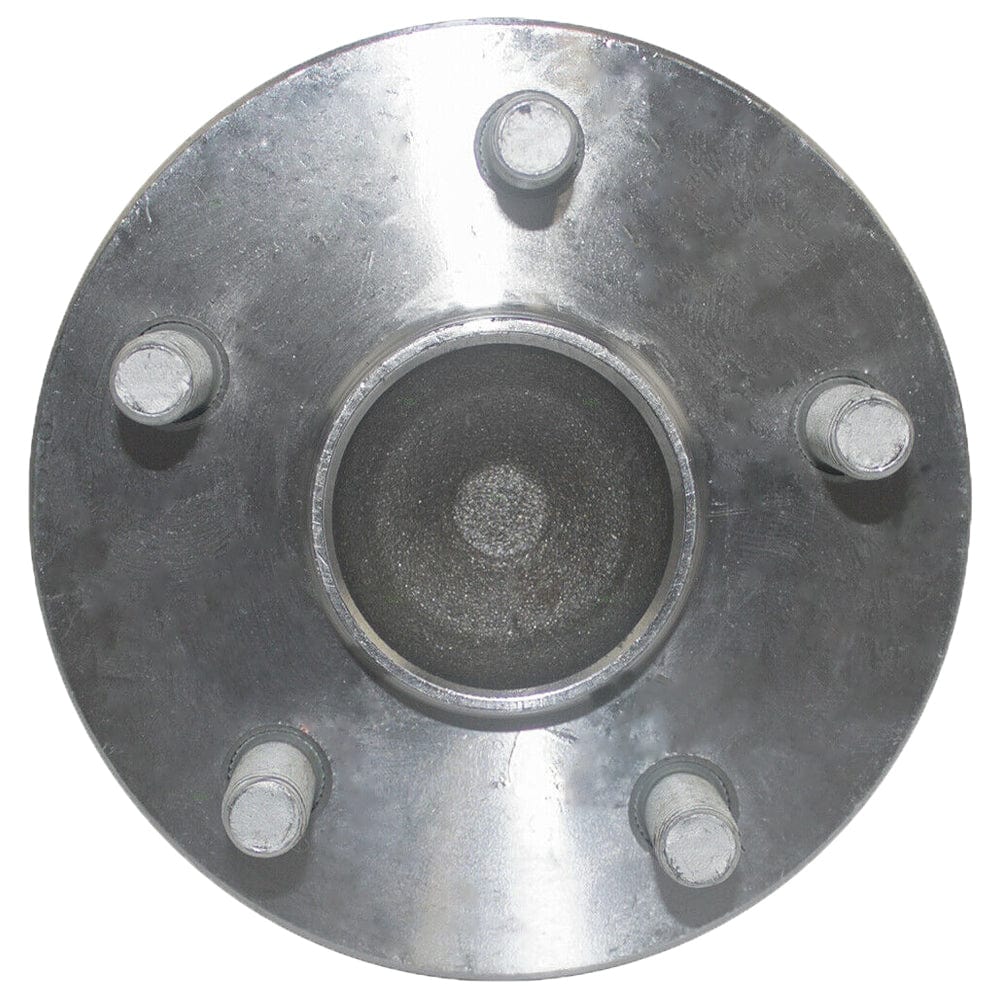

Toyota Corolla Rear Wheel Bearing Hub Assembly 2009-2019 512403 (2 Pack)
Toyota Corolla Rear Wheel Bearing Hub Assembly 2009-2019 512403 (2 Pack)
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing Fit Toyota Corolla, IM, Matrix, 2009-2010 Pontiac Vibe Wheel Hub w/ABS, 5 Lugs, 512403 (2 Pack)
Rear wheel bearing with ABS sensor, compatible with Toyota Corolla, iM, Matrix, and Pontiac Vibe models from 2009 to 2019. Non-driven side fit, durable steel construction.
What's Included
- 2 x Rear Wheel Bearings
- Part Number: 512403
Product Specifications
- Position: Driver or Passenger Side Rear
- ABS Sensor Included: Yes
- ABS Connector Shape: Square
- Driven or Non-Driven: Non-Driven
- ABS Ring Type: Sensor
- Total Hub Diameter: 5.35 Inch / 135 mm
- Hub Centerbore Diameter: 3.94 Inch / 100 mm
- Total Hub Height: 6.457 Inch / 164 mm
- Flange Diameter: 5.31 Inch / 134.8 mm
- Flange Offset: 2.36 Inch / 60 mm
- Flange Shape: Square
- Flange Bolt Thread Size: M12-1.25
- Material: Steel
- Bearing Type: Ball
- Hub Pilot Diameter: 2.91 Inch / 73.9 mm
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2009-2010 | Pontiac | Vibe | 2WD |
| 2009-2019 | Toyota | Corolla | Multiple trims including iM, Matrix, 50th Anniv., CE (Can), L, LE, LE Eco, LE Eco Plus, S, SE, Special Edition, XLE, XSE |
| 2014 | Toyota | Matrix | - |
