Acura TSX Rear Wheel Bearing Hub Assembly 2009-2014, 5 Lugs, w/ABS - 512353 (2 Pack)
Acura TSX Rear Wheel Bearing Hub Assembly 2009-2014, 5 Lugs, w/ABS - 512353 (2 Pack)
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing Fit Acura TSX 2009-2014, Honda Accord 2008-2012 Wheel Hub w/ABS 5 Lugs, 512353 (2 Pack)

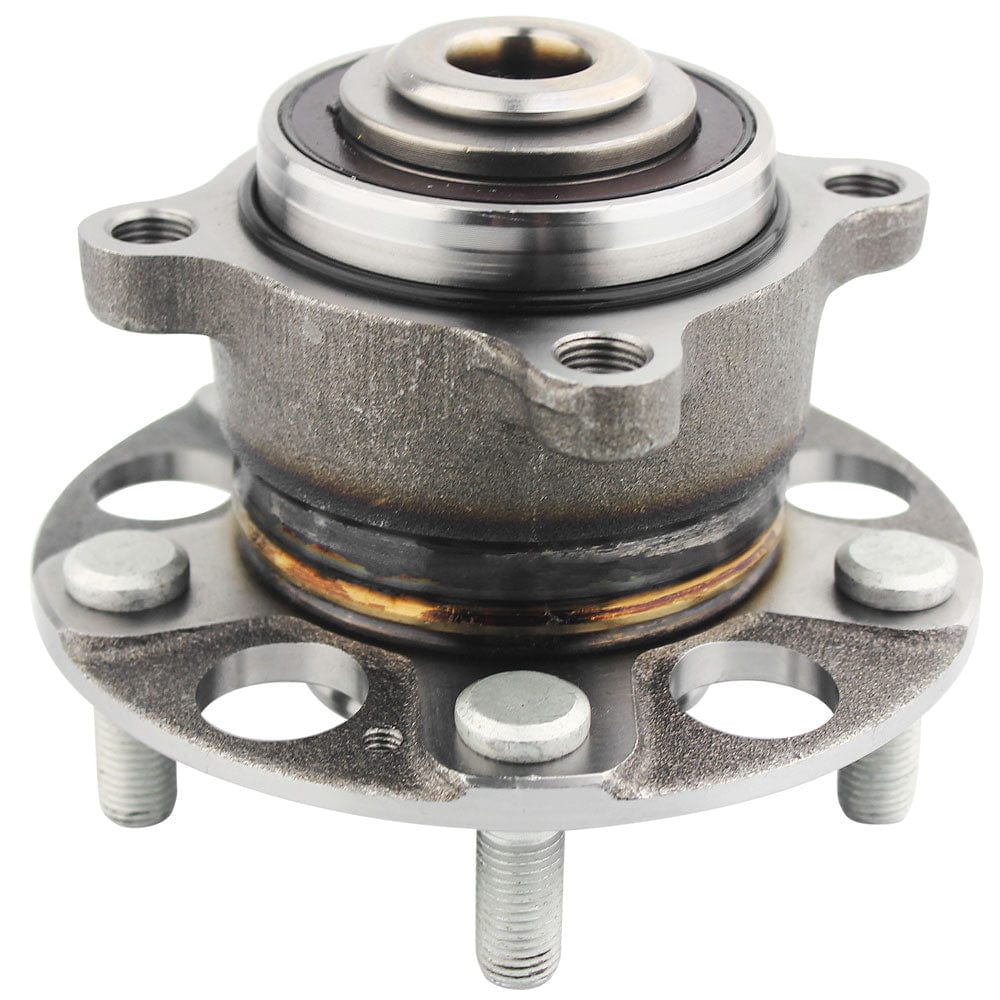

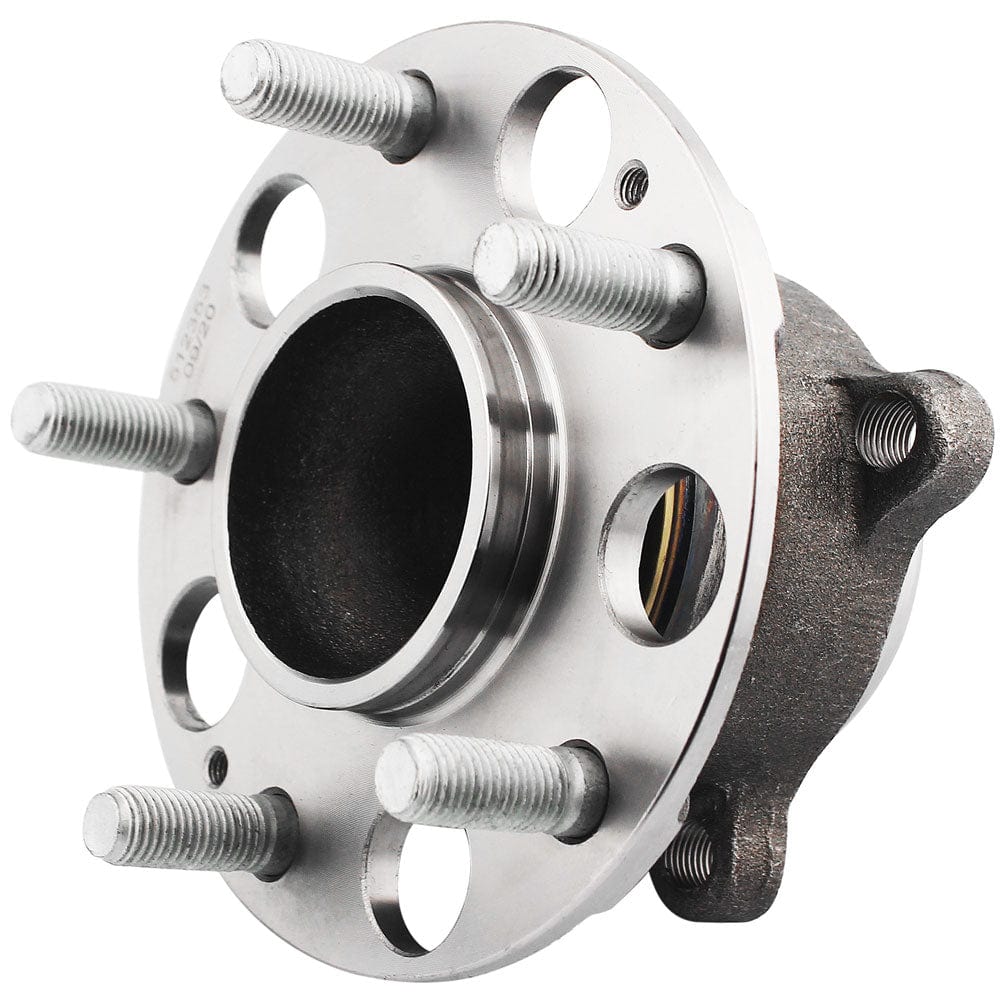

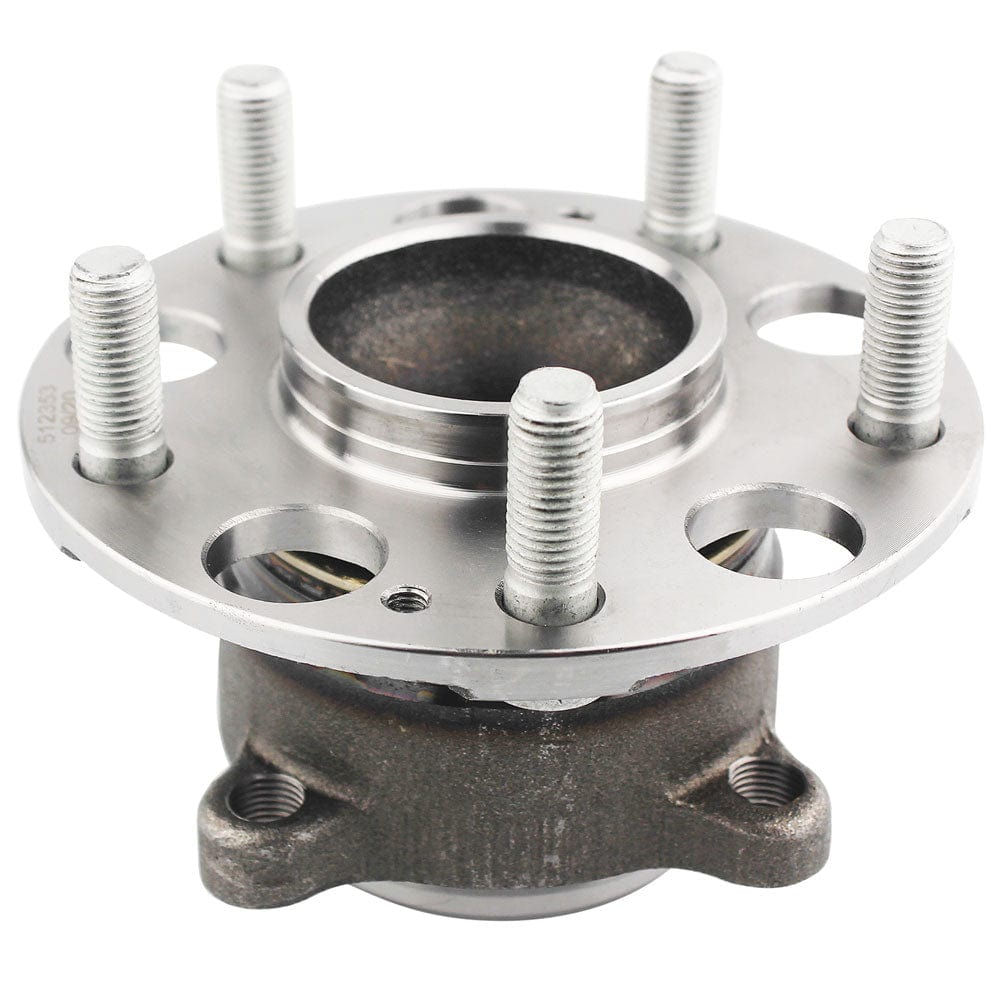

Rear wheel bearing and hub assembly with ABS for Acura TSX (2009-2014) and Honda Accord (2008-2012). Steel construction with magnetic ABS ring and 5 lug bolts.
What's Included

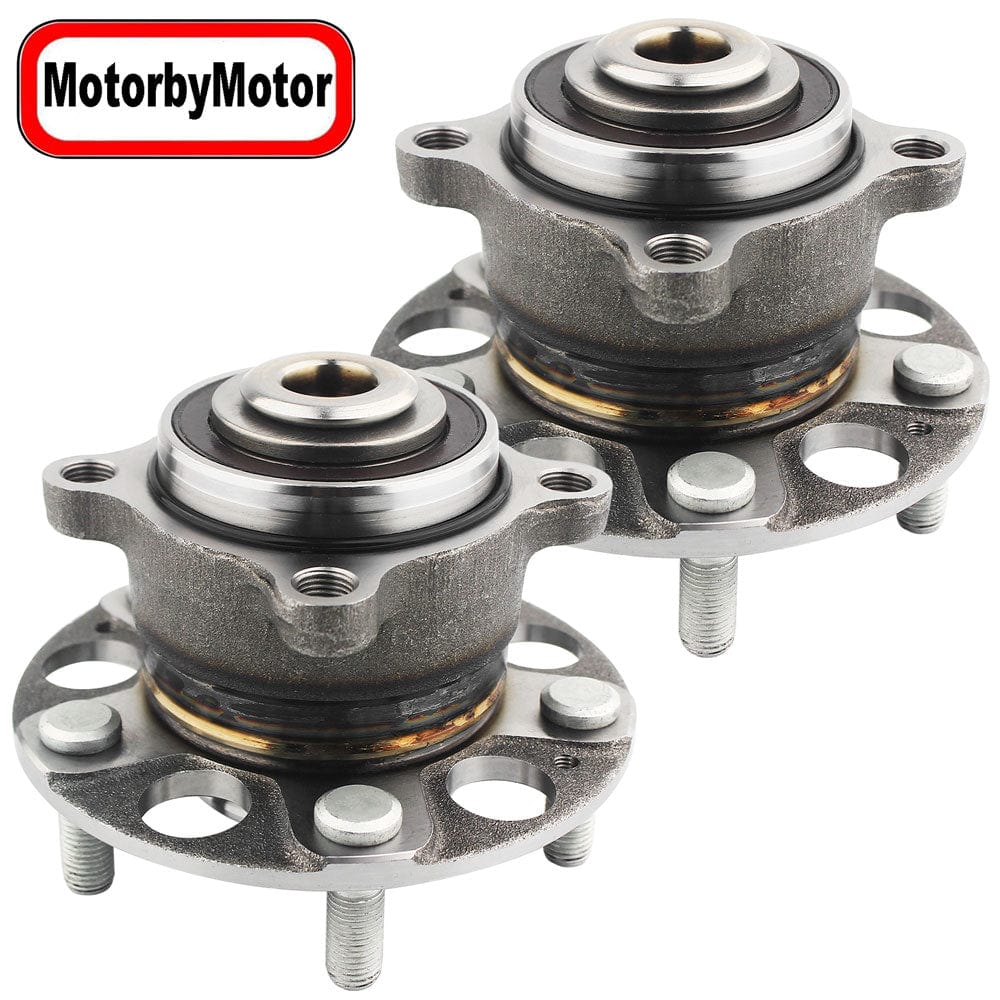

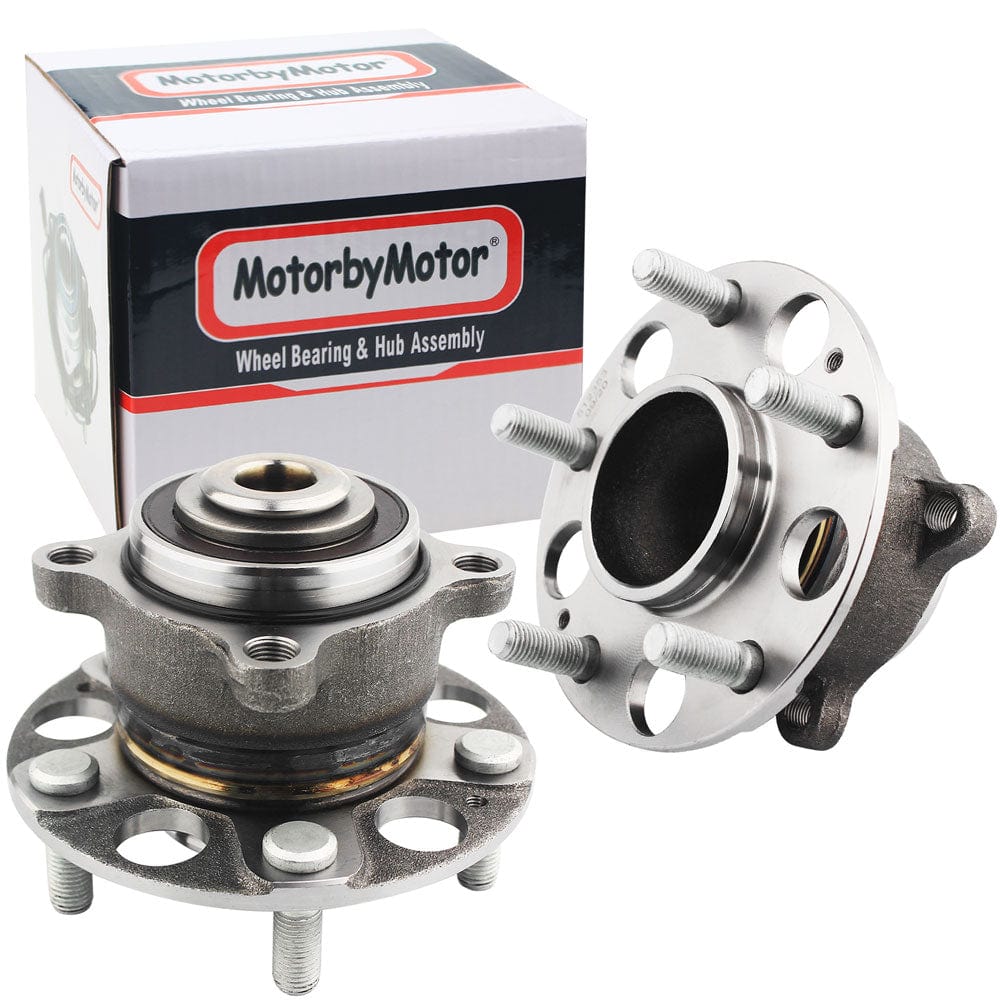

- 2 x Rear Wheel Bearings and Hubs (Driver LH and Passenger RH sides)
- 5 Lug Bolts per hub
Product Specifications
- Position: Driver (LH) or Passenger (RH) Rear
- Wiring Harness Included: No
- Mounting Bolts to Knuckle: 4
- Lug Bolts Included: 5
- Driven: Non-Driven
- ABS Ring Type: Magnetic
- Lug Bolt Thread Size: M12-1.50
- Total Hub Diameter: 5.482 Inch (139.243 mm)
- Total Hub Height: 4.402 Inch (111.811 mm)
- Flange Diameter: 5.482 Inch (139.243 mm)
- Flange Offset: 2.32 Inch (58.928 mm)
- Flange Shape: Square
- Flange Bolt Thread Size: M12-1.25
- Material: Steel
- Bearing Type: Ball
- Hub Pilot Diameter: 2.833 Inch (71.958 mm)
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2009-2014 | Acura | TSX | Rear Wheel Bearing with ABS, 5 Lugs |
| 2008-2012 | Honda | Accord | Rear Wheel Bearing with ABS, 5 Lugs |
