Mazda 3 Rear Wheel Bearing Hub Assembly 2004-2008 - 512348
Mazda 3 Rear Wheel Bearing Hub Assembly 2004-2008 - 512348
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing Fit 2004-2013 Mazda 3, 2006-2017 Mazda 5 Wheel Hub w/ABS Sensor, 5 Lugs- 512347 (2 Pack)

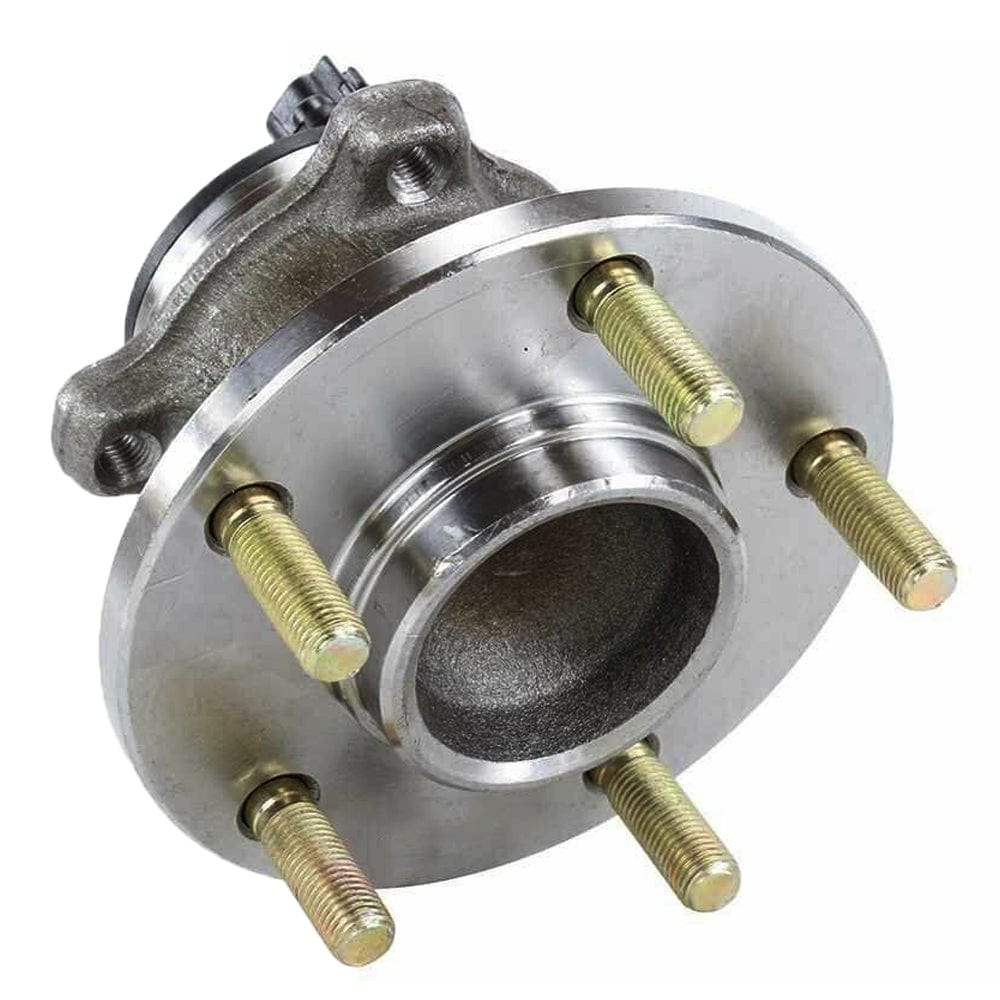

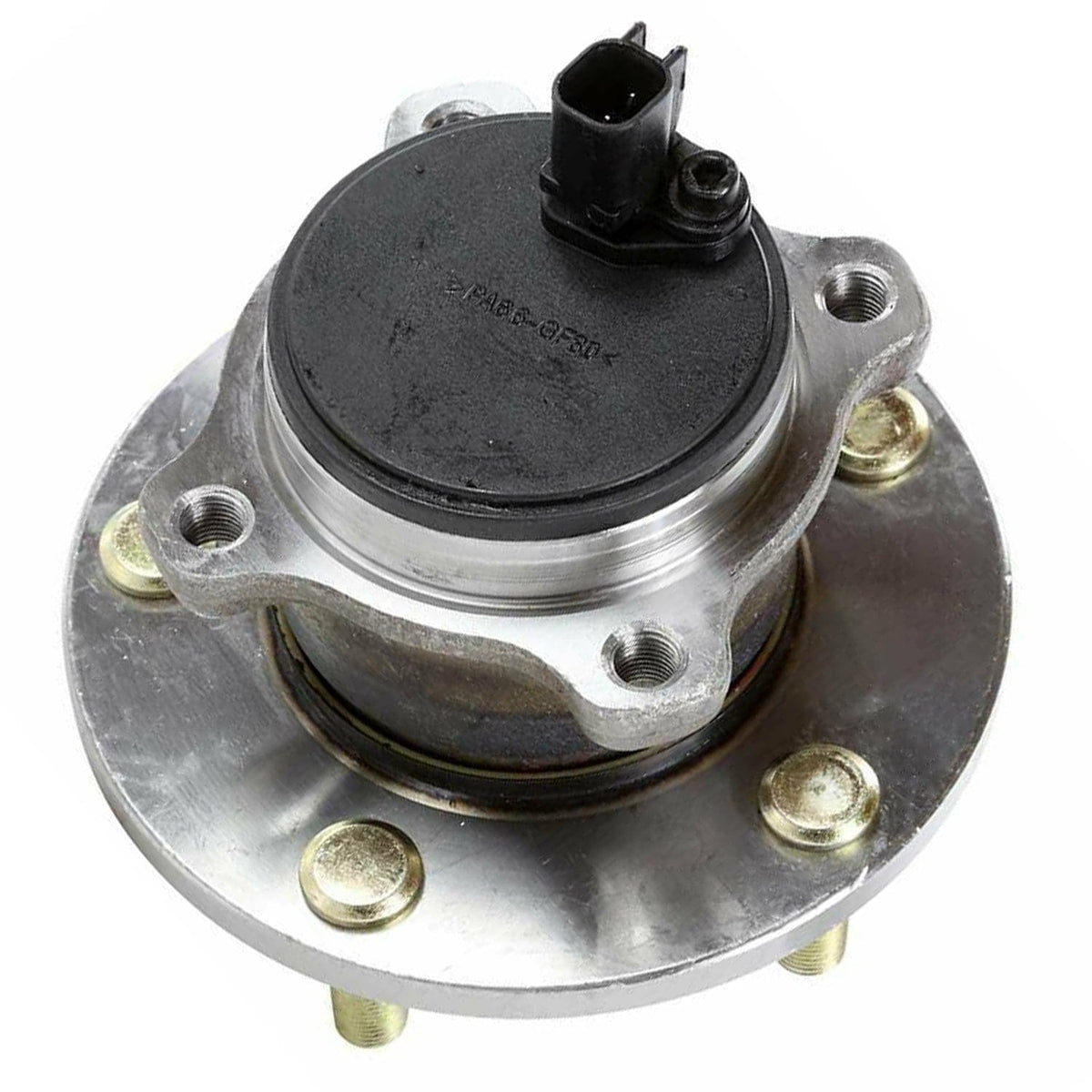

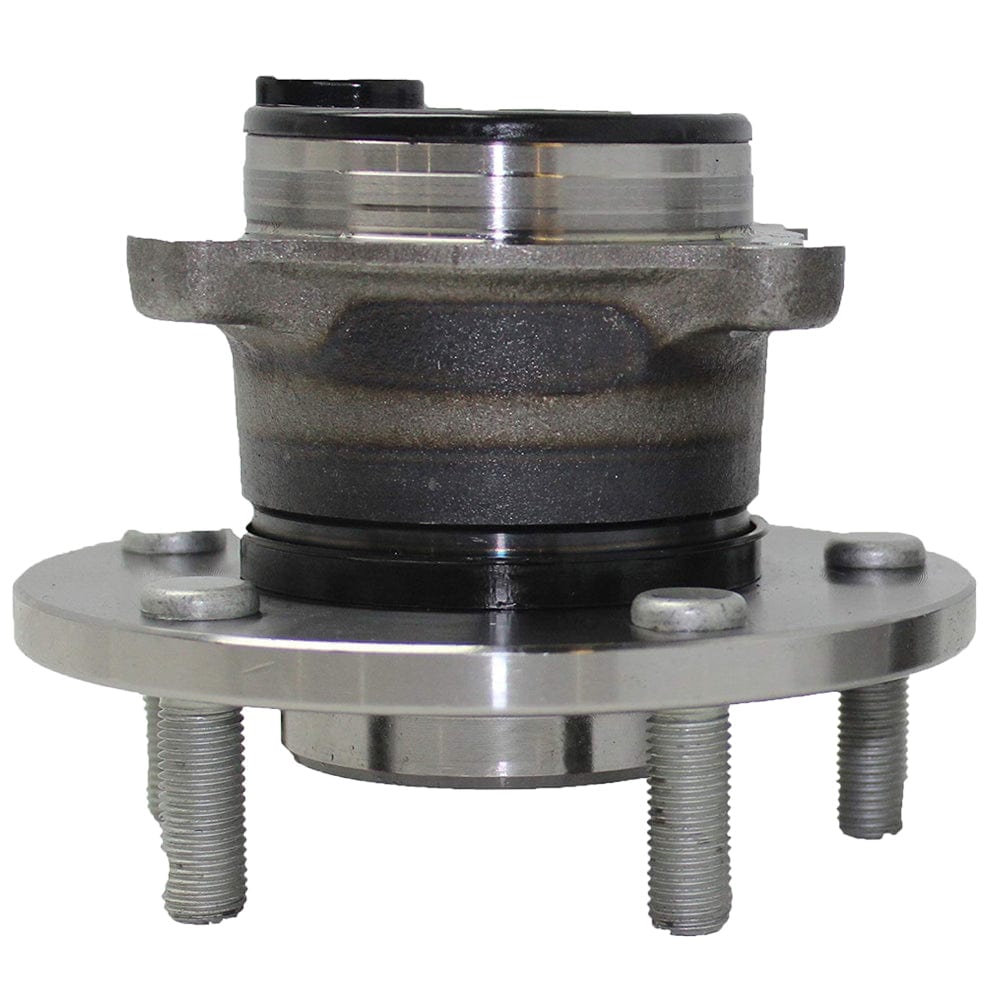

Rear wheel bearing and hub assembly with ABS sensor for Mazda 3 (2004-2013) and Mazda 5 (2006-2017). Direct replacement with steel construction and magnetic ABS ring.
What's Included

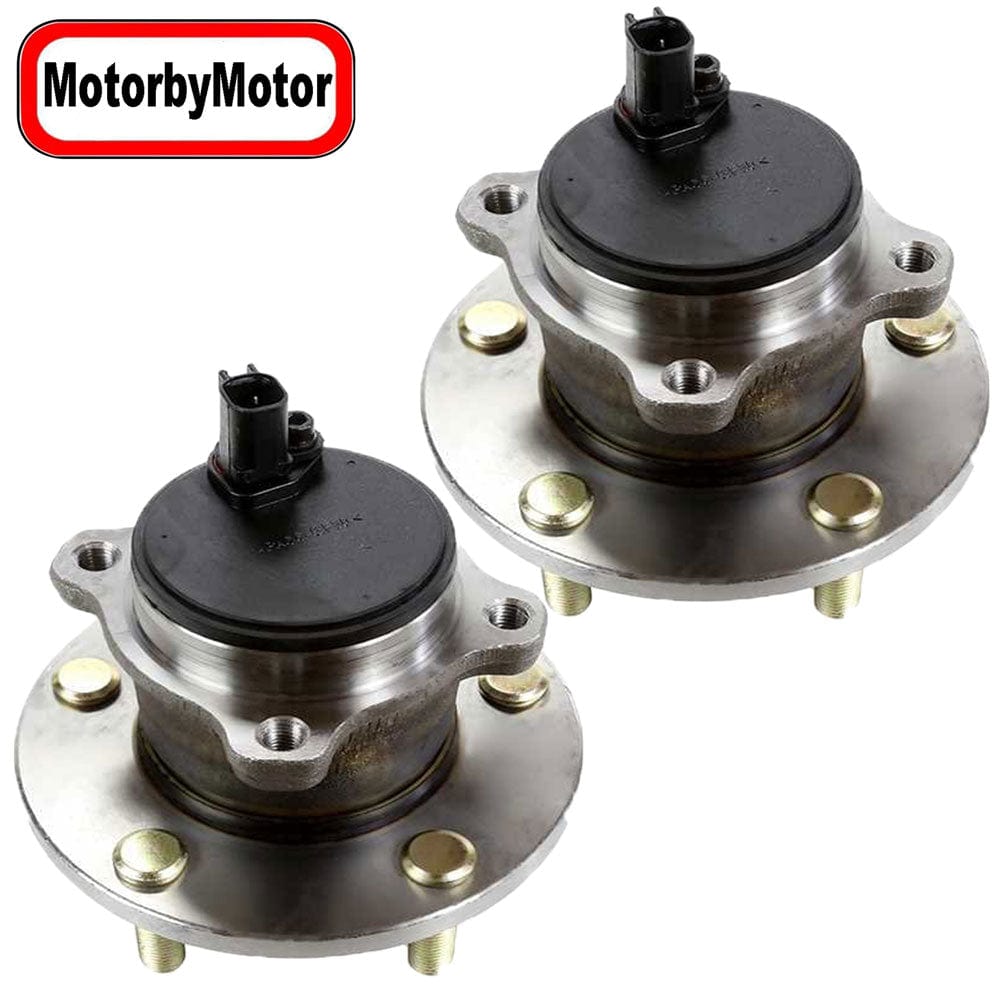

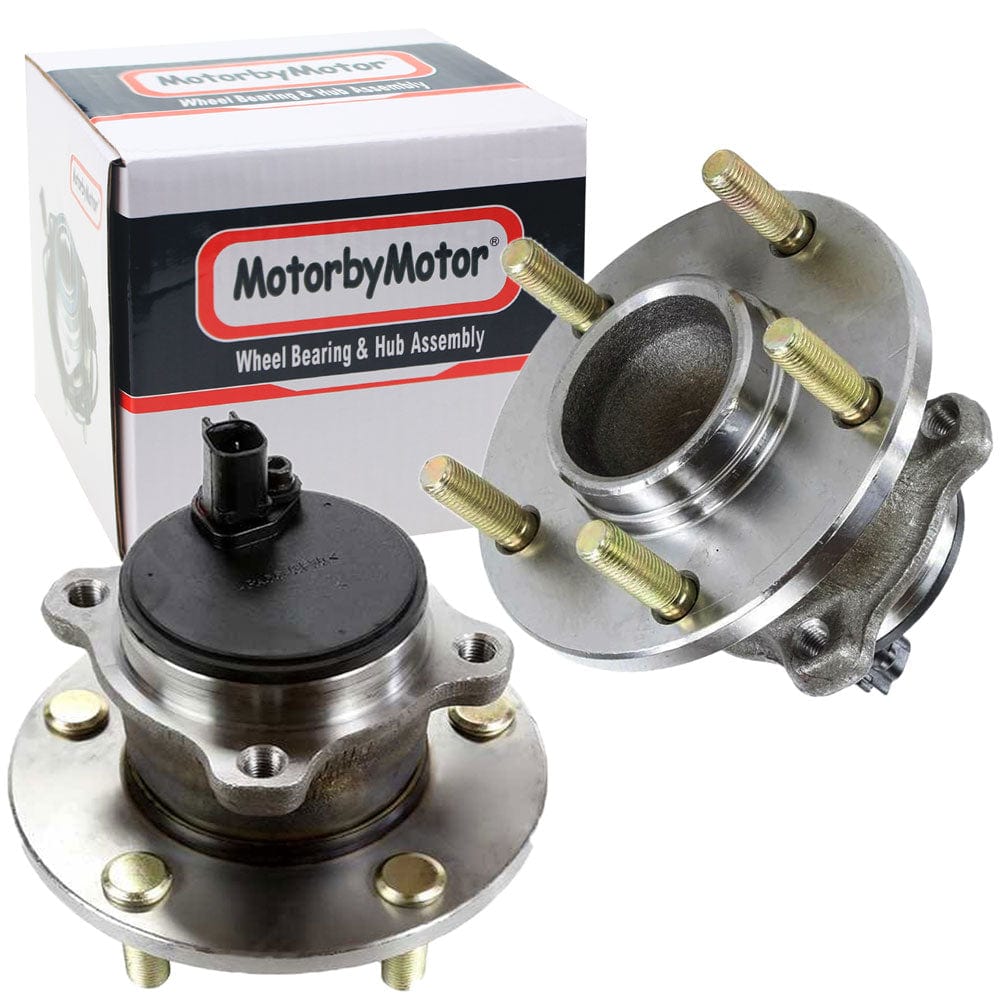

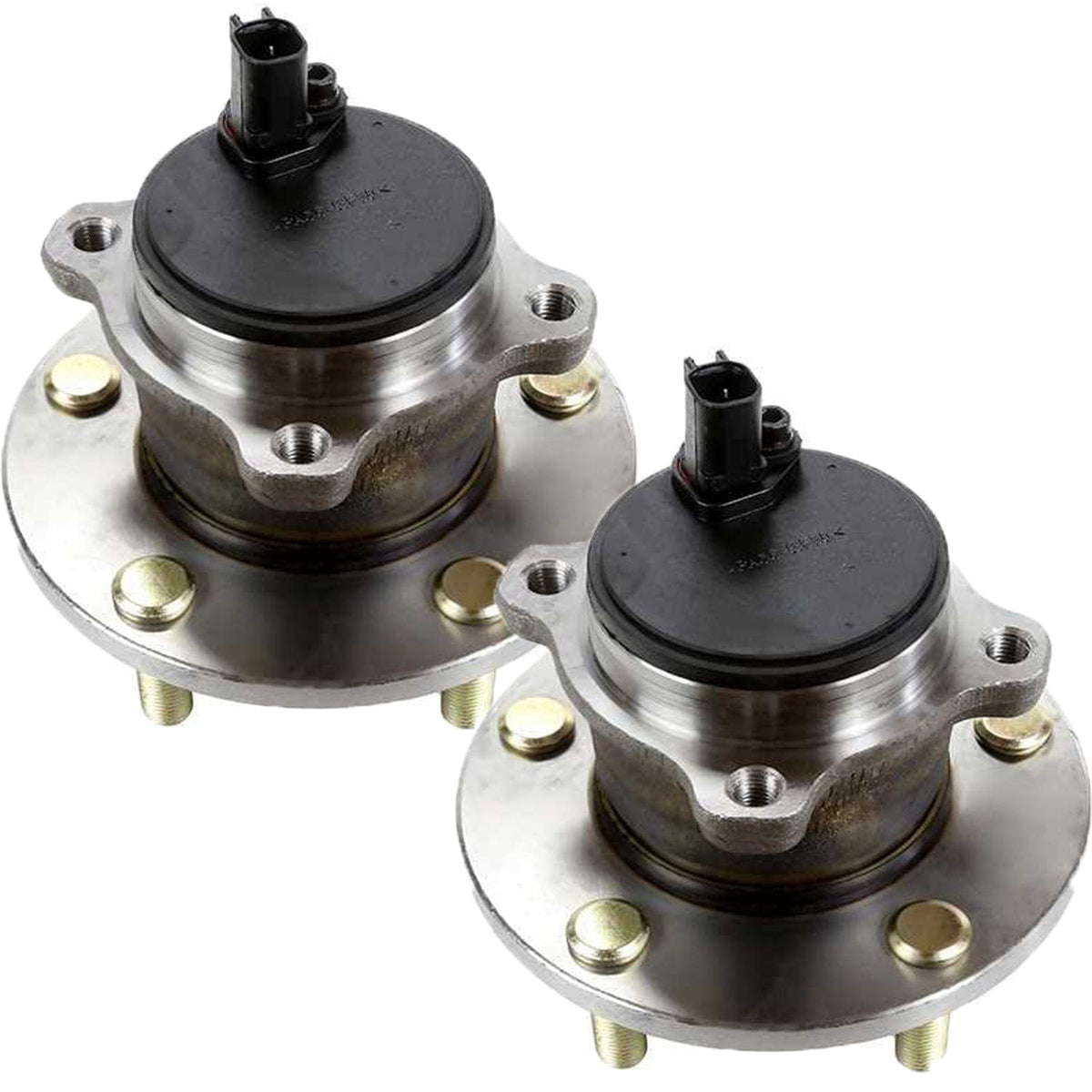

- 2 x Rear Wheel Bearing and Hub Assemblies
- ABS Sensor Included
- 5 Lug Bolts Included
- 5 Flange Bolts Included
Product Specifications
- ABS Sensor: Yes
- Wiring Harness: No
- Mounting Bolts to Knuckle: 4
- Lug Bolts: 5
- Flange Bolts: 5
- Driven: Non-Driven
- ABS Ring Type: Magnetic
- ABS Sensor Ring Teeth: 88
- Total Hub Diameter: 5.59 Inch
- Hub Centerbore Diameter: 4.5 Inch
- Total Hub Height: 4.71 Inch
- Flange Diameter: 5.59 Inch
- Flange Offset: 2.48 Inch
- Flange Bolt Size: 1.32 Inch
- Flange Shape: Round
- Hub Pilot Diameter: 2.913 Inch
- Flange Bolt Thread Size: M12-1.50
- Material: Steel
- Position: Driver (LH) or Passenger (RH) Side Rear
- Part Number: 512347
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2004-2013 | Mazda | Mazda3 | All trims including GS-SKY, GT, GX, Sport GS-SKY, Sport GT, Sport GX, i, s |
| 2006-2017 | Mazda | Mazda5 | All trims including GS, GT, Grand Touring, Sport, Touring |
