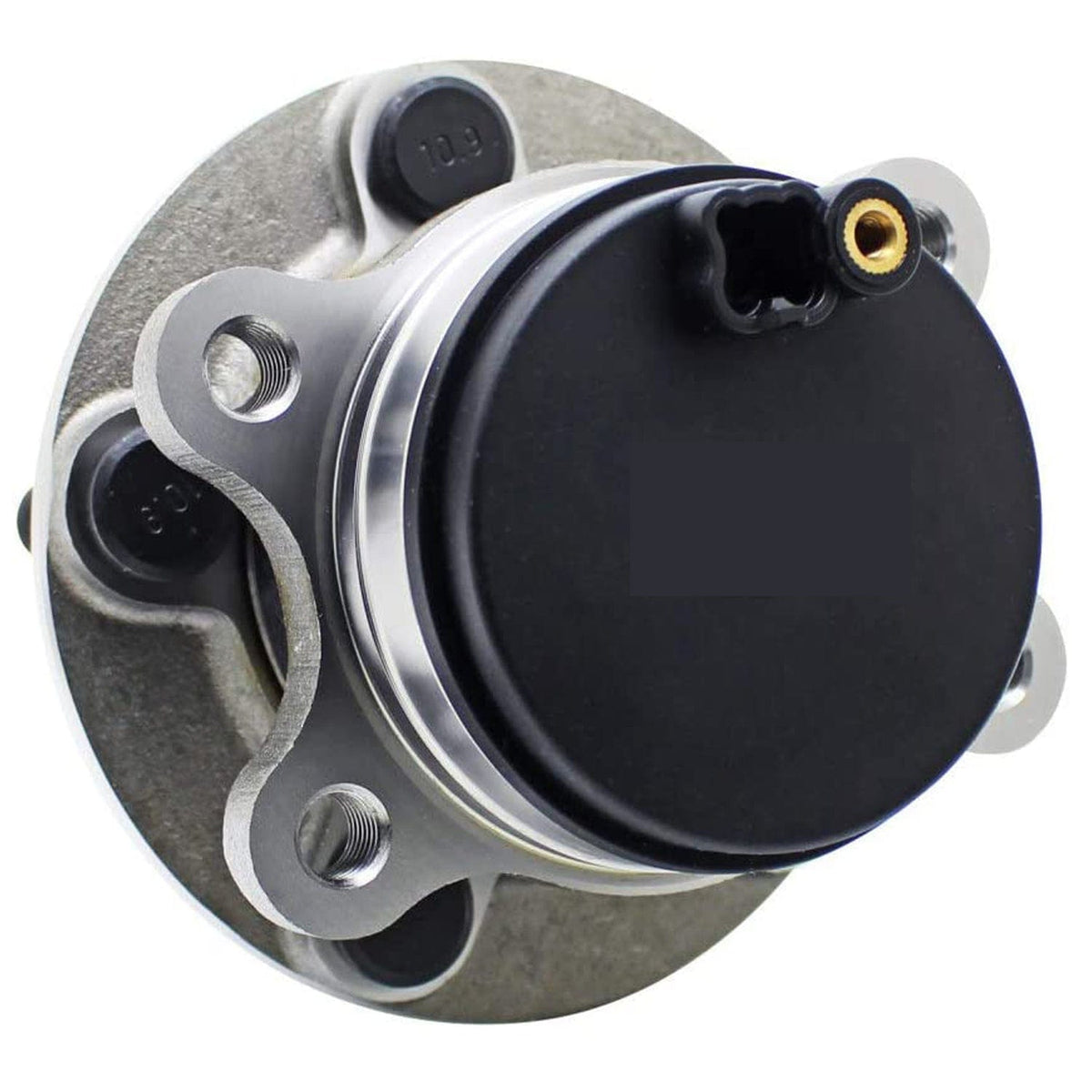

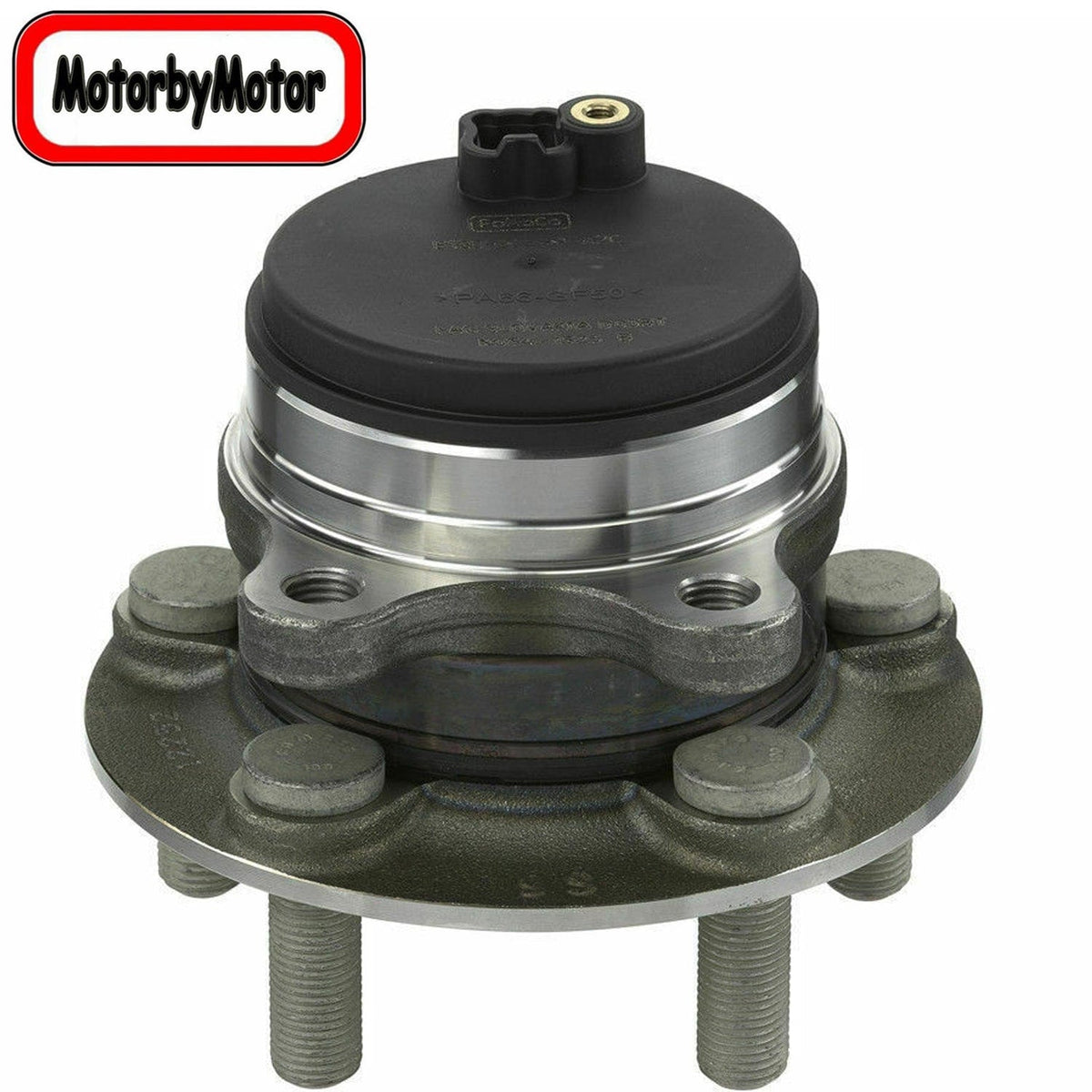

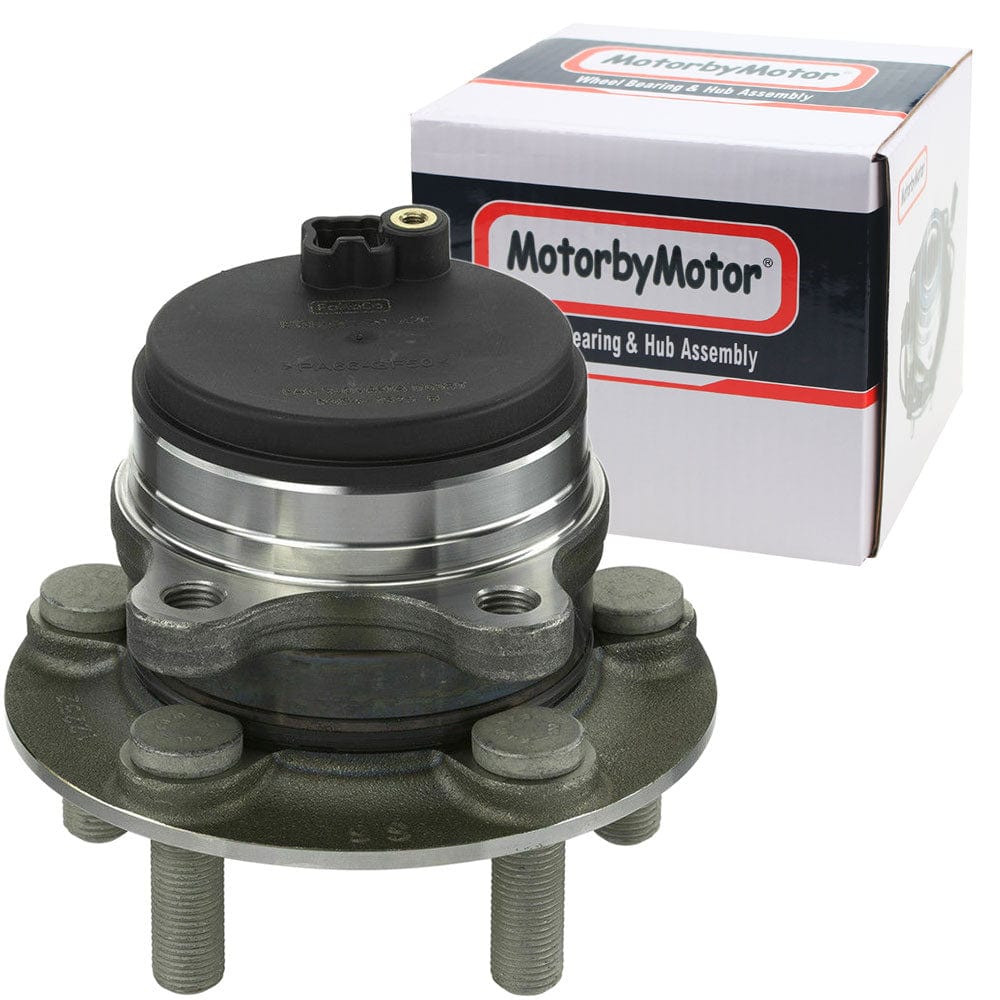

Ford Edge Rear Wheel Bearing Hub Assembly, 5 Lugs - 512580
Ford Edge Rear Wheel Bearing Hub Assembly, 5 Lugs - 512580
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing 512580 for Ford Edge and Lincoln Models
Rear wheel bearing compatible with select 2015-2019 Ford Edge and Lincoln models. Steel construction with included gasket for durability and seal.
What's Included
- Rear Wheel Bearing Hub Assembly (Part No: 512580)
- Gasket/Seal included
Product Specifications
- Position: Driver (LH) or Passenger (RH) Side Rear
- ABS Sensor Included: No
- Wiring Harness Included: No
- Mounting Bolts to Knuckle: 4
- Lug Bolts Included: 5
- Number of Splines: 27
- Driven: Yes
- ABS Ring Type: Magnetic
- ABS Sensor Ring Teeth: 44
- Total Hub Diameter: 5.35 Inch
- Hub Centerbore Diameter: 4.25 Inch
- Total Hub Height: 4.35 Inch
- Flange Diameter: 2.5 Inch
- Flange Offset: 1.89 Inch
- Flange Bolt Size: 1.5 Inch
- Flange Bolt Thread Size: M14-1.50
- Hub Pilot Diameter: 3.43 Inch
- Material: Steel
- Gasket/Seal: Included
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2015-2018 | Ford | Edge | Rear Wheel Bearing |
| 2017-2018 | Lincoln | Continental | Rear Wheel Bearing |
| 2016-2019 | Lincoln | MKX | Rear Wheel Bearing |
