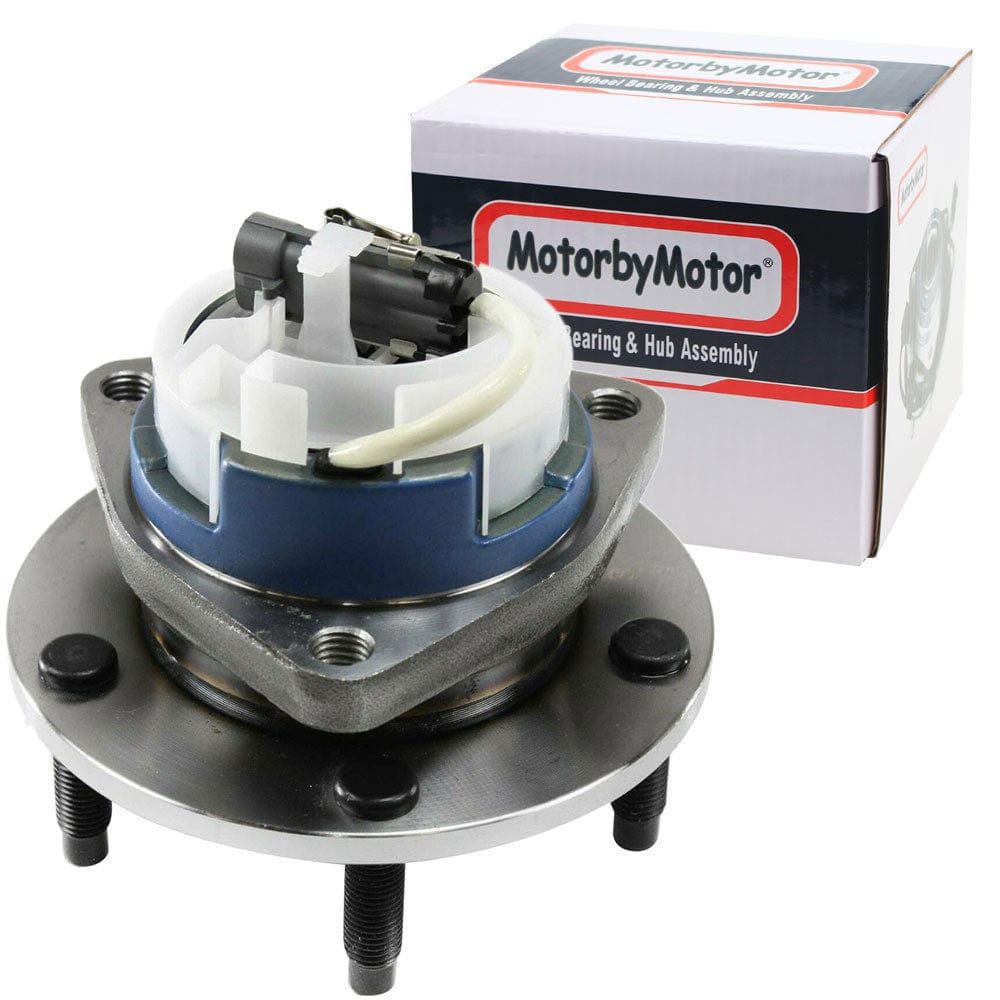

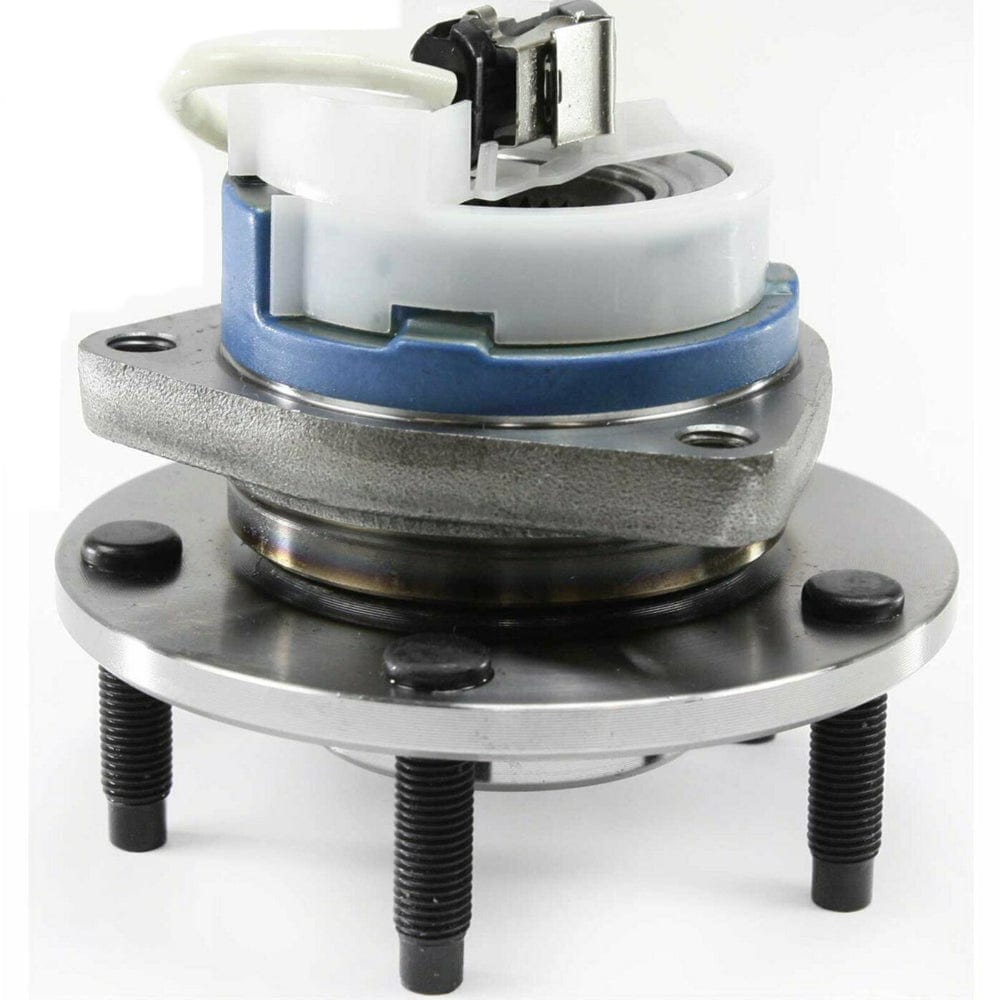

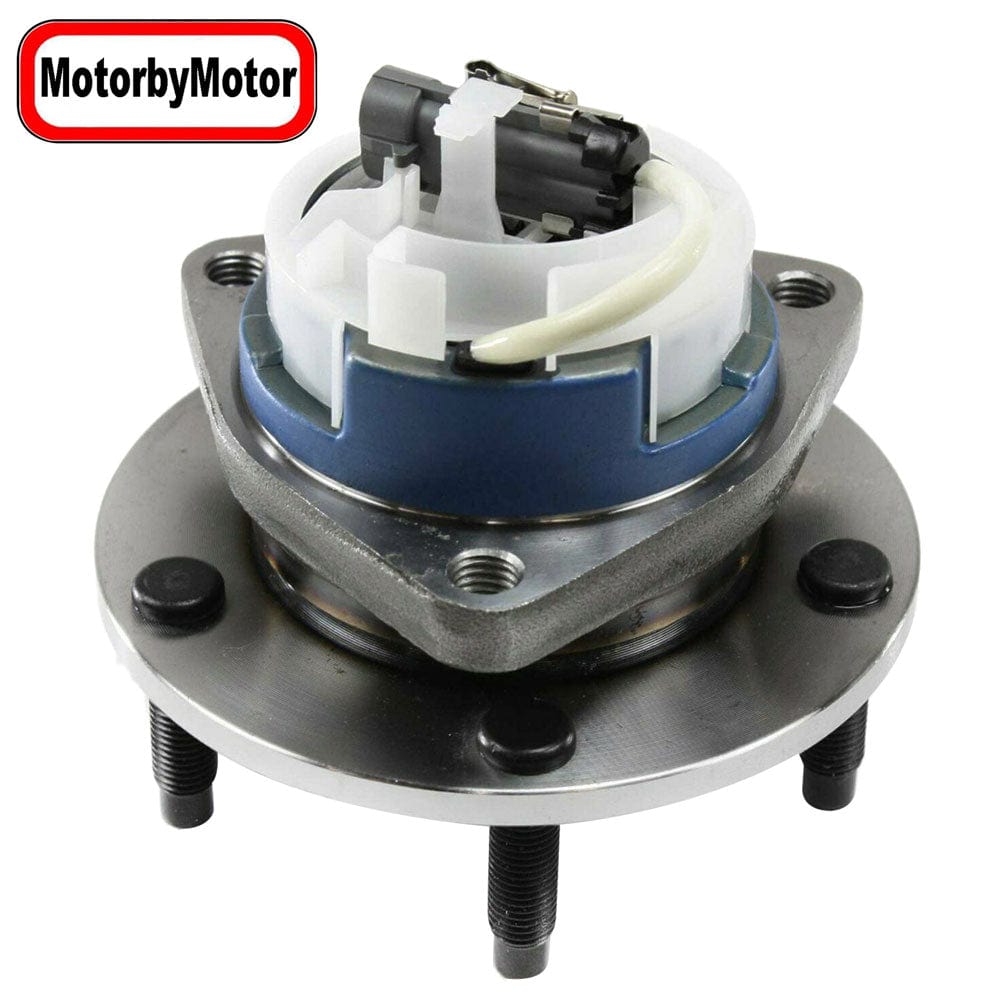

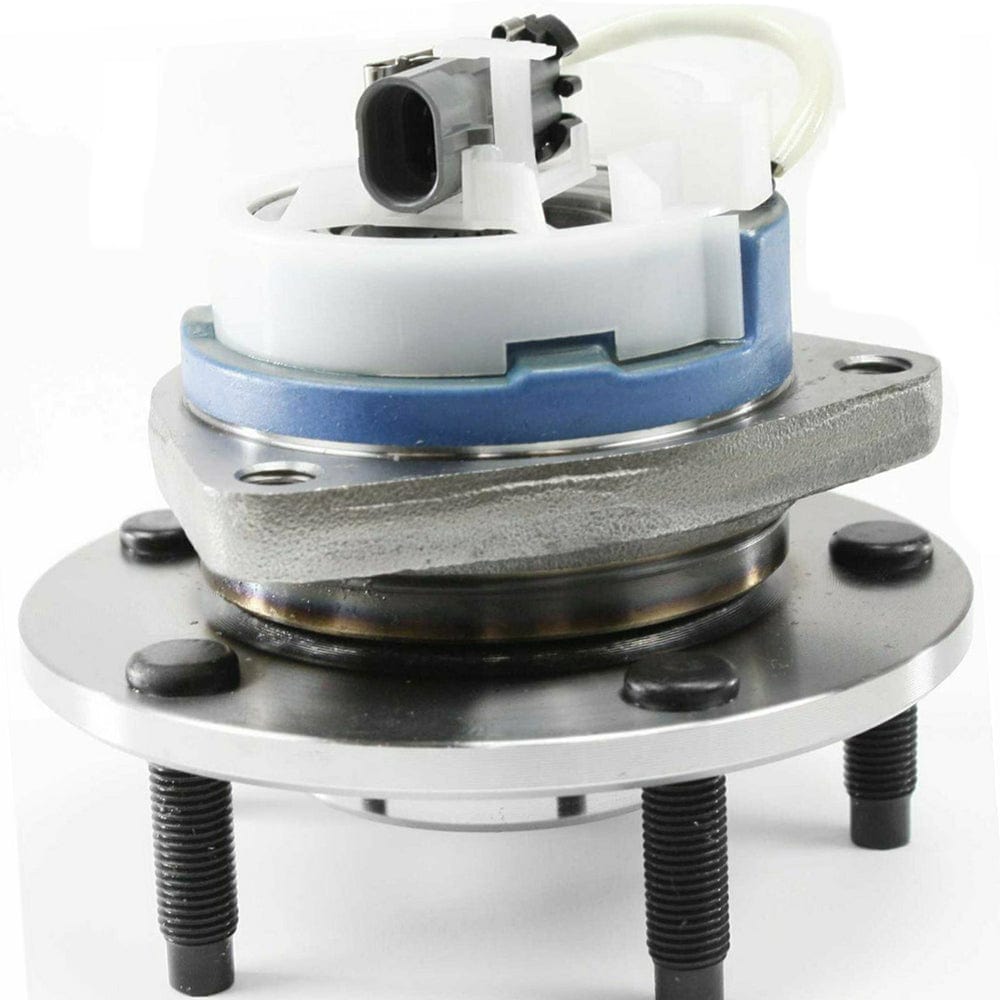

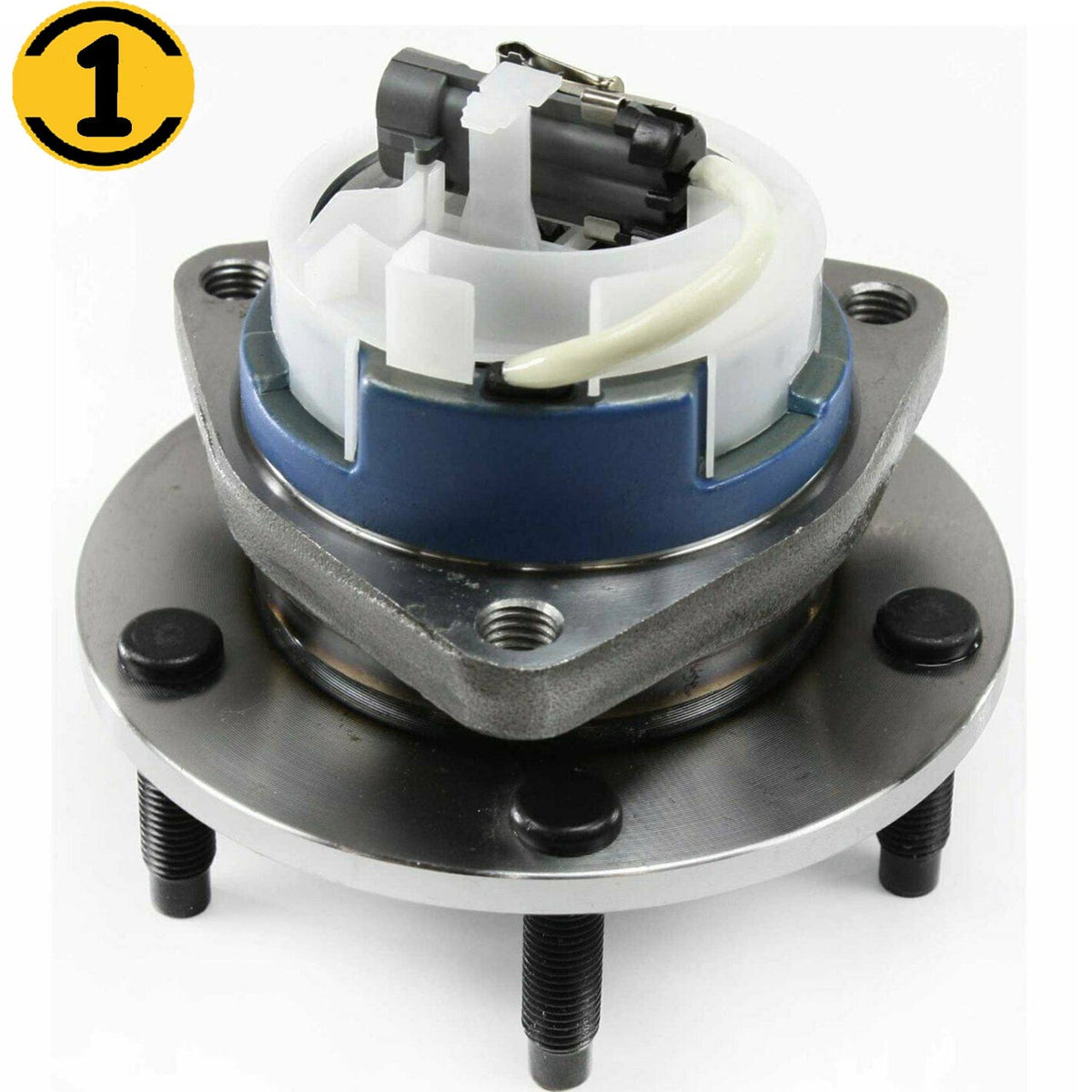

Chevrolet Corvette Rear Wheel Bearing Hub Assembly 1997-2008, w/ABS, 5 Lugs - 512153
Chevrolet Corvette Rear Wheel Bearing Hub Assembly 1997-2008, w/ABS, 5 Lugs - 512153
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing 512153 for Cadillac XLR & Chevrolet Corvette
Fits 2004-2008 Cadillac XLR and 1997-2008 Chevrolet Corvette rear wheels with ABS. Includes sensor and wiring harness for driven wheels.
What's Included
- Rear Wheel Bearing (512153)
- ABS Sensor
- Wiring Harness (3.1 Inch)
- 5 Lug Bolts
- 3 Mounting Bolts
Product Specifications
- Position: Driver (LH) or Passenger (RH) Rear
- ABS Connector Shape: Oval
- Driven: Yes
- Number of Splines: 30
- Lug Bolt Thread Size: M12-1.50
- Total Hub Diameter: 5.733 in (145.618 mm)
- Total Hub Height: 4.36 in (110.744 mm)
- Flange Diameter: 5.733 in (145.618 mm)
- Flange Offset: 1.652 in (41.961 mm)
- Hub Pilot Diameter: 3.57 in (90.678 mm)
- Flange Shape: Triangle
- Flange Bolt Thread Size: M12-1.75
- Material: Steel
- Bearing Type: Ball
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2004-2008 | Cadillac | XLR | AWD, Rear |
| 1997-2008 | Chevrolet | Corvette | AWD, Rear |
