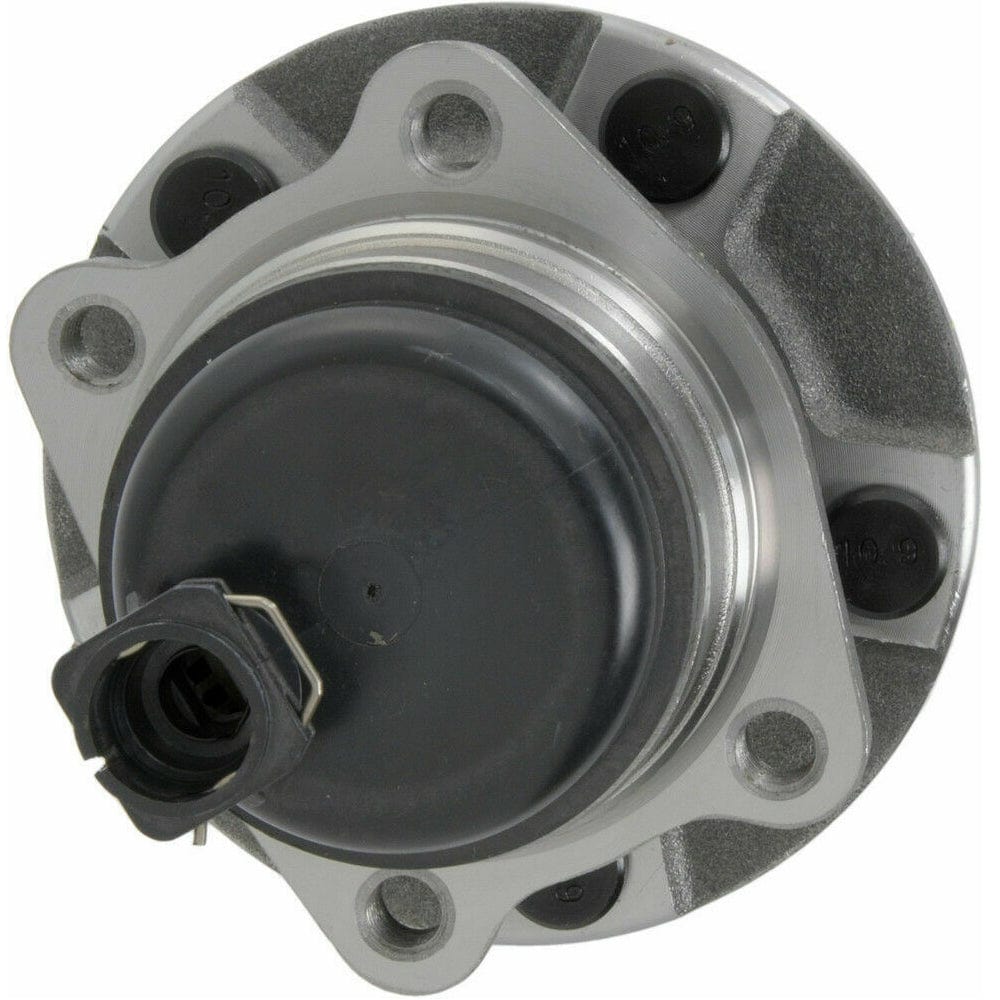

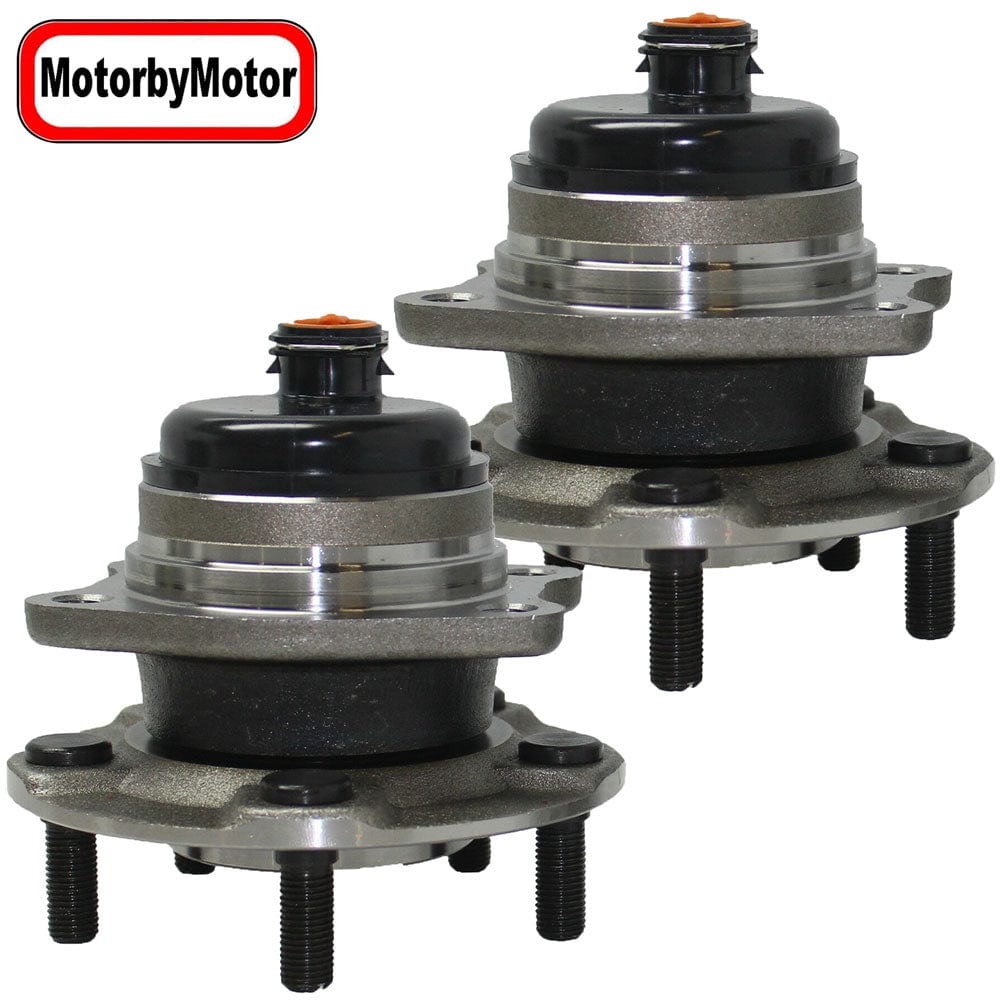

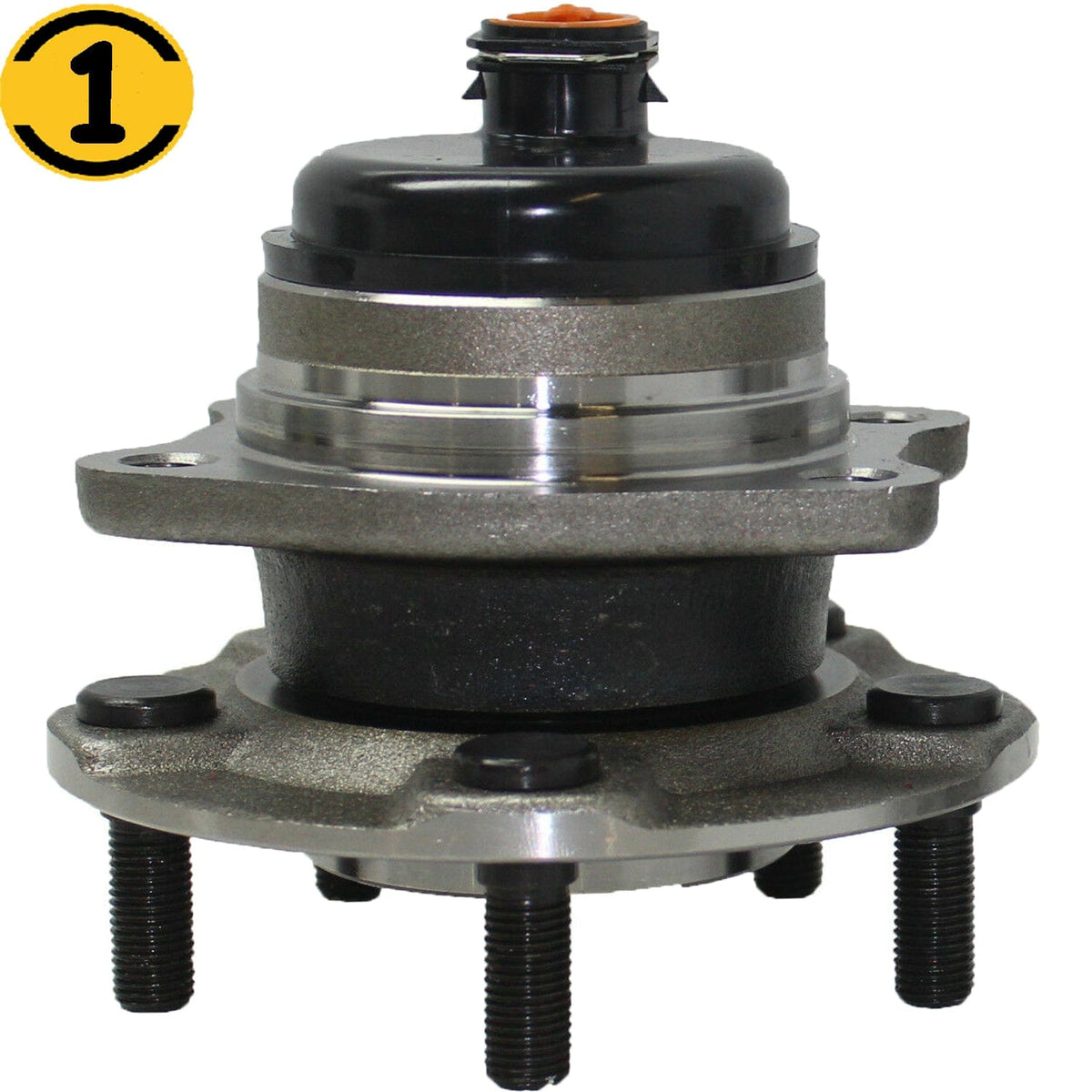

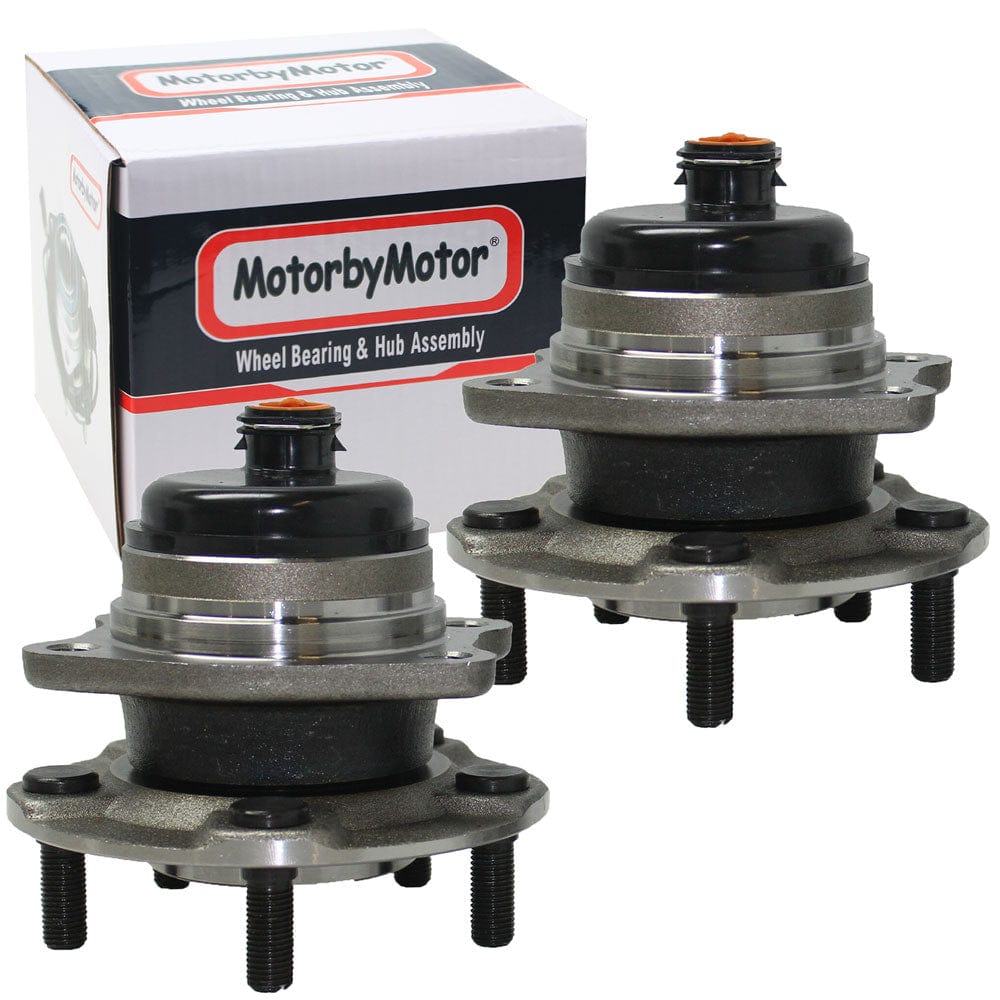

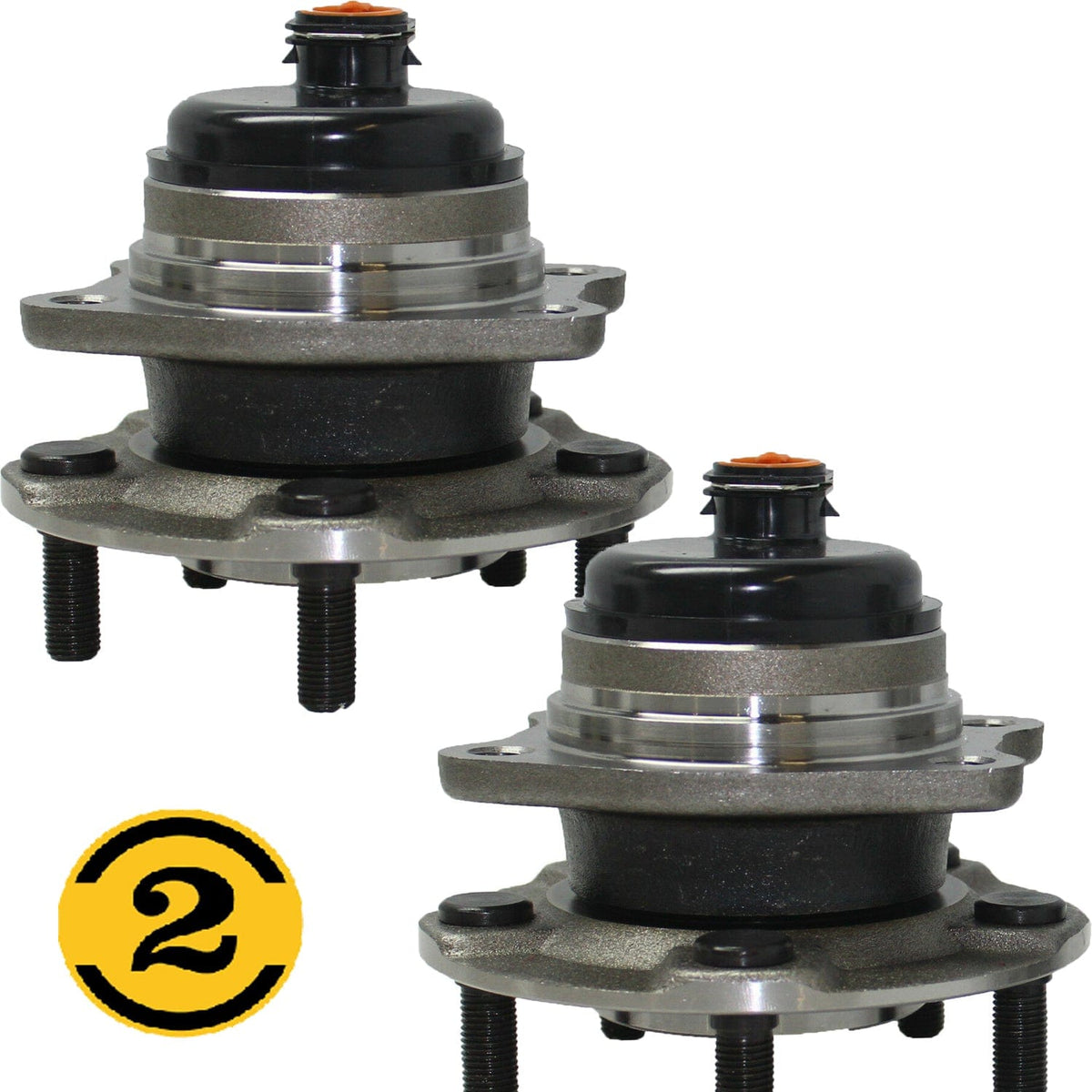

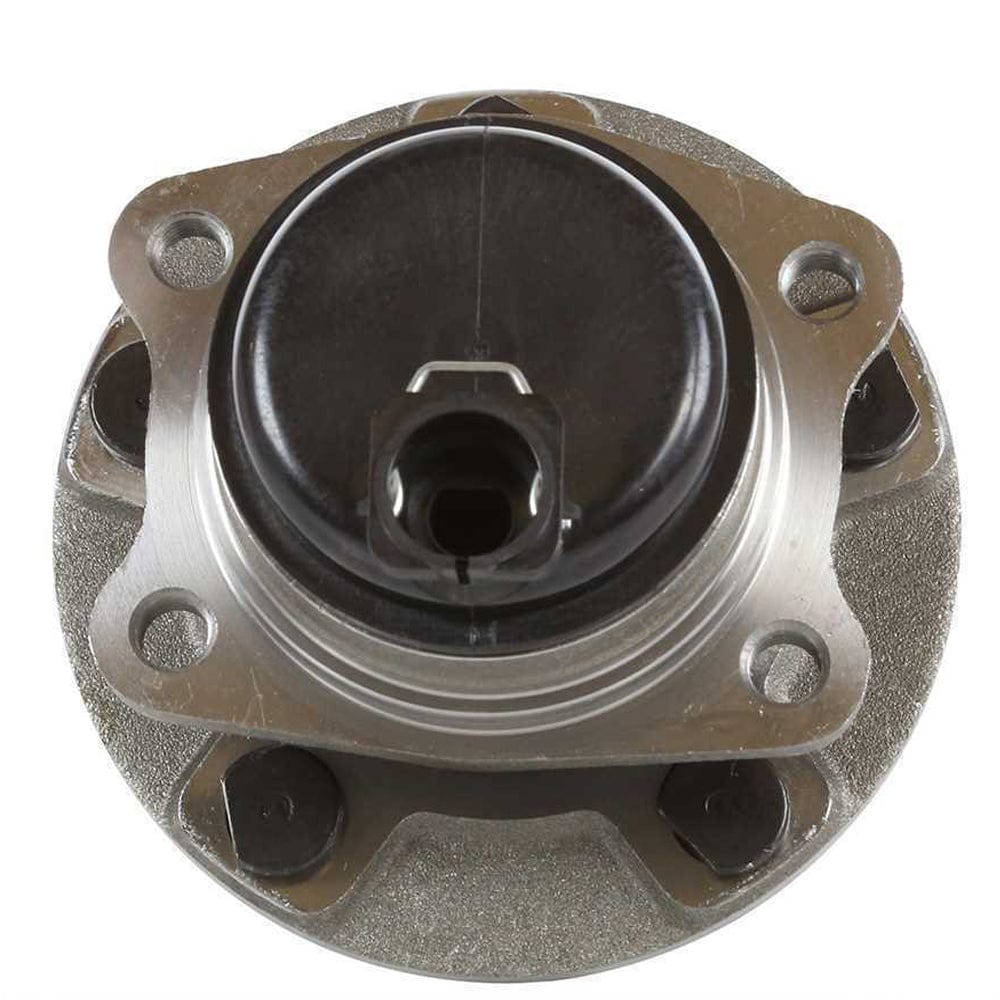

Dodge Grand Caravan Rear Wheel Bearing Hub Assembly w/ABS, 2WD FWD, 5 Lugs - 512169 (2 Pack)
Dodge Grand Caravan Rear Wheel Bearing Hub Assembly w/ABS, 2WD FWD, 5 Lugs - 512169 (2 Pack)
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing Fit Chrysler Voyager, Chrysler Town & Country Dodge Grand Caravan Wheel Hub-5 Lugs w/ABS 2WD FWD-512169 (2 Pack)
Rear wheel bearing and hub assembly with ABS sensor for 2WD Chrysler and Dodge models. Durable steel construction ensures reliable performance.
What's Included
- 2x Rear Wheel Bearing and Hub Assemblies (Part Number: 512169)
- ABS Sensor Included
- 5 Lug Bolts per Hub
- 4 Flange Bolts per Hub
Product Specifications
- Position: Driver (LH) or Passenger (RH) Side Rear
- ABS Connector Shape: Round
- Mounting Bolts to Knuckle: 4
- Lug Bolts: 5
- Driven: Non-Driven
- ABS Ring Type: Tone
- ABS Sensor Ring Teeth: 47
- Lug Bolt Thread Size: M12-1.50
- Total Hub Diameter: 5.511 Inch (140 mm)
- Hub Centerbore Diameter: 4.5 Inch (114.3 mm)
- Total Hub Height: 5.681 Inch (144.3 mm)
- Flange Diameter: 5.511 Inch (140 mm)
- Flange Offset: 1.889 Inch (48 mm)
- Flange Shape: Rectangle
- Flange Bolt Size: 1.381 Inch (35.1 mm)
- Flange Bolt Thread Size: M12-1.50
- Material: Steel
- Bearing Type: Ball
- Outer Ring Width: 2.38 Inch
- Inner Ring Width: 1.03 Inch
- Hub Pilot Diameter: 3.15 Inch (80 mm)
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2001-2007 | Chrysler | Town & Country | 2WD |
| 2001-2003 | Chrysler | Voyager | 2WD |
| 2001-2007 | Dodge | Caravan | 2WD |
| 2001-2007 | Dodge | Grand Caravan | 2WD |
