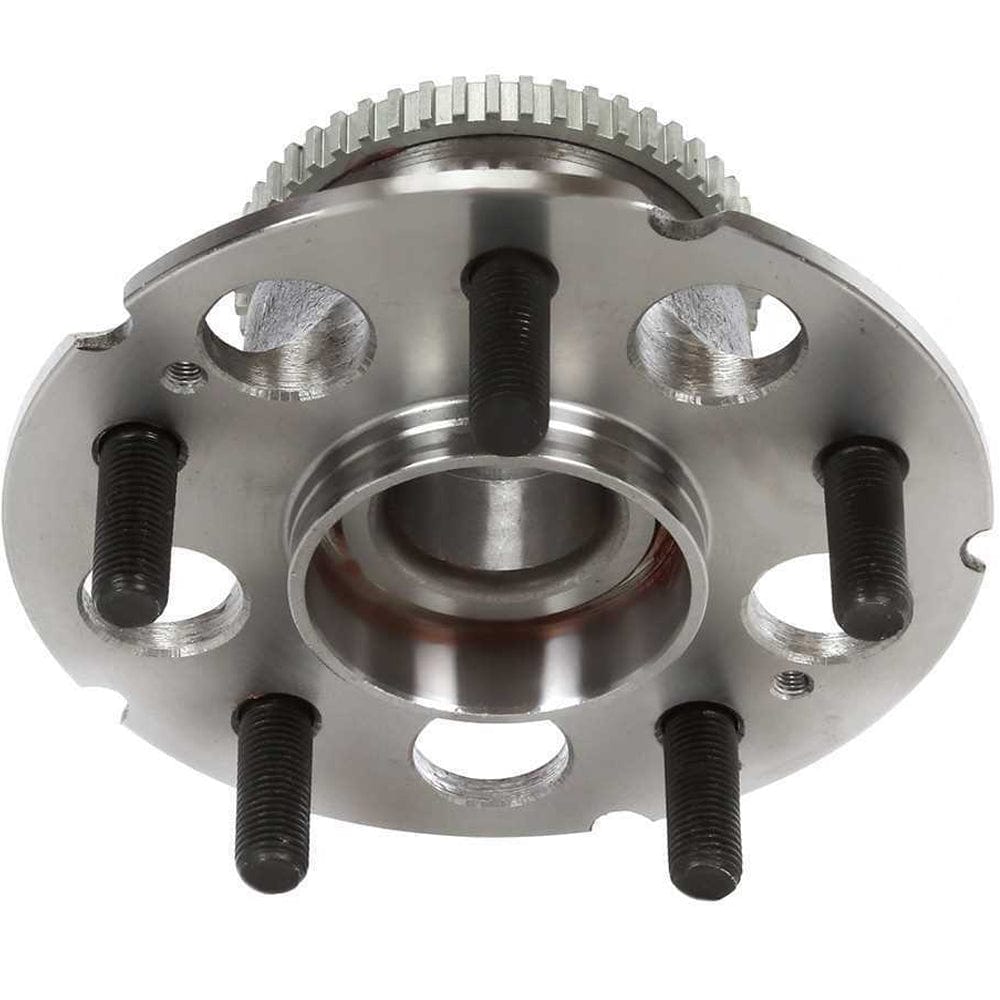

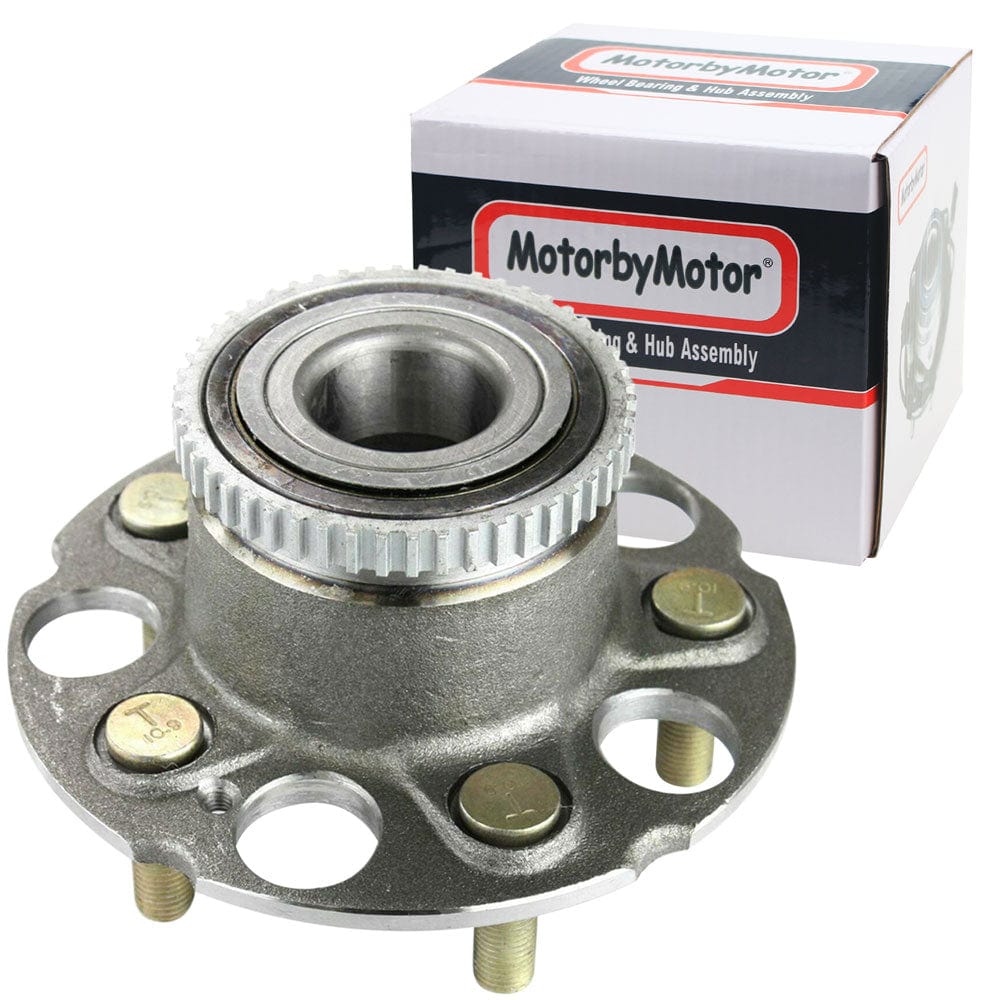

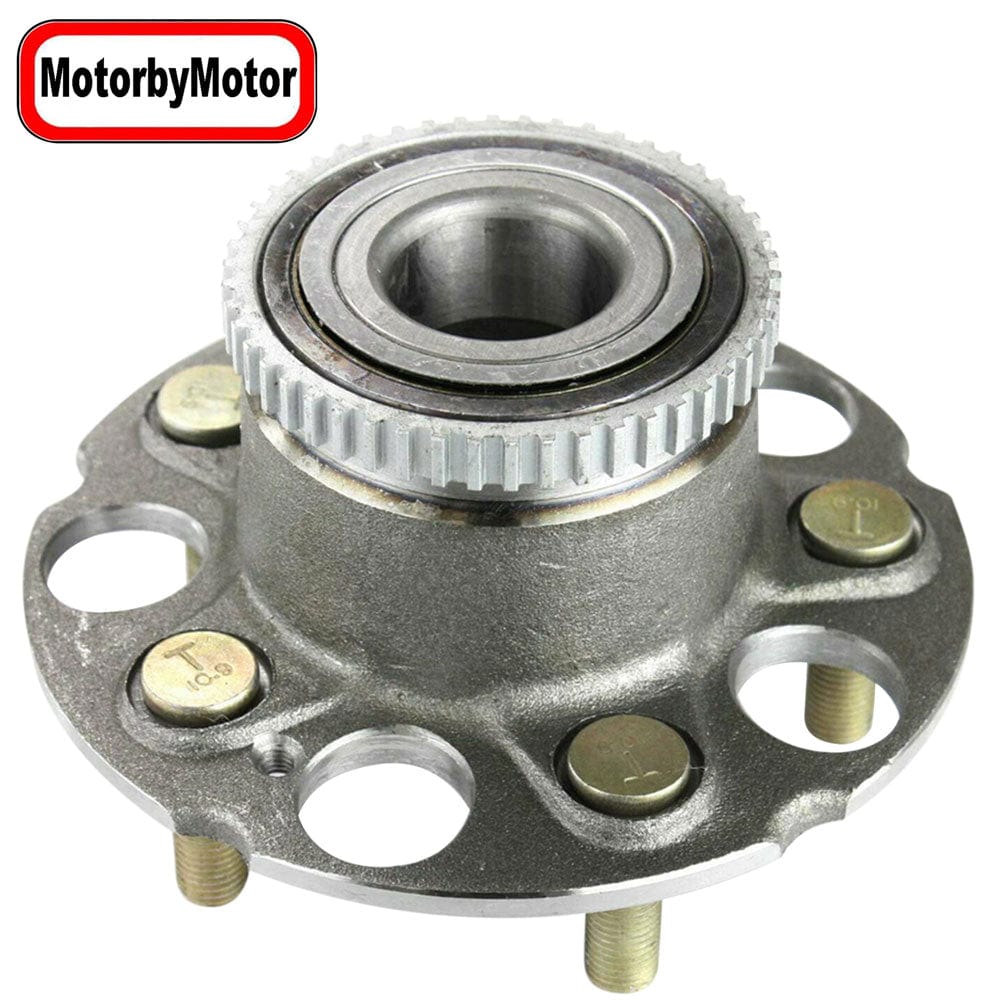

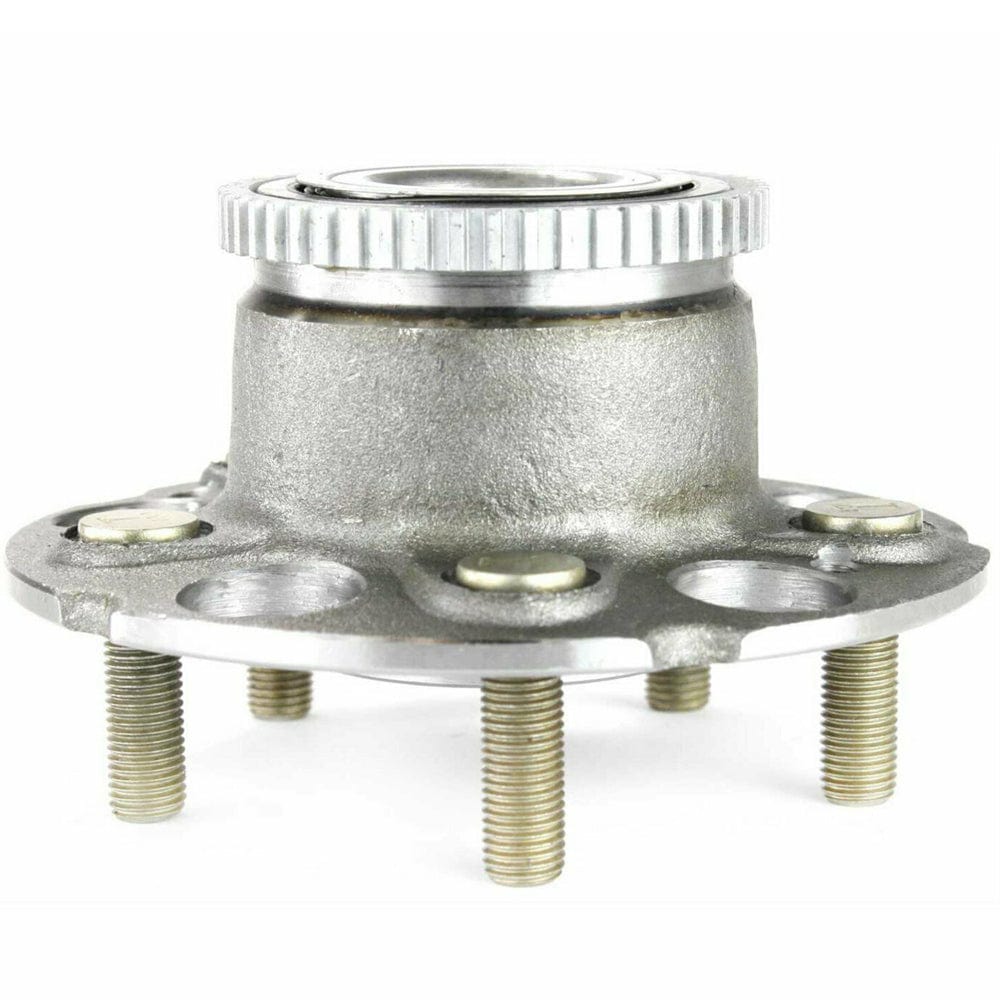

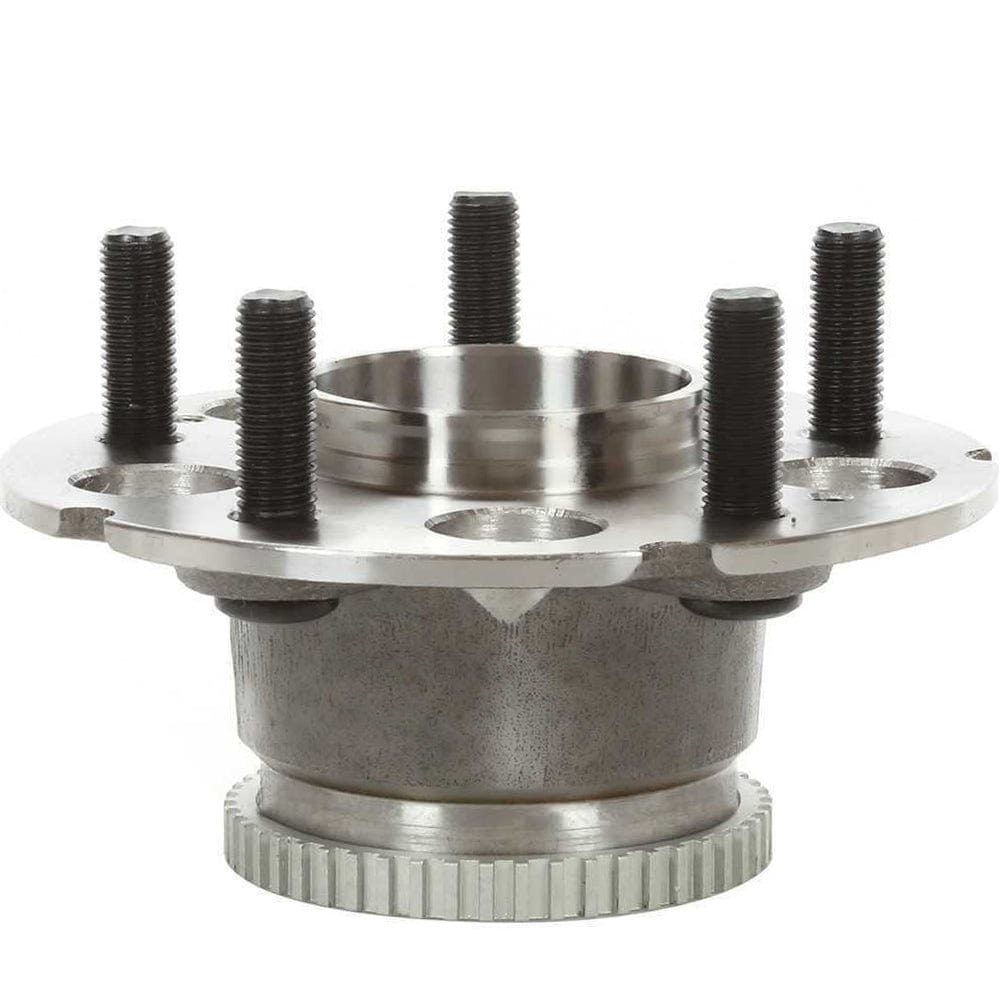

Honda Odyssey Rear Wheel Bearing Hub Assembly 1999-2004, w/ABS, 5 Lugs, 2WD FWD - 512180

Rear Wheel Bearing Fit 1999-2004 Honda Odyssey, 1999 Isuzu Oasis Wheel Hub w/ABS, 5 Lugs 2WD FWD, 512180

Rear wheel bearing with ABS sensor, fits specified Honda Odyssey and Isuzu Oasis models. Designed for 2WD and FWD with 5 lug bolts.

What's Included

• Rear wheel bearing assembly
• ABS sensor included
• 5 lug bolts included
• 5 flange bolts included
• Part Number: 512180

Product Specifications

• Position: Driver (LH) or Passenger (RH) side rear
• ABS Sensor Included: Yes
• Wiring Harness Included: No
• Mounting Bolts to Knuckle: 5
• Lug Bolts Included: 5
• Flange Bolts Included: 5
• Driven or Non-Driven: Non-Driven
• ABS Ring Type: Tone
• ABS Sensor Ring Teeth: 50
• ABS Sensor Ring Diameter: 3.307 Inch
• Total Hub Diameter: 5.984 Inch (152 mm)
• Hub Centerbore Diameter: 4.5 Inch (114.3 mm)
• Total Hub Height: 3.740 Inch (95 mm)
• Flange Diameter: 5.984 Inch (152 mm)
• Flange Offset: 2.440 Inch (62 mm)
• Flange Shape: Circle
• Flange Bolt Size: 1.240 Inch (31.5 mm)
• Flange Bolt Thread Size: M12-1.50
• Material: Steel
• Bearing Type: Ball
• Outer Ring Width: 2.91 Inch
• Inner Ring Width: 1.14 Inch
• Hub Pilot Diameter: 2.87 Inch (73 mm)

Vehicle Compatibility
