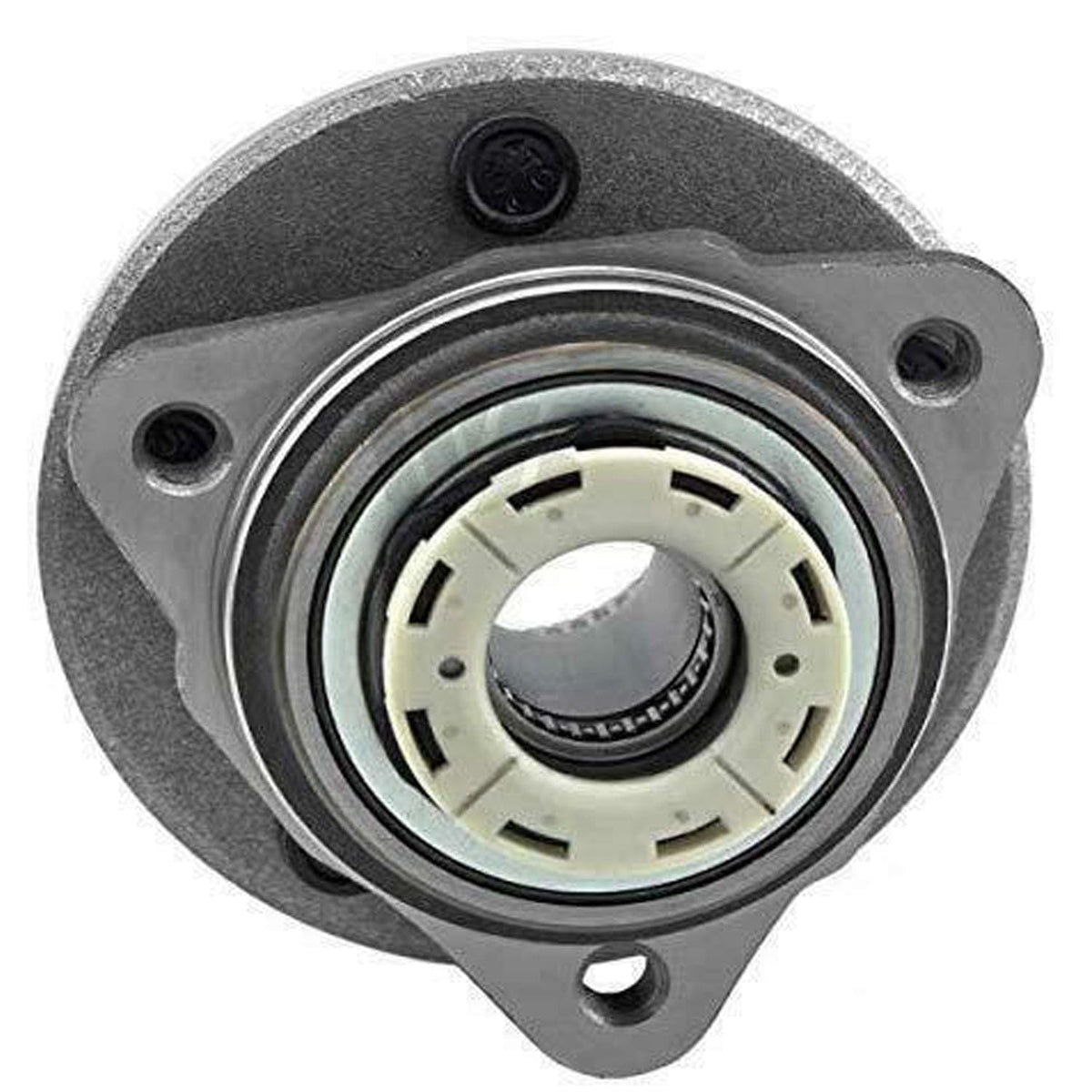

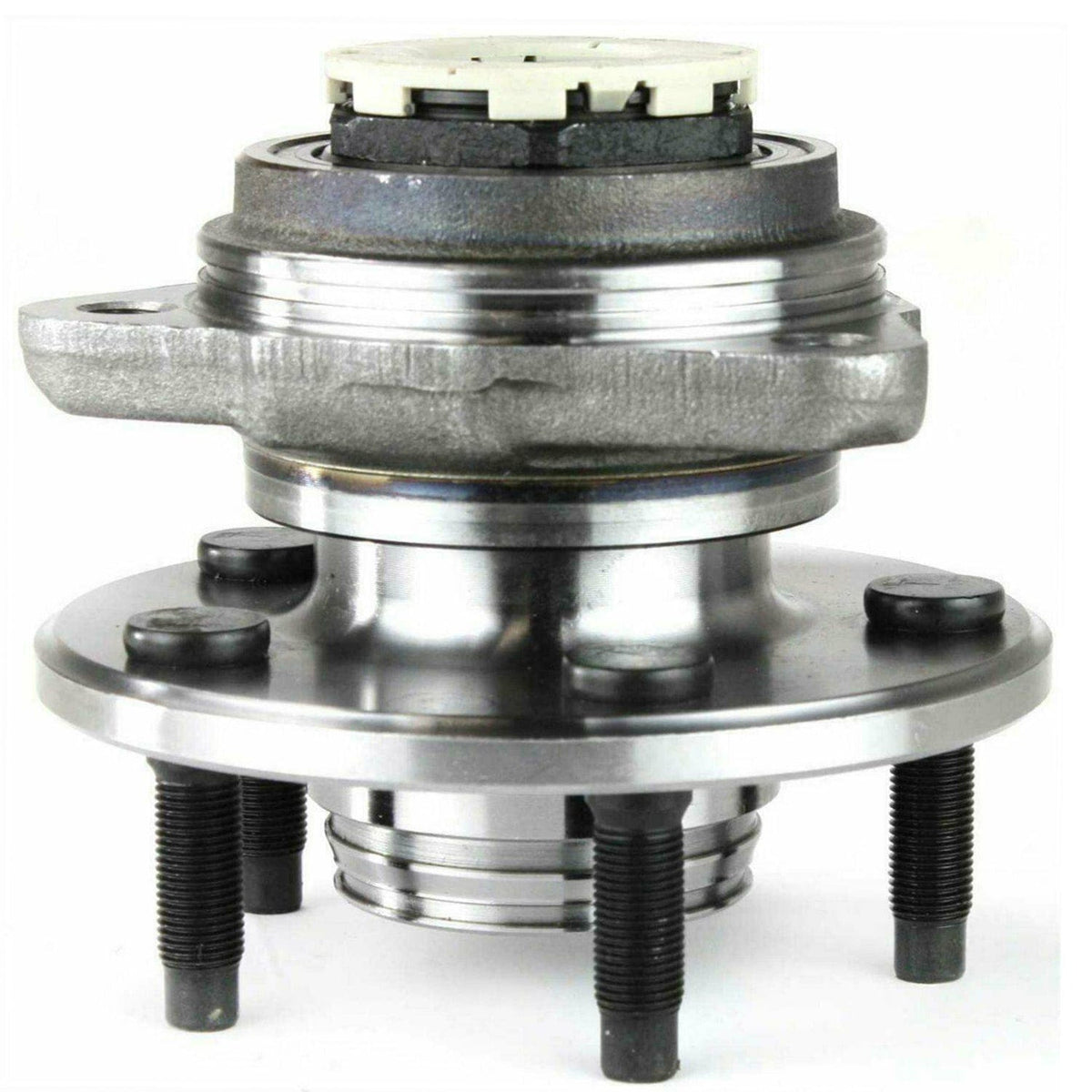

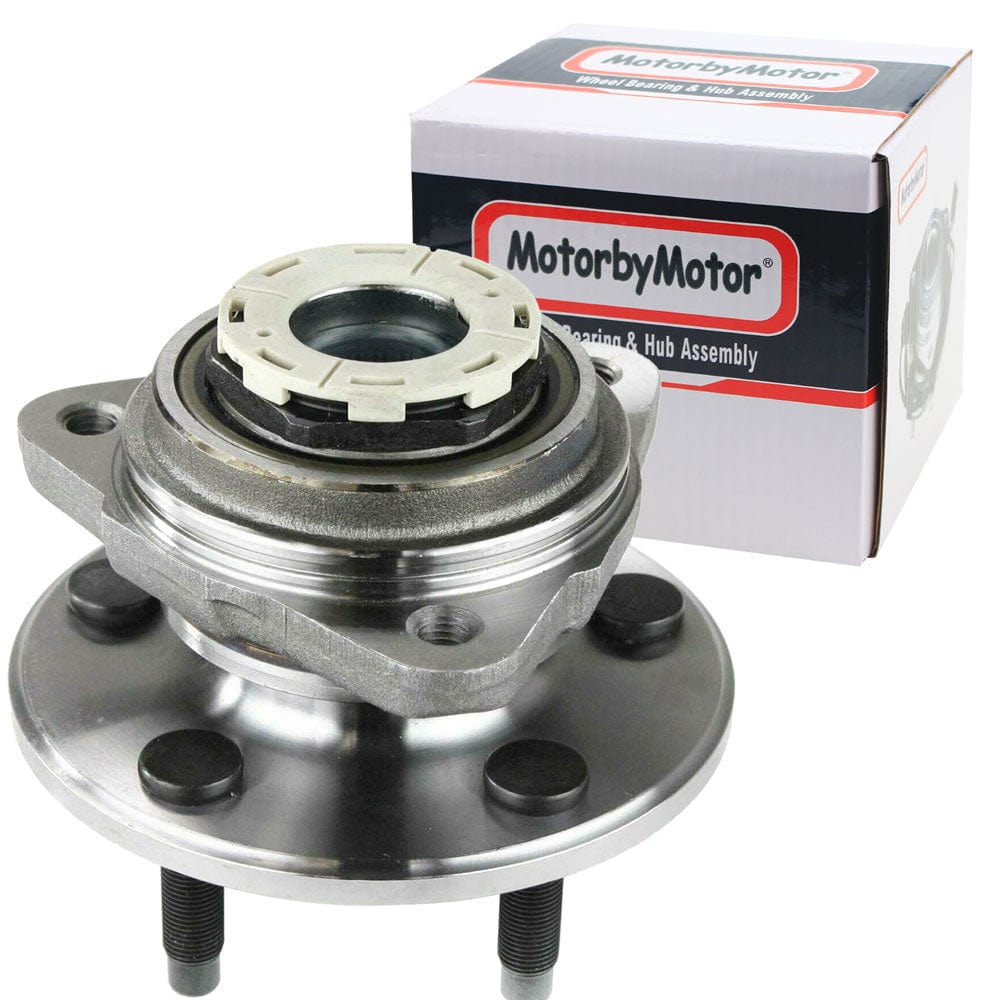

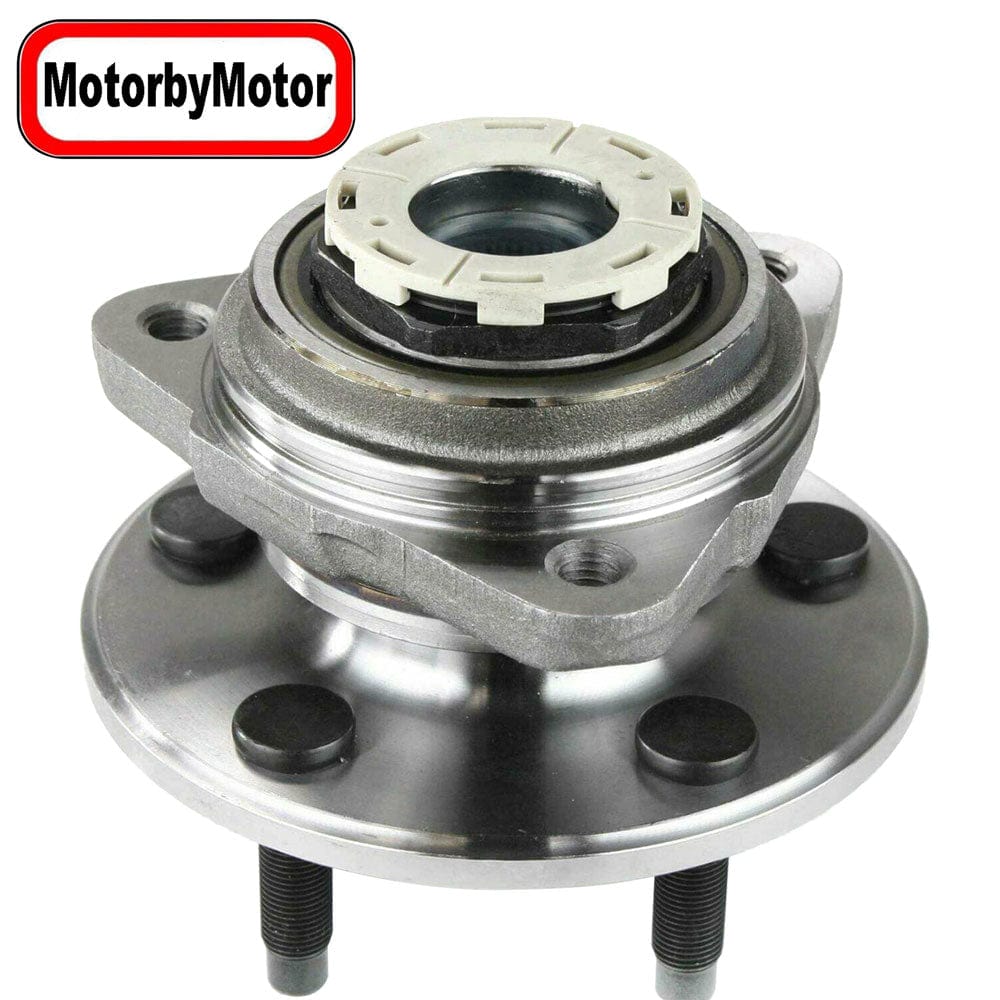

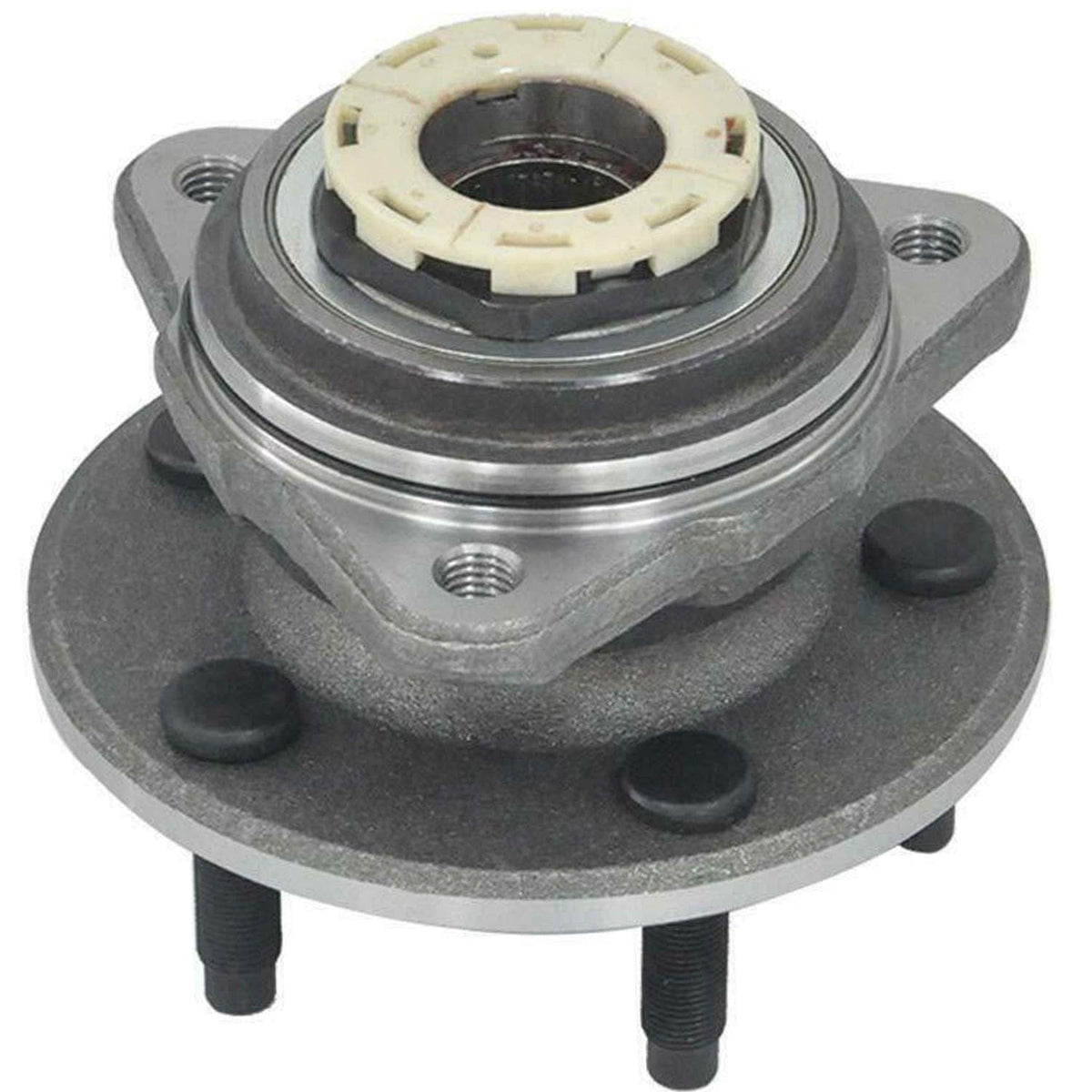

Mazda B3000 Front Wheel Bearing Hub Assembly 1998-2000 515026
Mazda B3000 Front Wheel Bearing Hub Assembly 1998-2000 515026
1000 in stock
Couldn't load pickup availability
MotorbyMotor Front Wheel Bearing Fit 1998-2000 Ford Ranger, Mazda B3000 B4000 Wheel Hub w/5 Lugs, 4WD, w/Rear ABS, 515026
Fit:
1998-2000 Ford Ranger (Front, 4WD)
1998-2000 Mazda B3000 (Front, 4WD)
1998-2000 Mazda B4000 (Front, 4WD)
Description:
Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: 2-Wheel ABS
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Non-Driven
Number Of Splines: 42
Lug Bolt Thread Size: 1/2-20 Inch
Total Hub Diameter (in): 5.881 Inch
Total Hub Diameter (mm): 149.4mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 4.751 Inch
Total Hub Height (mm): 120.7mm
Flange Diameter (in): 5.881 Inch
Flange Diameter (mm): 149.4mm
Flange Offset (in): 2.212 Inch
Flange Offset (mm): 56.2mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.692 Inch
Flange Bolt Size (mm): 43mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2 Inch
Inner Ring Width (in): 0.83 Inch
Hub Pilot Diameter (in): 2.828 Inch
Hub Pilot Diameter (mm): 71.85mm
