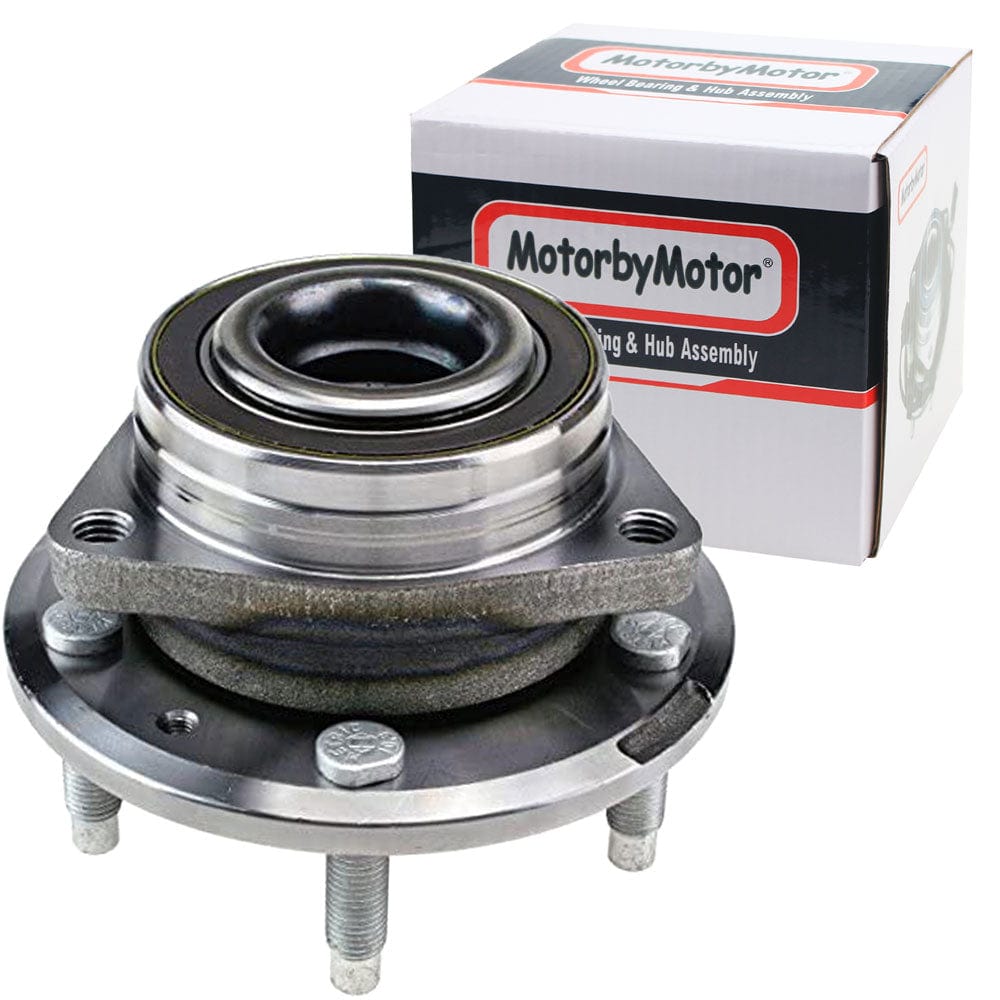

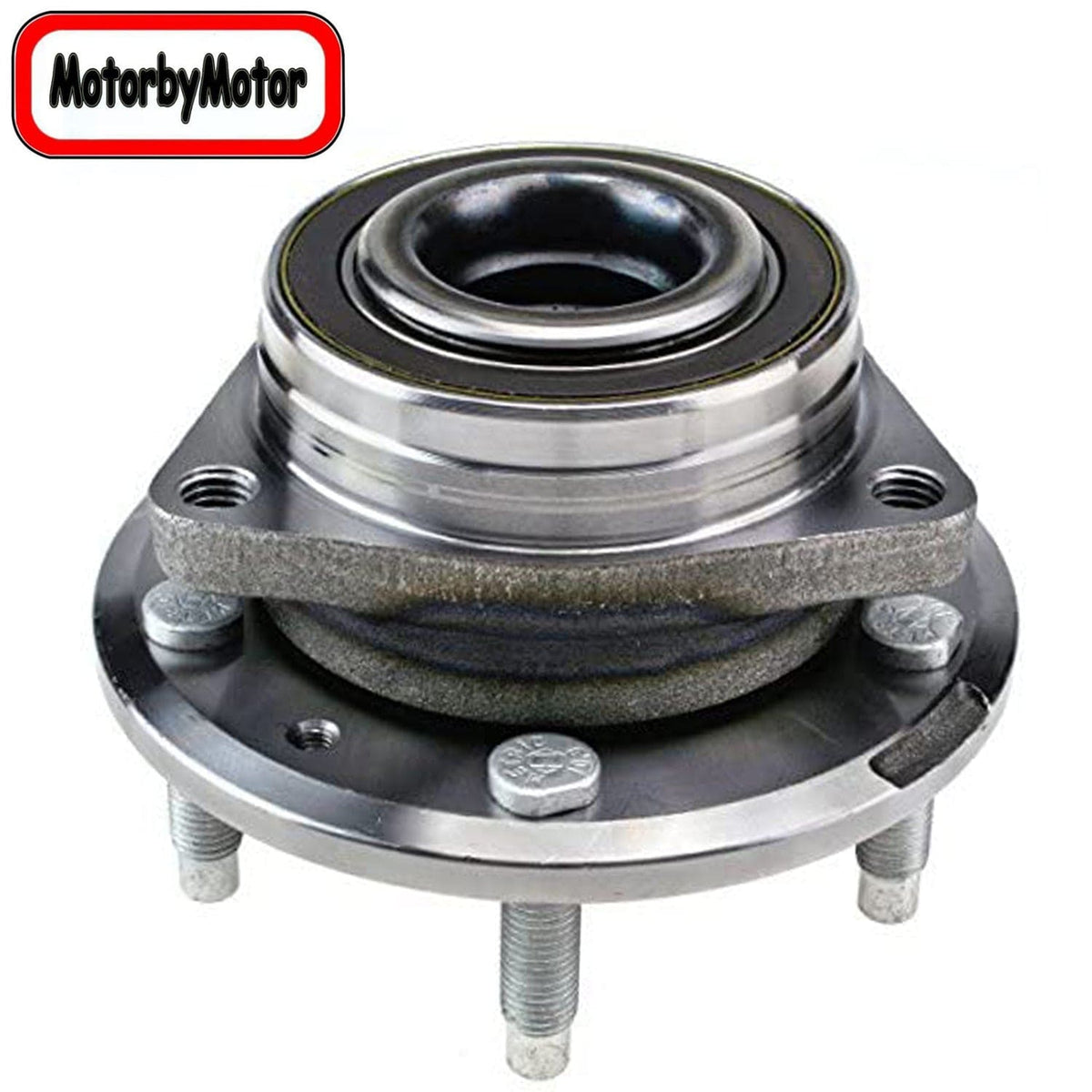

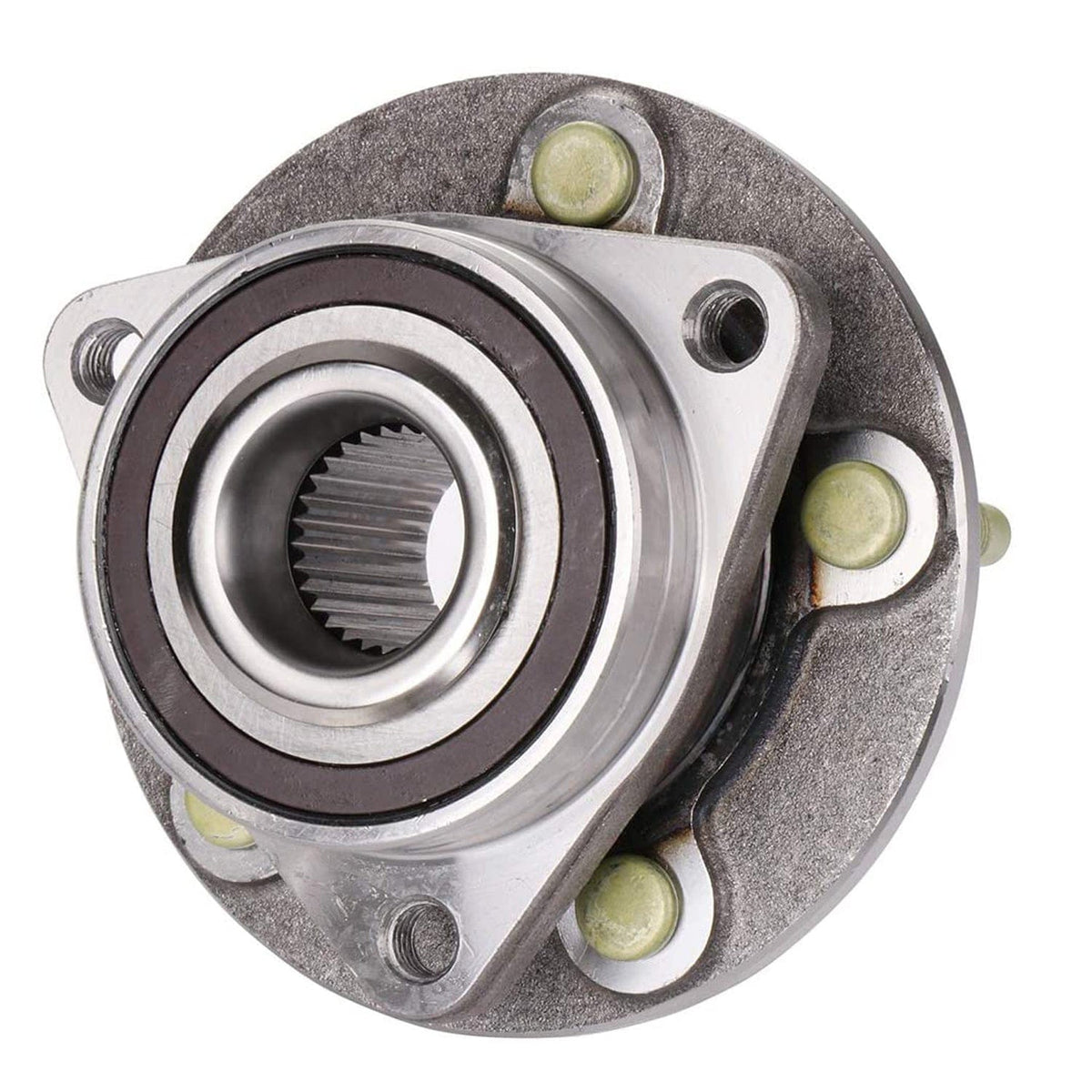

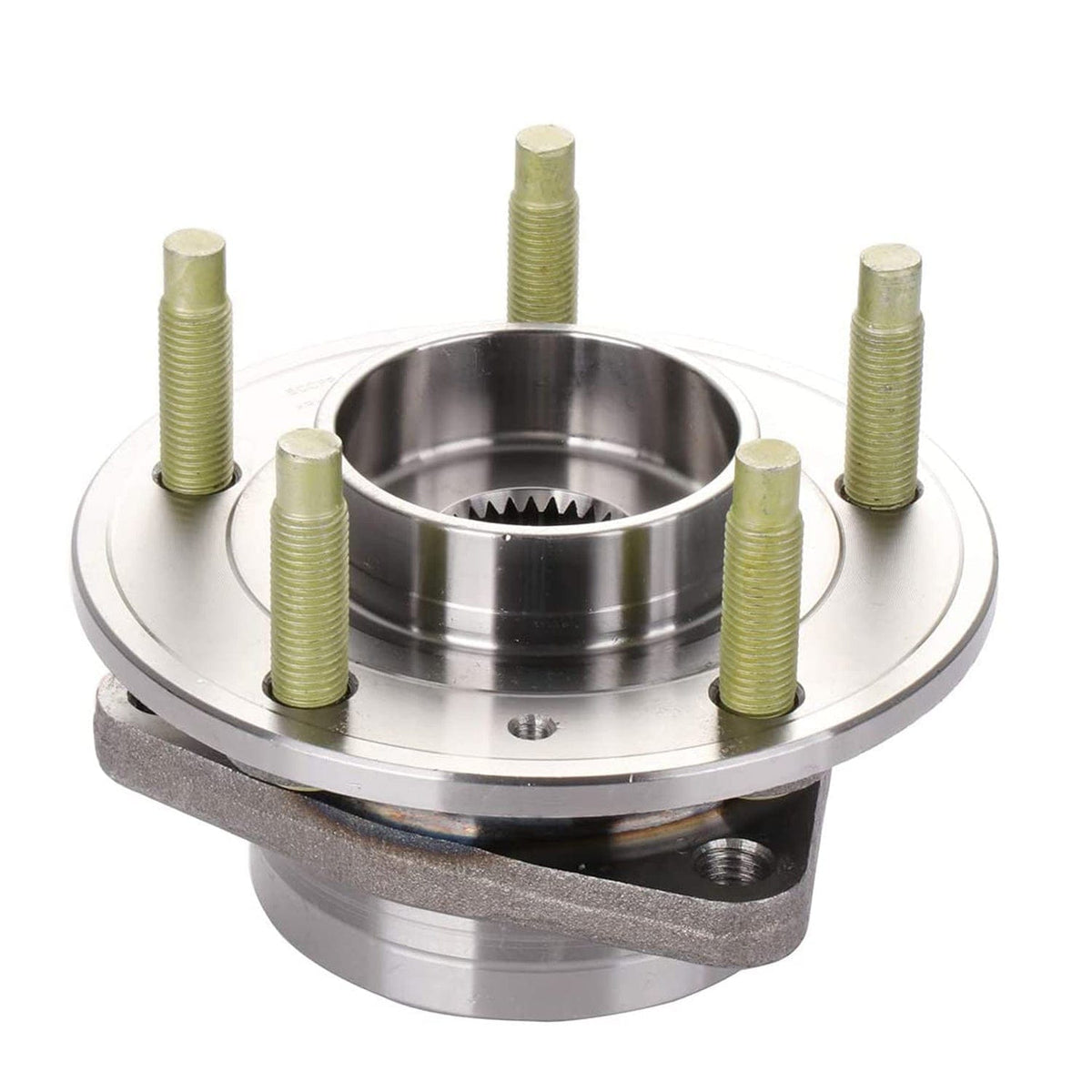

Buick Cascada Front Wheel Bearing Hub Assembly, 5 Lugs AWD - 513316 (2 Pack)

Front Wheel Bearing for Buick Cascada Verano, Cadillac ATS ELR,  Chevy Cruze Orlando Volt, Rear Wheel Hub 5 Lugs, AWD-513316

Fit the Following Vehicles:
Front:
2016 2017 Buick Cascada
2012 2013 2014 2015 2016 2017 Buick Verano
2013 2014 2015 Cadillac ATS (AWD)
2016 Cadillac ATS (AWD , 2.0L 4 Cyl Turbocharged)
2017 Cadillac ATS (AWD , 3.6L V6 Naturally Aspirated)
2017 Cadillac ATS (AWD, 2.0L 4 Cyl Turbocharged)
2014 2015 2016 Cadillac ELR
2014 2015 Chevrolet Cruze (2.0L 4 Cyl )
2012 2013 2014 Chevrolet Orlando
2011 2012 2013 2014 2015 Chevrolet Volt
Rear:
2013 2014 2015 Cadillac ATS
2016 Cadillac ATS (3.6L V6 Turbocharged)
2016 Cadillac ATS (2.0L 4 Cyl Turbocharged)
2016 Cadillac ATS (3.6L V6 Naturally Aspirated)
2016 Cadillac ATS (2.5L 4 Cyl Naturally Aspirated)
2017 Cadillac ATS (3.6L V6 Naturally Aspirated)
2017 Cadillac ATS (2.0L 4 Cyl Turbocharged)

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front Rear
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Magnetic
Number Of ABS Sensor Ring Teeth: 48
Total Hub Diameter (in): 5.75 Inch
Hub Centerbore Diameter (in): 4.53 Inch
Total Hub Height (in): 4.08 Inch
Flange Diameter (in): 2.78 Inch
Flange Offset (in): 1.65 Inch
Hub Pilot Diameter (in): 3.59 Inch
Flange Bolt Size (in): 1.59 Inch
Flange Bolt Thread Size: M12-1.50
Flange Shape: Round
Bearing Type: Ball
Material: Steel
Gasket Or Seal Included: Yes
