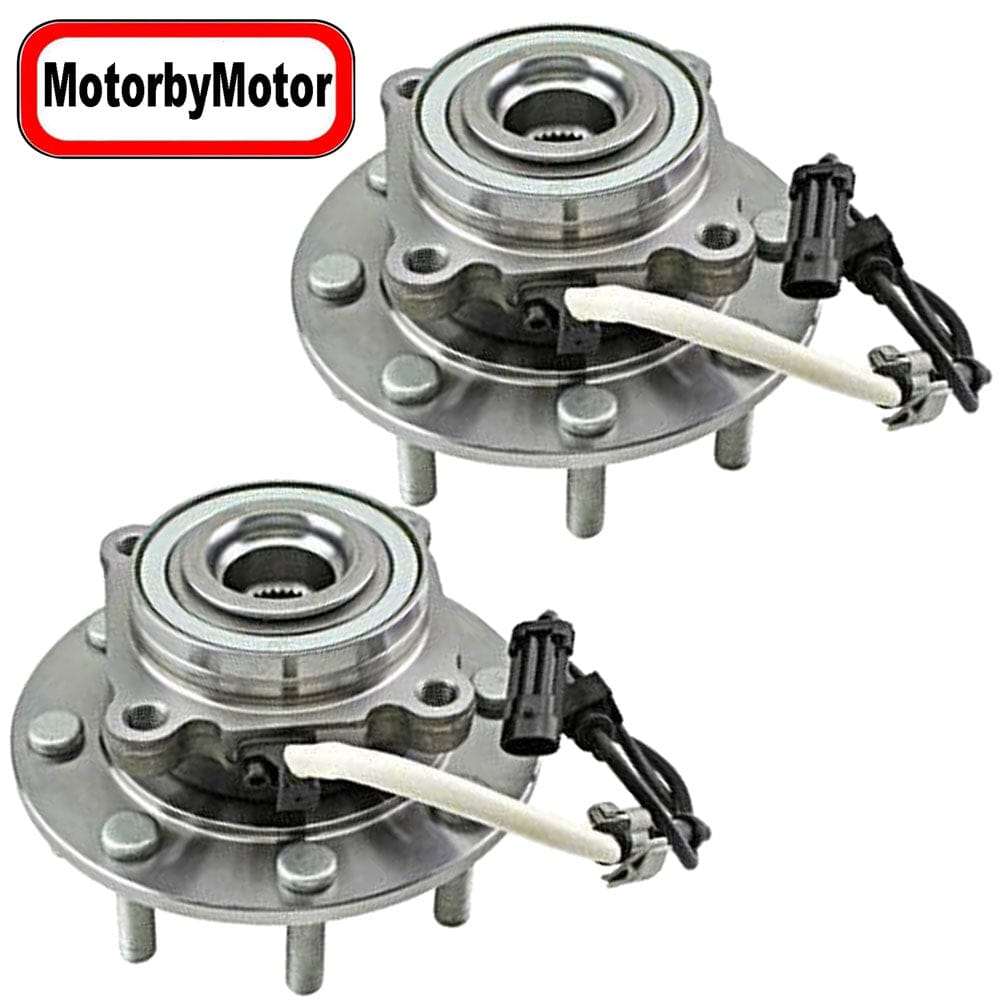

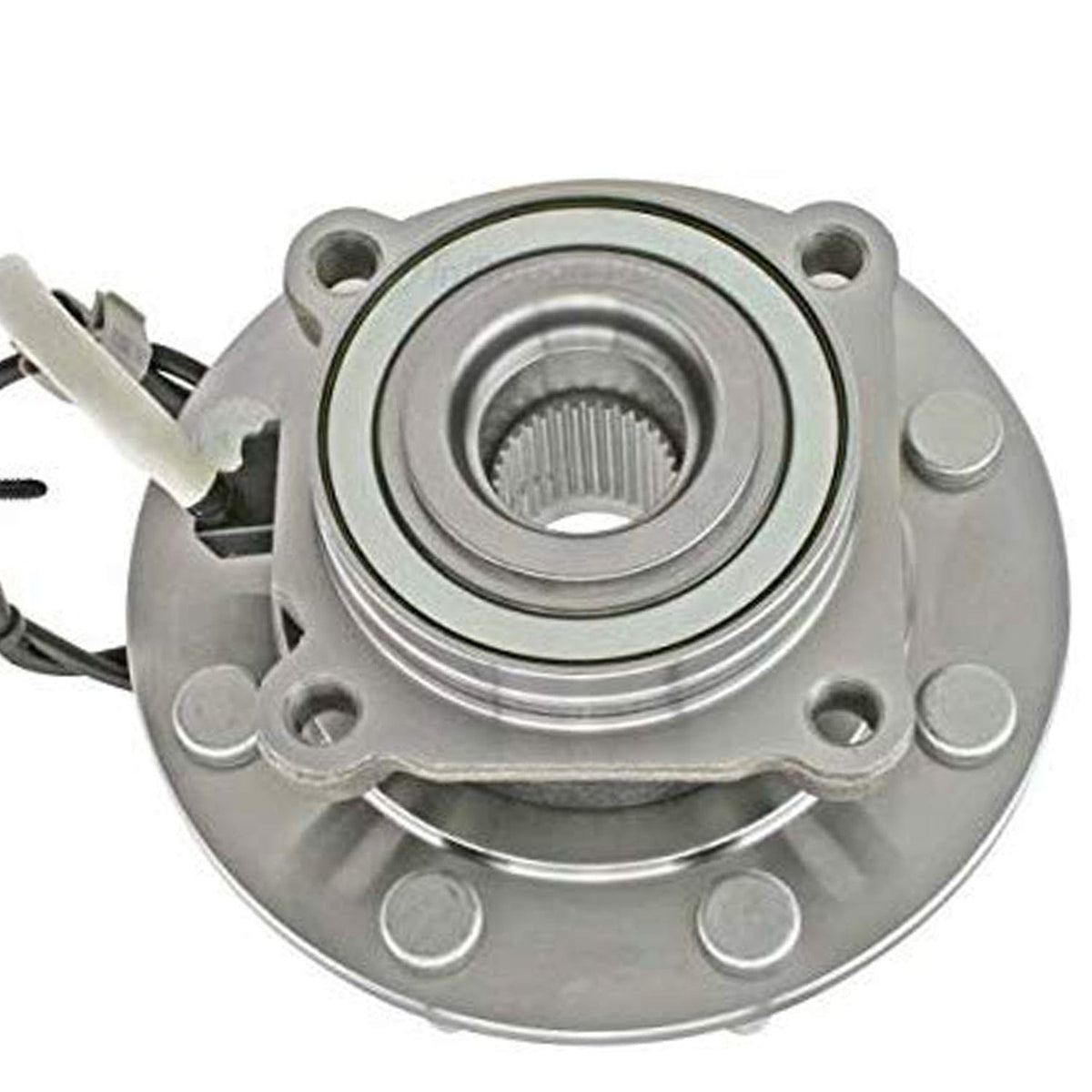

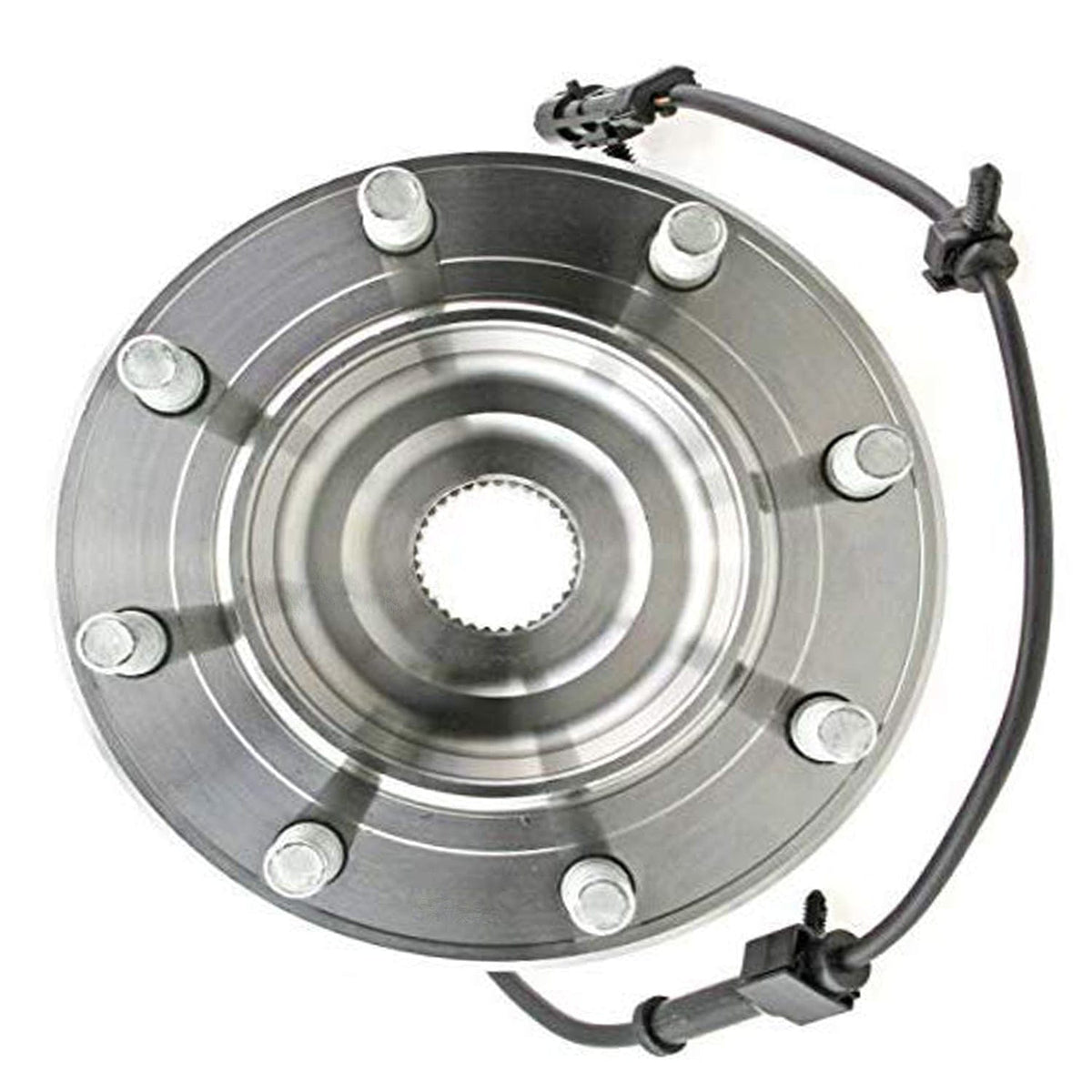

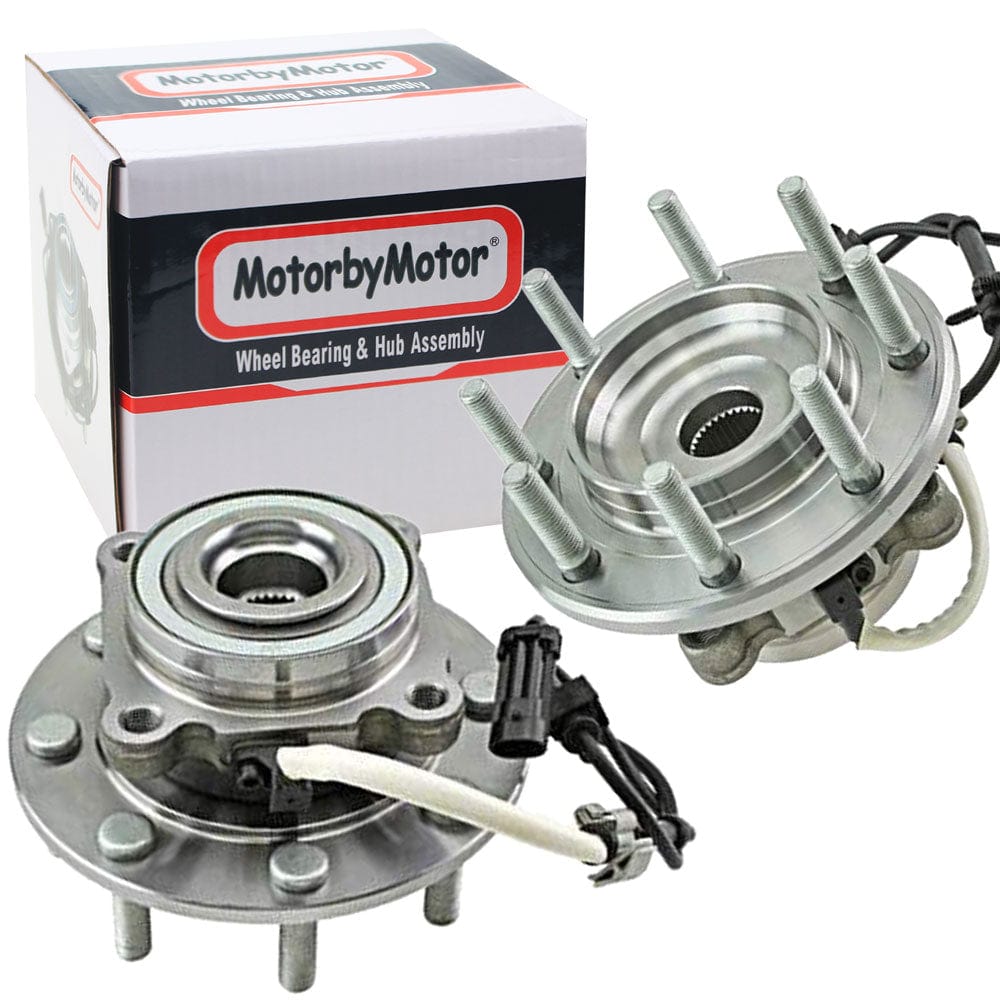

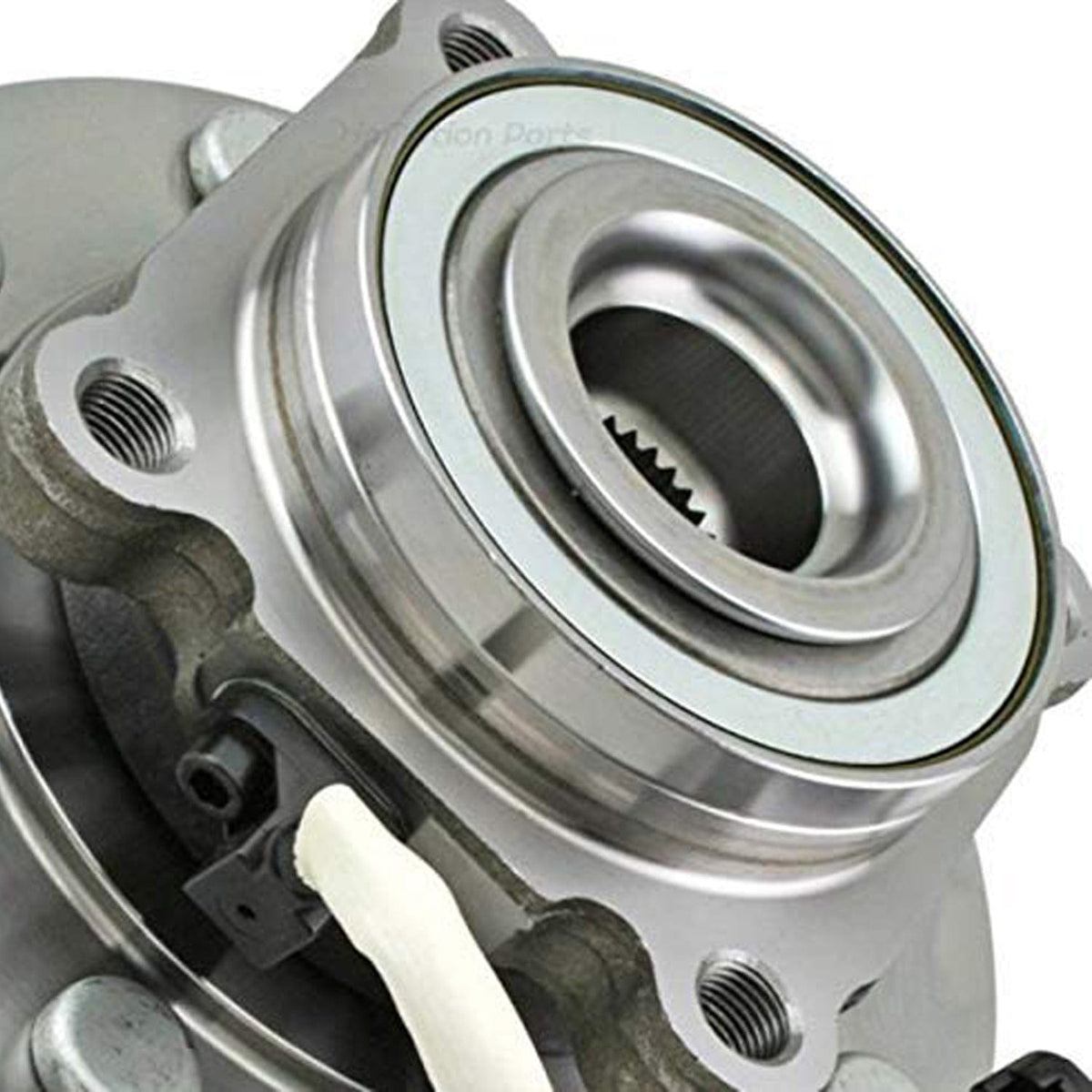

Chevy Silverado 3500 Classic Front Wheel Bearing Hub Assembly

Front Wheel Bearing Fit Chevrolet Silverado 3500 Classic GMC Sierra, Wheel Hub 8 Lugs 2WD RWD, w/ABS-515087  (2 Pack)

Fit:
2001 2002 2003 2004 2005 2006 Chevrolet Silverado 3500 (Front, RWD)
2001 2002 2003 2004 2005 2006 GMC Sierra 3500 (Front, RWD)
2007 Chevrolet Silverado 3500 Classic (Front, RWD)
2007 GMC Sierra 3500 Classic (Front, RWD)

Description:

Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 31.5 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 55
Total Hub Diameter (in): 7.85 Inch
Total Hub Diameter (mm): 199.3mm
Hub Centerbore Diameter (in): 6.5 Inch
Hub Centerbore Diameter (mm): 165.1mm
Total Hub Height (in): 5.42 Inch
Total Hub Height (mm): 137.6mm
Flange Diameter (in): 4.64 Inch
Flange Diameter (mm): 117.8mm
Flange Offset (in): 2.27 Inch
Flange Offset (mm): 57.6mm
Flange Shape: Round
Flange Bolt Size (in): 2.16 Inch
Flange Bolt Size (mm): 54.9mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 4.17 Inch
Hub Pilot Diameter (mm): 105.82mm
