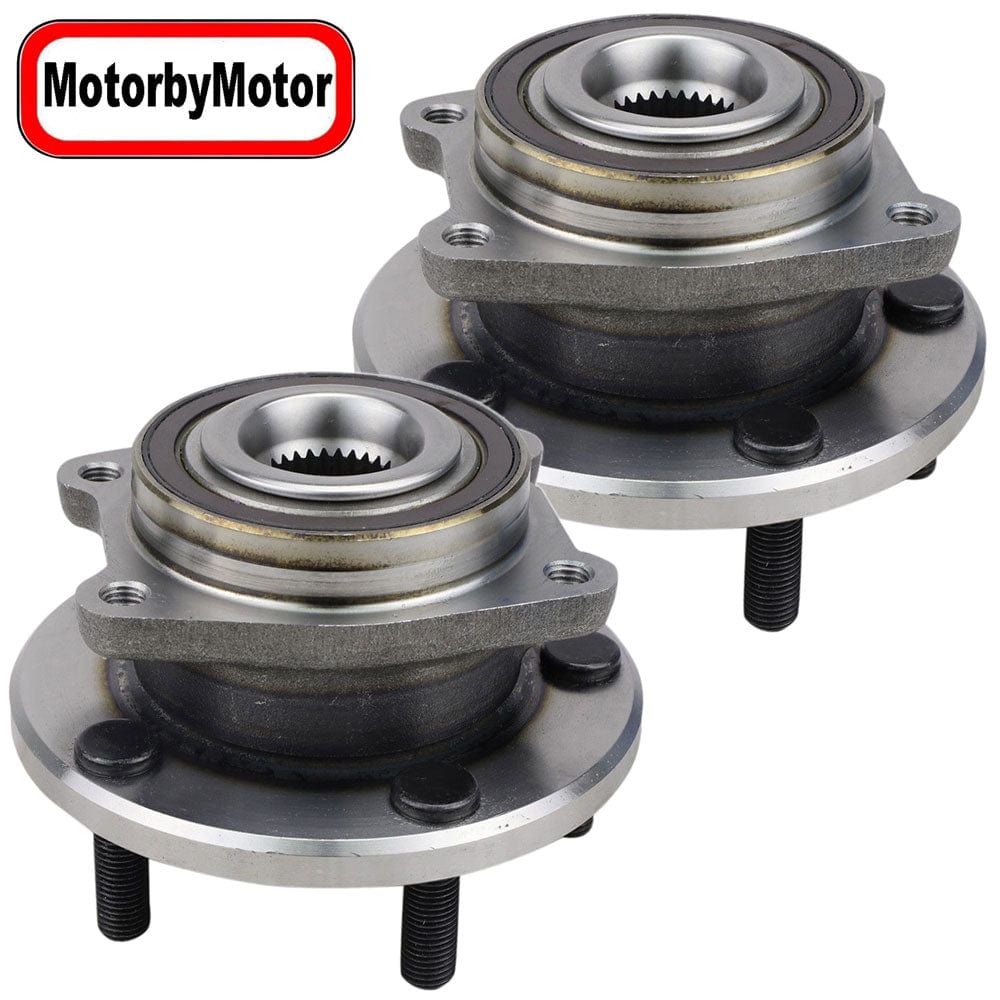

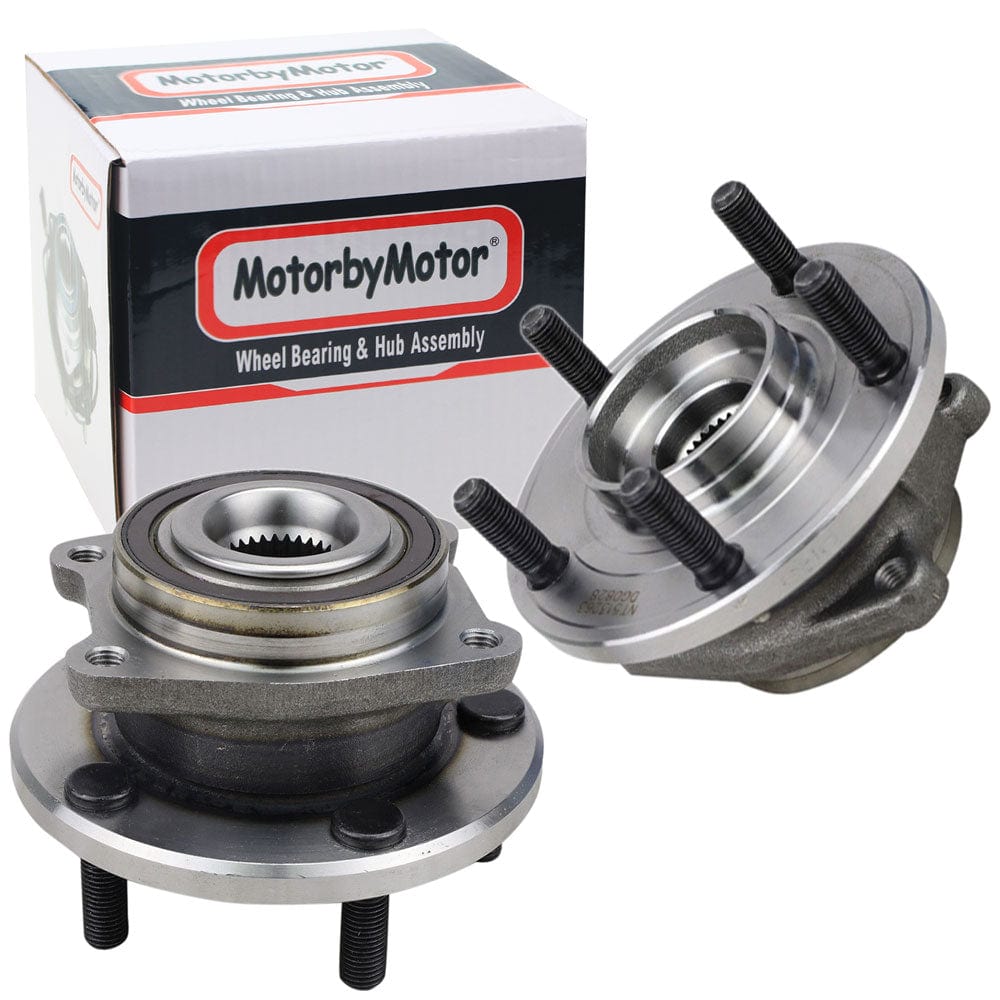

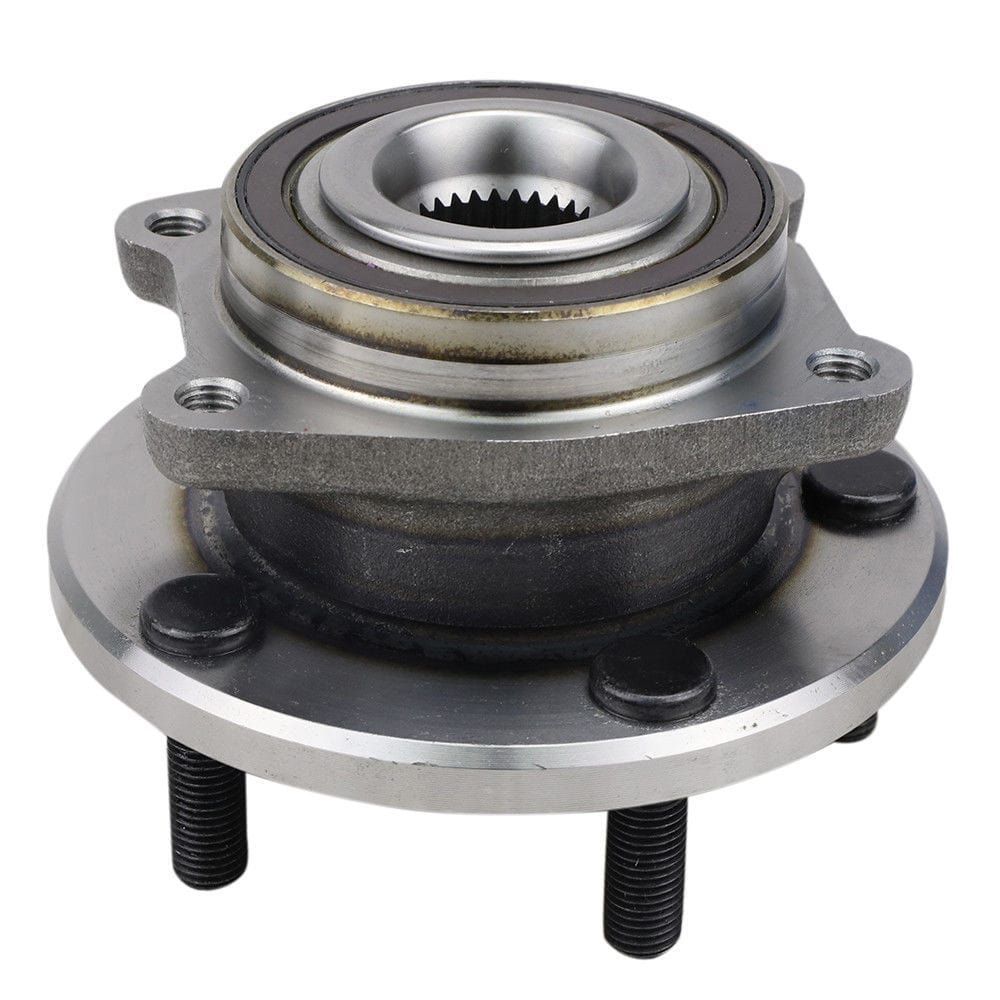

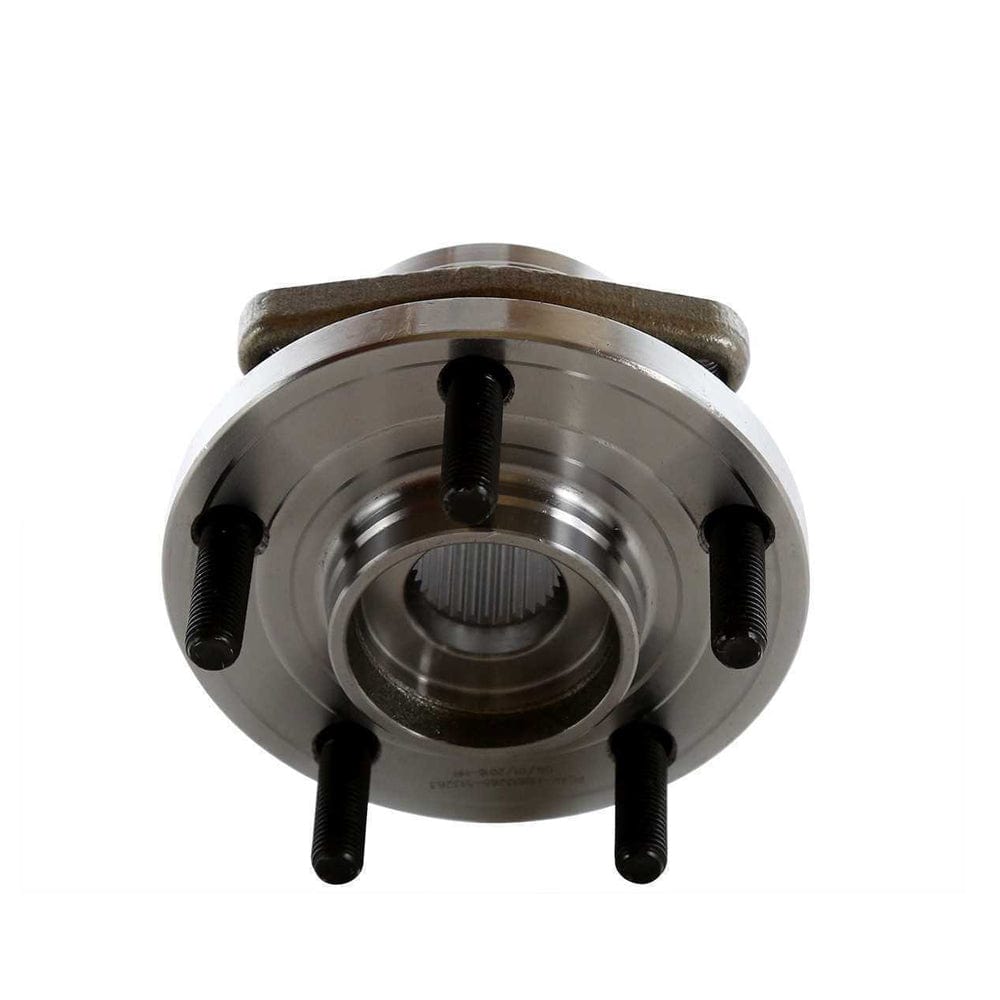

Chrysler 200 Front Wheel Bearing Hub Assembly, 5 Lugs w/ABS - 513263 (2 Pack)

Front Wheel Bearing Fit Chrysler 200, Chrysler Sebring, Dodge Avenger,Dodge Caliber Wheel Hub w/ABS 5 Lugs, 513263 (2 Pack)

Fit
2011 2012 2013 2014 Chrysler 200 LX
2011 2012 2013 2014 Chrysler 200 Limited
2011 2012 2013 2014 Chrysler 200 S
2011 2012 2013 2014 Chrysler 200 Touring
2007 2008 2009 2010 Chrysler Sebring
2007 2008 2009 2010? Sebring Convertible
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger Express
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger Heat
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger Lux
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger Mainstreet
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger R/T
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger SE
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger SE CVP (Can)
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger SXT
2008 2009 2010 2011 2012 2013 2014 Dodge Avenger SXT PLUS
2009 Dodge Caliber

Description:

Complete Wheel Hub and Bearing Assemblies
Position: Front Left and Right(Driver or Passenger)Side
Spline Quantity:32
Bolt Circle Diameter (MM):114.3
Flange Bolt Hole Quantity:4
Wheel Pilot Diameter (MM):67.0
Brake Pilot Diameter (MM):69.0
Wheel Stud Quantity:5
Hub Pilot Diameter (MM):85.0
Flange Shape:Modified
Flange Offset (MM):48.6
Flange Diameter (MM):141.0

Installation Steps:
Remove the Wheel Cover and Wheel Tire.
Remove the Caloper.
Remove the Break Pads and Axle Nut.
After Removing, Put the New Bearing.
Finally, Put All the Removed Parts Ordinally.
