Ford Crown Victoria Front Wheel Bearing Hub Assembly, 2WD RWD w/ABS - 513230

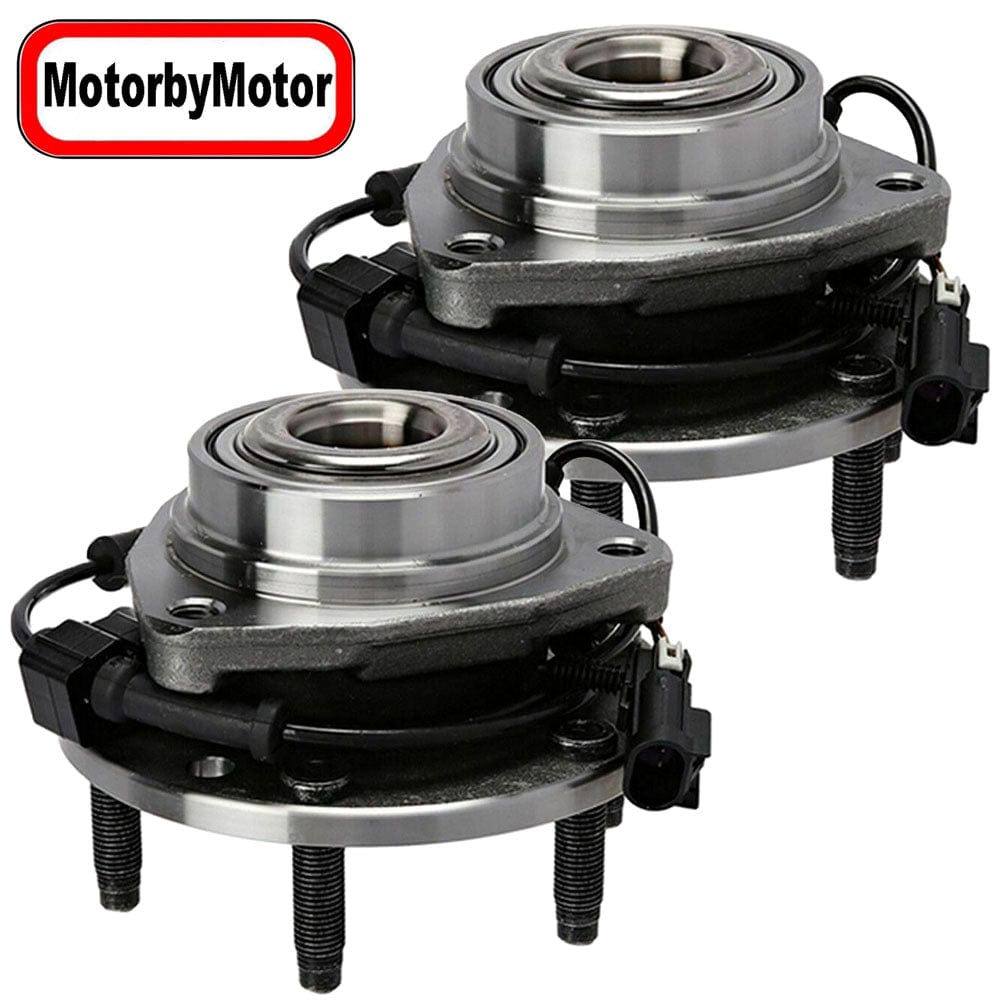

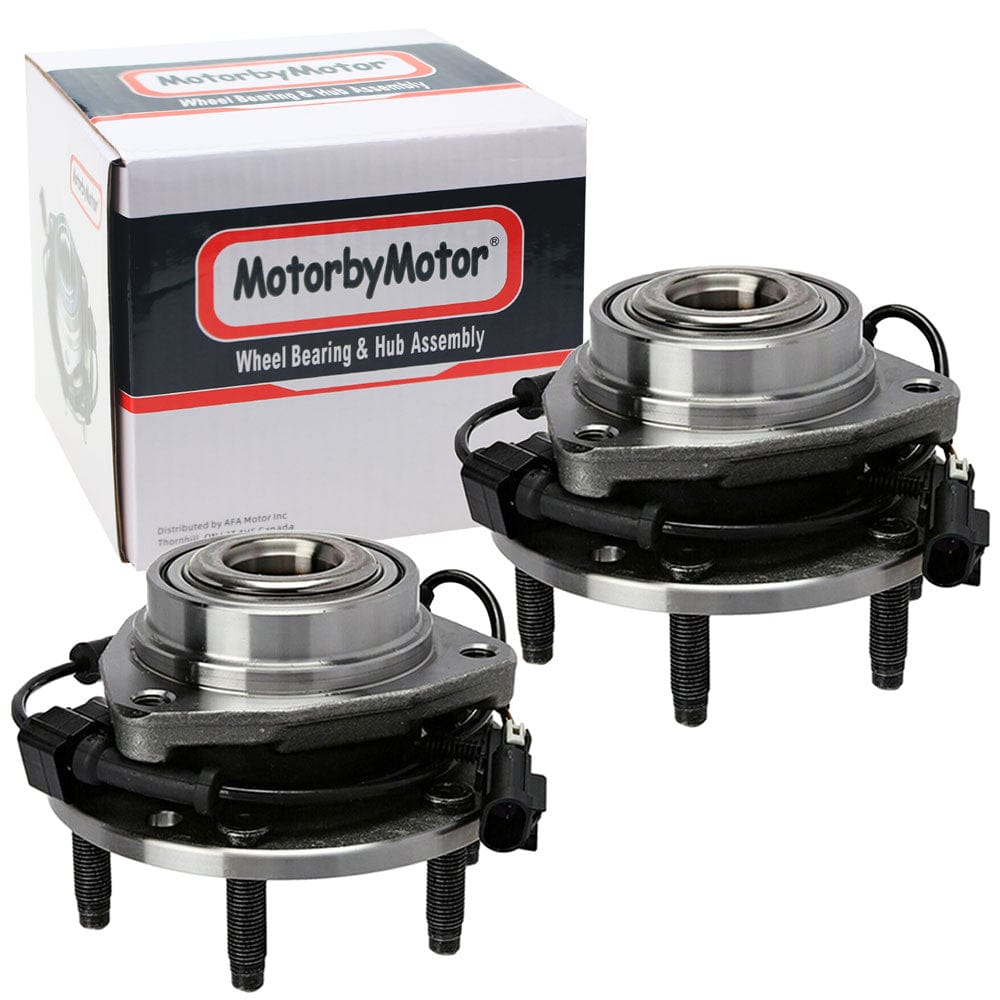

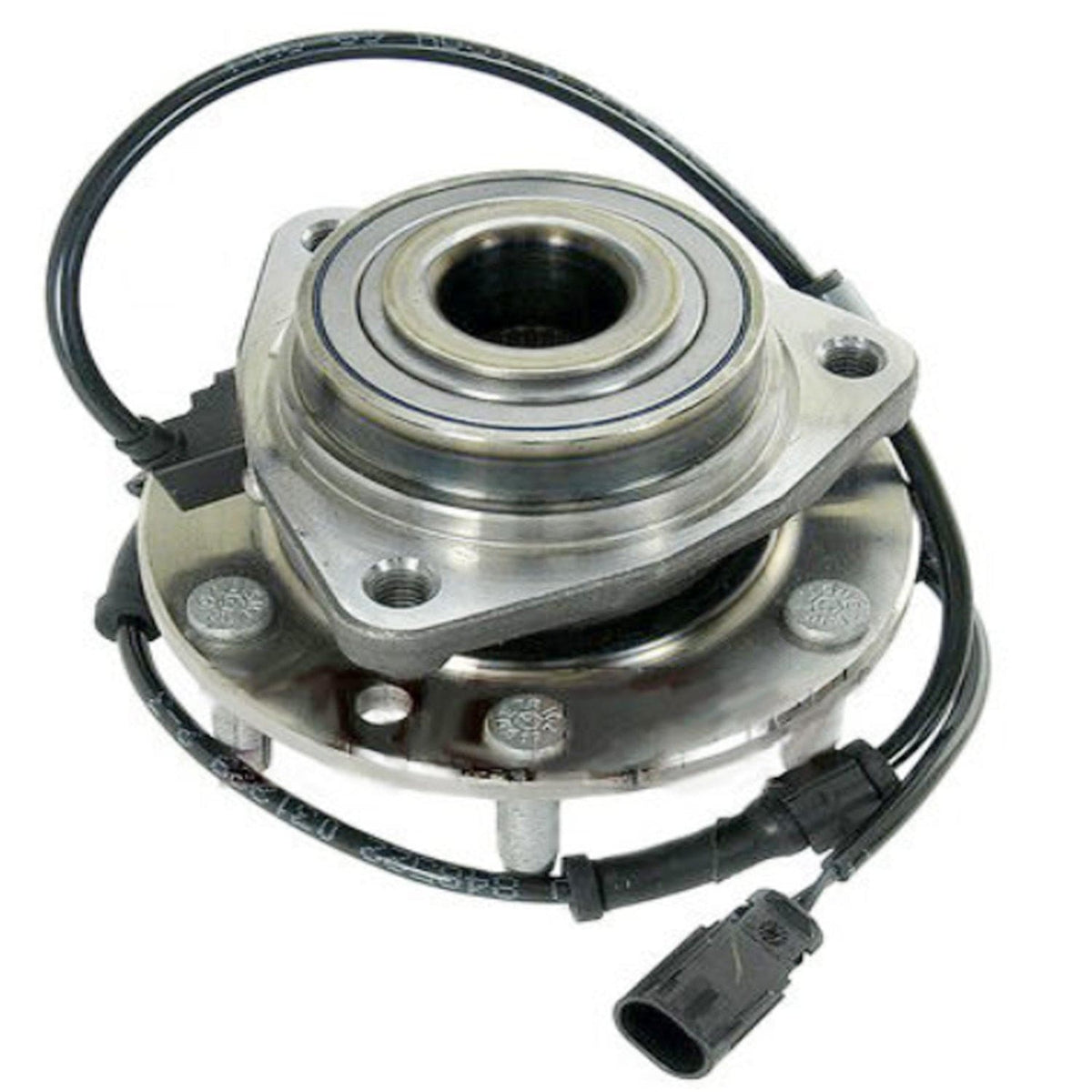

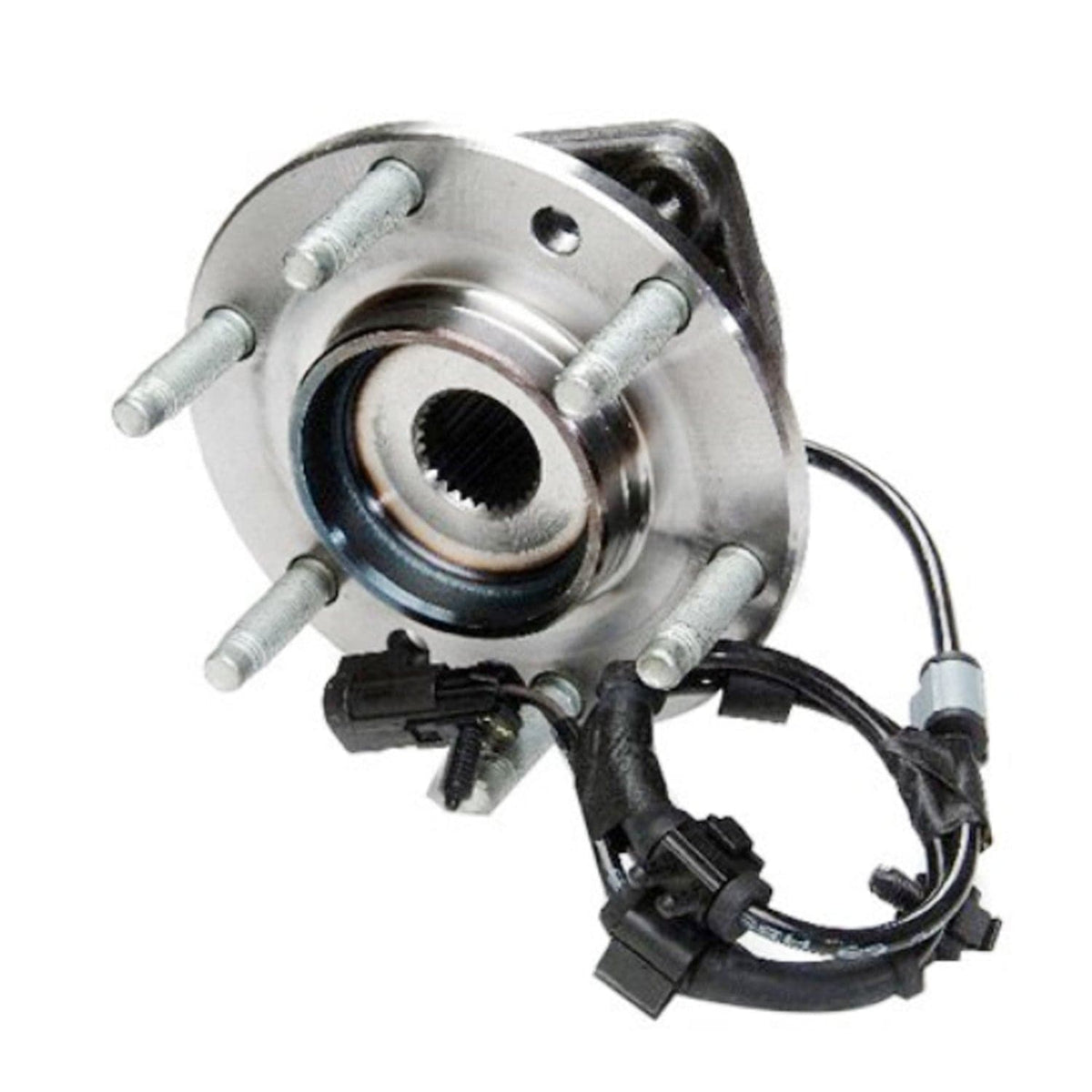

Front Wheel Bearing Fit Chevy, GMC Envoy, Isuzu Ascender, Buick Rainier, SAAB 9-7X, Oldsmobile Bravada Wheel Hub w/ABS, 6 Lugs-513188 (2PACK)

Front wheel bearing with ABS sensor and wiring harness. Fits multiple Chevy, GMC, Buick, Isuzu, Saab, and Oldsmobile models. Durable steel construction with 6 lug bolts.

What's Included

• 2 Front Wheel Bearings (Part No. 513188)
• ABS Sensors Included
• Wiring Harnesses (37.4 Inch Length)
• 6 Lug Bolts per Hub
• 3 Flange Bolts per Hub

Product Specifications

• Position: Driver (LH) or Passenger (RH) Side Front

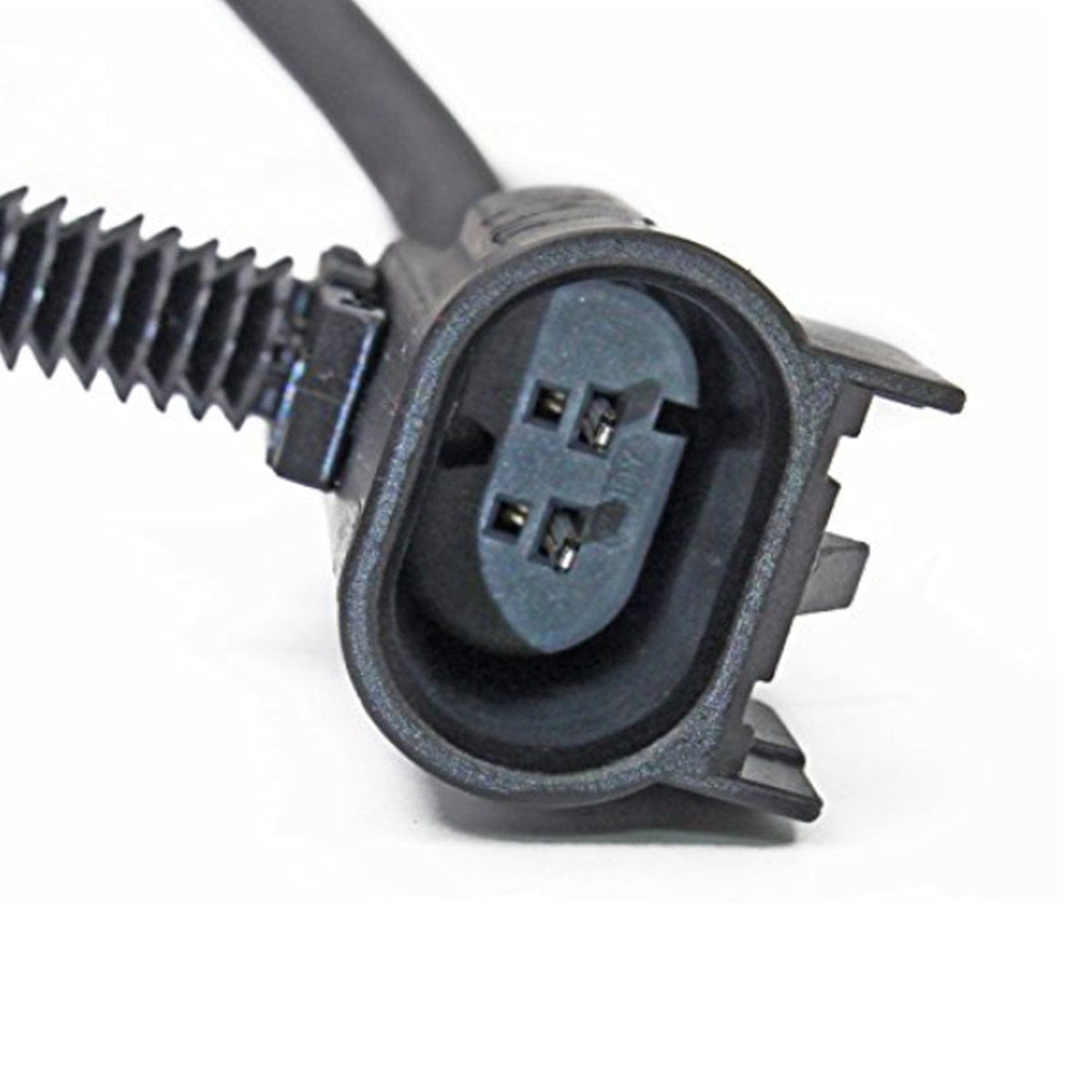

• ABS Sensor: Included, Round Connector
• Mounting Bolts to Knuckle: 3
• Lug Bolts: 6
• Driven: Non-Driven
• Number of Splines: 27
• ABS Ring Teeth: 55
• Lug Bolt Thread Size: M12-1.50
• Total Hub Diameter: 5.905 in (150 mm)
• Hub Centerbore Diameter: 5 in (127 mm)
• Total Hub Height: 4.649 in (118.1 mm)
• Flange Diameter: 5.925 in (150.5 mm)
• Flange Offset: 1.850 in (47 mm)
• Flange Shape: Triangle
• Flange Bolt Size: 1.645 in (41.8 mm)
• Outer Ring Width: 3.67 in
• Inner Ring Width: 0.75 in
• Hub Pilot Diameter: 3.61 in (91.8 mm)
• Flange Bolt Thread Size: M12-1.75
• Material: Steel
• Bearing Type: Ball
