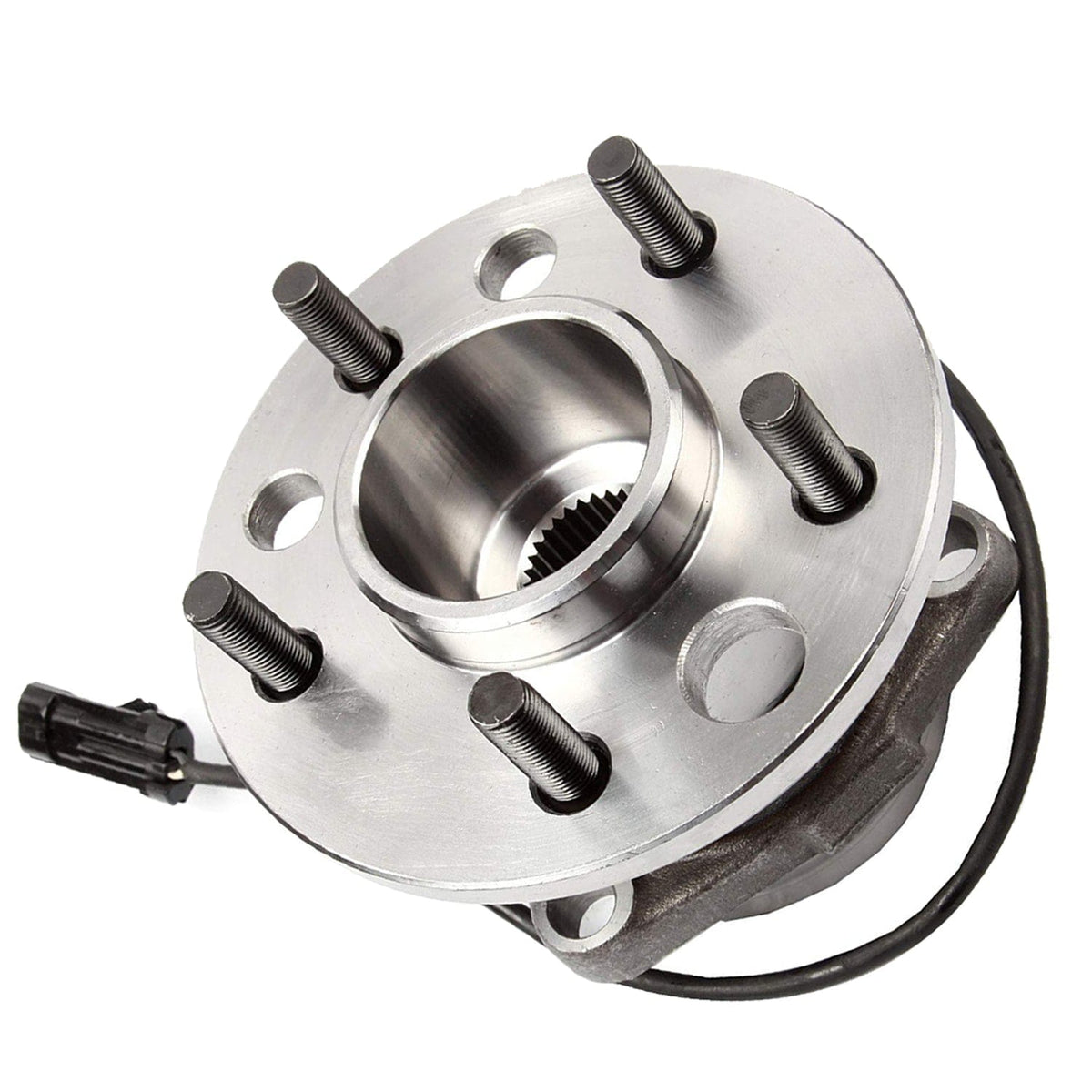

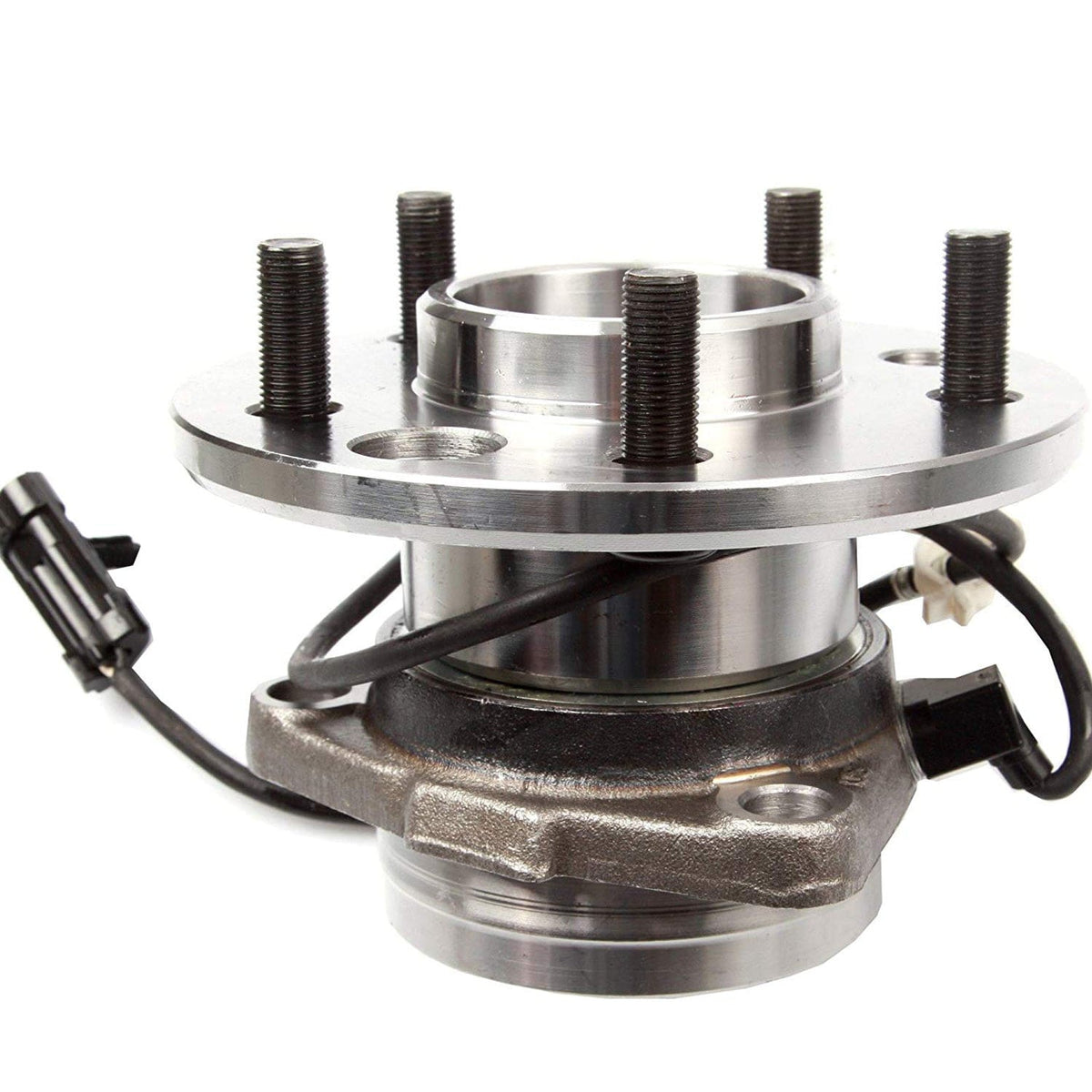

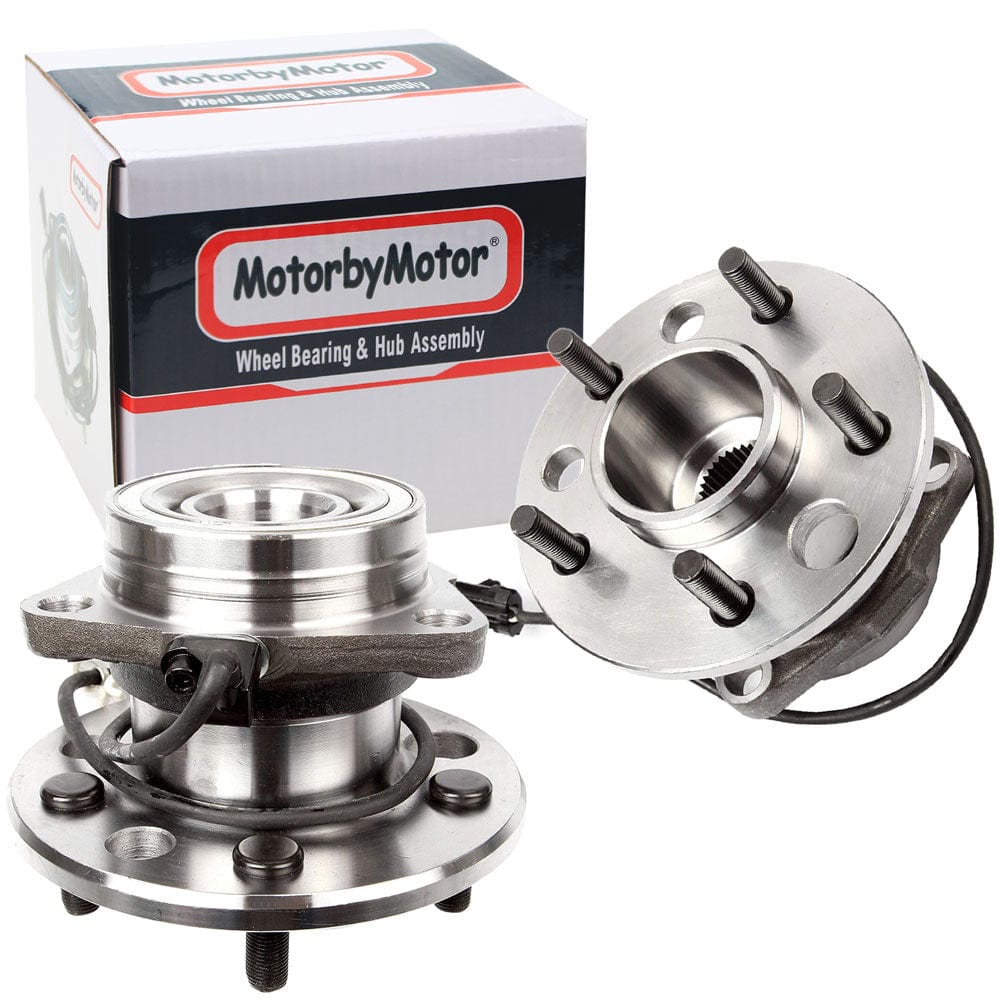

Chevrolet Astro Front Wheel Bearing Hub Assembly, 5 Lugs AWD w/ABS -- 515019 (2 Pack)

Front Wheel Bearing Fit 1995-2002 GMC Safari, Chevrolet Astro Wheel Hub w/ABS 5 Lugs AWD, 515019 (2 Pack)

Fit:
1995-2002 Chevrolet Astro
1995-2002 GMC Safari

Description:

Position:Driver (LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 30.71 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 1/2-20 Inch
Total Hub Diameter (in): 6.307 Inch
Total Hub Diameter (mm): 160.2mm
Hub Centerbore Diameter (in): 5 Inch
Hub Centerbore Diameter (mm): 127mm
Total Hub Height (in): 5.161 Inch
Total Hub Height (mm): 131.1mm
Flange Diameter (in): 6.307 Inch
Flange Diameter (mm): 160.2mm
Flange Offset (in): 2.944 Inch
Flange Offset (mm): 74.8mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.181 Inch
Flange Bolt Size (mm): 30mm
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.074 Inch
Hub Pilot Diameter (mm): 78.1mm
