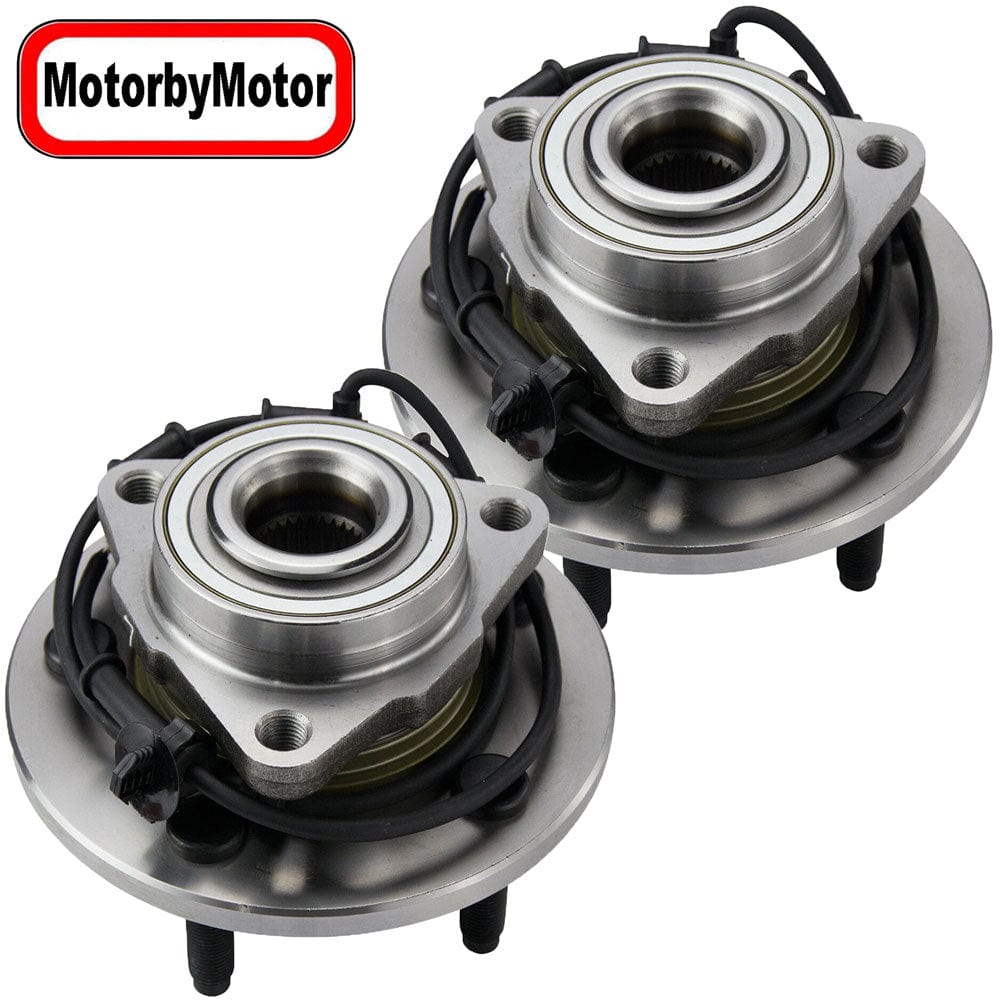

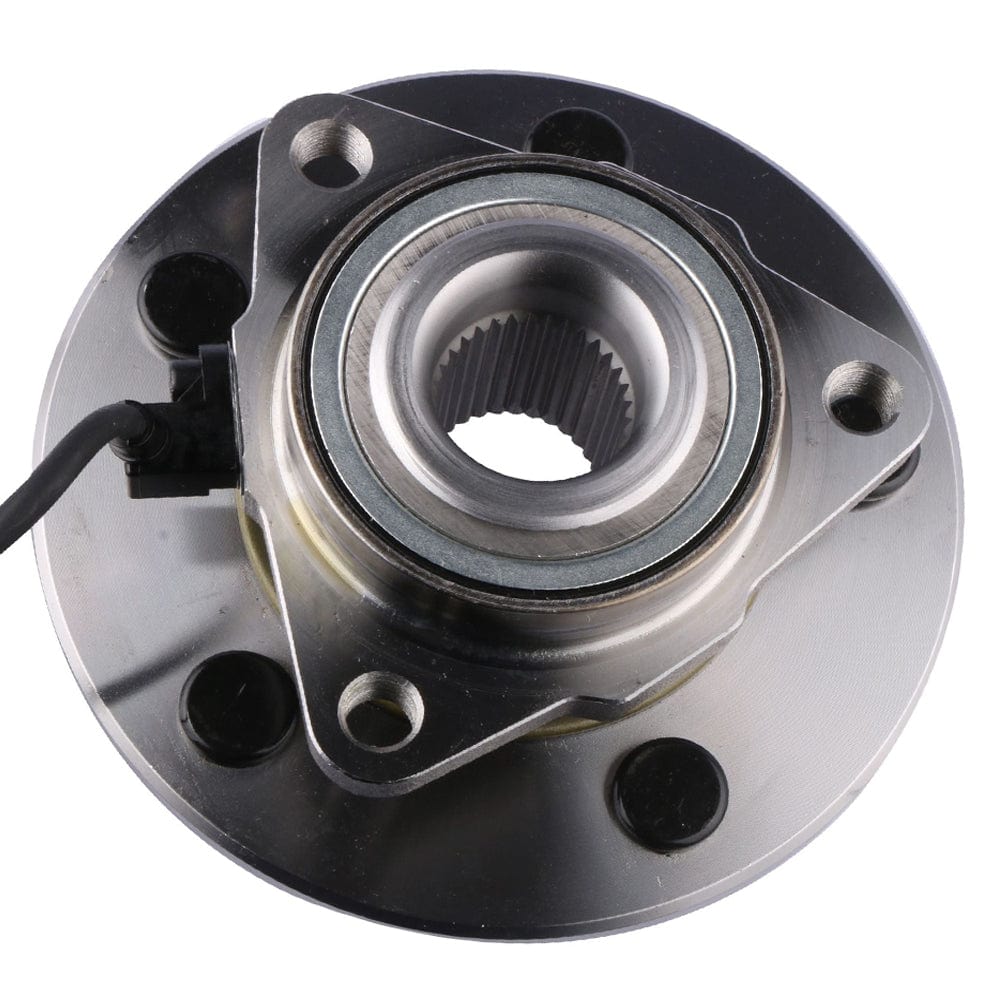

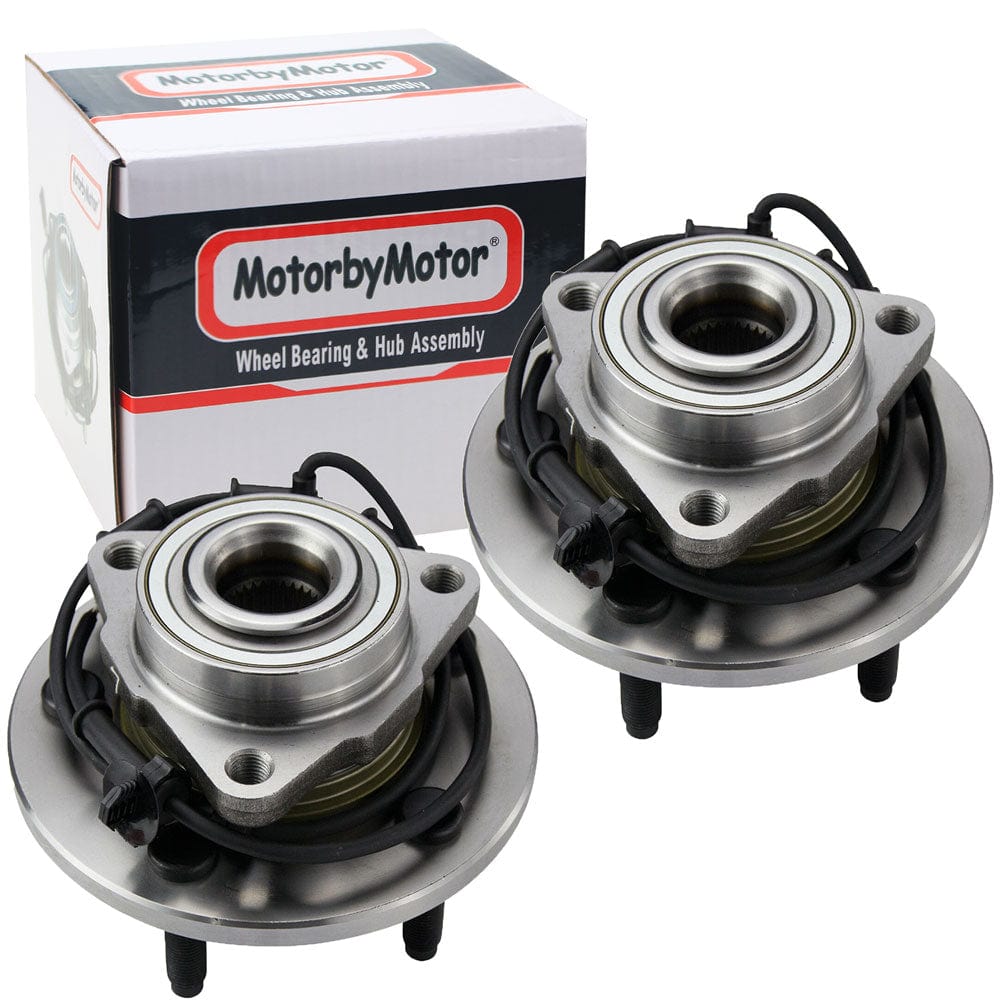

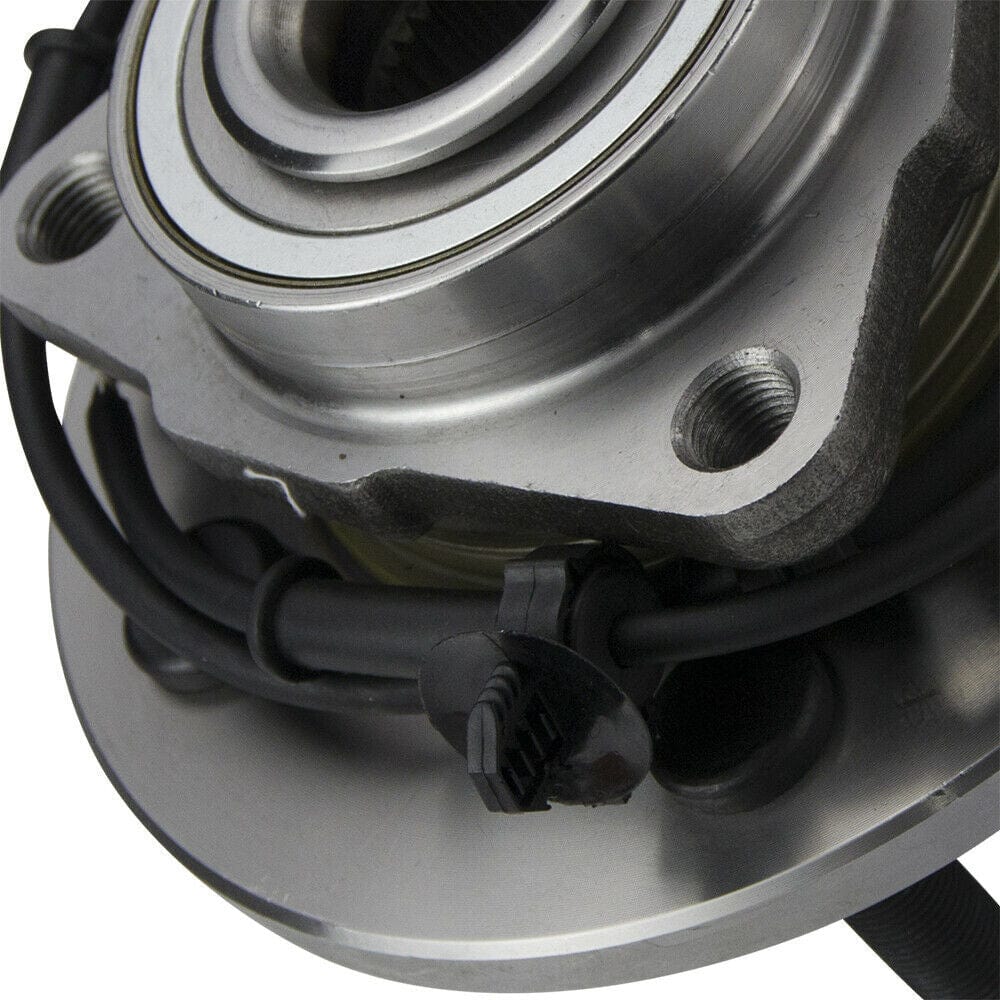

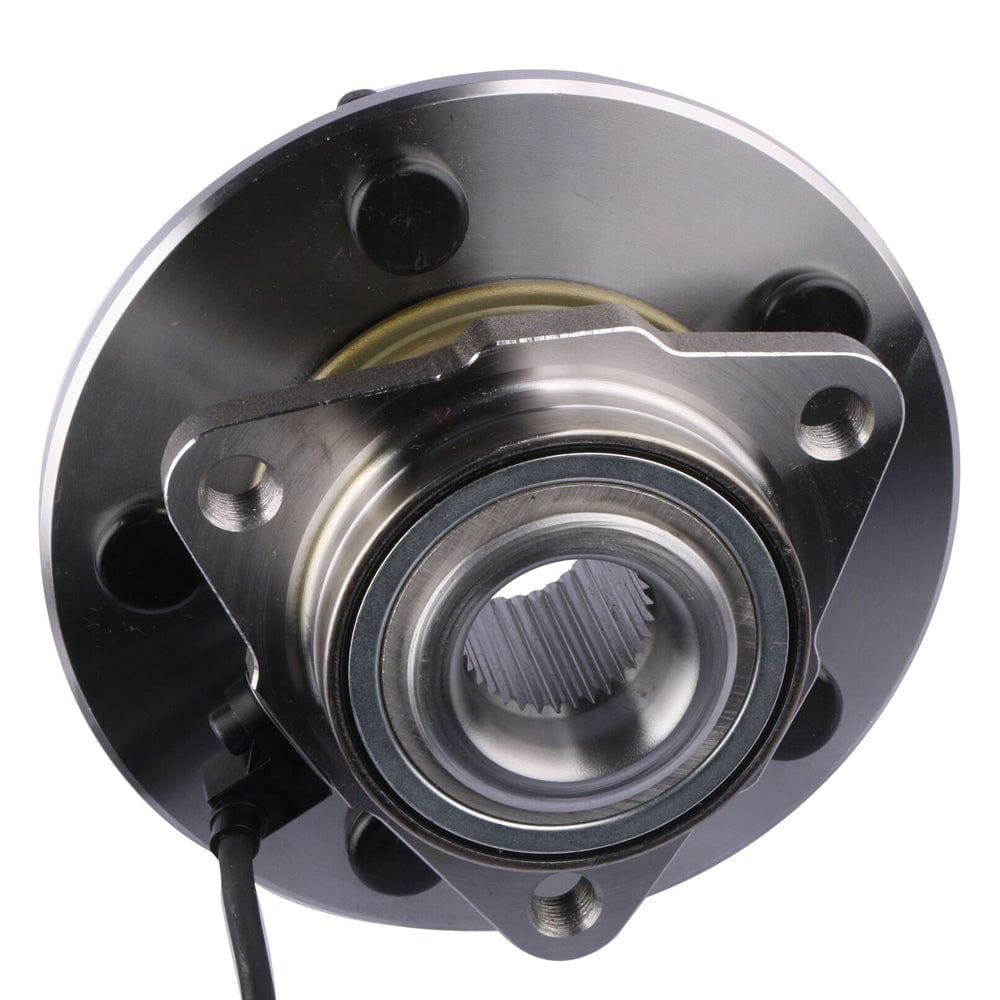

Dodge Ram 1500 Front Wheel Bearing Hub Assembly, 5 Lugs w/ABS -- 515073 (2 Pack)

Front Wheel Bearing Fit 2002-2005 Dodge Ram 1500 w/ABS 5 Lugs Wheel Hub, 515073 (2 PACK)

Fit:

2002-2005 Dodge Ram 1500 1/2 ton 2WD
2002-2005 Dodge Ram 1500 1/2 ton 4WD

Description:

ABS Sensor Included: Yes

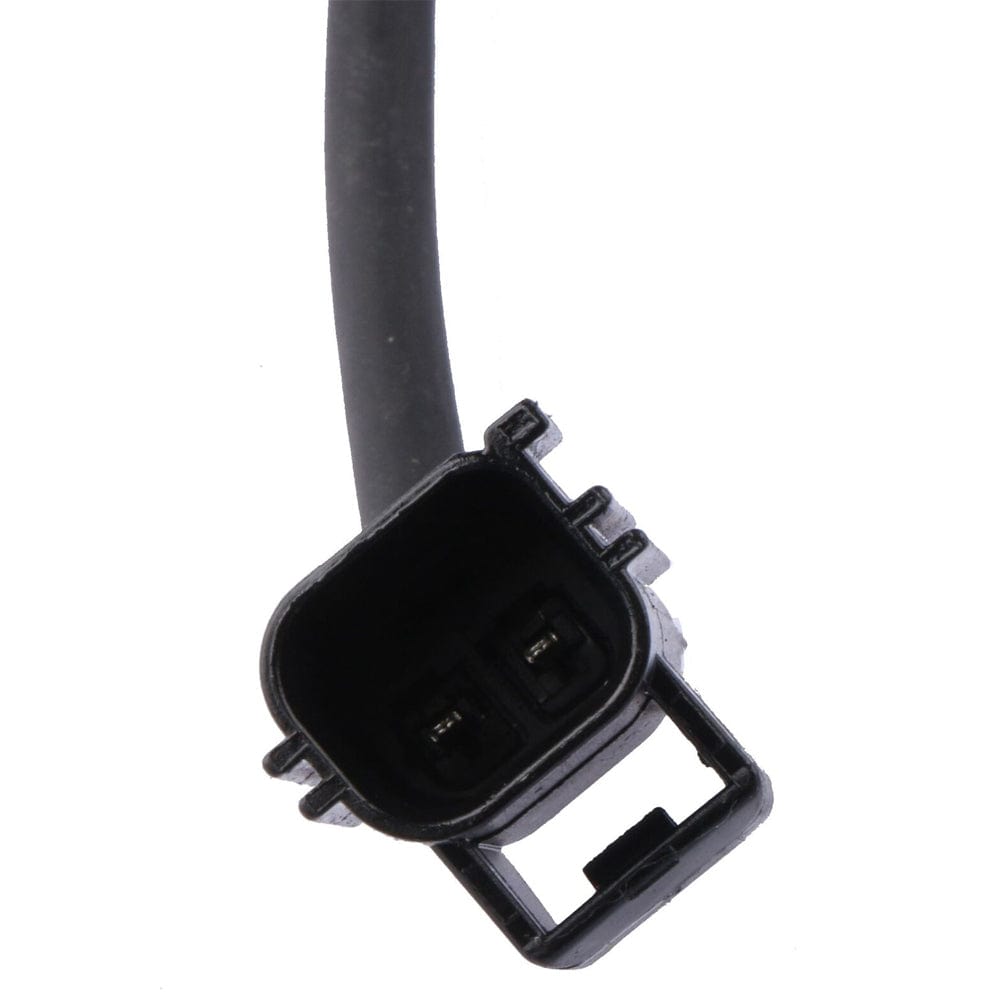

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.65 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven

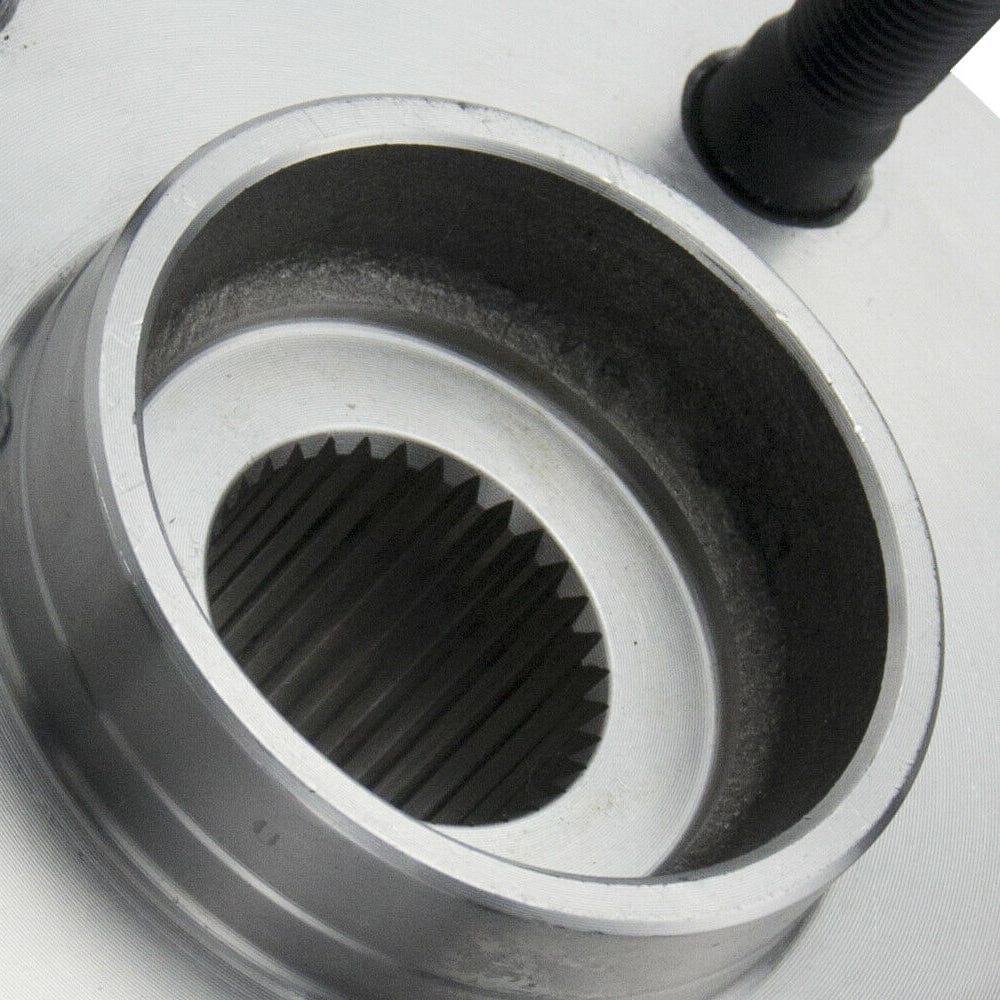

Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 7.204 Inch
Hub Centerbore Diameter (in): 5.5 Inch
Total Hub Height (in): 4.771 Inch
Flange Diameter (in): 7.204 Inch
Flange Offset (in): 1.834 Inch
Flange Bolt Size (in): 1.968 Inch
Flange Shape: Triangle
Flange Bolt Thread Size: M14-1.50
Outer Ring Width (in): 1.99 Inch
Inner Ring Width (in): 0.91 Inch
Hub Pilot Diameter (in): 3.086 Inch
Material: Steel
Bearing Type: Tapered
Position:Driver(LH Left) or Passenger(RH Right) Side FRONT
Direct Replacement

Replacement Indicator:
ABS Light is On
Excessive Brake Pedal "Play"
Pulling to One Side When Braking
Vibration,Felt in The Steering Wheel
A Hummingor Rumbling Noise

Installation Steps:
Remove the Wheel Cover and Wheel Tire.
Remove the Caloper.
Remove the Break Pads and Axle Nut.
After Removing, Put the New Bearing.
Finally, Put All the Removed Parts Ordinally.
