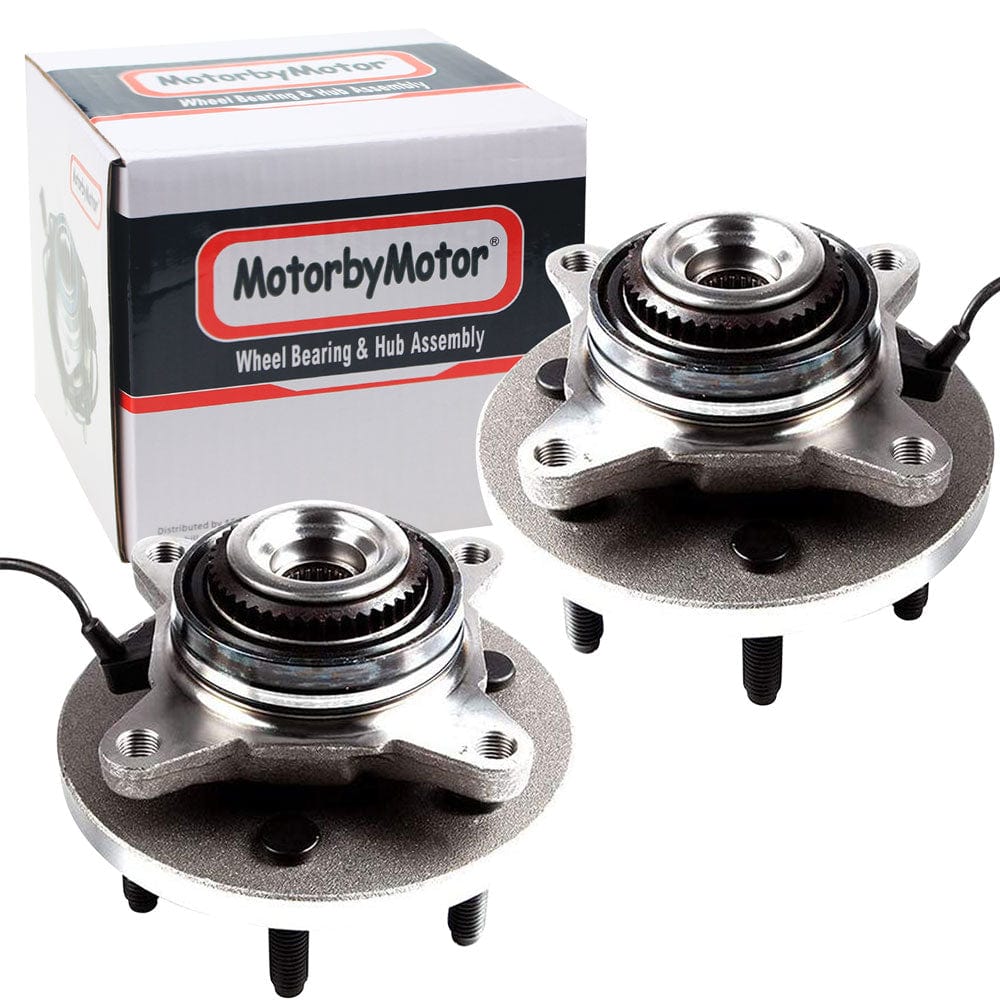

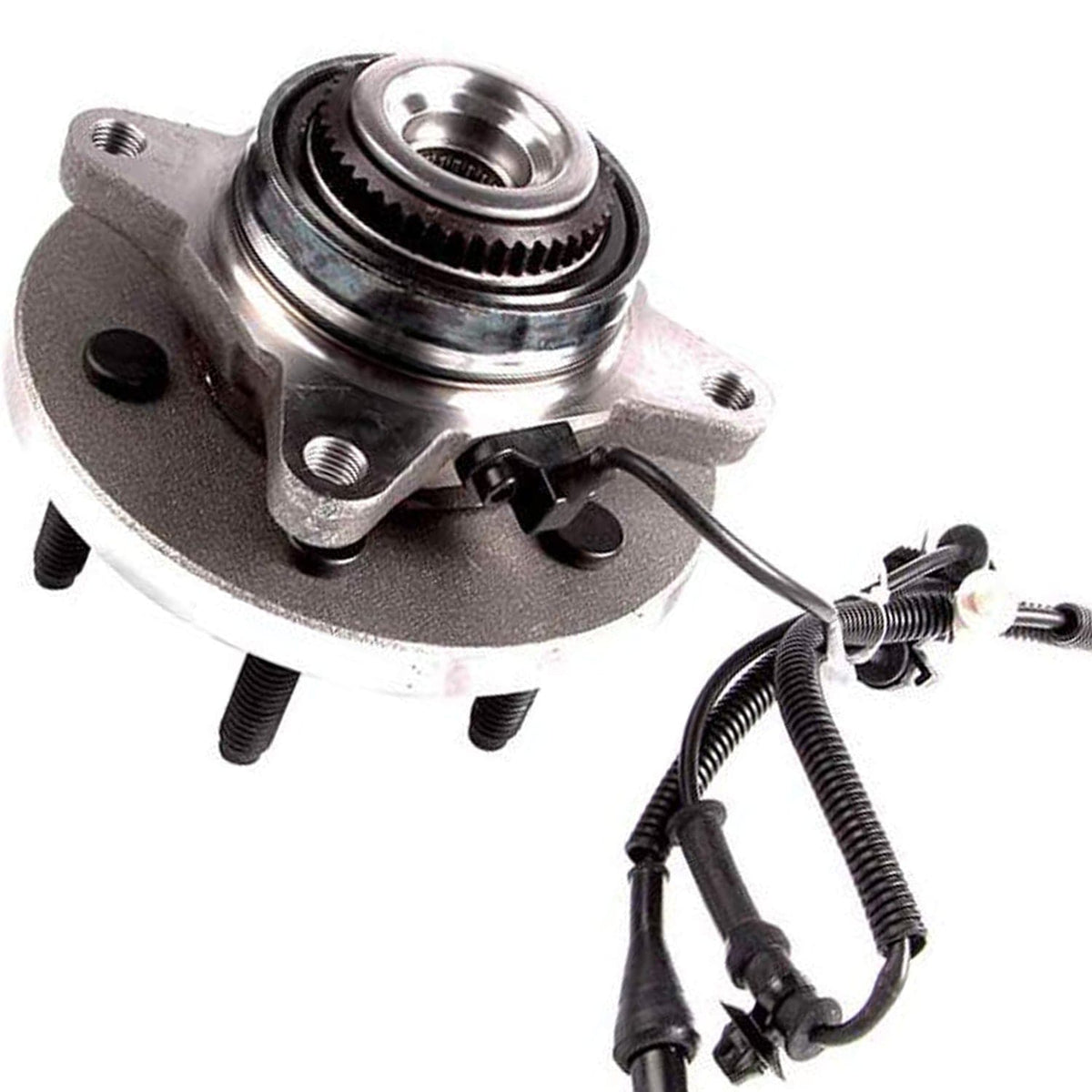

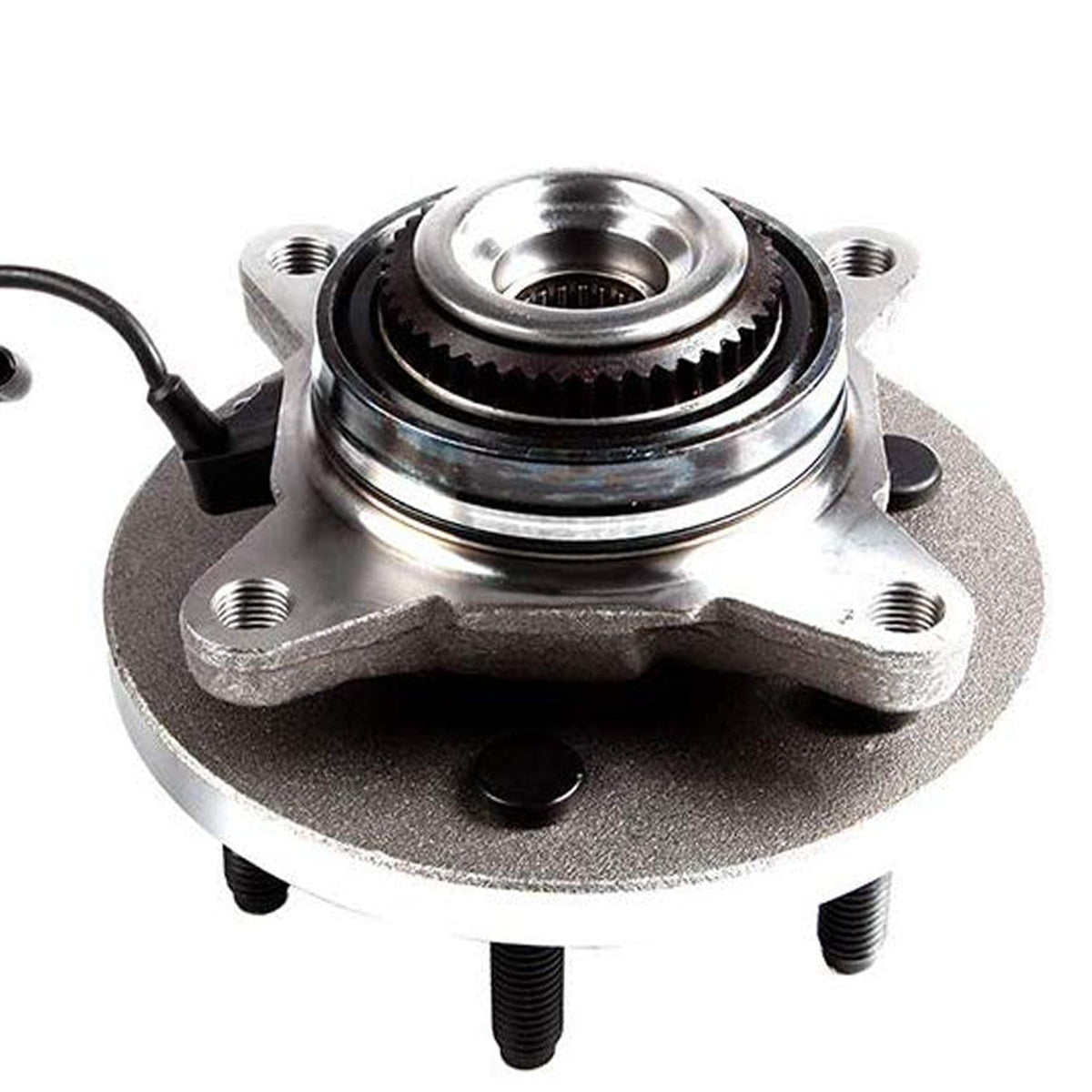

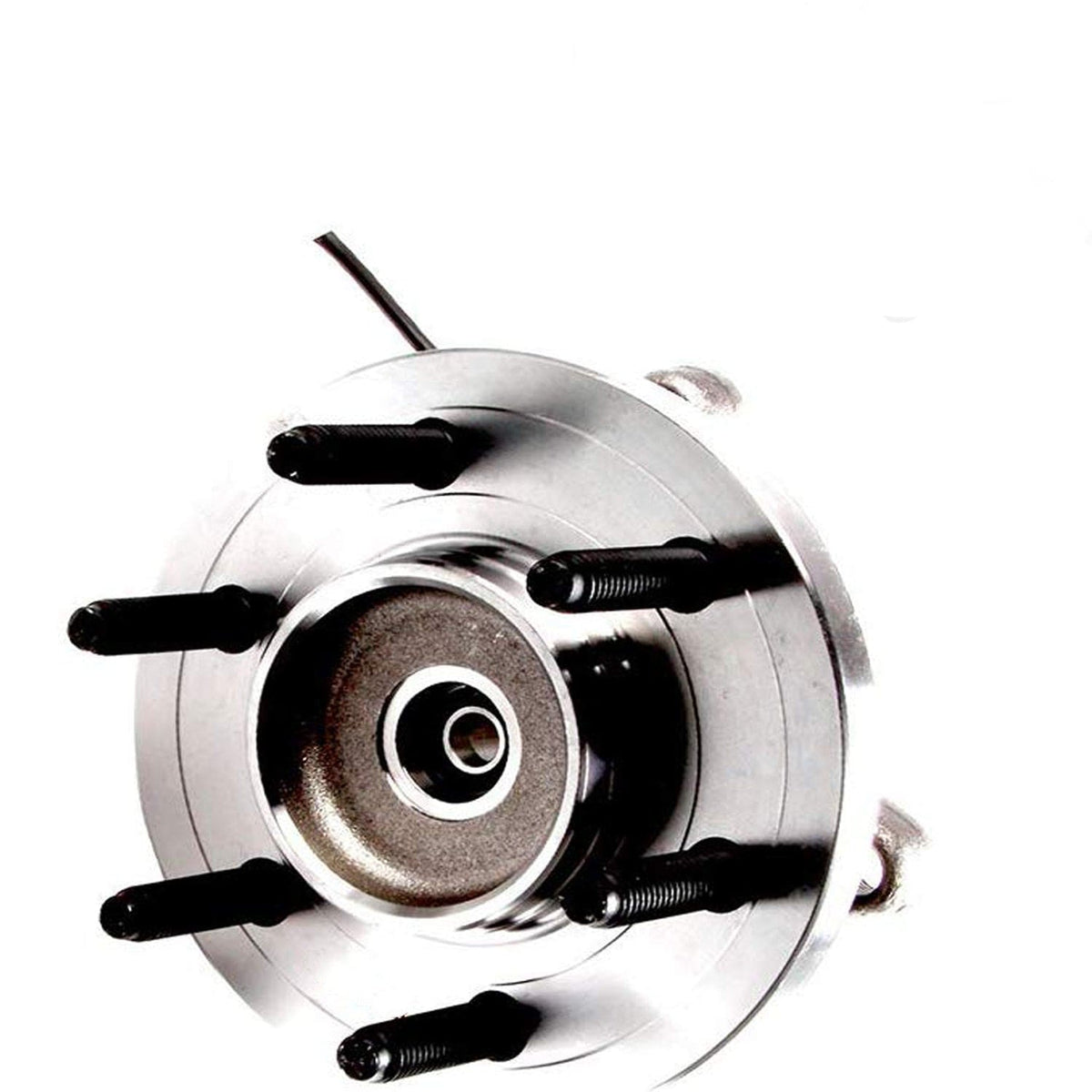

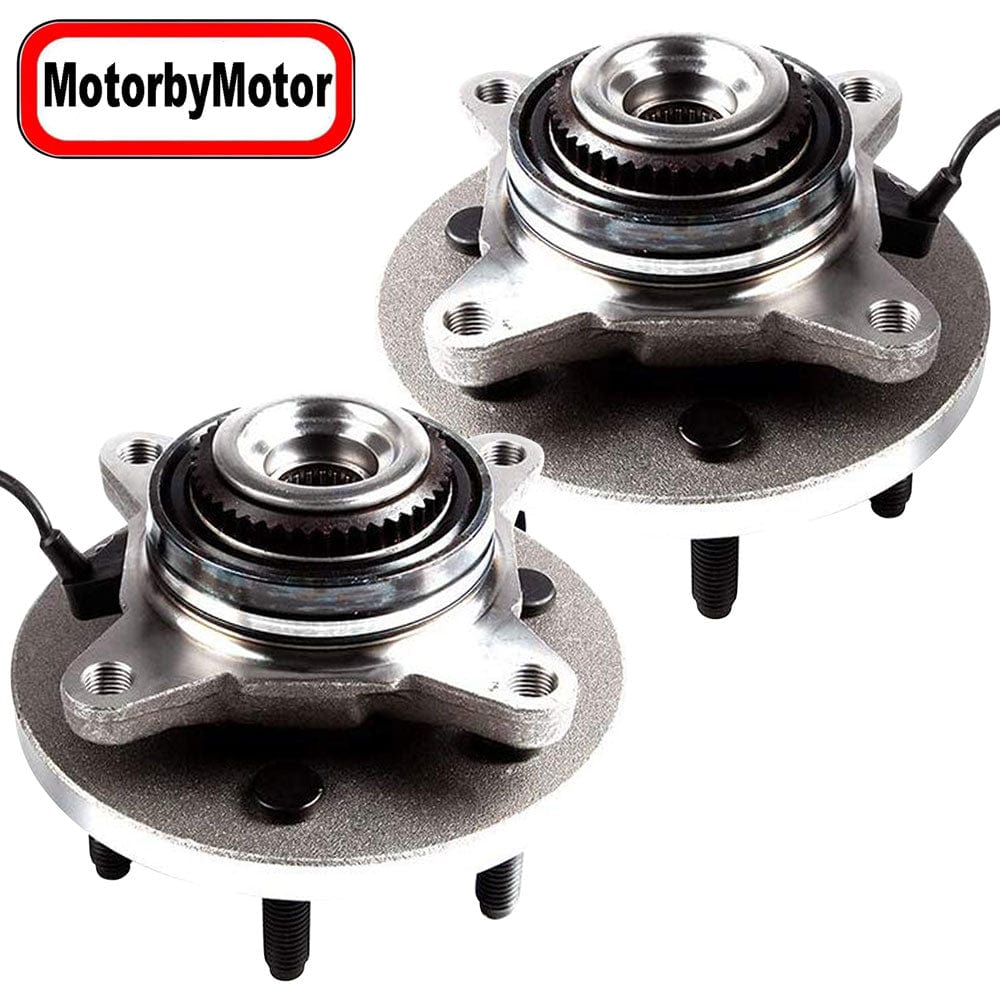

Ford F-150 Front Wheel Bearing Hub Assembly, 6 Lugs 4WD w/ABS -- 515112 (2 Pack)
Ford F-150 Front Wheel Bearing Hub Assembly, 6 Lugs 4WD w/ABS -- 515112 (2 Pack)
1000 in stock
Couldn't load pickup availability
Front Wheel Bearing Fit 2010 Ford F-150 Wheel Hub w/ABS 6 Lugs 4WD, 515112 (2 Pack)
Fit:
2010 Ford F-150(Front, 4WD)
Description:
Position: Driver (LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
ABS Sensor Ring Diameter (mm): 120mm
ABS Sensor Ring Diameter (in): 4.72 Inch
Total Hub Diameter (in): 8.08 Inch
Total Hub Diameter (mm): 205.2mm
Hub Centerbore Diameter (in): 6.5 Inch
Hub Centerbore Diameter (mm): 165.1mm
Total Hub Height (in): 4.69 Inch
Total Hub Height (mm): 119.2mm
Flange Diameter (in): 4.81 Inch
Flange Diameter (mm): 122.25mm
Flange Offset (in): 2.25 Inch
Flange Offset (mm): 57.2mm
Flange Shape: Round
Flange Bolt Size (in): 2.13 Inch
Flange Bolt Size (mm): 54mm
Flange Bolt Thread Size: 9/16-18 Inch
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.905 Inch
Hub Pilot Diameter (mm): 99.2mm
