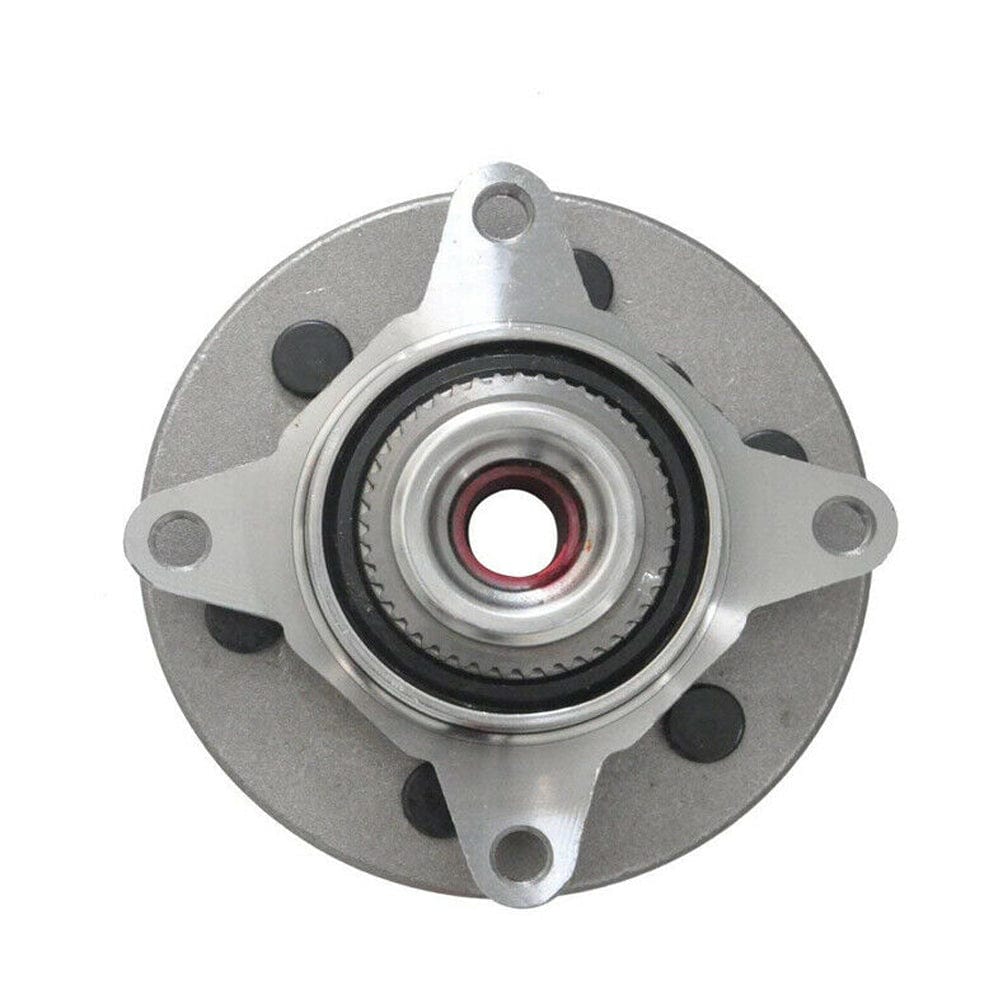

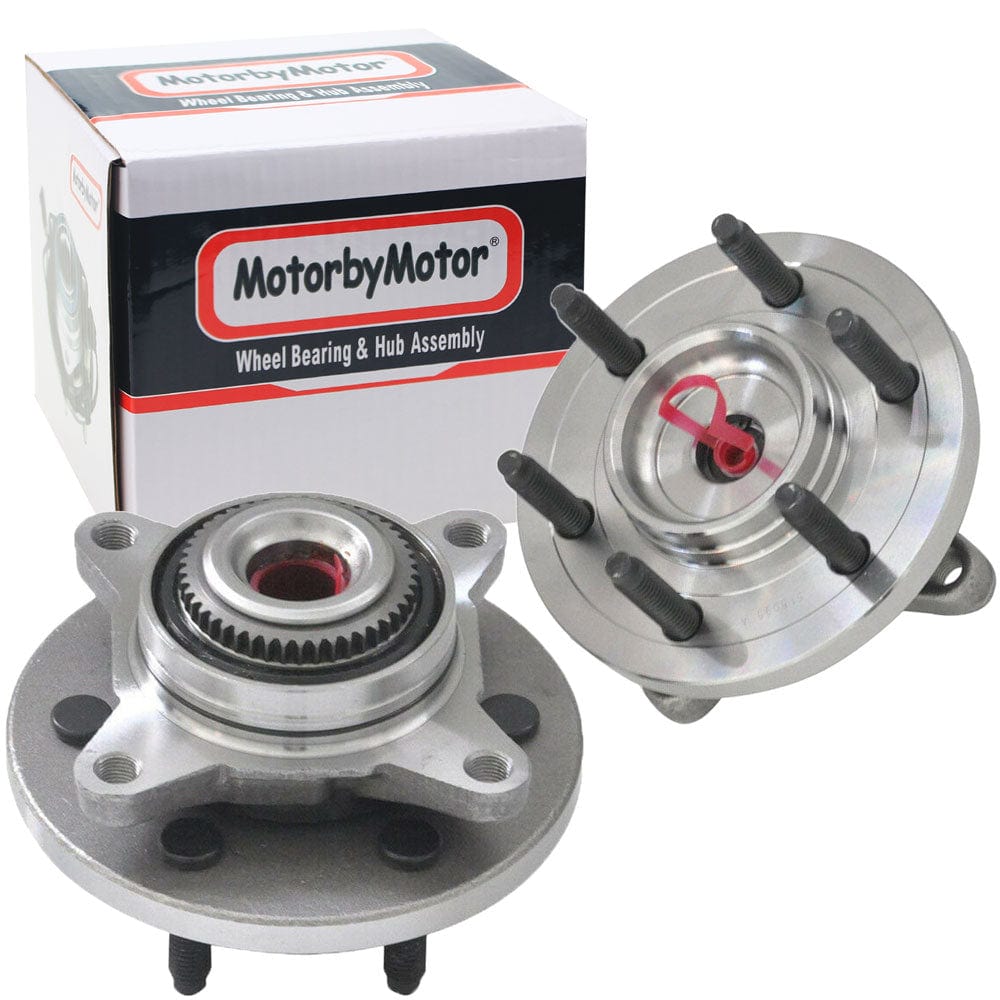

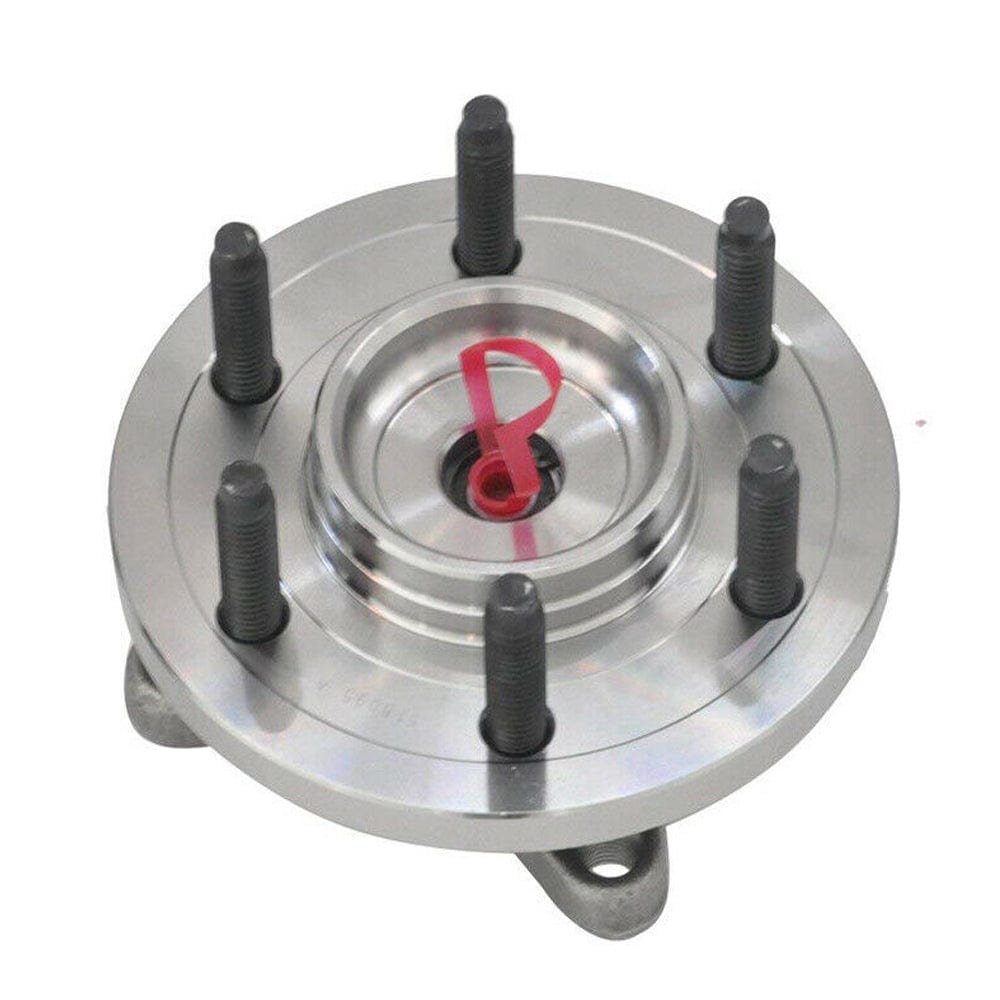

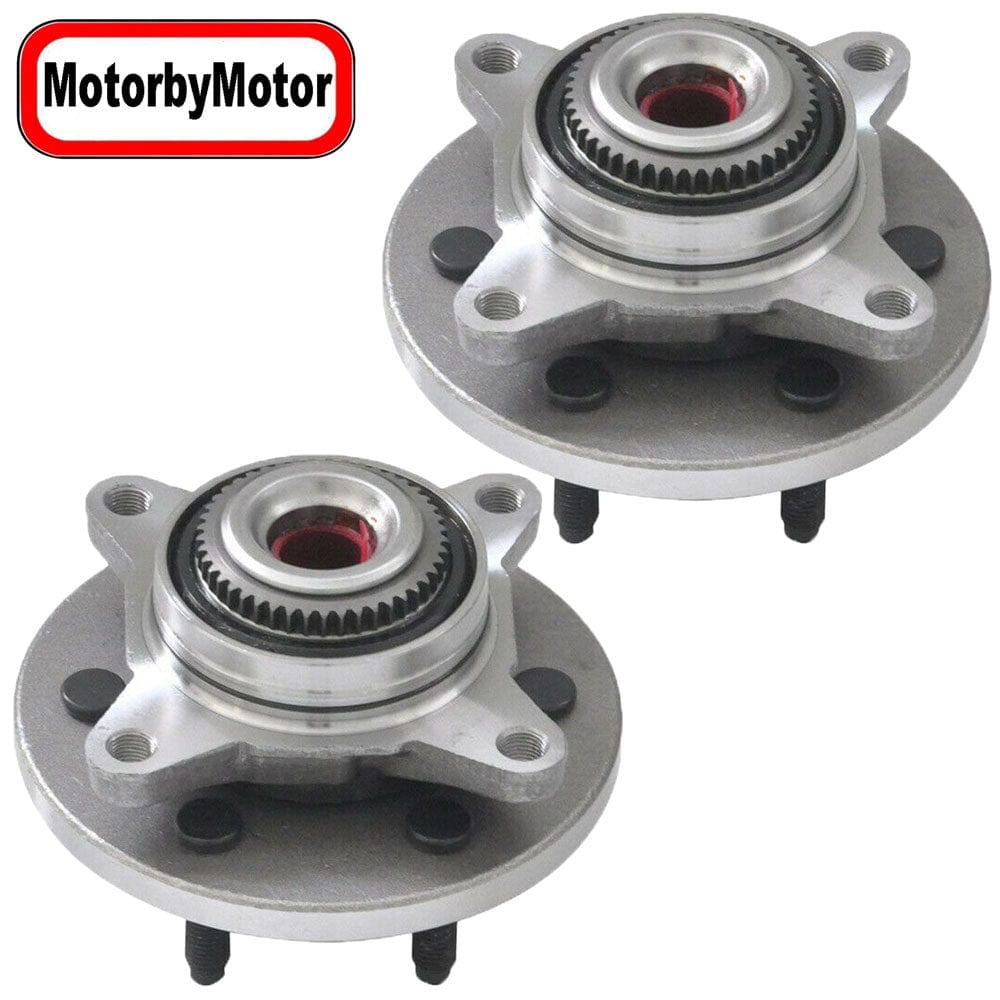

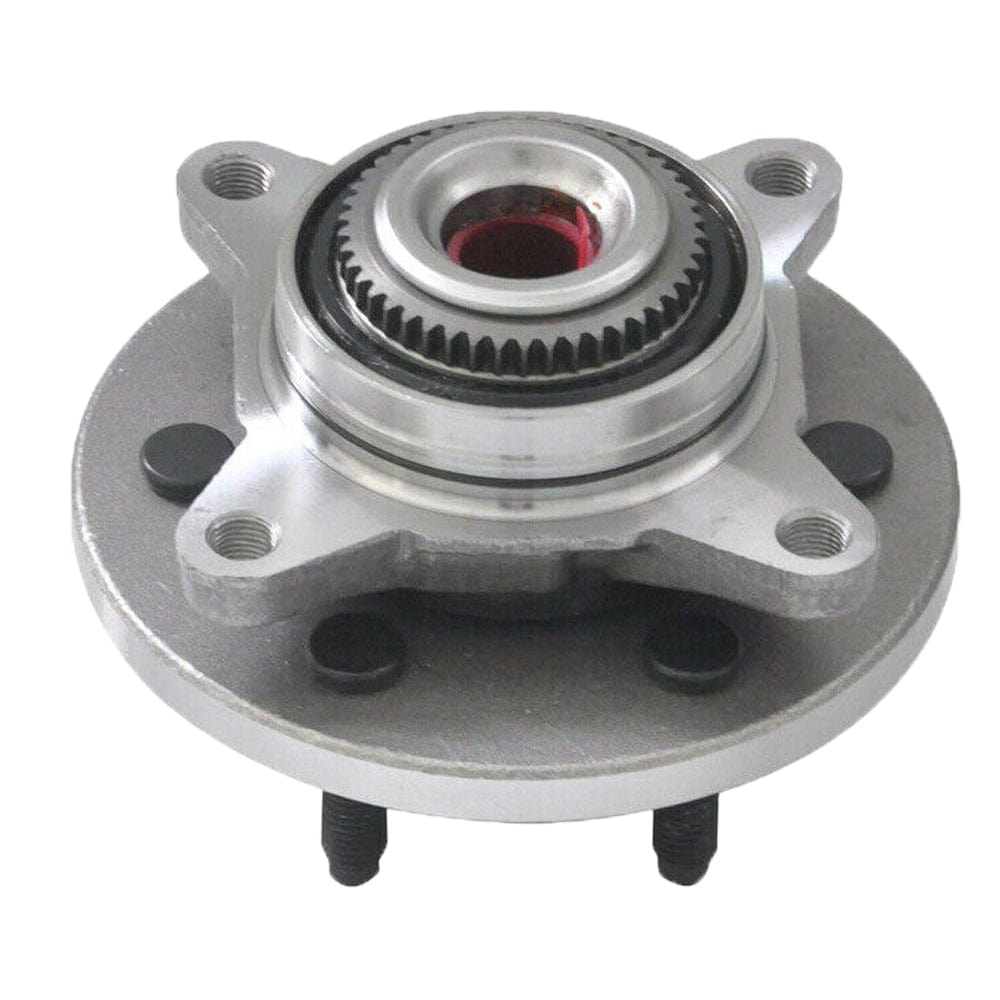

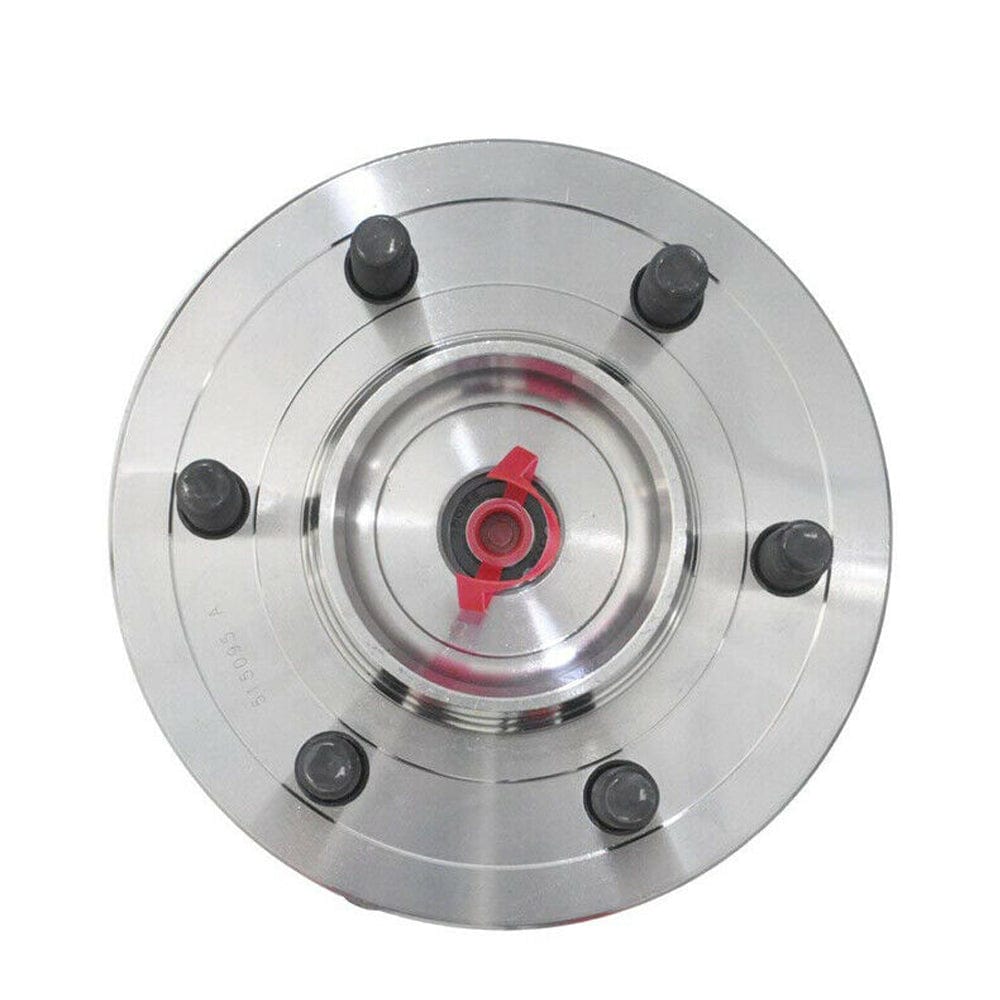

Ford Expedition Front Wheel Bearing Hub Assembly, 6 Lugs 4WD w/ABS -- 515095 (2 Pack)

Front Wheel Bearing Fit 2007-2010 Ford Expedition, Lincoln Navigator Wheel Hub 6 Lugs w/ABS, 4WD 515095 (2 PACK)

Fit
2007-2010 Ford Expedition 4WD
2007-2010 Ford Expedition EL Eddie Bauer 4WD
2007-2010 Ford Expedition EL King Ranch 4WD
2007-2010 Ford Expedition EL Limited 4WD
2007-2010 Ford Expedition EL XLT 4WD
2007-2010 Ford Expedition Eddie Bauer 4WD
2007-2010 Ford Expedition King Ranch 4WD
2007-2010 Ford Expedition Limited 4WD
2007-2010 Ford Expedition XLT 4WD
2007-2010 Lincoln Navigator 4WD
2007-2010 Lincoln Navigator L 4WD

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 43 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Driven Or Non-Driven: Driven
Number Of Splines: 45
ABS Ring Type: Sensor
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.20 Inch
Total Hub Diameter (mm): 182.88mm
Total Hub Height (in): 5.125 Inch
Total Hub Height (mm): 130.175mm
Flange Diameter (in): 7.2 Inch
Flange Diameter (mm): 182.88mm
Flange Offset (in): 1.79 Inch
Flange Offset (mm): 45.466mm
Flange Shape: Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.91 Inch
Hub Pilot Diameter (mm): 99.314mm
