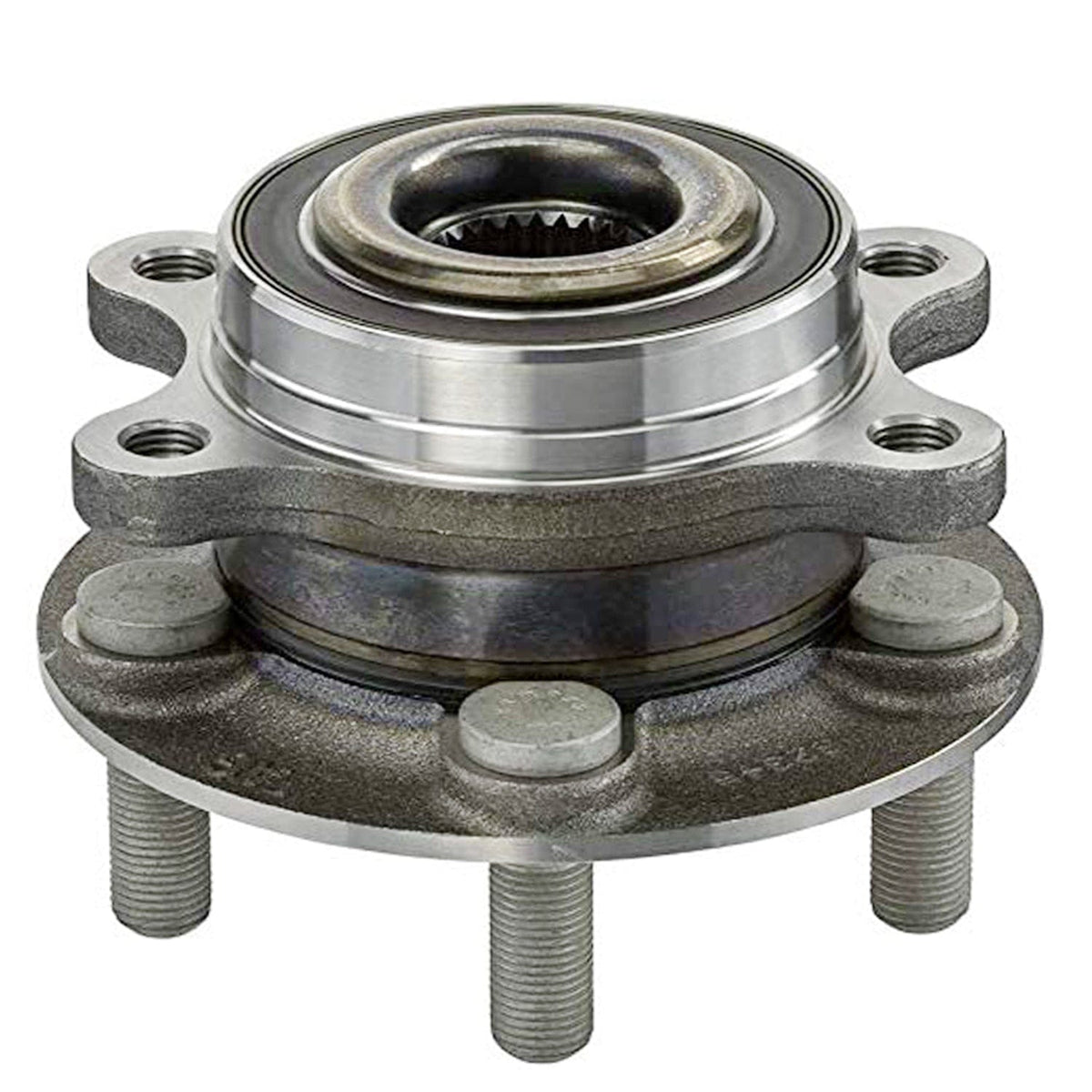

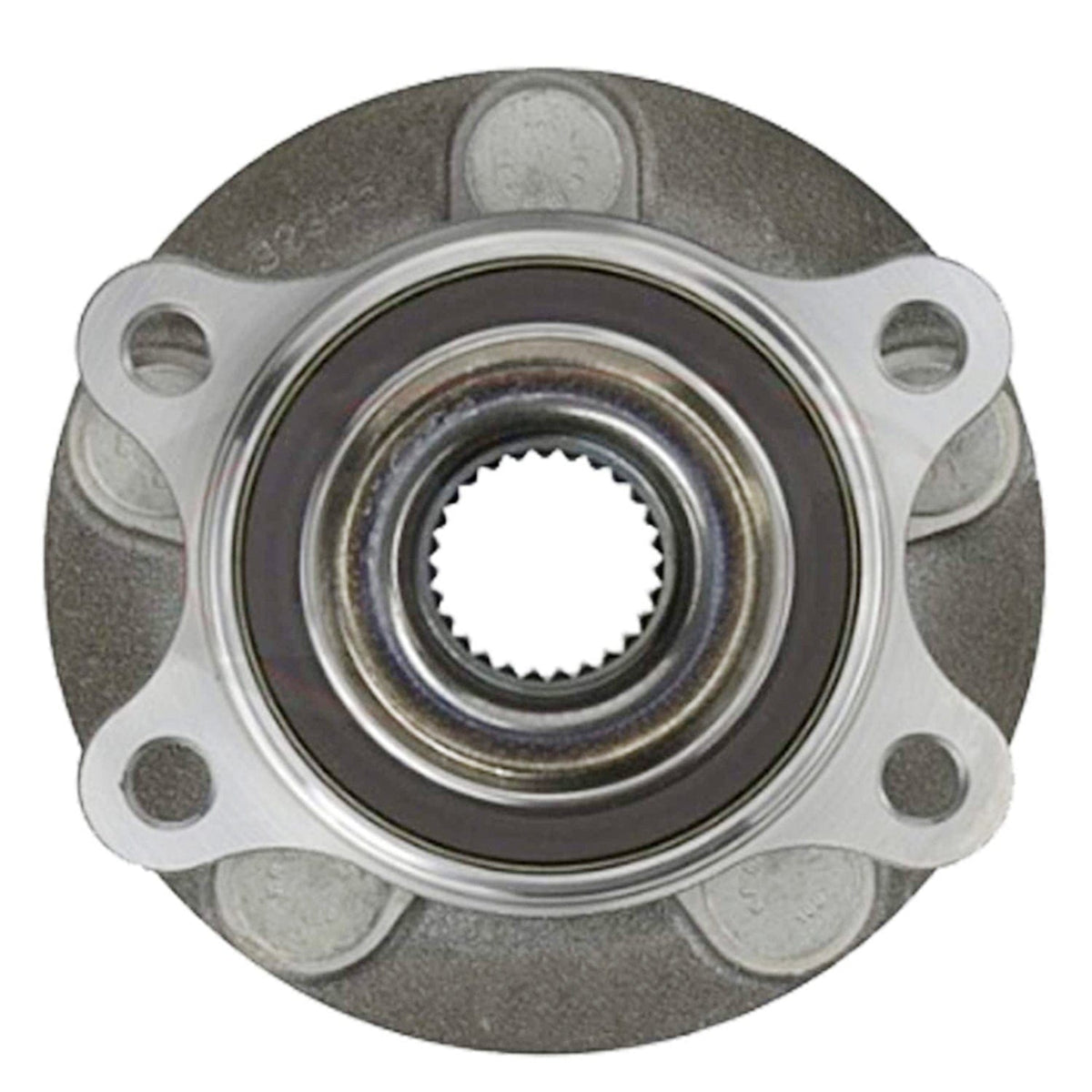

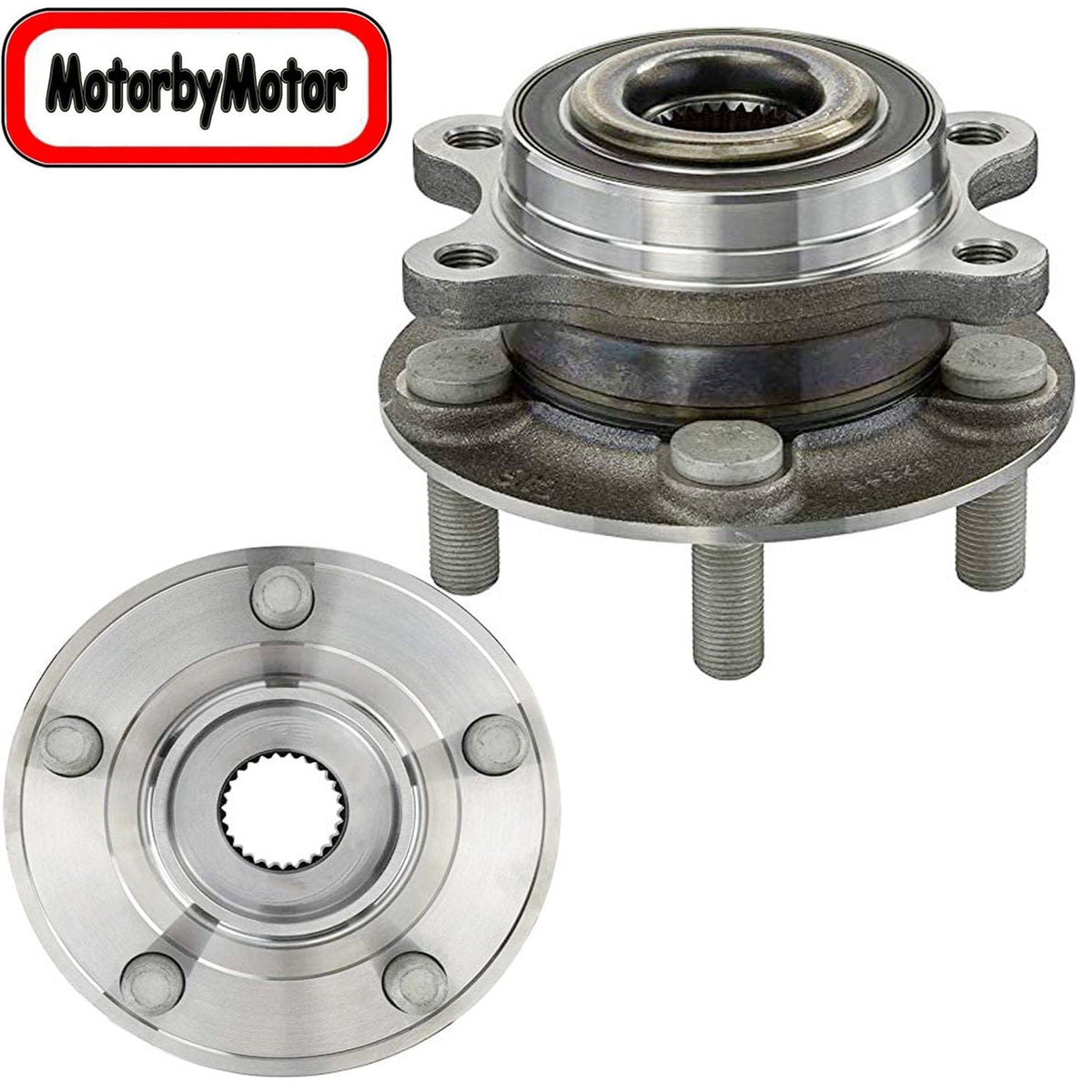

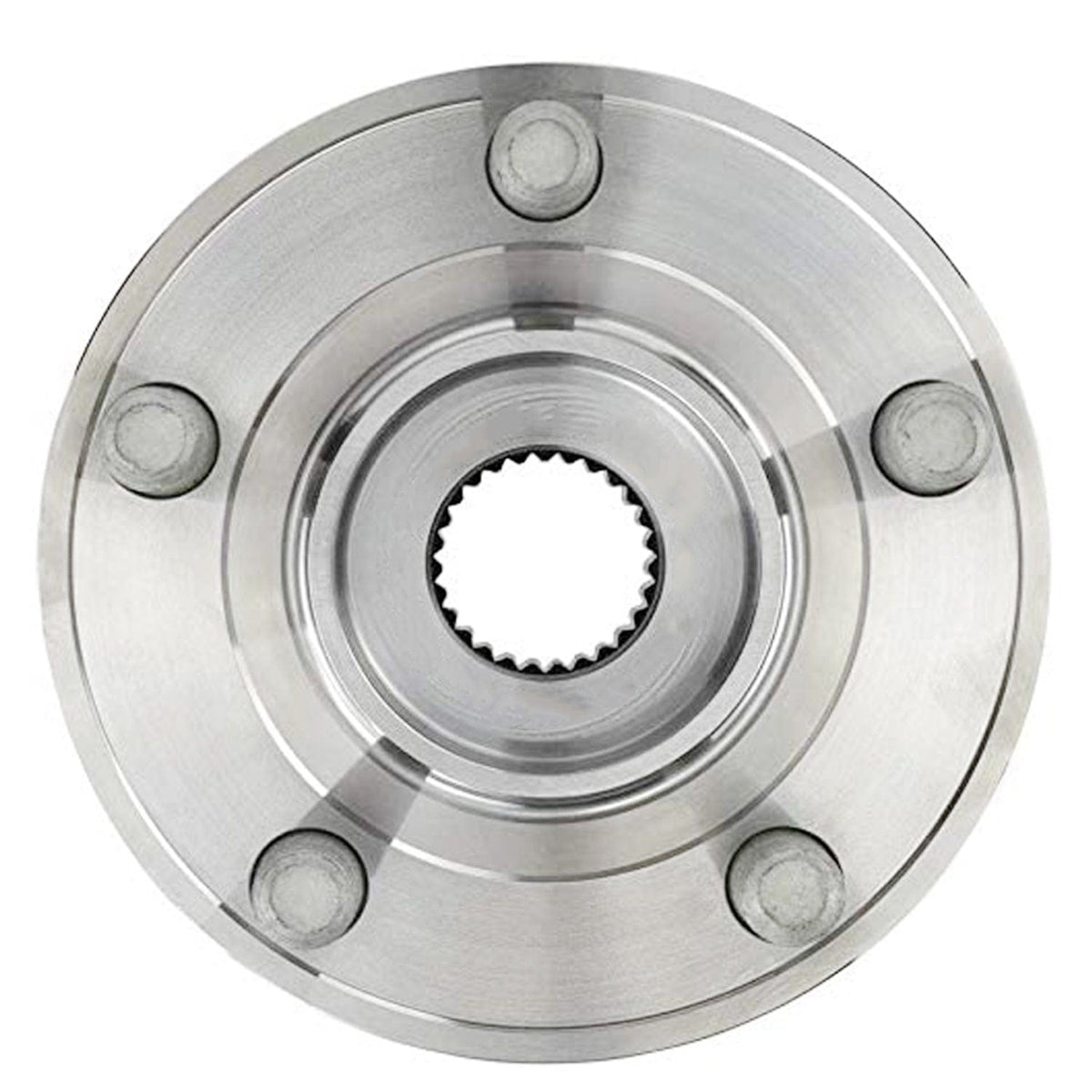

Ford Edge Wheel Bearing Hub Assembly w/ABS 5 Lugs 513394 (2 Pack)

Wheel Bearing for Ford Edge Fusion, Lincoln Continental MKX MKZ Wheel Hub w/ABS, 5 Lugs-513394 (2 Pack)

Fit the Following Vehicles:

Front:
2017 2018 Ford Fusion 2.7L V6 Models ONLY
2017 2018 Lincoln MKZ

Front or Rear:
2015 2016 2017 2018 Ford Edge AWD Models ONLY
2017 2018 Ford Fusion AWD Models ONLY
2017 2018 Lincoln Continental AWD Models ONLY
2016 2017 2018 Lincoln MK AWD Models ONLY

Feature:
Position:Driver(LH Left) or Passenger(RH Right£©Side Front Rear
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 27
Number Of ABS Sensor Ring Teeth: 44
ABS Ring Type: Magnetic
Total Hub Diameter (in): 5.35 Inch
Hub Centerbore Diameter (in): 4.25 Inch
Total Hub Height (in): 4.35 Inch
Flange Diameter (in): 2.5 Inch
Flange Offset (in): 1.89 Inch
Hub Pilot Diameter (in): 3.43 Inch
Flange Bolt Size (in): 1.5 Inch
Flange Shape: Round
Bearing Type: Ball
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Ball
