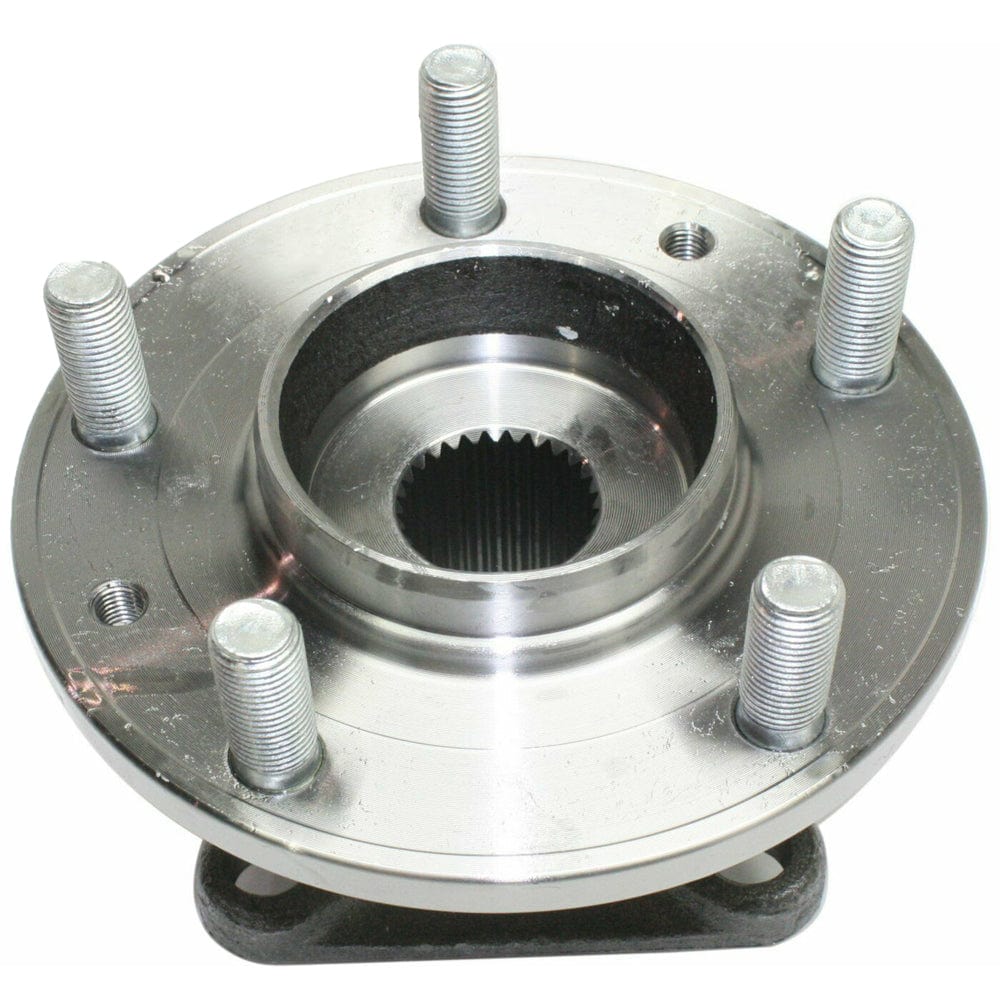

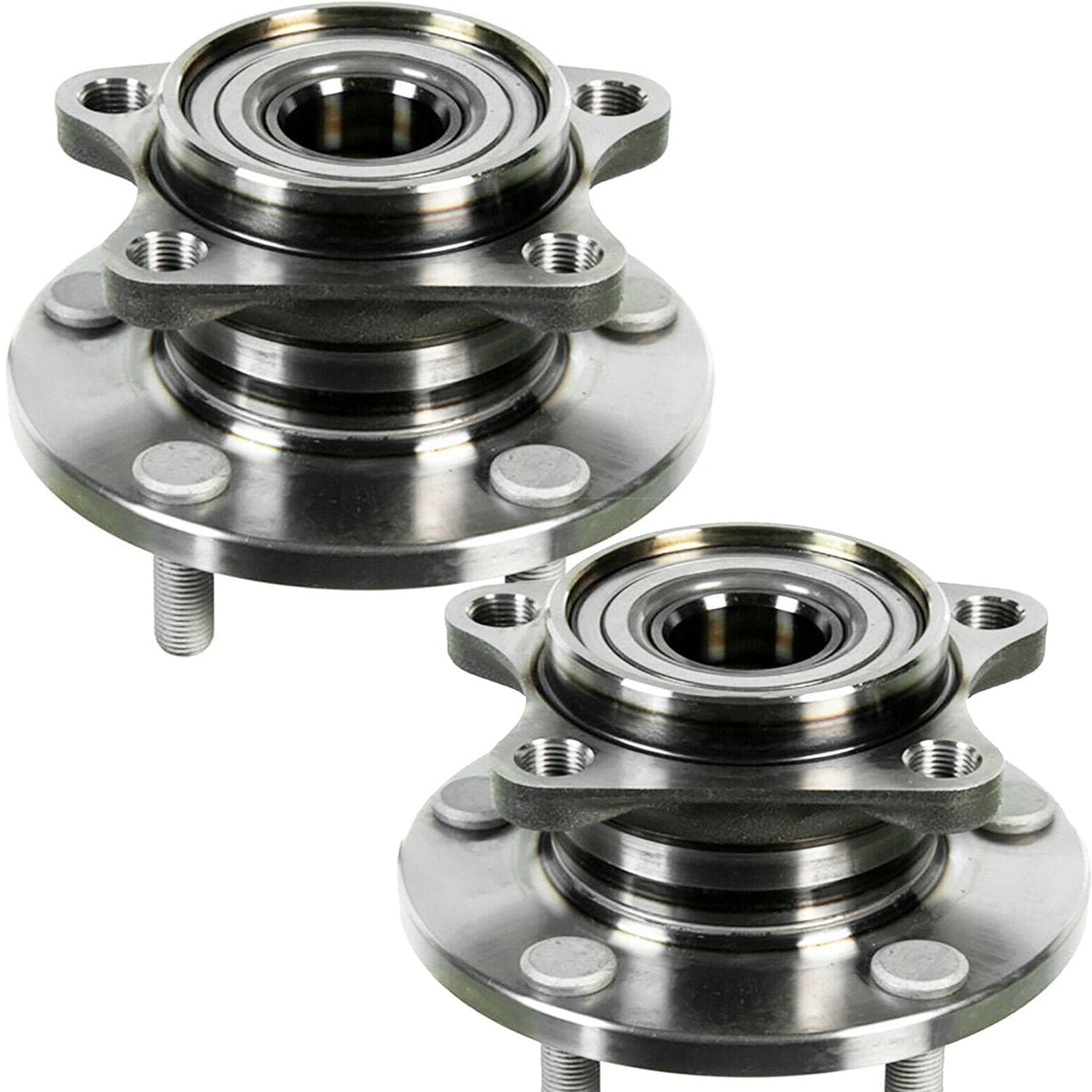

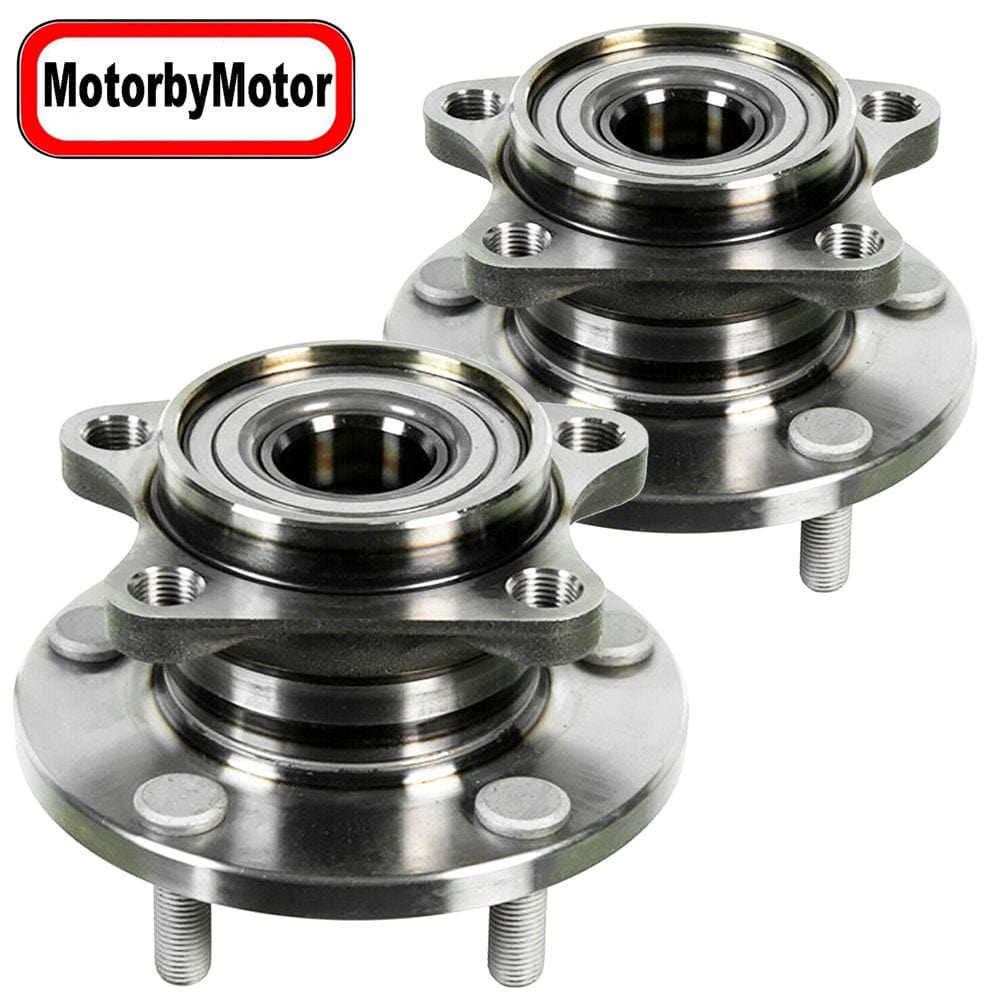

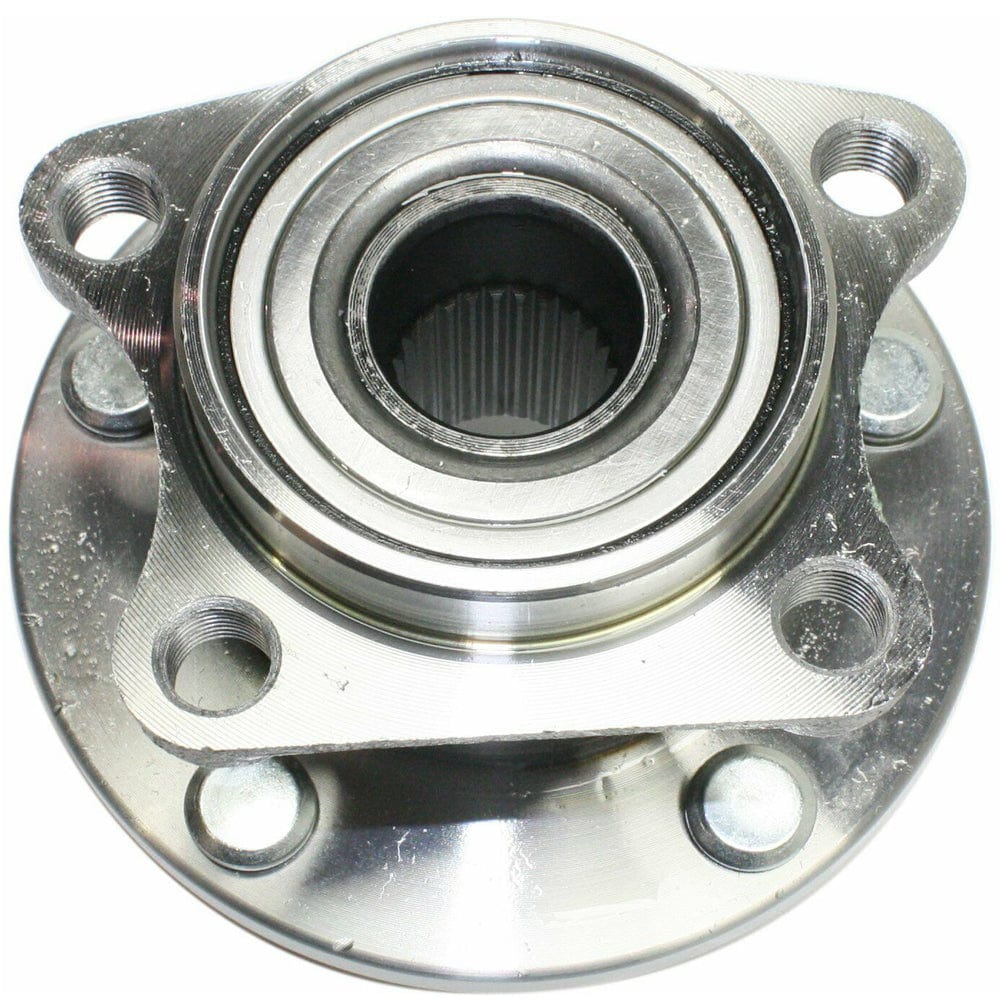

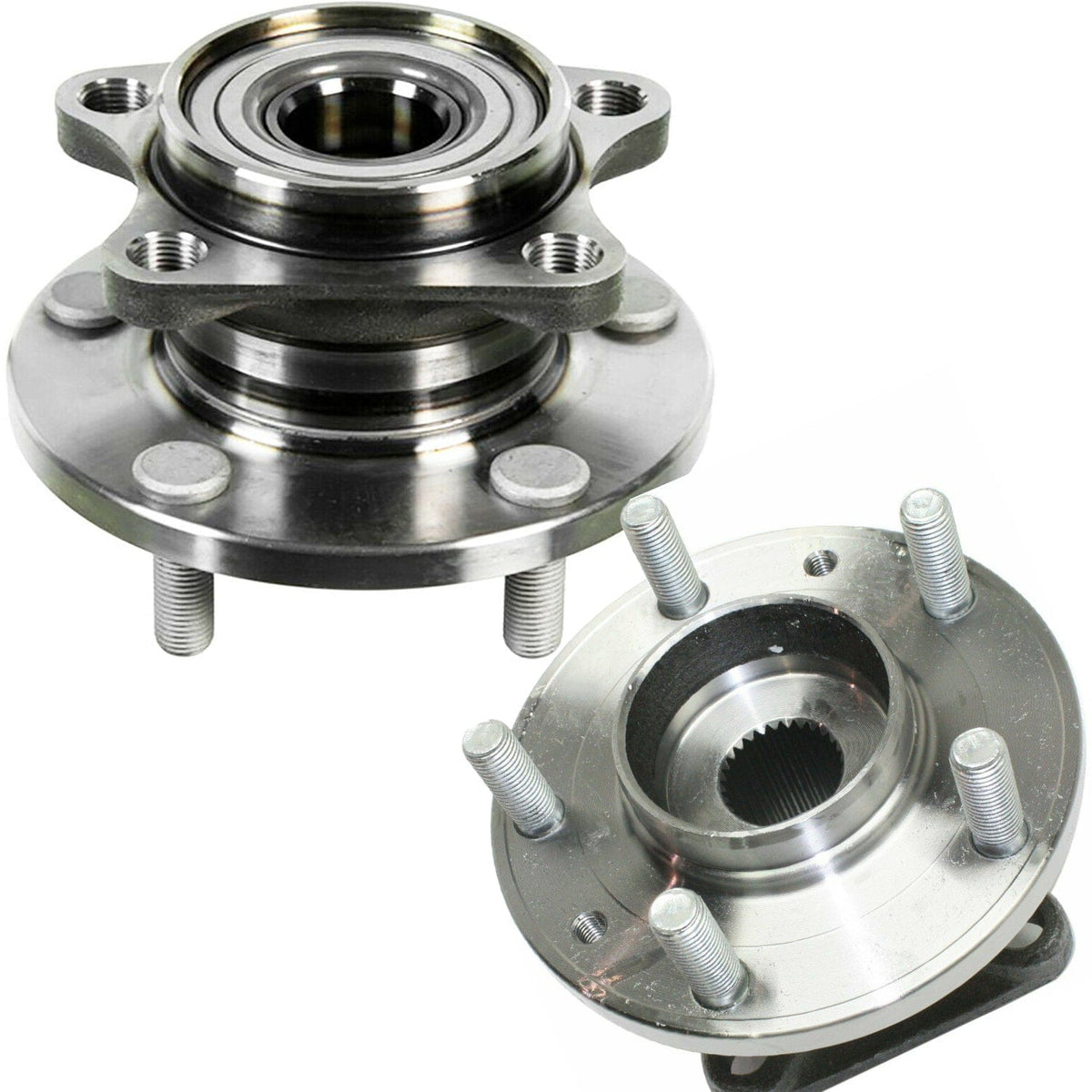

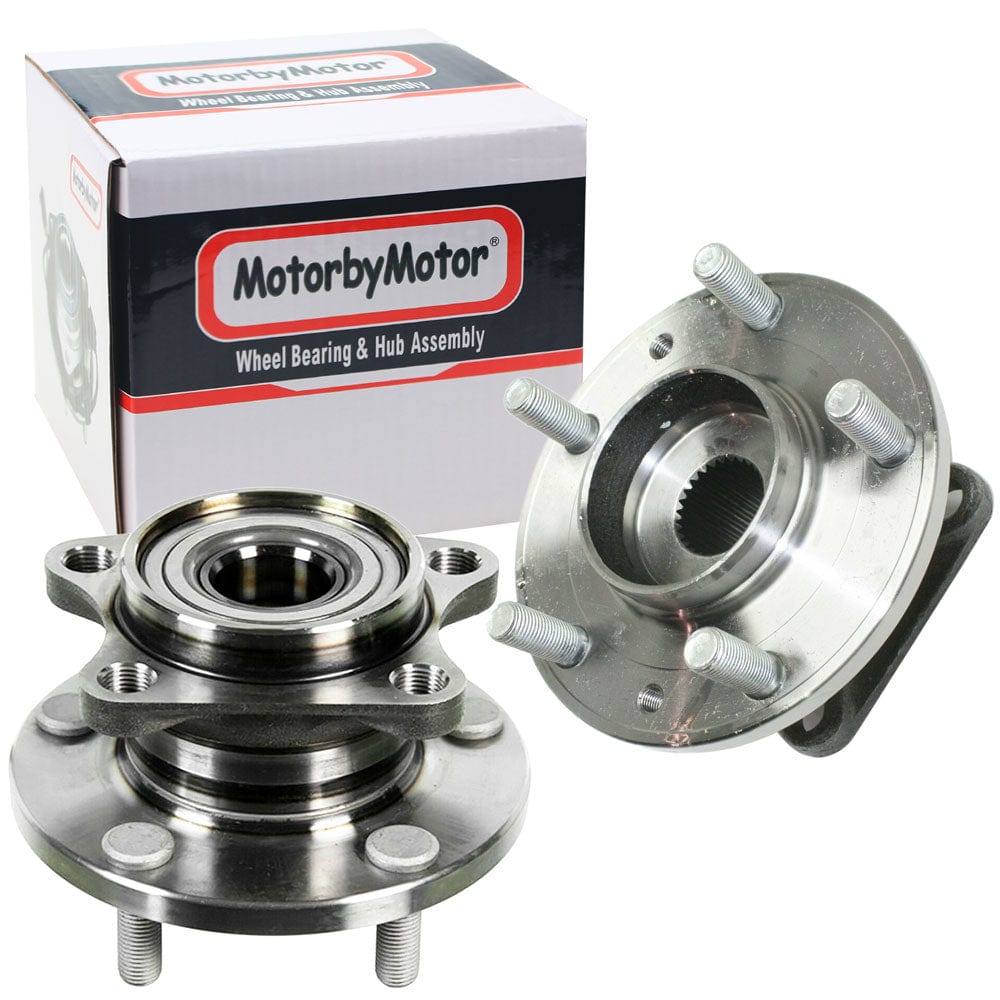

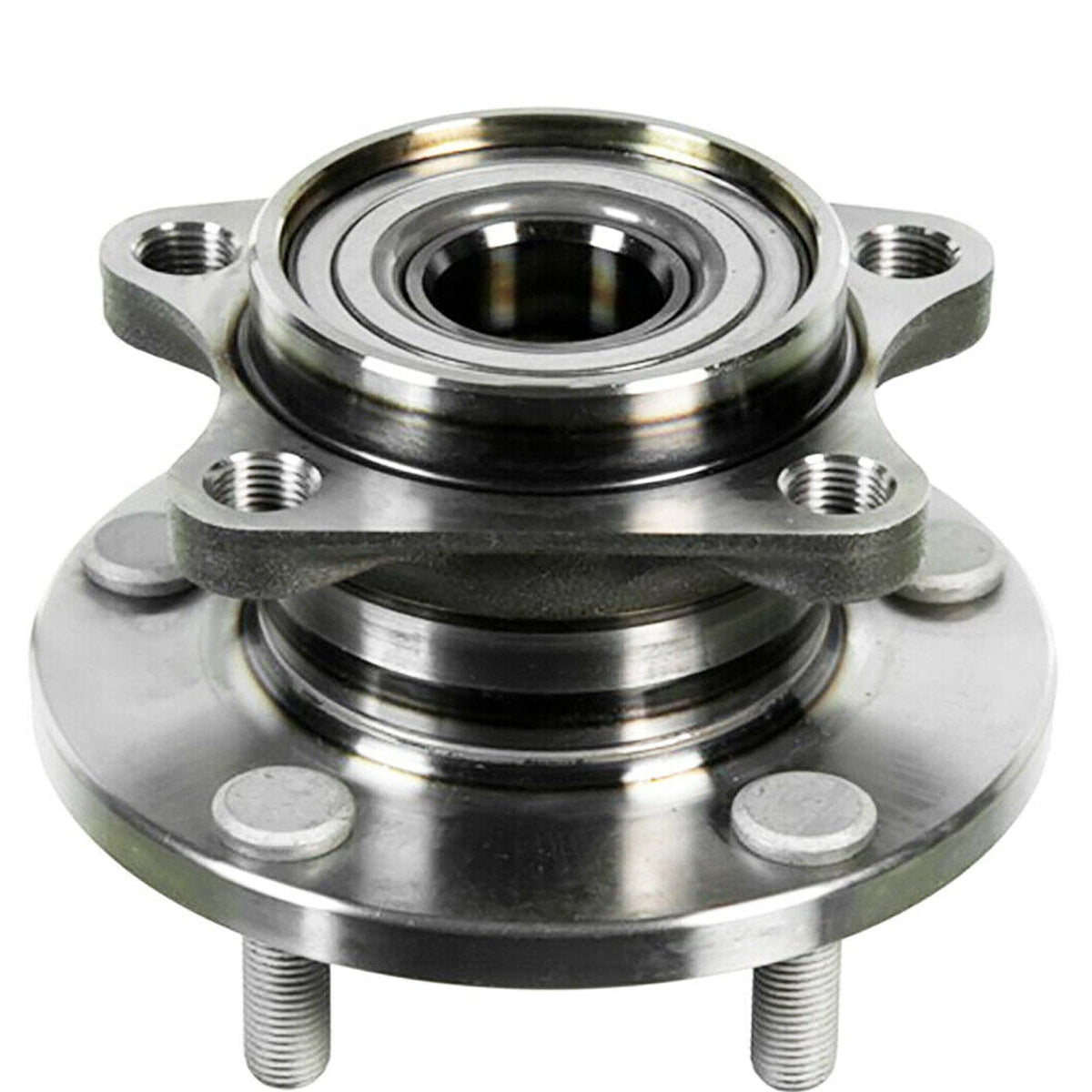

Mazda CX-9 Rear Wheel Bearing Hub Assembly, AWD, 5 Lugs - 512249 (2 Pack)
Mazda CX-9 Rear Wheel Bearing Hub Assembly, AWD, 5 Lugs - 512249 (2 Pack)
1000 in stock
Couldn't load pickup availability
Rear Wheel Bearing Fit 2007-2015 Mazda CX9 with 5 Lugs, Wheel Hub AWD, 512249 (2 Pack)
Rear wheel bearing and hub for 2007-2015 Mazda CX9 AWD models with 5 lugs. Durable steel construction ensures reliable performance.
What's Included
- 2 Rear Wheel Bearings and Hubs
- Part Number: 512249
Product Specifications
- Position: Driver (LH) or Passenger (RH) Side Rear
- Mounting Bolts to Knuckle: 3
- Lug Bolts Included: 6
- Driven or Non-Driven: Driven
- Number of Splines: 30
- ABS Ring Type: Sensor
- ABS Sensor Ring Teeth: 47
- Total Hub Diameter: 5.73 in / 145.5 mm
- Hub Centerbore Diameter: 4.53 in / 115 mm
- Total Hub Height: 4.26 in / 108.24 mm
- Flange Diameter: 2.78 in / 70.6 mm
- Flange Offset: 1.65 in / 42.01 mm
- Flange Shape: Round
- Flange Bolt Size: 1.54 in / 39.1 mm
- Flange Bolt Thread Size: M12-1.50
- Material: Steel
- Bearing Type: Ball
- Hub Pilot Diameter: 3.59 in / 91.25 mm
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2007-2015 | Mazda | CX9 | AWD, 5 Lugs |
