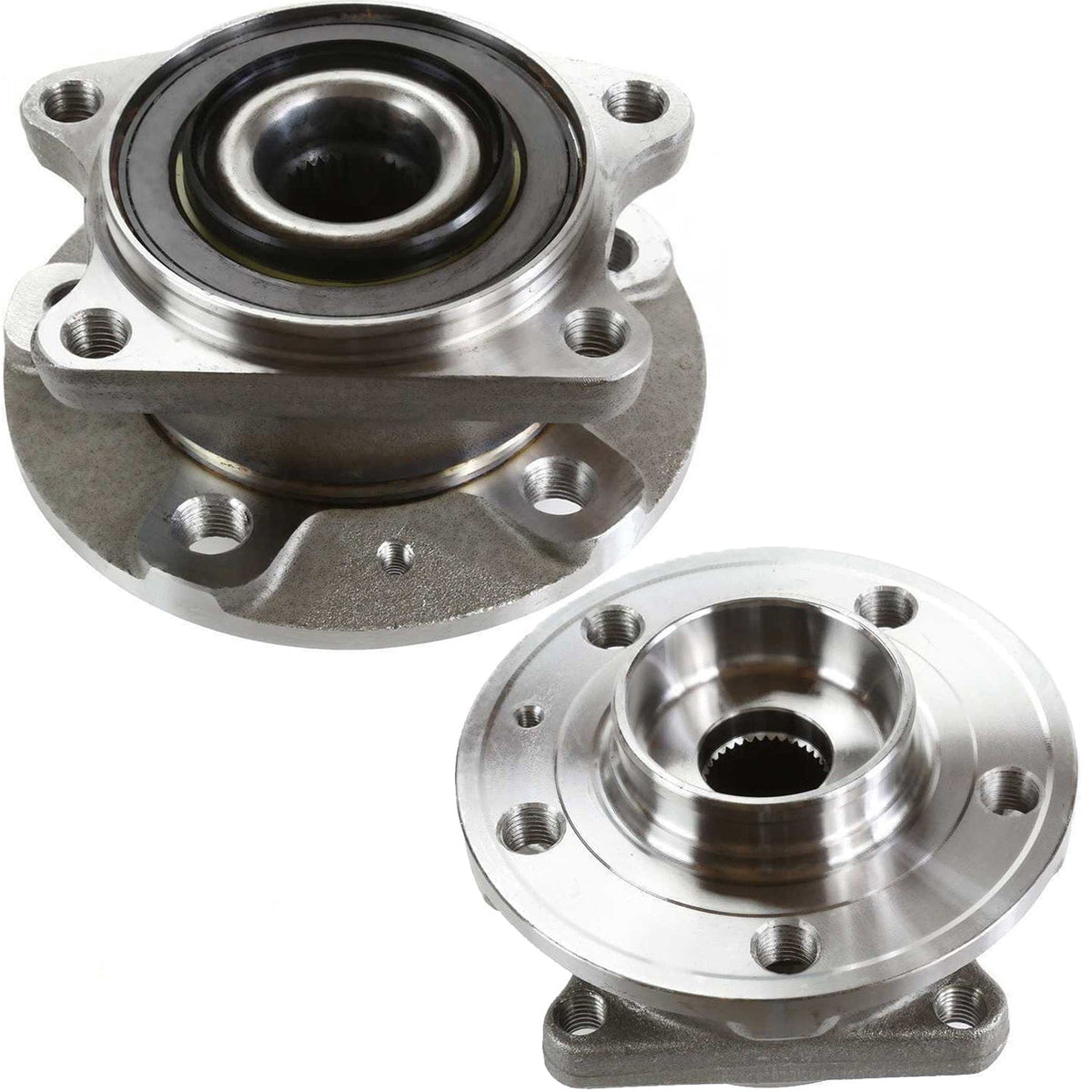

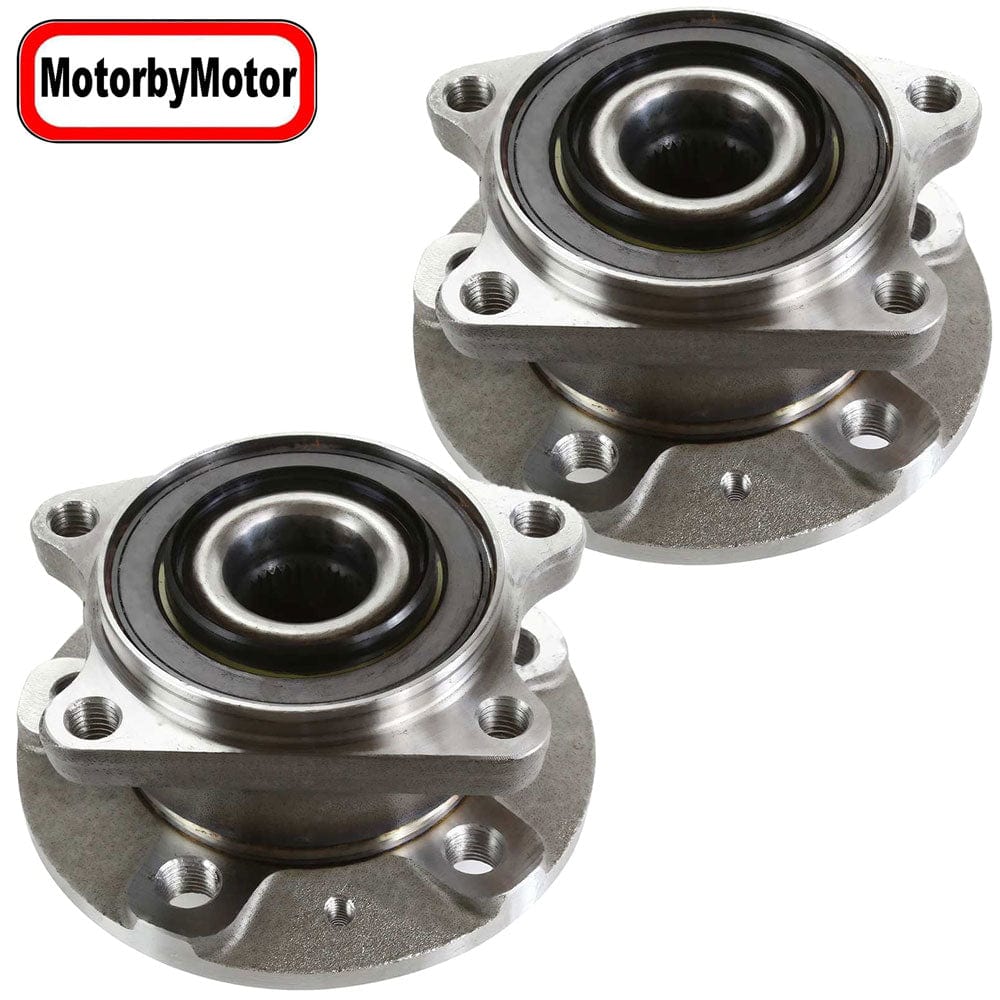

Volvo S60 Rear Wheel Bearing Hub Assembly AWD - 512253 (2 Pack)
Volvo S60 Rear Wheel Bearing Hub Assembly AWD - 512253 (2 Pack)
1000 in stock
Couldn't load pickup availability
MotorbyMotor 512253 Rear Wheel Bearing Fit Volvo S60, Volvo S80, Volvo V70, Volvo XC70 Wheel Hub AWD-2Pack
Rear wheel bearing and hub assembly compatible with select Volvo AWD models from 2001 to 2009. Durable steel construction with magnetic ABS ring.
What's Included
- 2 Rear Wheel Bearings and Hubs (Driver LH & Passenger RH)
- 5 Lug Bolts per hub
- 4 Flange Bolts per hub
Product Specifications
- Position: Driver (LH) and Passenger (RH) Rear
- ABS Sensor Included: No
- Mounting Bolts to Knuckle: 4
- Lug Bolts Included: 5
- Flange Bolts Included: 4
- Driven or Non-Driven: Non-Driven
- ABS Ring Type: Magnetic
- ABS Sensor Ring Teeth: 48
- Lug Bolt Thread Size: M14-1.50
- Total Hub Diameter: 5.334 Inch
- Hub Centerbore Diameter: 4.251 Inch
- Total Hub Height: 3.535 Inch
- Flange Diameter: 5.334 Inch
- Flange Offset: 2.314 Inch
- Flange Shape: Rectangle
- Flange Bolt Thread Size: M12-1.75
- Material: Steel
- Bearing Type: Ball
- Outer Ring Width: 2.07 Inch
- Inner Ring Width: 0.79 Inch
- Hub Pilot Diameter: 3.44 Inch
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2002-2009 | Volvo | S60, S60 AWD, S60R AWD | Rear, Non-Driven |
| 2004-2006 | Volvo | S80 AWD | Rear, Non-Driven |
| 2001-2007 | Volvo | V70, V70 AWD, V70 XC AWD, V70R AWD | Rear, Non-Driven |
| 2003-2007 | Volvo | XC70 AWD | Rear, Non-Driven |
