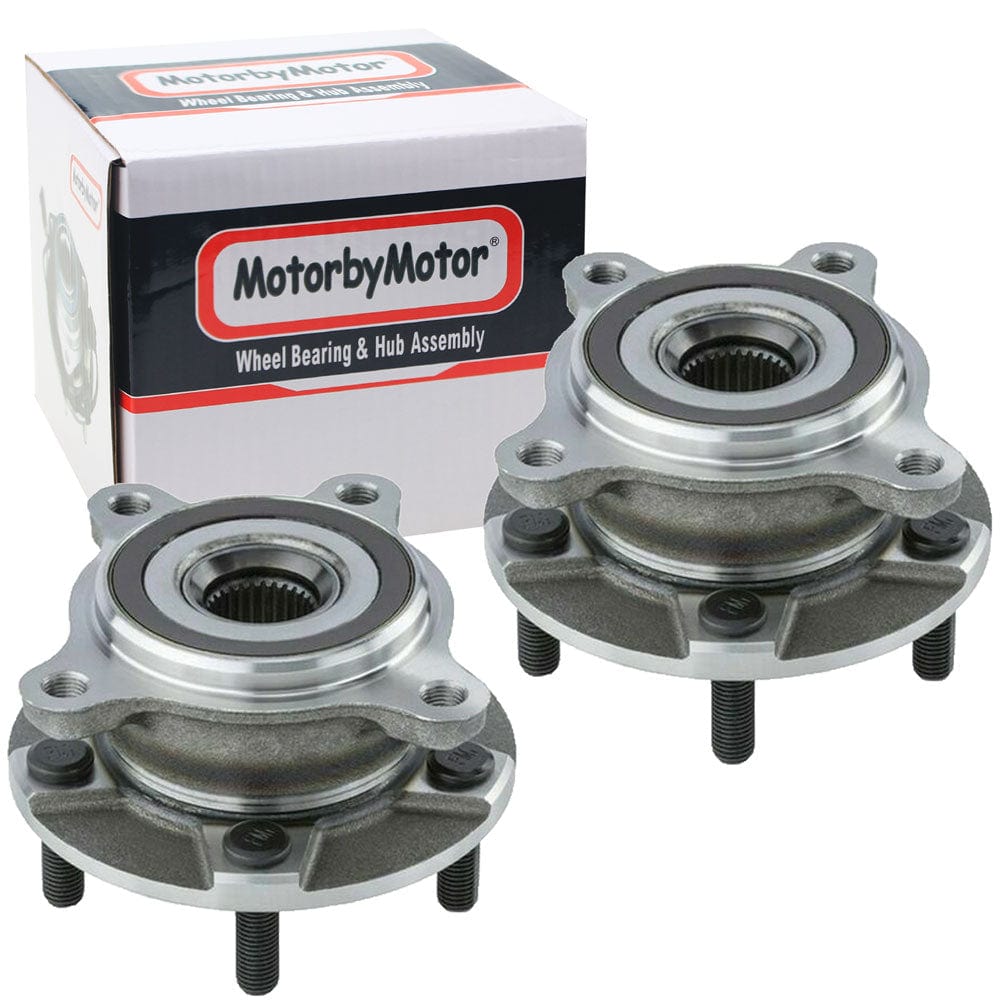

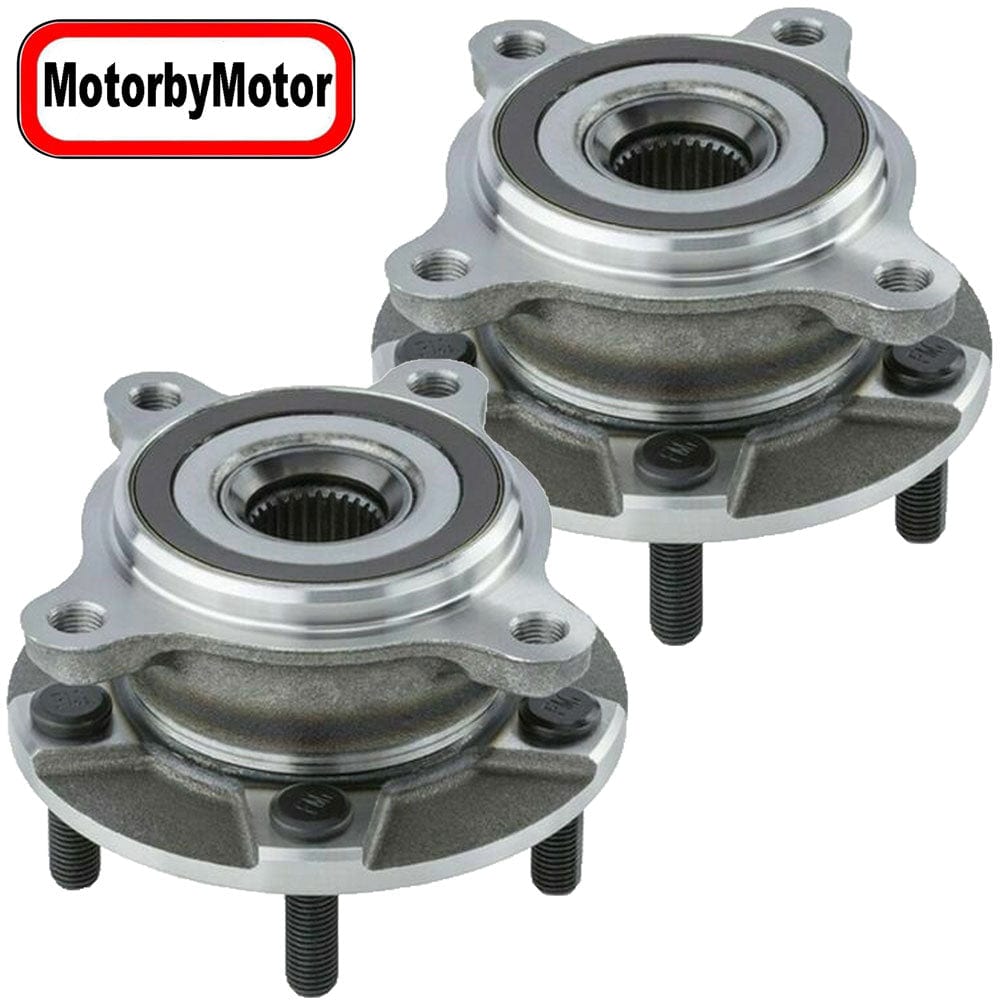

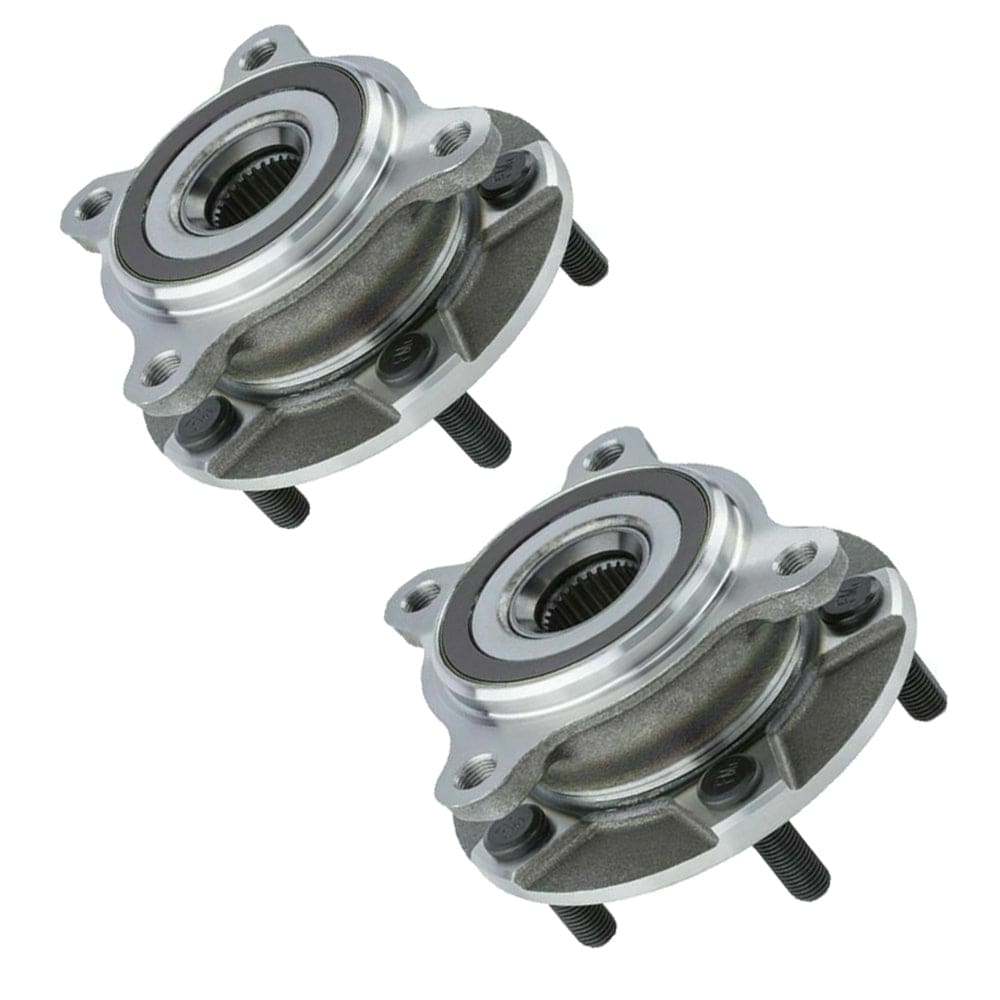

Lexus RC350 Front Right Wheel Bearing Hub Assembly, 5 Lugs - 513366

Front RH Wheel Bearing Fit Lexus GS300 GS 350 IS250 IS300 IS350 RC300 RC350 Wheel Hub, 5 Lugs, Right Side, 513366

Fit:

2006 Lexus GS300
2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Lexus GS350
2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 Lexus IS250
2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Lexus IS300
2011 2012 2013 2014 2015 2016 2017 2018 2019 Lexus IS350
2016 2017 2018 2019 Lexus RC300
2015 2016 2017 2018 2019 Lexus RC350

Description:
Position:Driver (LH Left) and Passenger(RH Right£© Side Front
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Magnetic
Number Of ABS Sensor Ring Teeth: 48
Total Hub Diameter (in): 5.51 Inch
Total Hub Diameter (mm): 140mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 3.58 Inch
Total Hub Height (mm): 90.9mm
Flange Diameter (in): 2.44 Inch
Flange Diameter (mm): 62mm
Flange Offset (in):1.97 Inch
Flange Offset (mm): 50mm
Flange Shape: Round
Flange Bolt Size (in): 1.26 Inch
Flange Bolt Size (mm): 31.9mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.54 Inch
Hub Pilot Diameter (mm): 90mm
