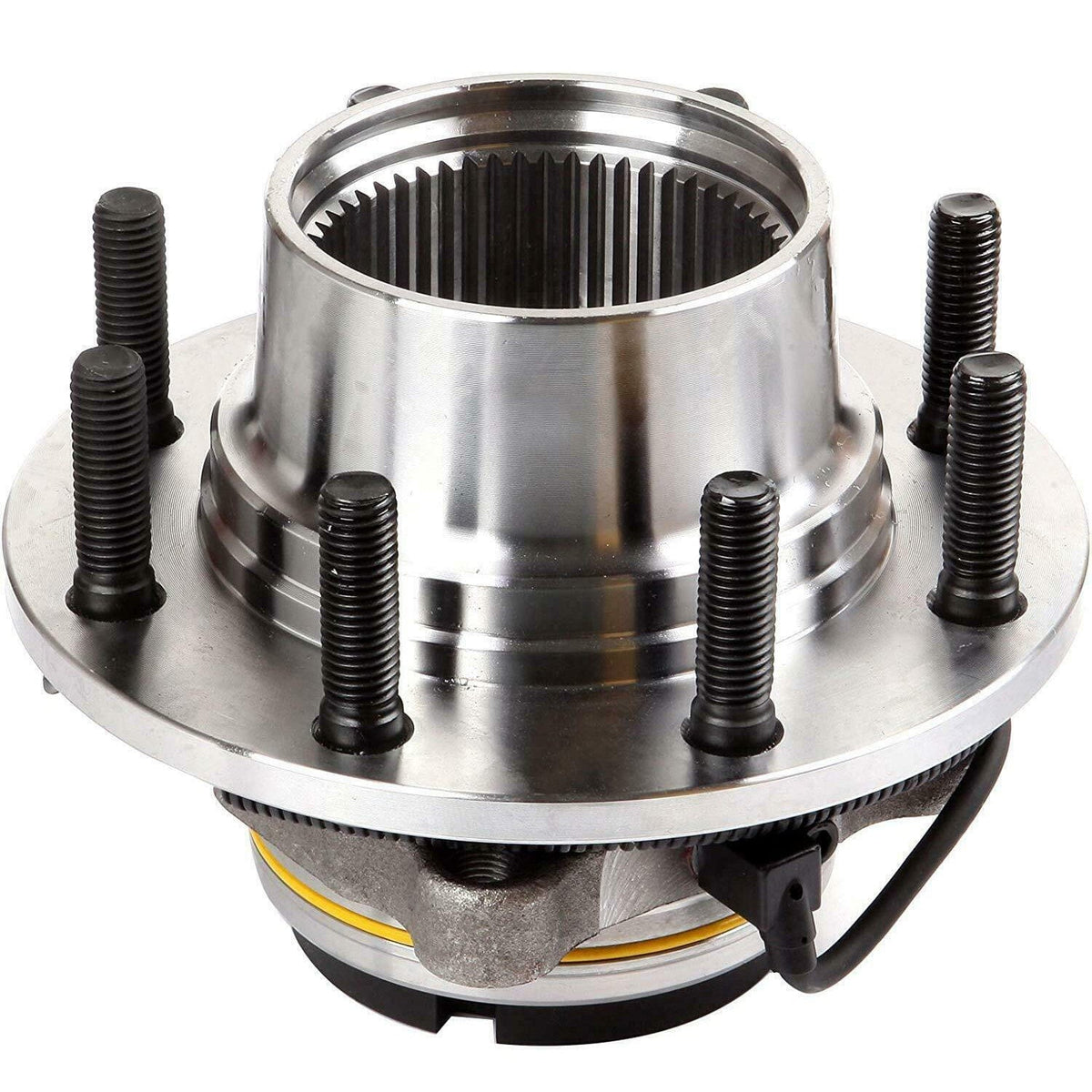

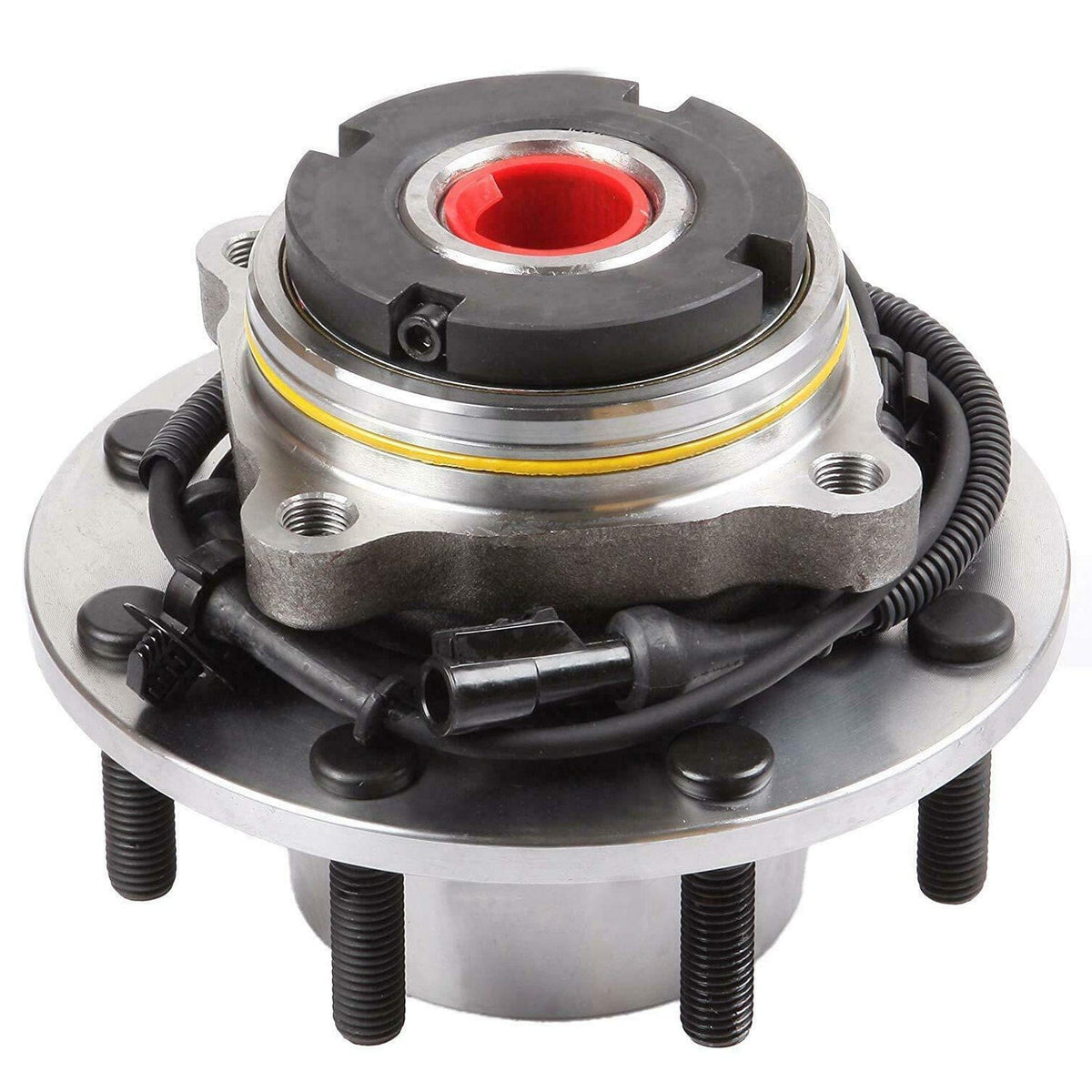

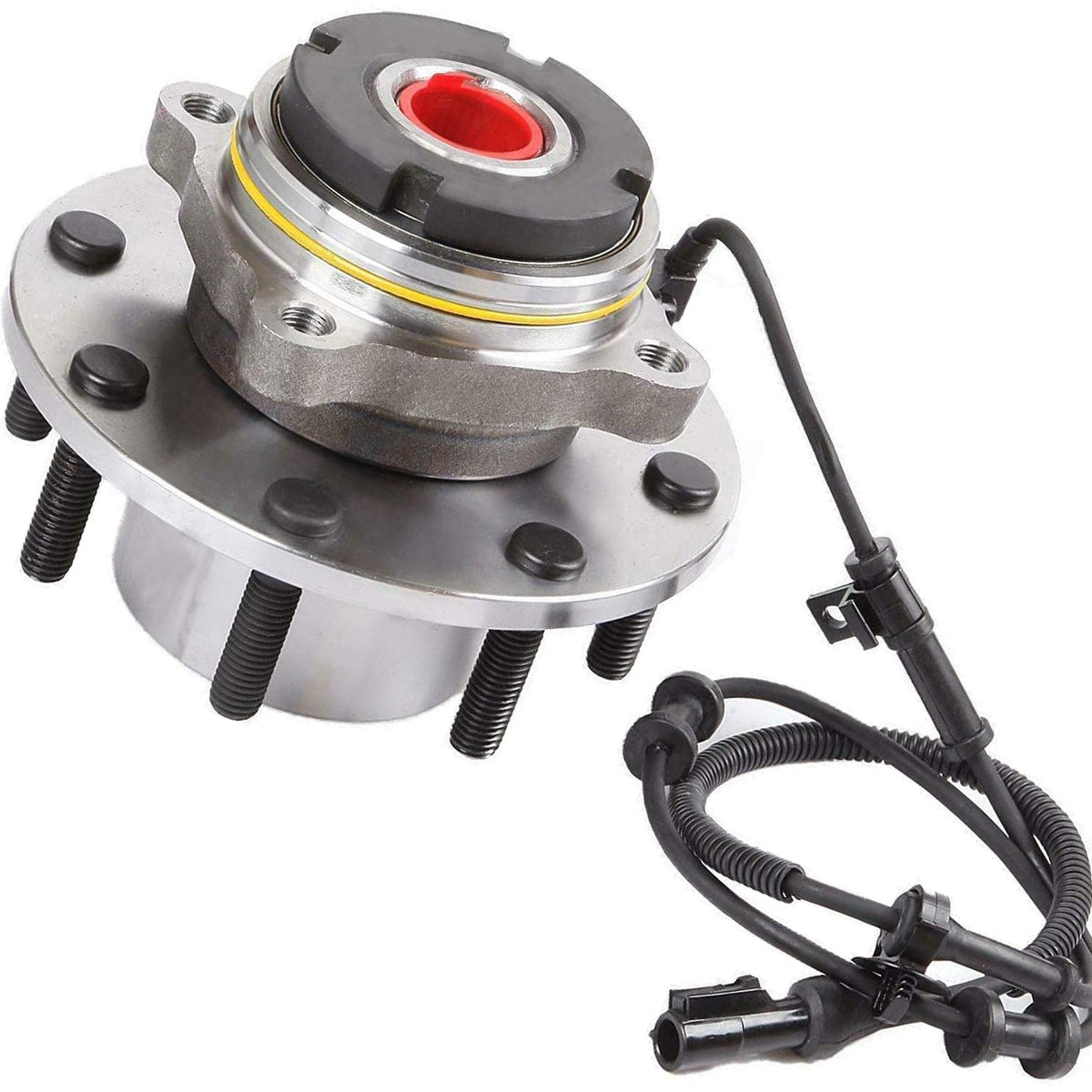

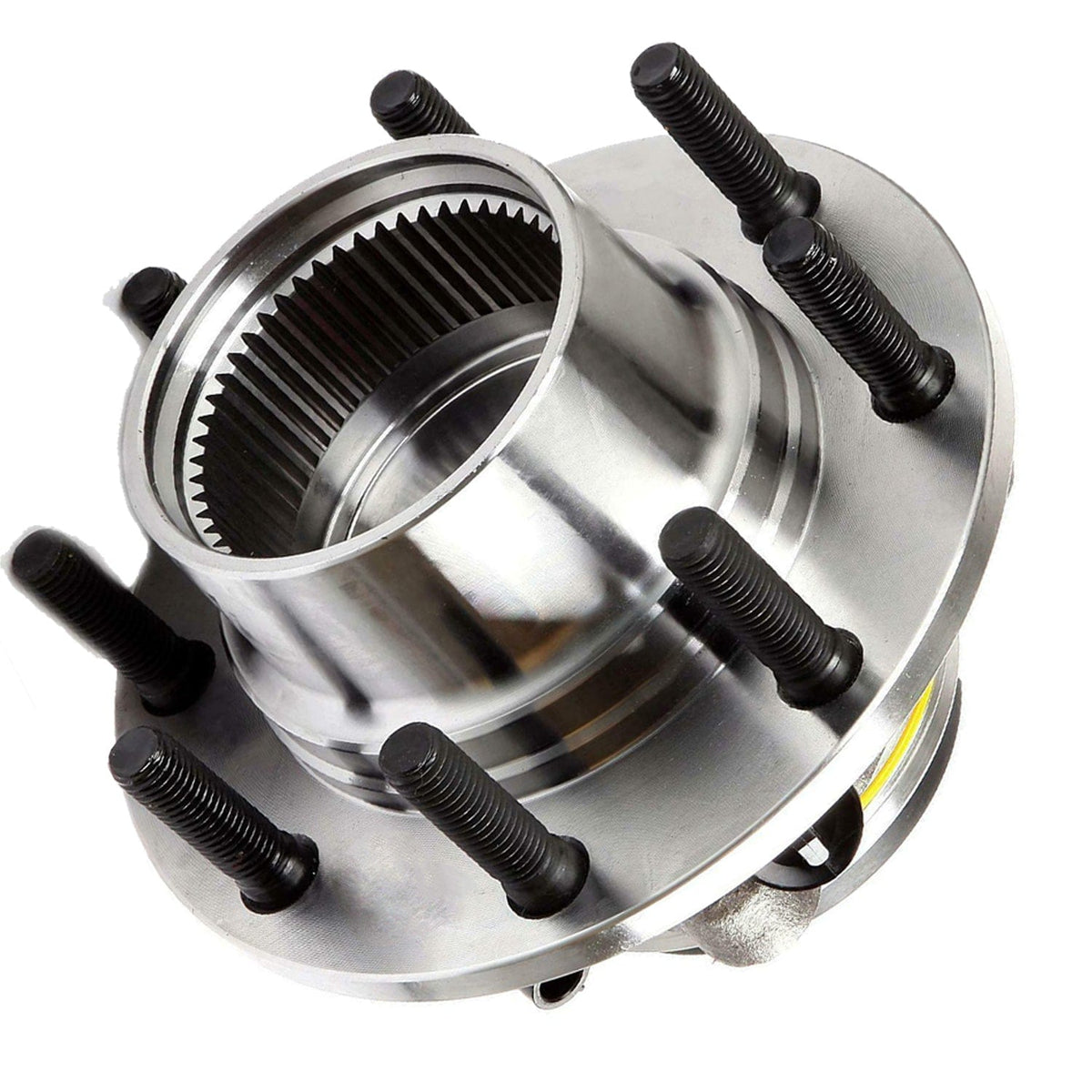

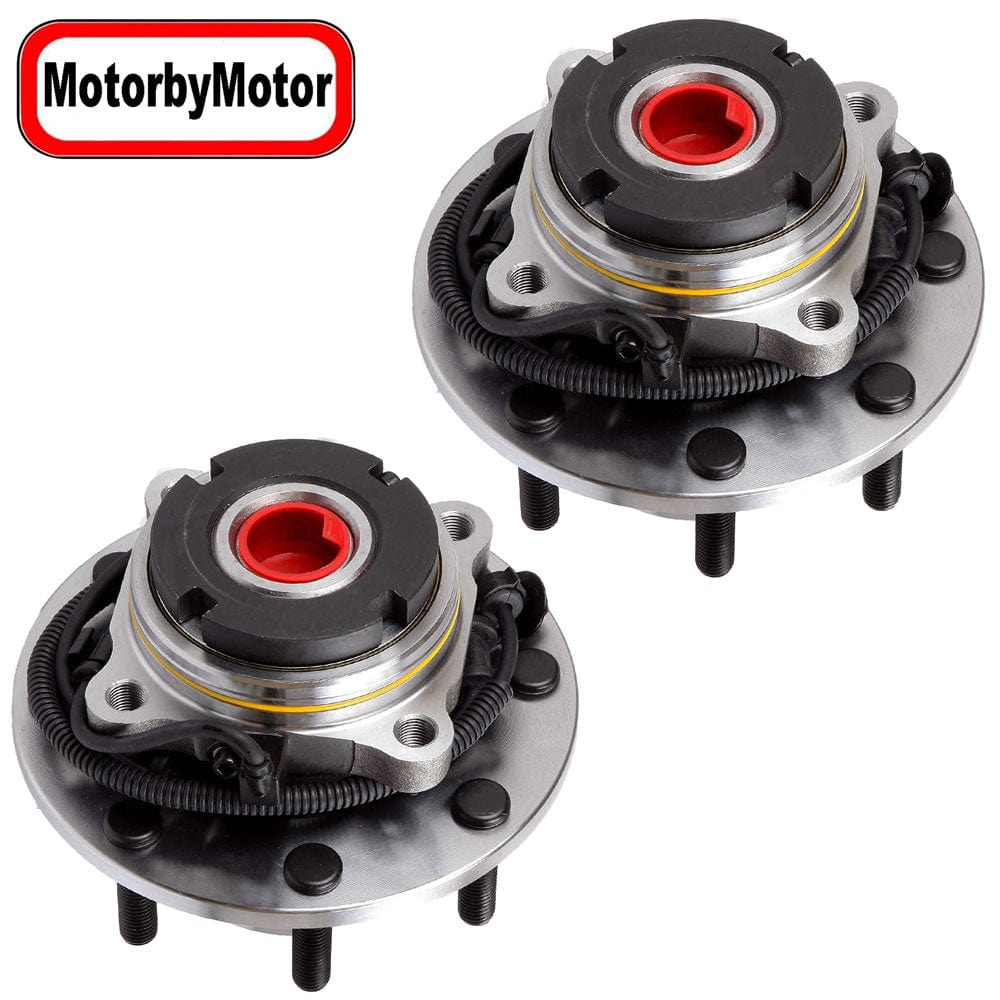

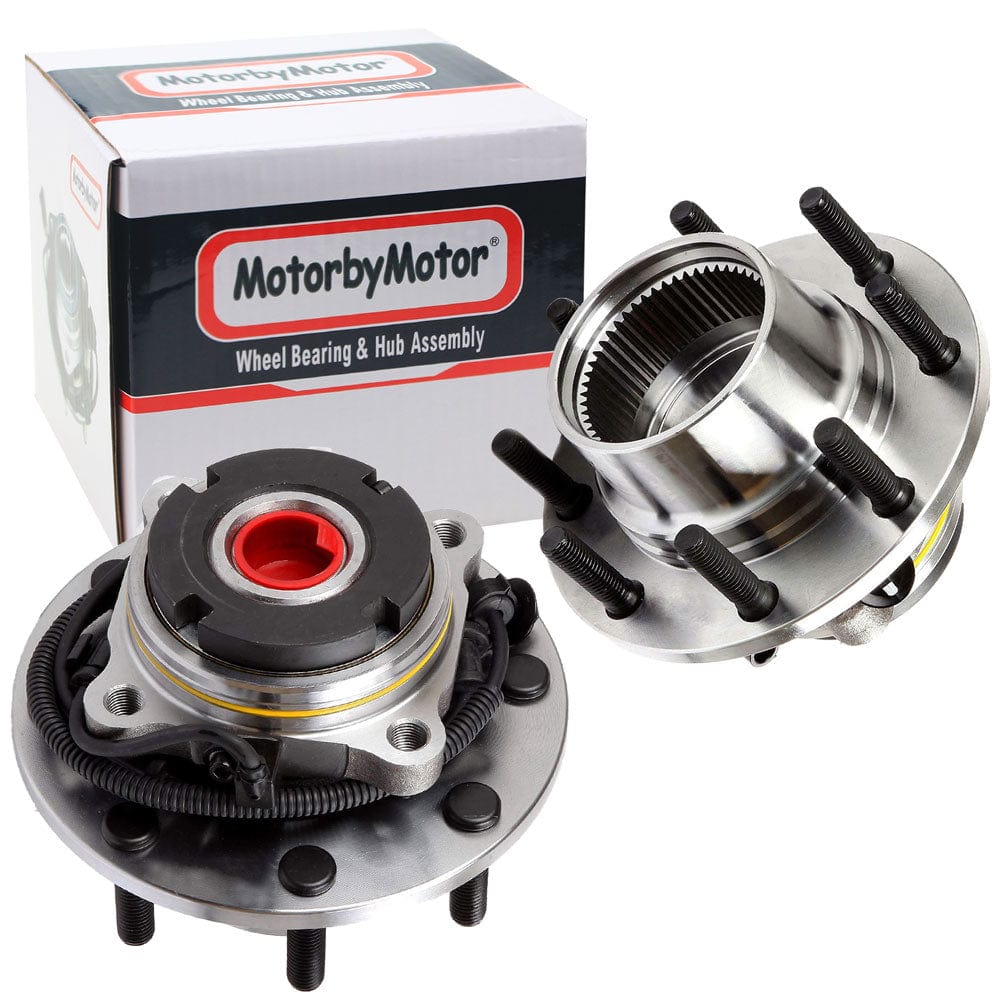

Ford Super Duty Front Wheel Bearing Hub Assembly, 8 Lugs 4WD w/ABS -- 515077 (2 Pack)

Front Wheel Bearing Fit 1999 Ford F-250 F-350 F-450 F-550 Super Duty Wheel Hub w/ABS 8 Lugs 4WD, 515077 (2 PACK)

Fit:
1999 Ford F-250 Super Duty
1999 Ford F-350 Super Duty
1999 Ford F-450 Super Duty
1999 Ford F-550 Super Duty

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 46.85 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Driven
Number Of Splines: 55
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 60
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.992 Inch
Total Hub Diameter (mm): 203mm
Hub Centerbore Diameter (in): 6.692 Inch
Hub Centerbore Diameter (mm): 170mm
Total Hub Height (in): 5.543 Inch
Total Hub Height (mm): 140.8mm
Flange Diameter (in): 7.992 Inch
Flange Diameter (mm): 203mm
Flange Offset (in): 2.027 Inch
Flange Offset (mm): 51.5mm
Flange Shape: Square
Flange Bolt Size (in): 1.913 Inch
Flange Bolt Size (mm): 48.6mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.44 Inch
Inner Ring Width (in): 1.17 Inch
Hub Pilot Diameter (in): 5.078 Inch
Hub Pilot Diameter (mm): 129mm
