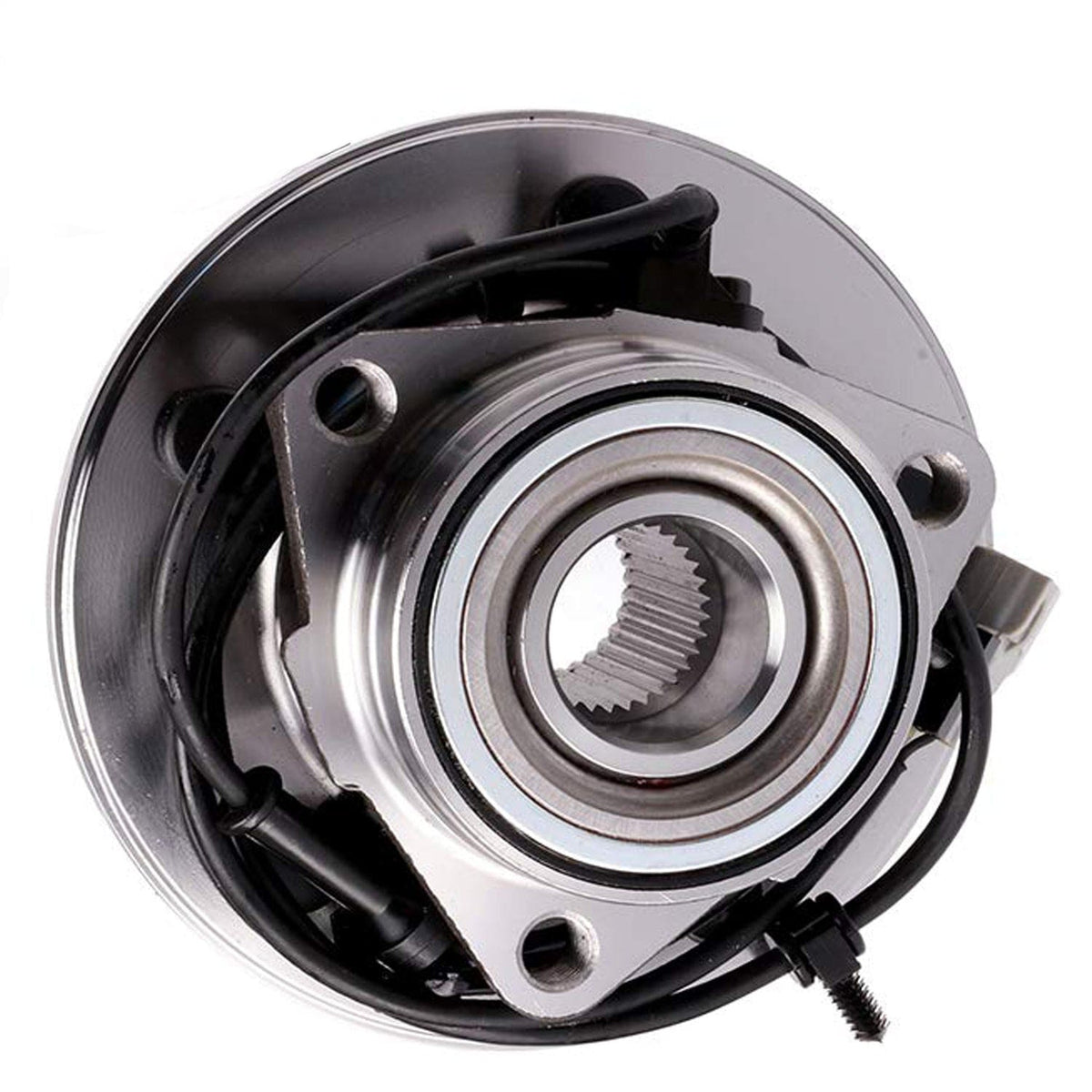

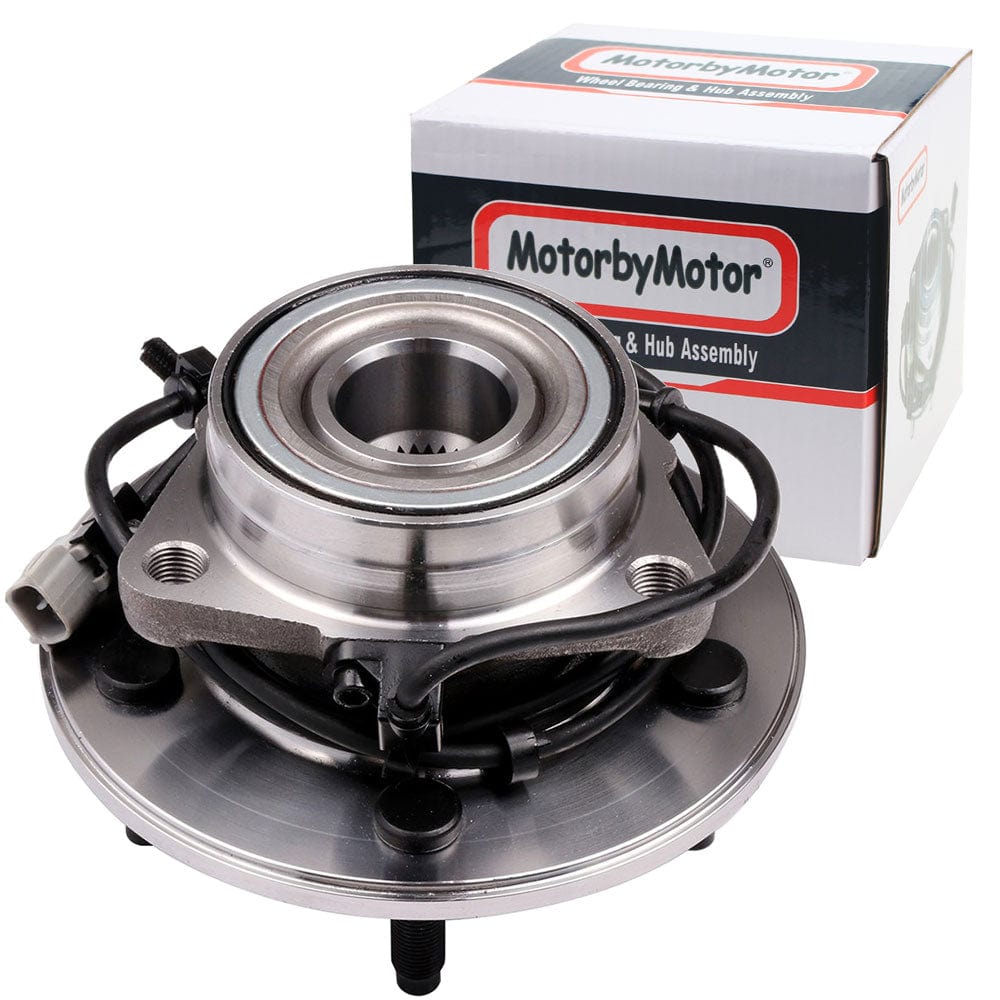

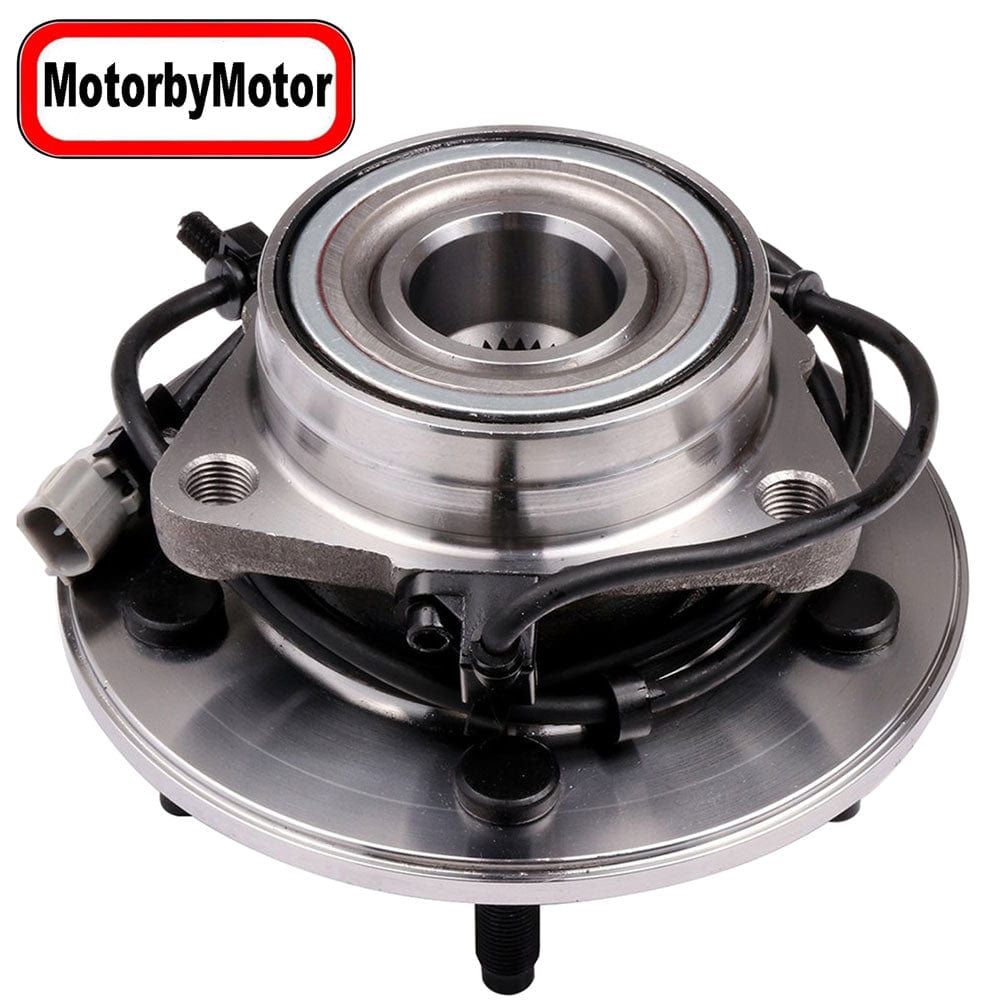

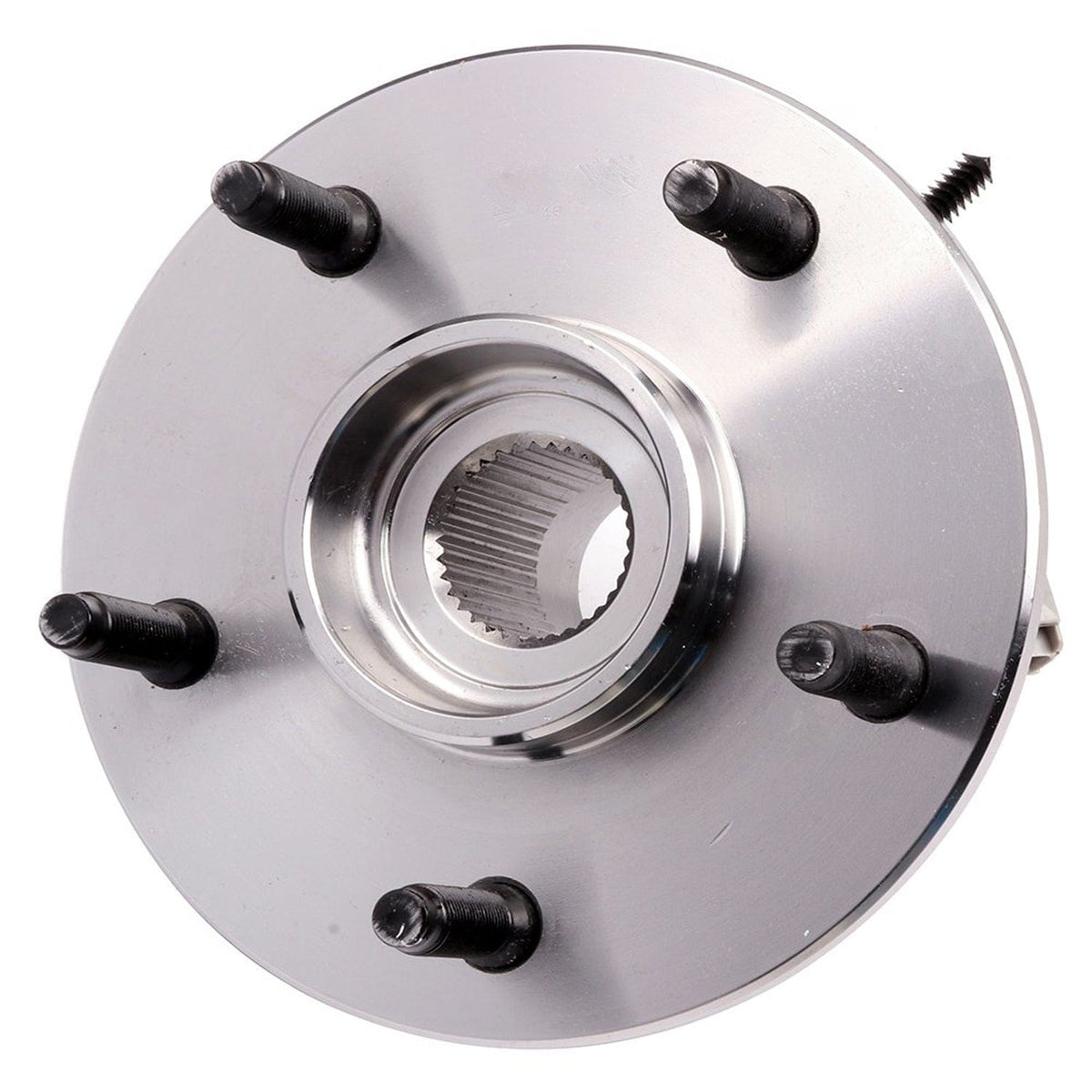

Dodge Ram 1500 Front Wheel Bearing Hub Assembly, 5 Lugs 4WD w/ABS -- 515039

Front Wheel Bearing Fit 2000 2001 Dodge Ram 1500 Pickup Wheel Hub w/ABS, 5 Lugs, 4WD 515039

Fit:
2000 2001 Dodge Ram 1500 Pickup

Description:

Position:Driver(LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes

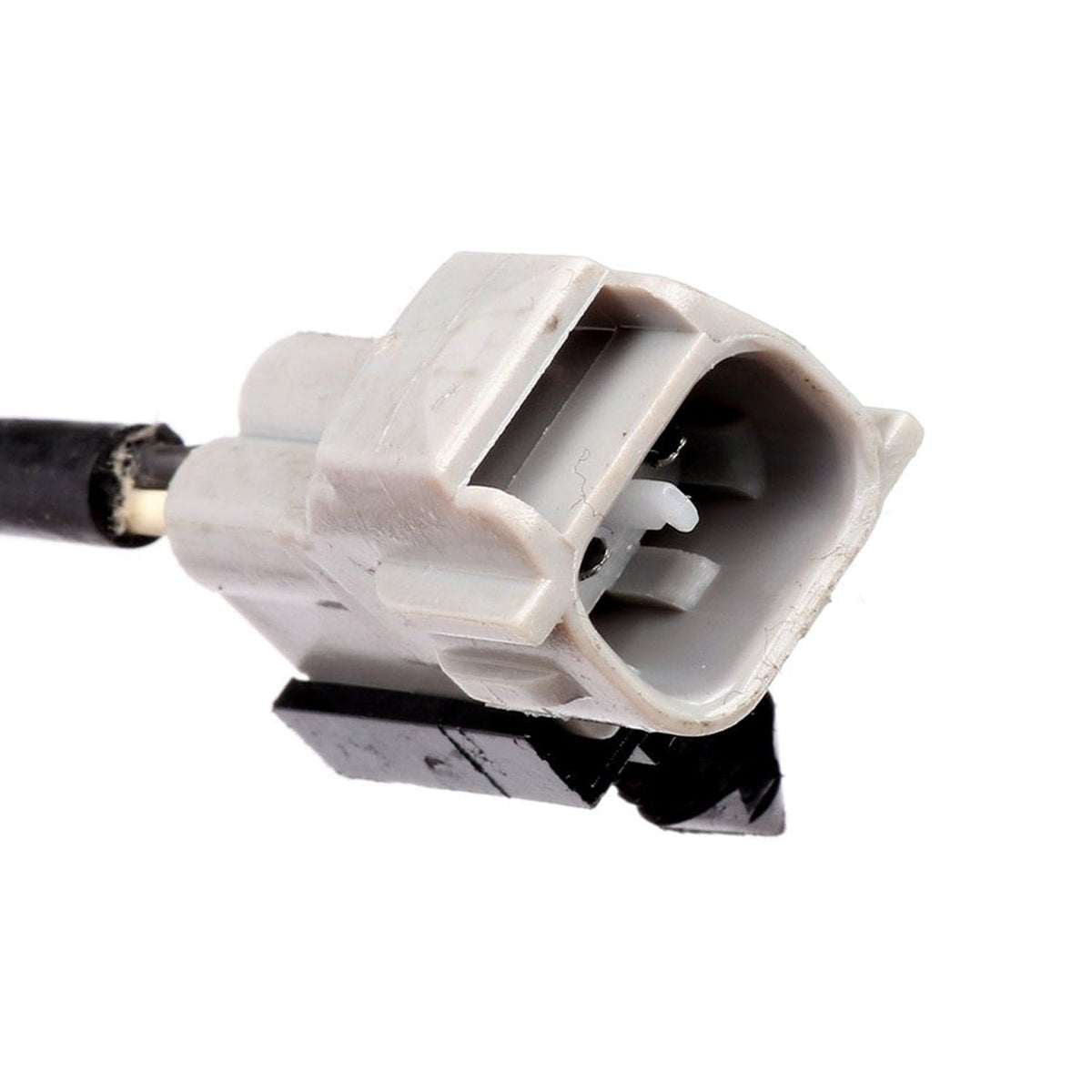

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 63.78 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 1/2-20 Inch
Total Hub Diameter (in): 7.204 Inch
Total Hub Diameter (mm): 183mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 4.590 Inch
Total Hub Height (mm): 116.6mm
Flange Diameter (in): 7.204 Inch
Flange Diameter (mm): 183mm
Flange Offset (in): 1.996 Inch
Flange Offset (mm): 50.7mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.559 Inch
Flange Bolt Size (mm): 39.6mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.082 Inch
Hub Pilot Diameter (mm): 78.3mm
