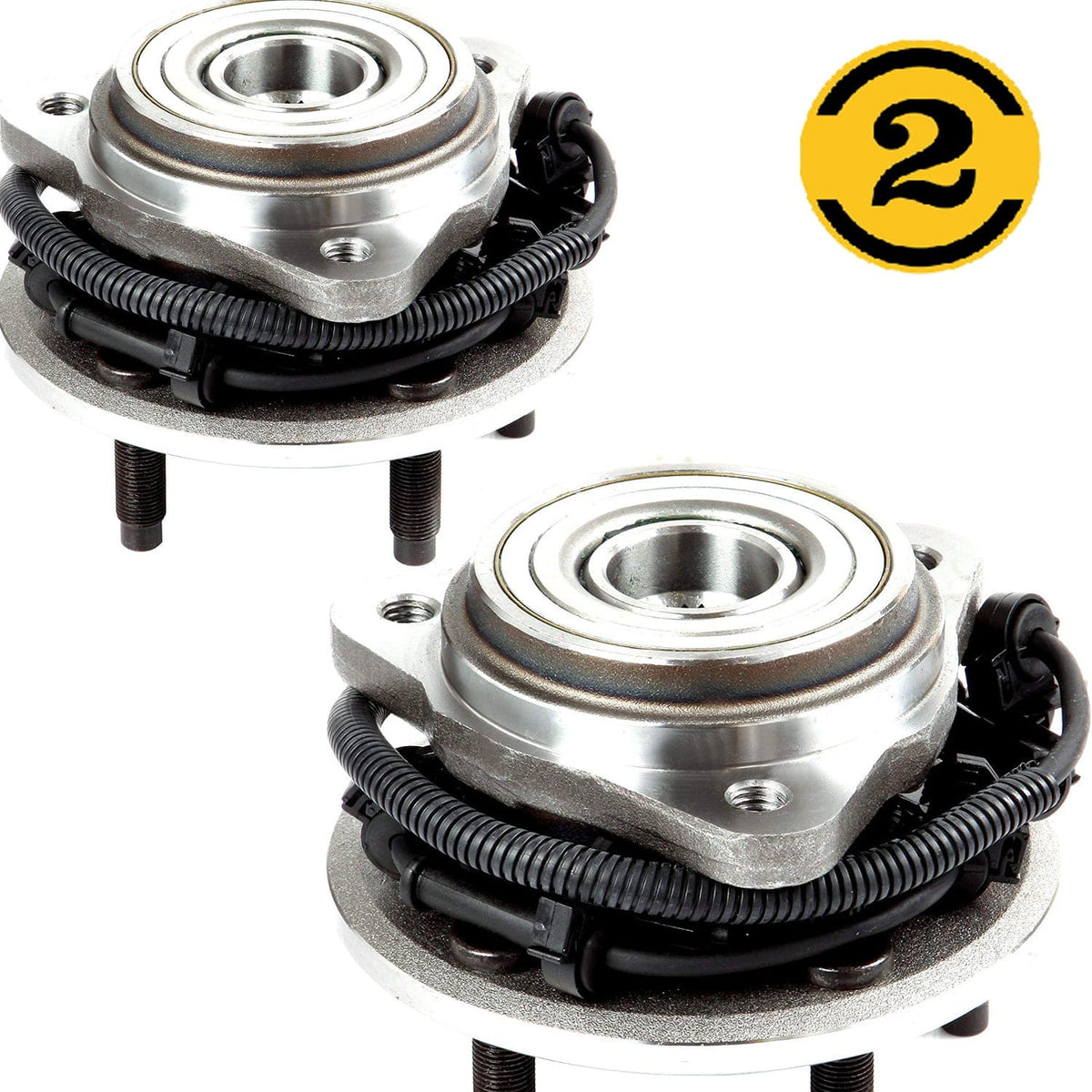

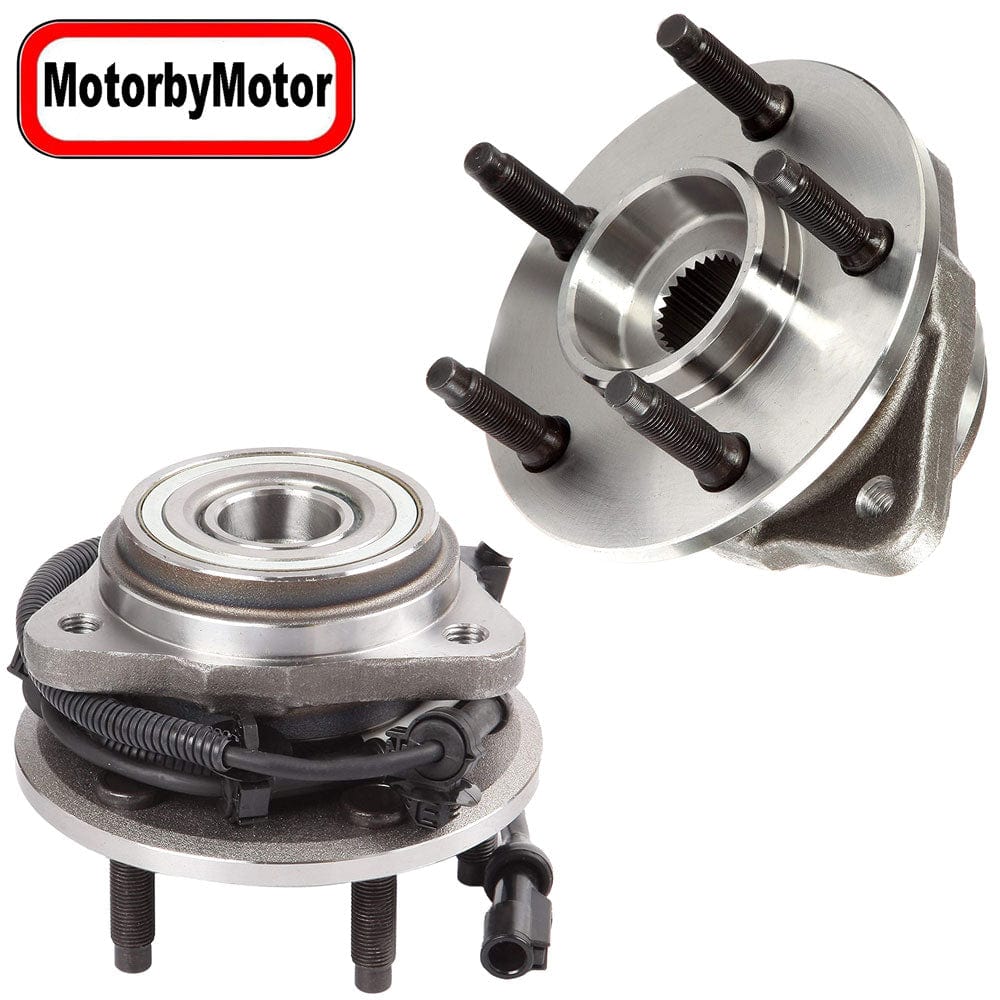

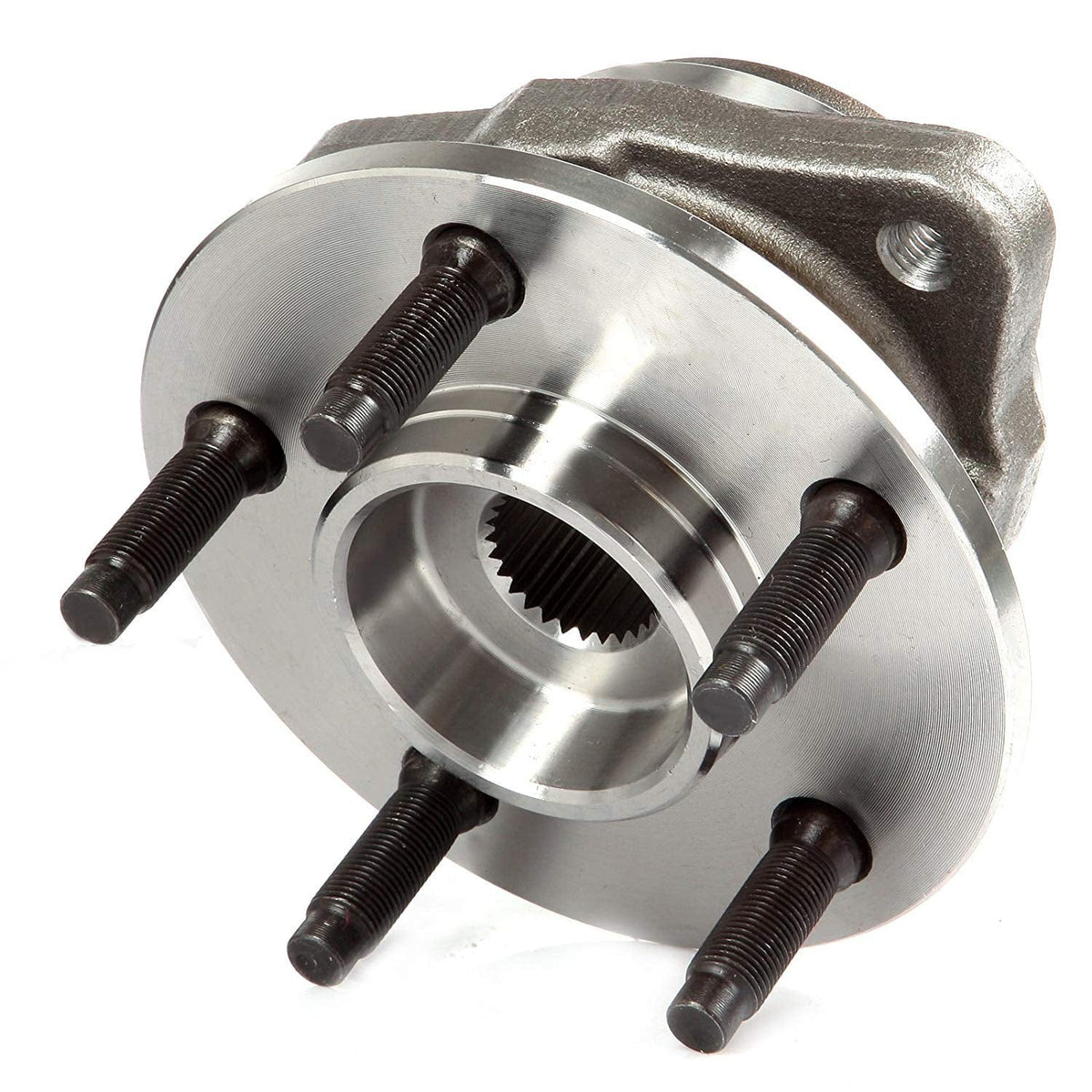

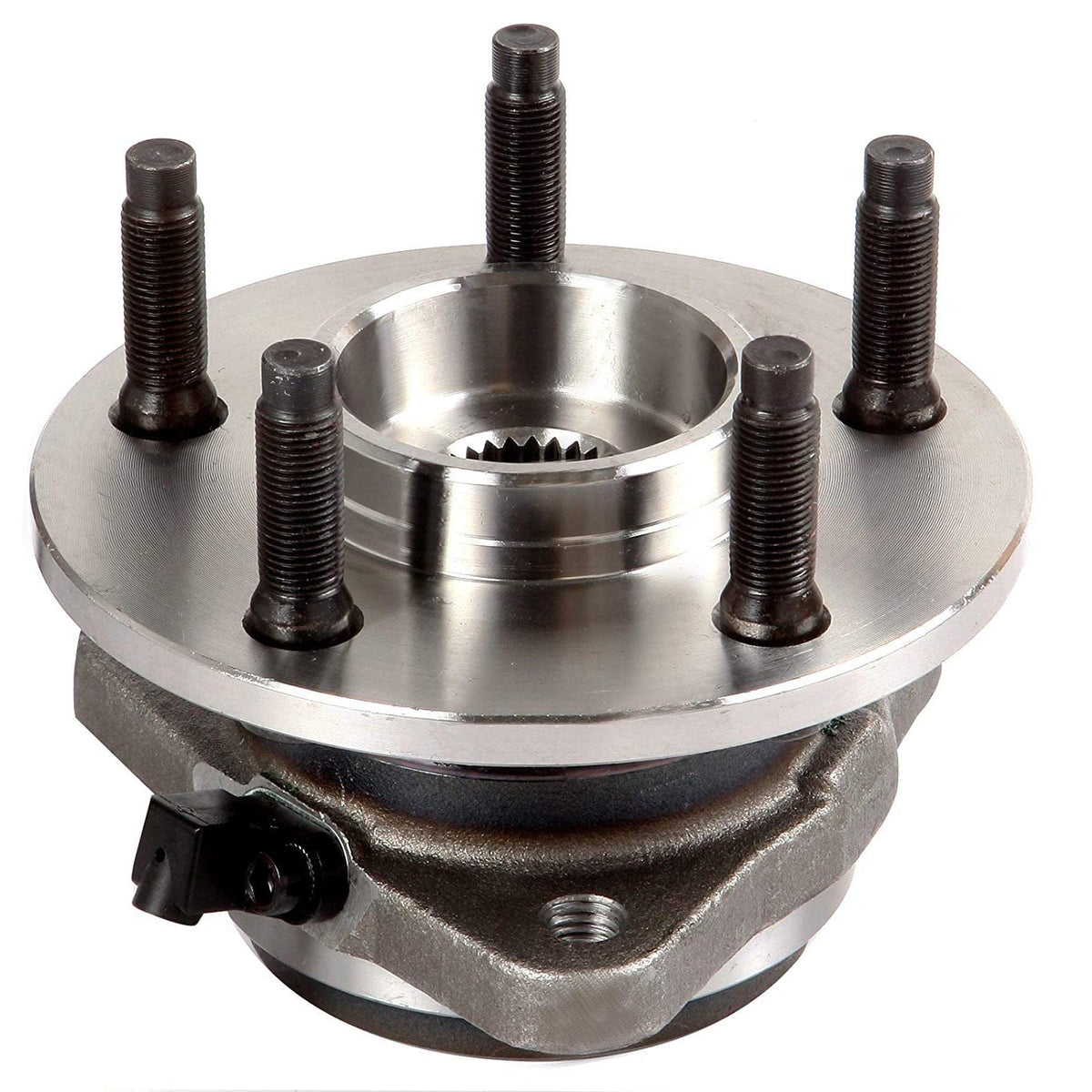

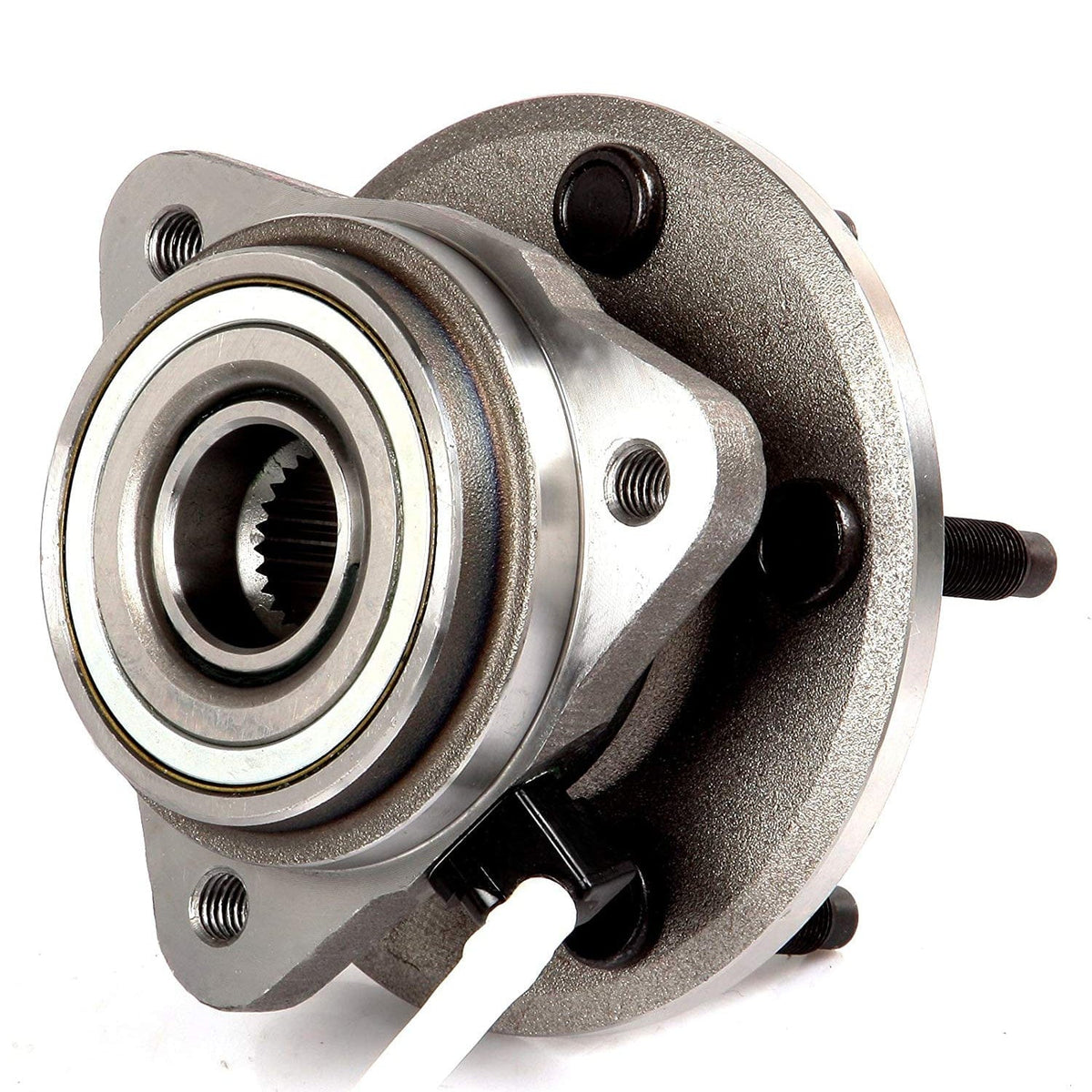

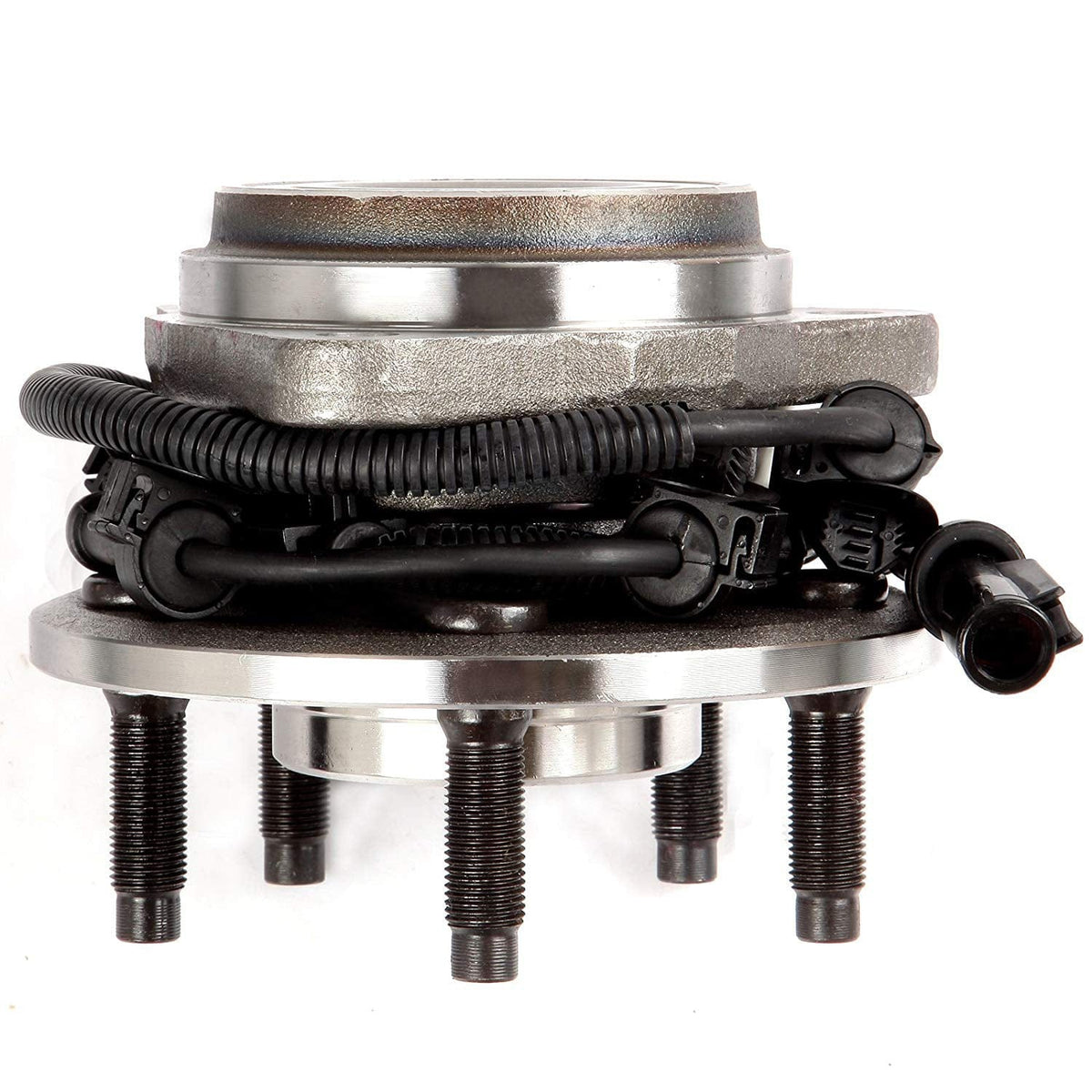

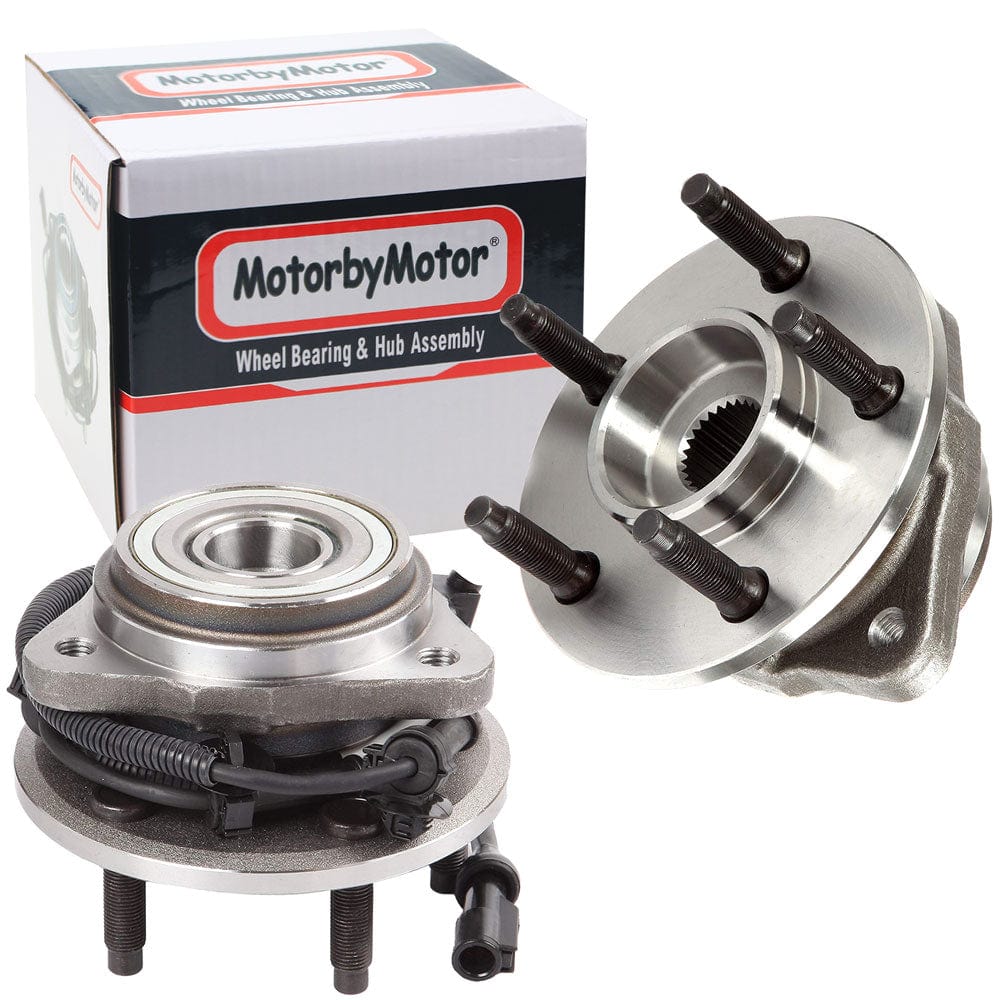

Ford Ranger Front Wheel Bearing Hub Assembly, 5 Lugs 4WD w/ABS -- 515013 (2 Pack)

Front Wheel Bearing Fit 2000-2002 Ford Ranger, 2001 2002 Mazda B3000, 2000-2002 Mazda B4000 Wheel Hub w/ABS 5 Lugs, 4WD,515013 (2 PACK)

Fit
2000-2002 Ford Ranger
2001 2002 Mazda B3000
2000-2002 Mazda B4000

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 48.03 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 27
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 54
Lug Bolt Thread Size: M12-1.75
Total Hub Diameter (in): 5.881 Inch
Total Hub Diameter (mm): 149.4mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 4.759 Inch
Total Hub Height (mm): 120.9mm
Flange Diameter (in): 5.881 Inch
Flange Diameter (mm): 149.4mm
Flange Offset (in): 2.208 Inch
Flange Offset (mm): 56.1mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.685 Inch
Flange Bolt Size (mm): 42.8mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2 Inch
Inner Ring Width (in): 0.83 Inch
Hub Pilot Diameter (in): 2.828 Inch
Hub Pilot Diameter (mm): 71.85mm
