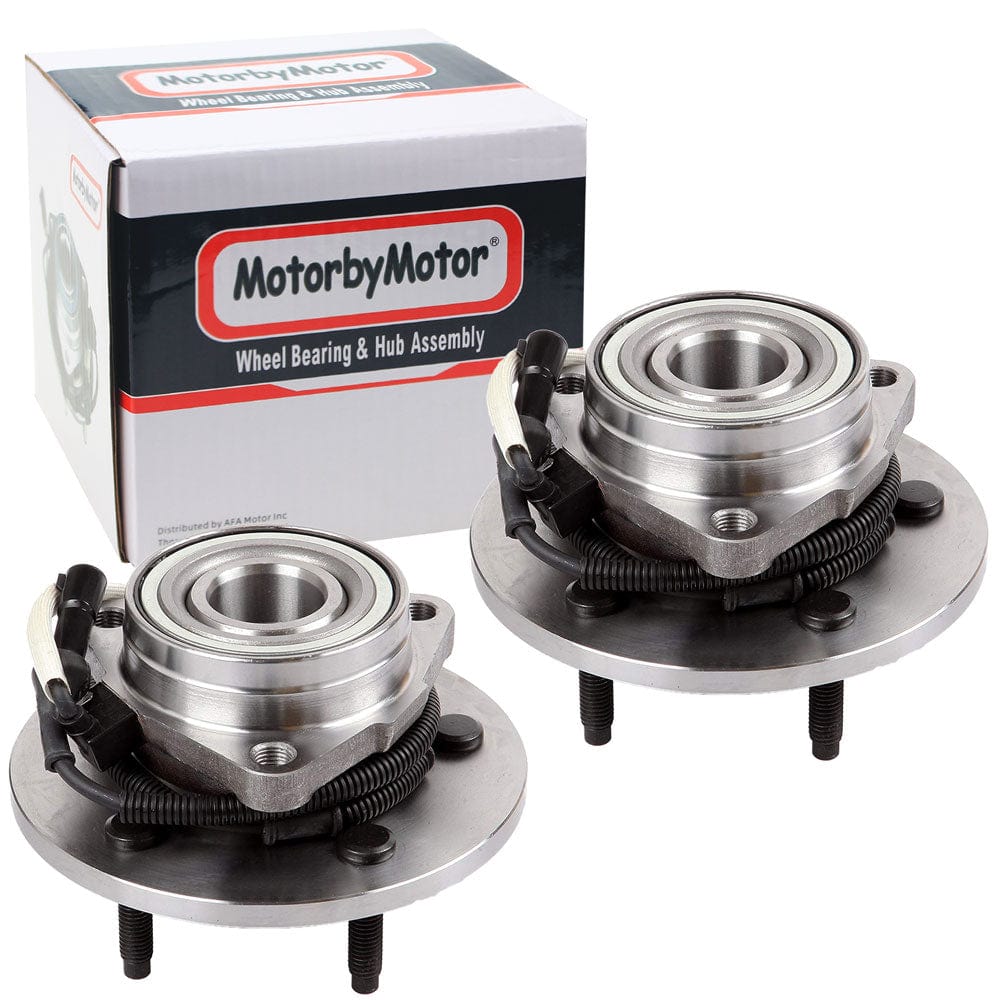

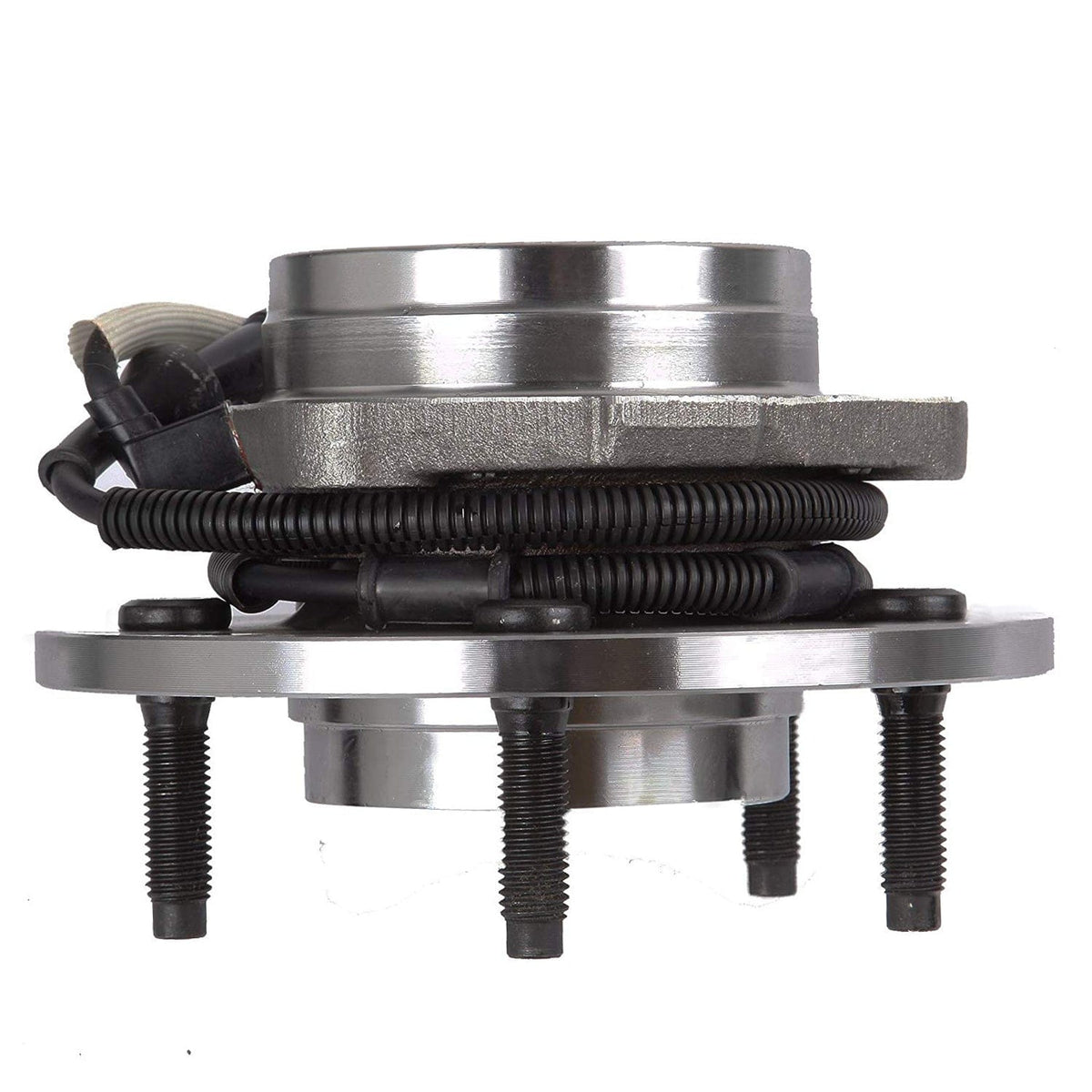

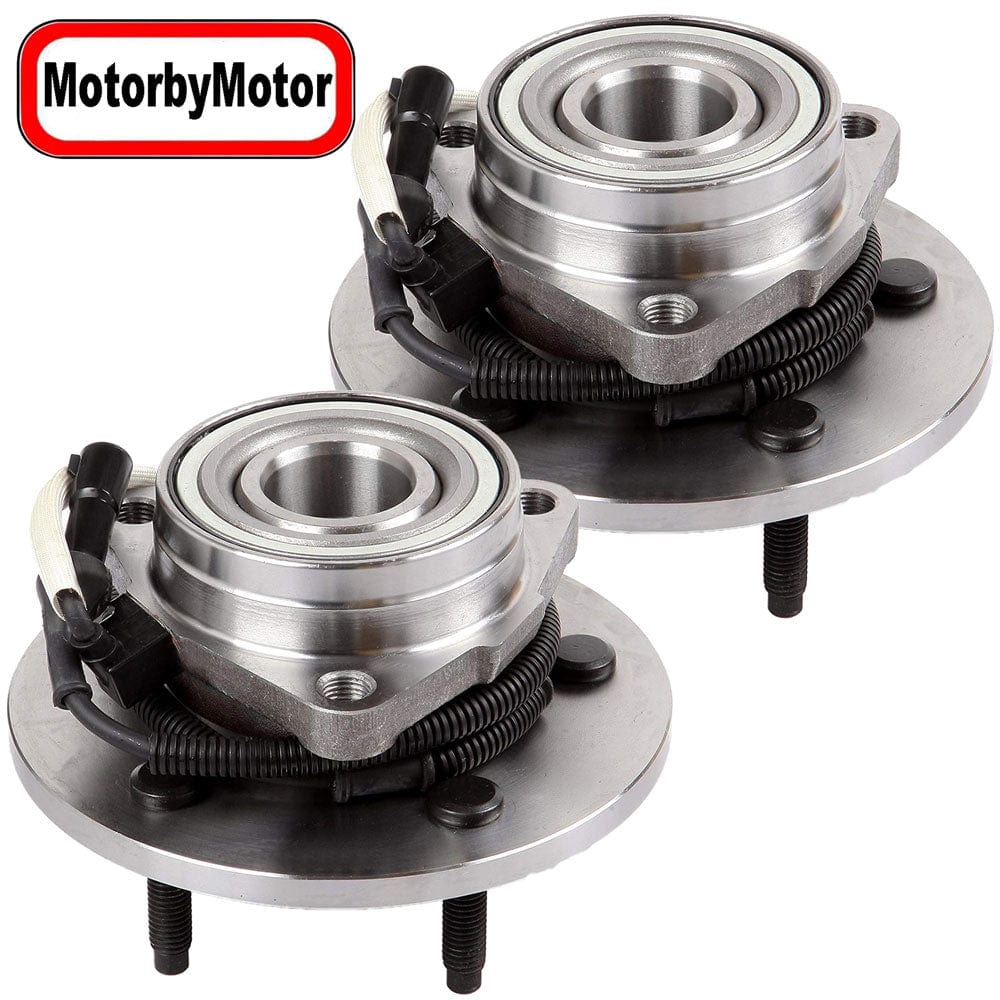

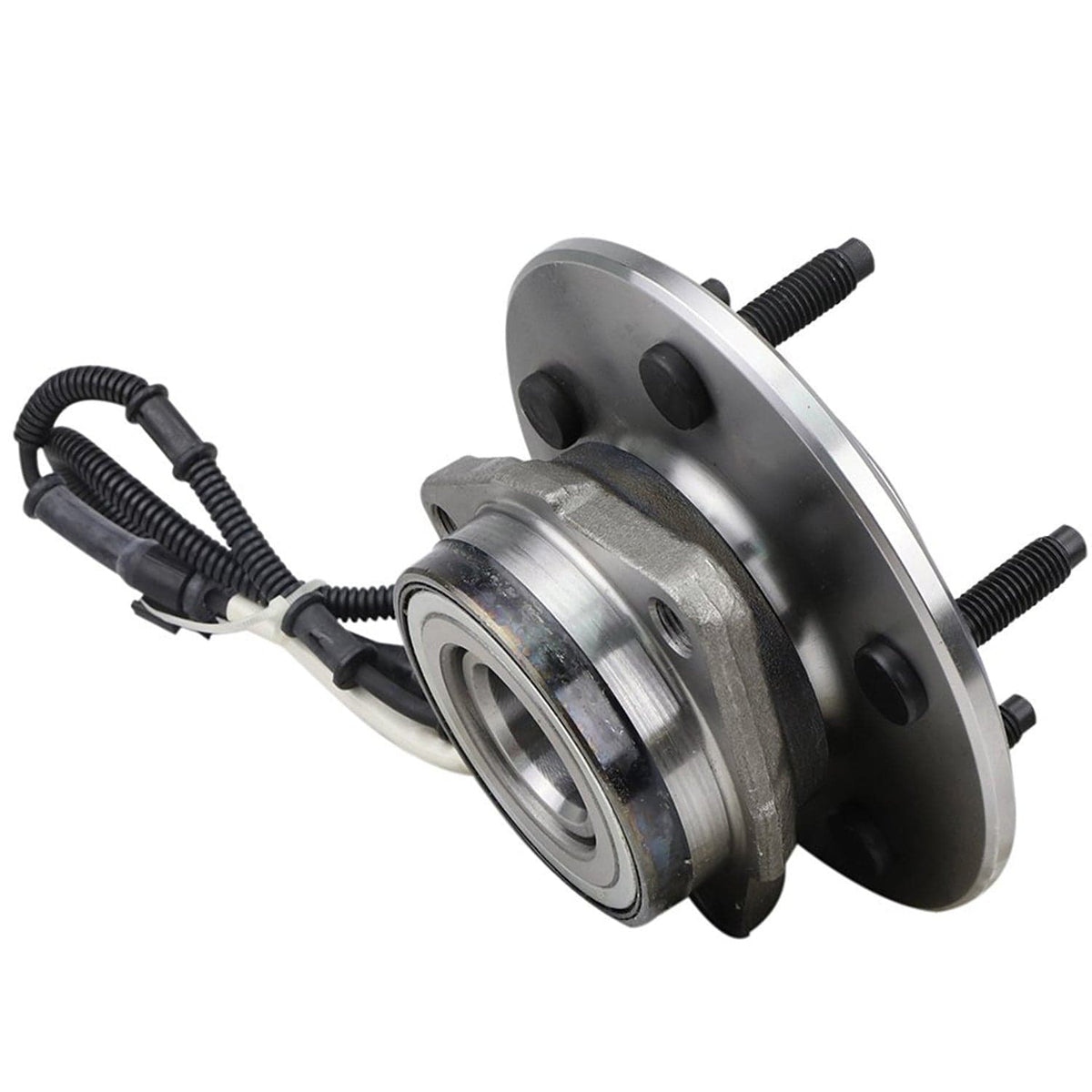

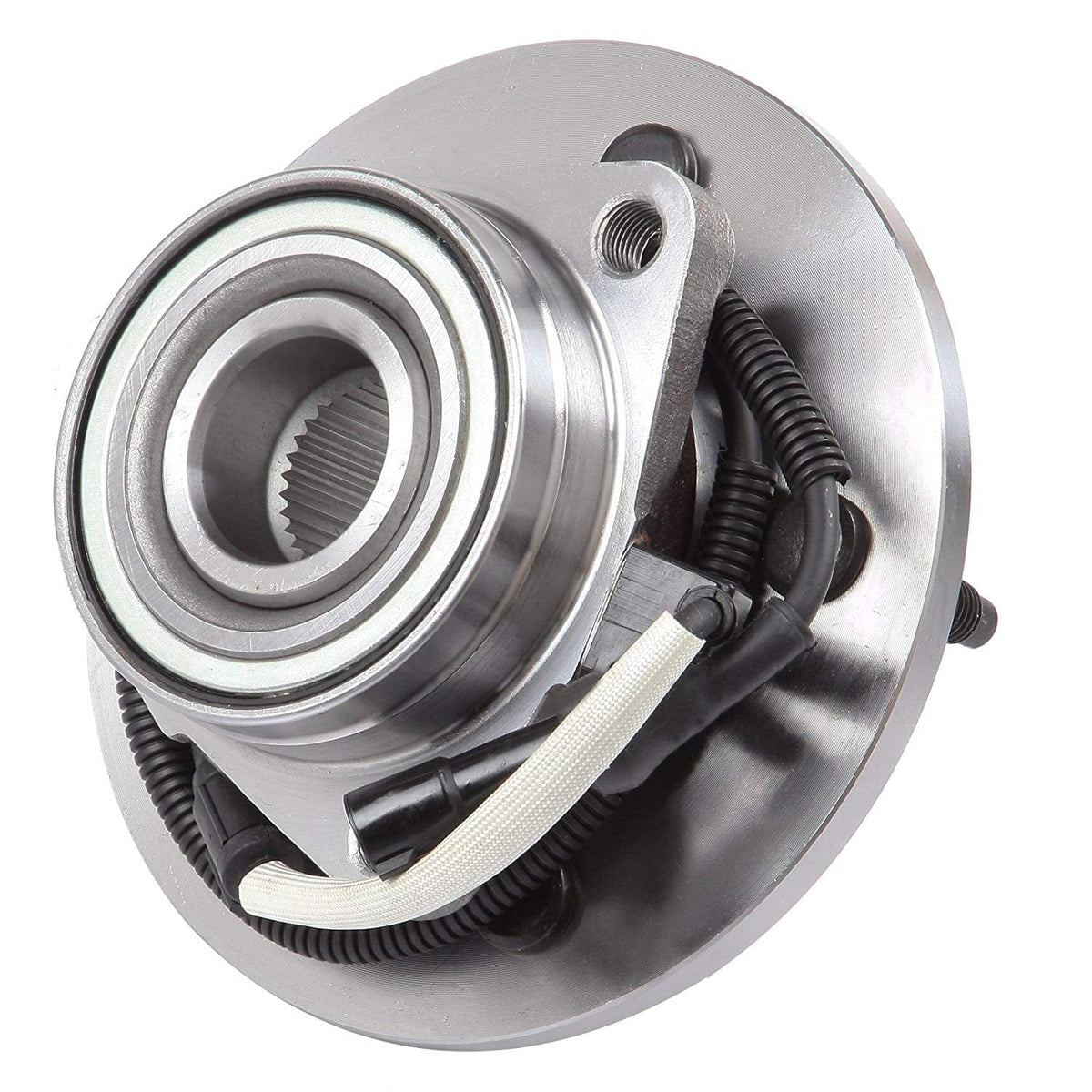

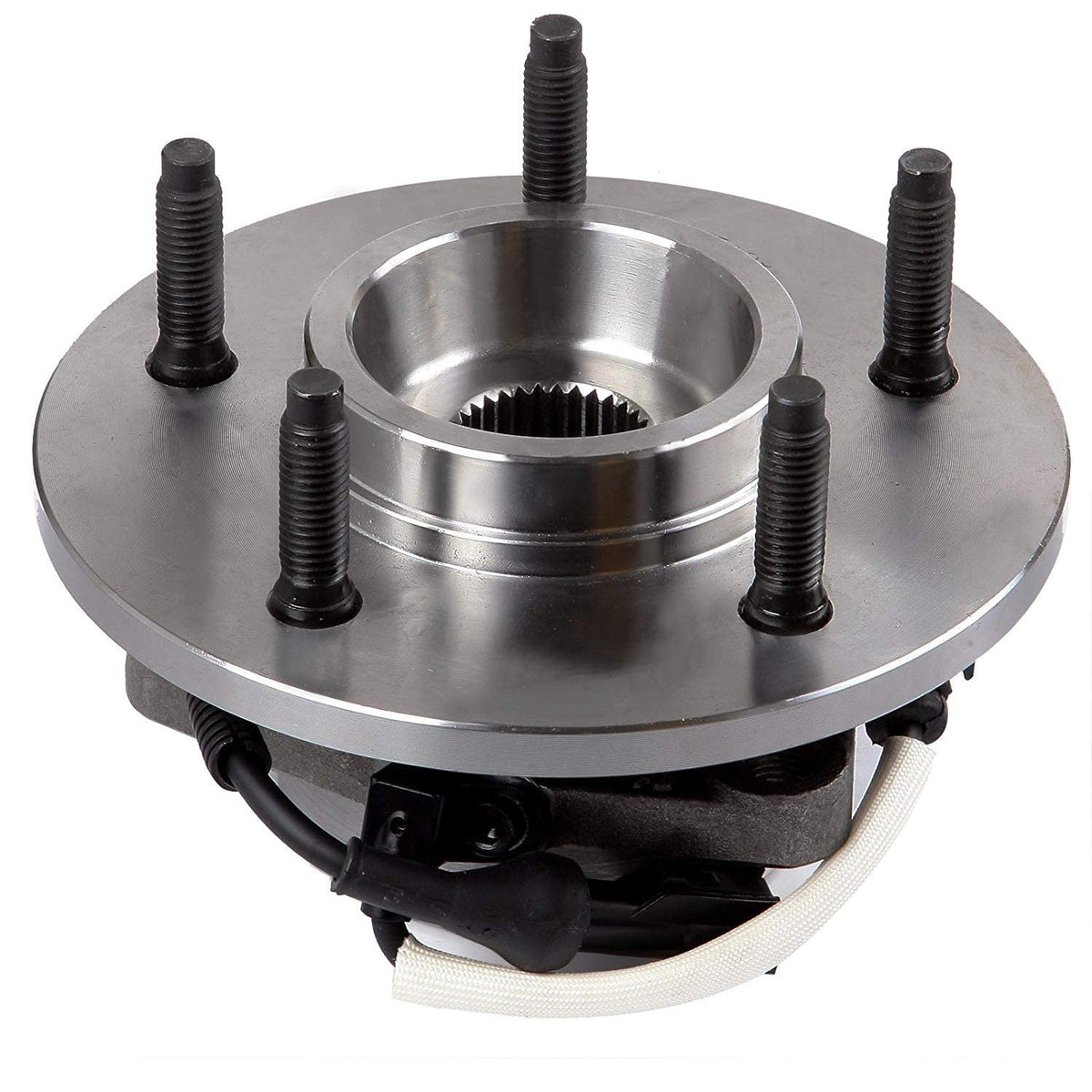

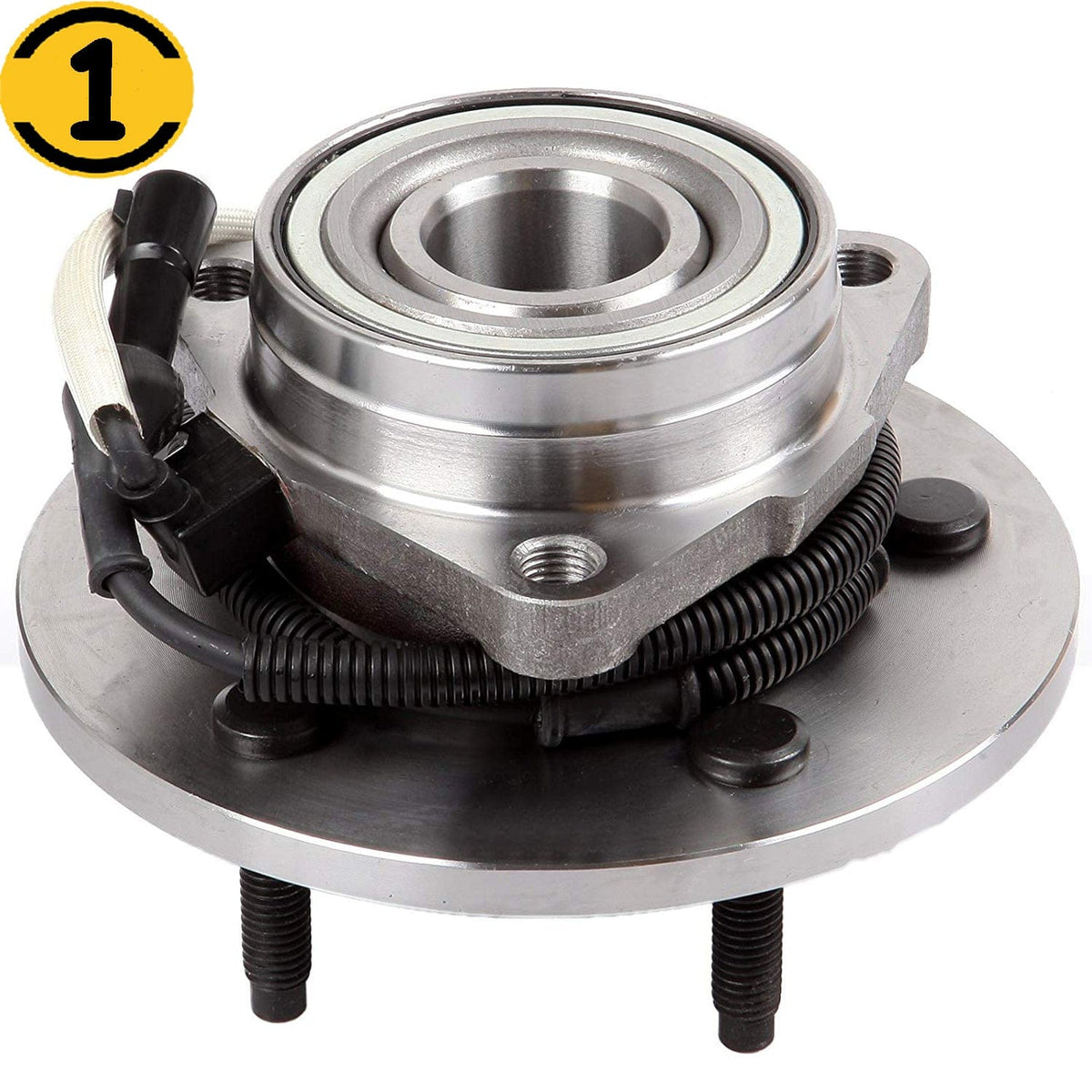

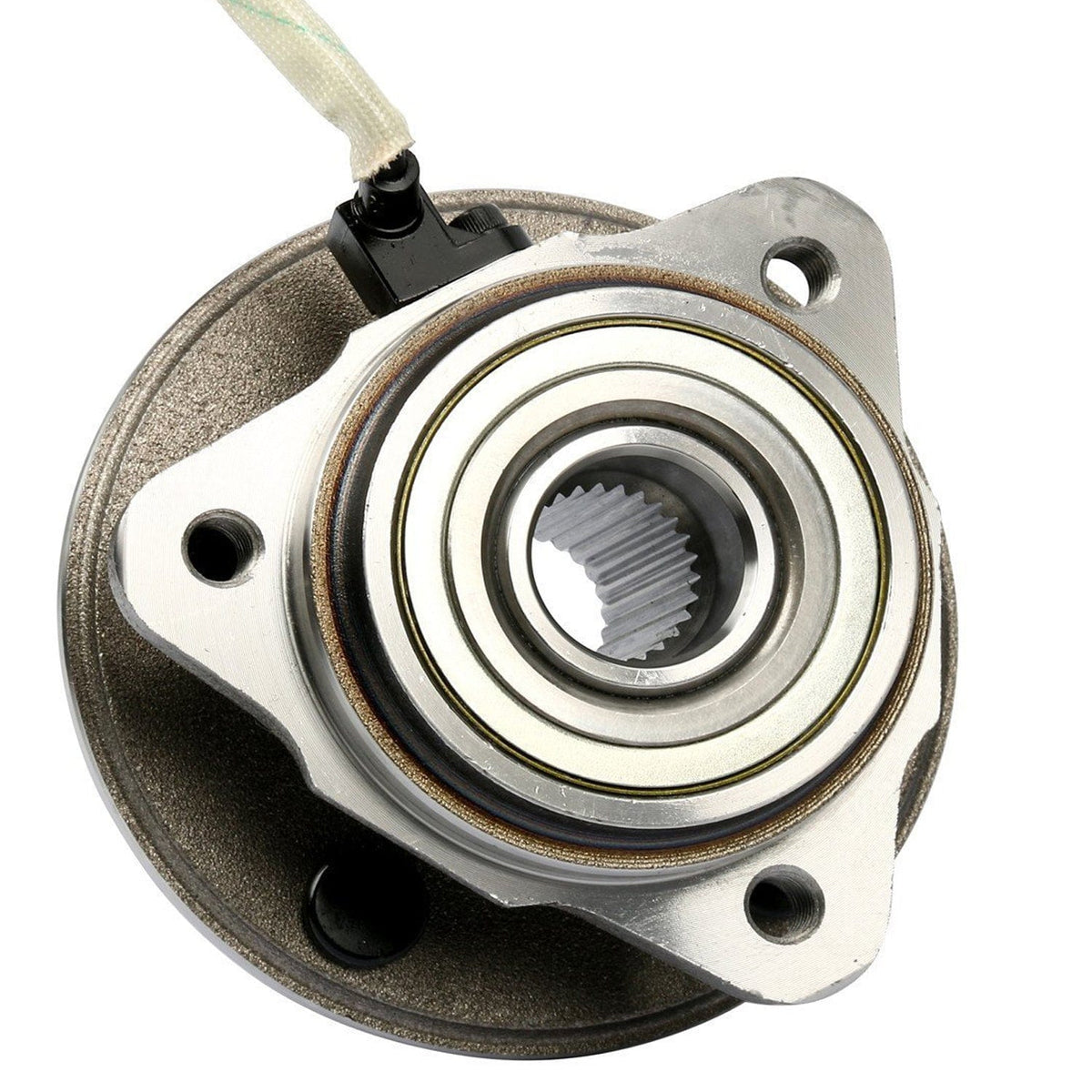

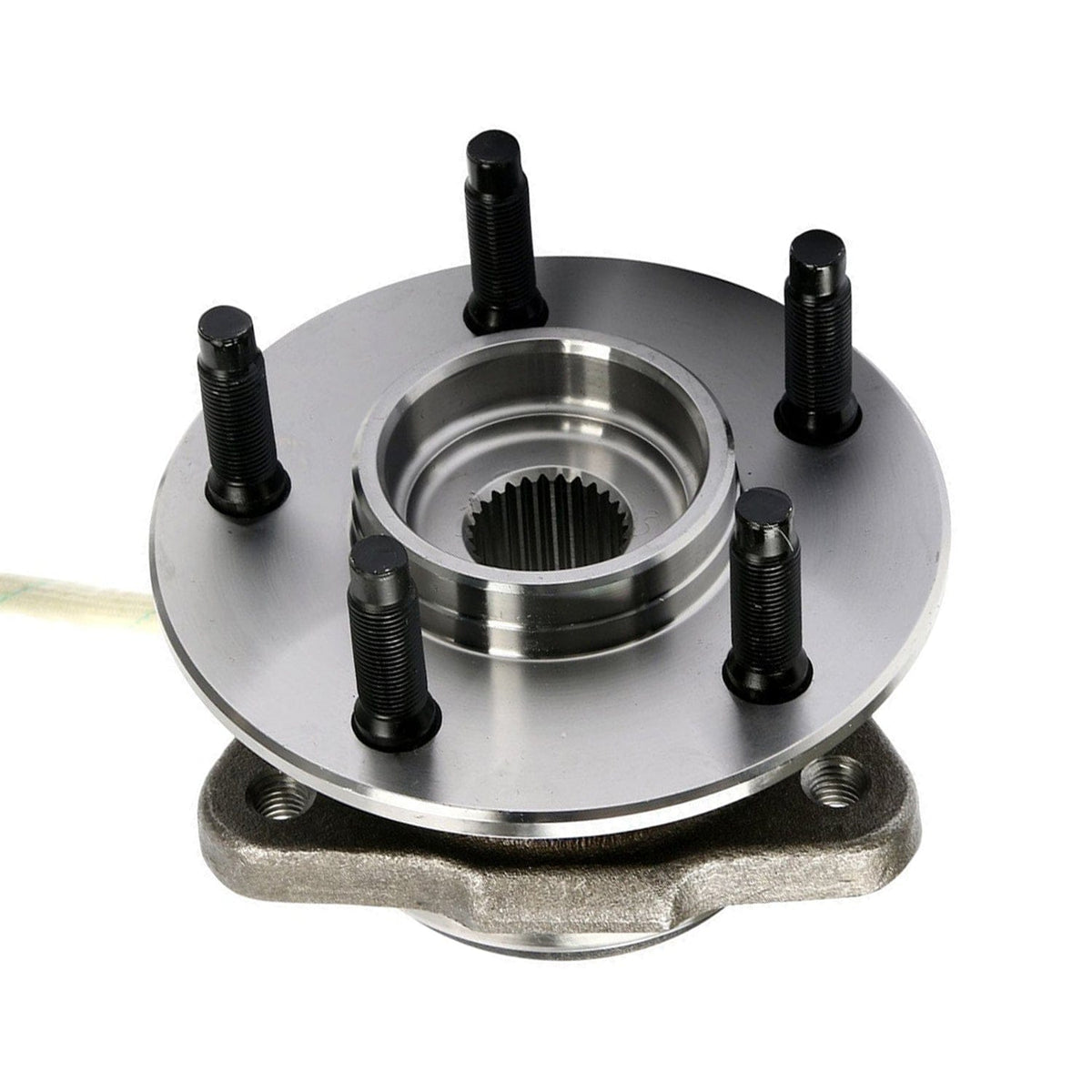

Front Wheel Bearing Fit 1998-2000 Lincoln Navigator, 1997-2000 Ford Expedition Wheel Hub 5 Lugs, 4WD w/ABS, 515004 (2 Pack)

Fit:

1997-2000 Ford Expedition (Front, 4WD)
1998-2000 Lincoln Navigator (Front, 4WD)

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 33.66 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M12-1.75
Total Hub Diameter (in): 7.145 Inch
Total Hub Diameter (mm): 181.5mm
Hub Centerbore Diameter (in): 5.307 Inch
Hub Centerbore Diameter (mm): 134.8mm
Total Hub Height (in): 4.696 Inch
Total Hub Height (mm): 119.3mm
Flange Diameter (in): 7.145 Inch
Flange Diameter (mm): 181.5mm
Flange Offset (in): 1.937 Inch
Flange Offset (mm): 49.2mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.724 Inch
Flange Bolt Size (mm): 43.8mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.635 Inch
Hub Pilot Diameter (mm): 92.35mm
