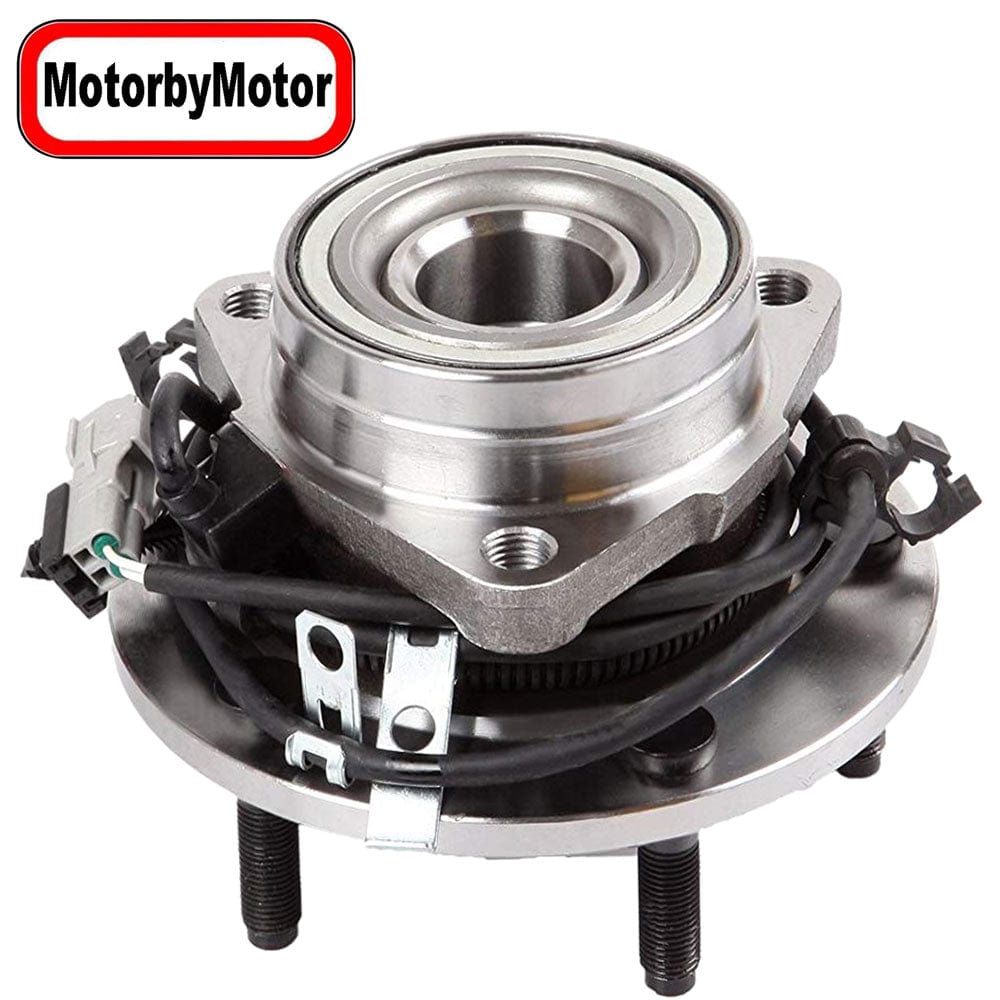

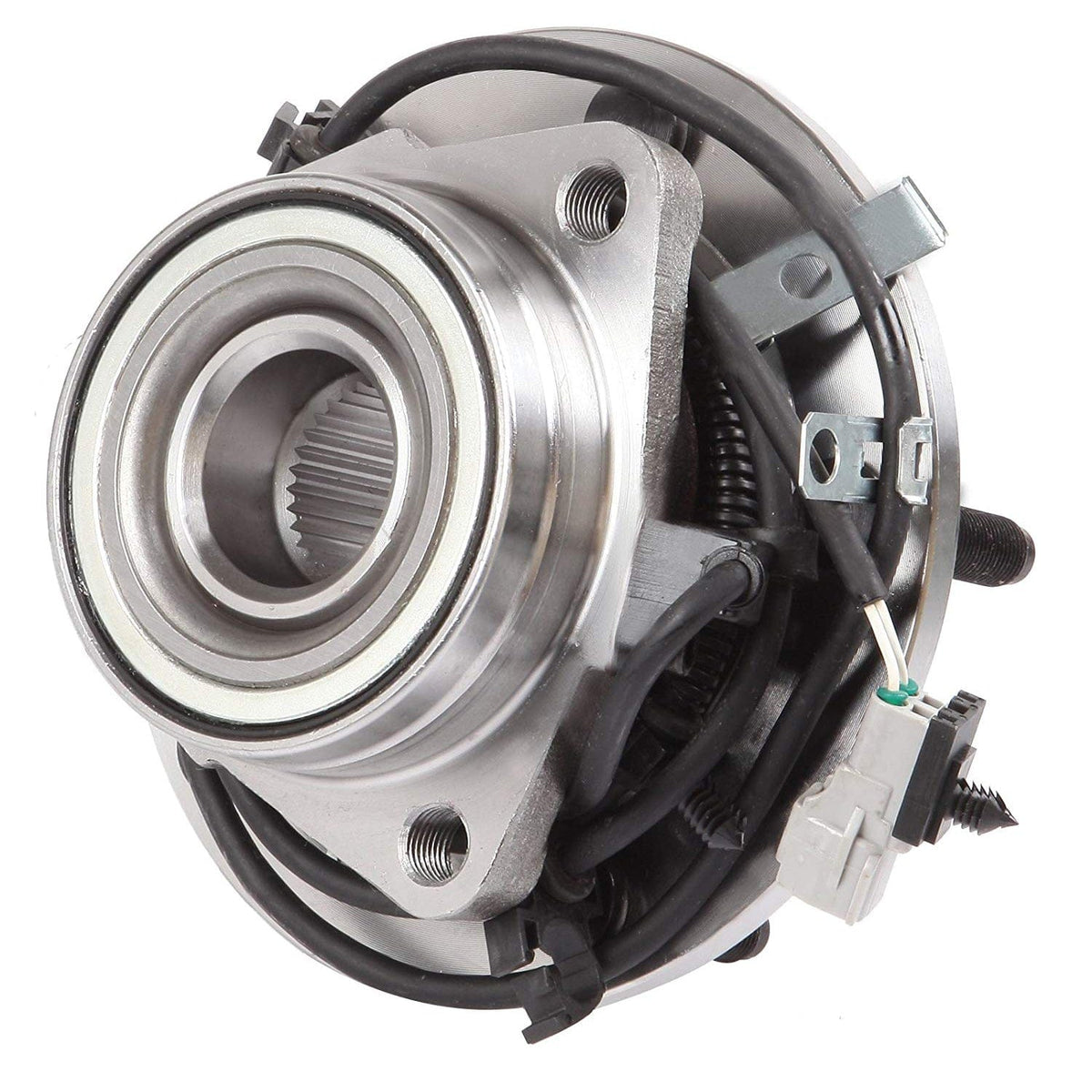

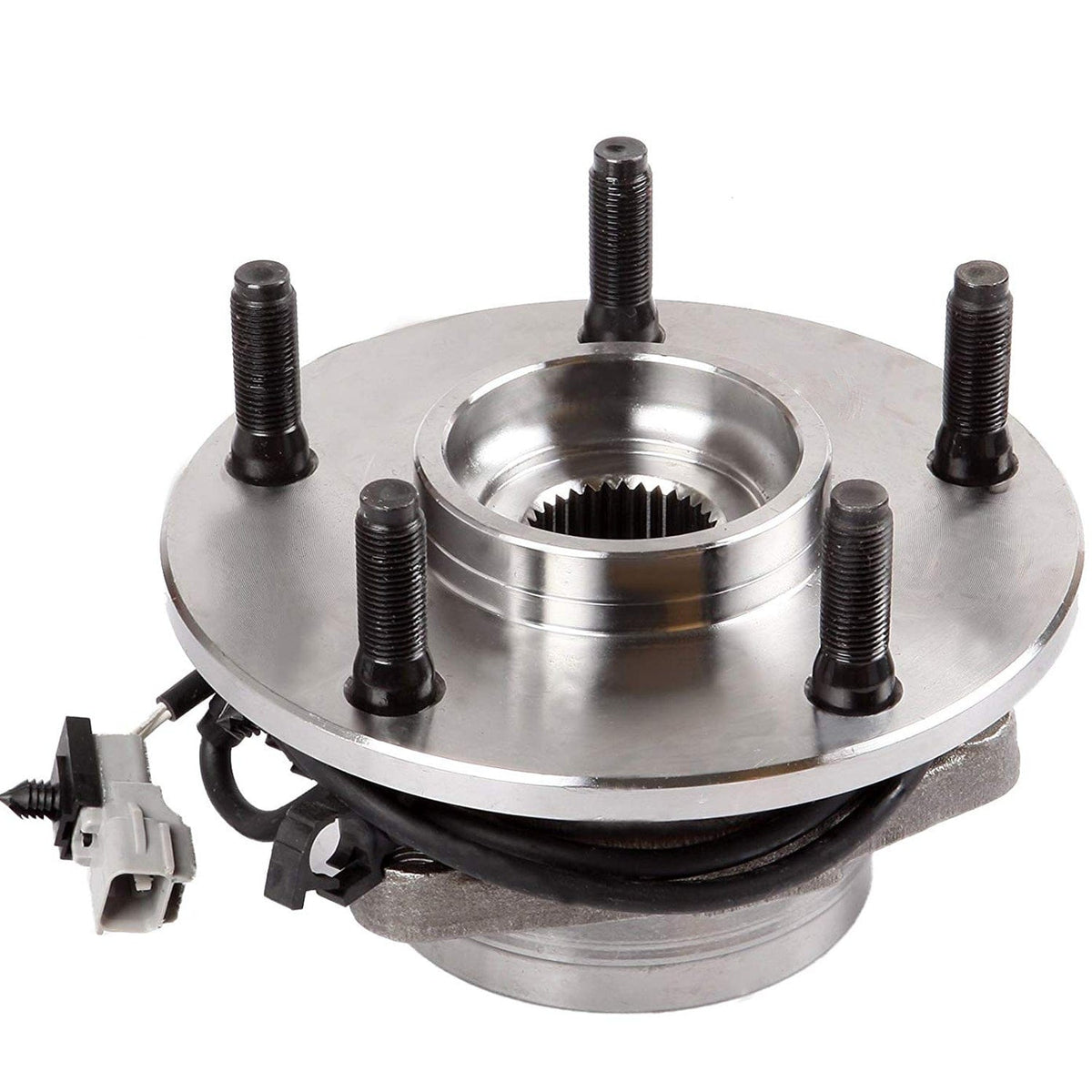

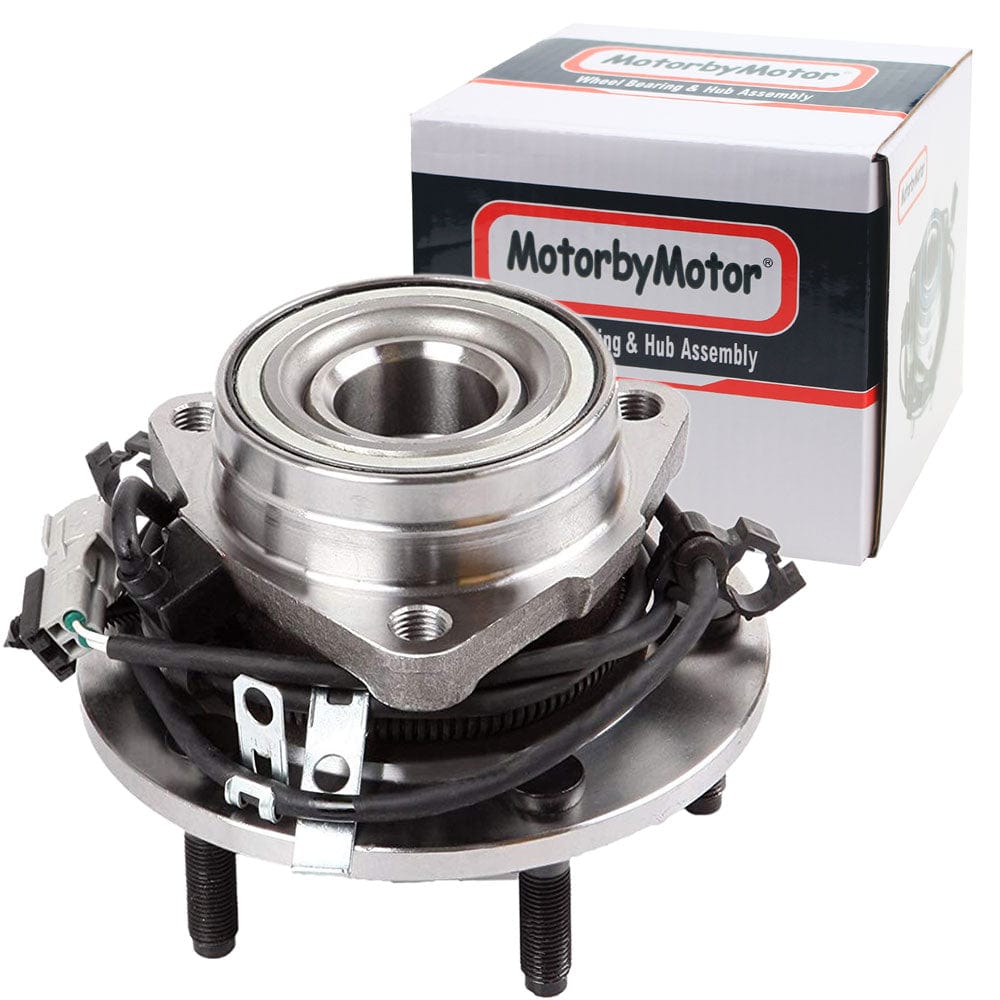

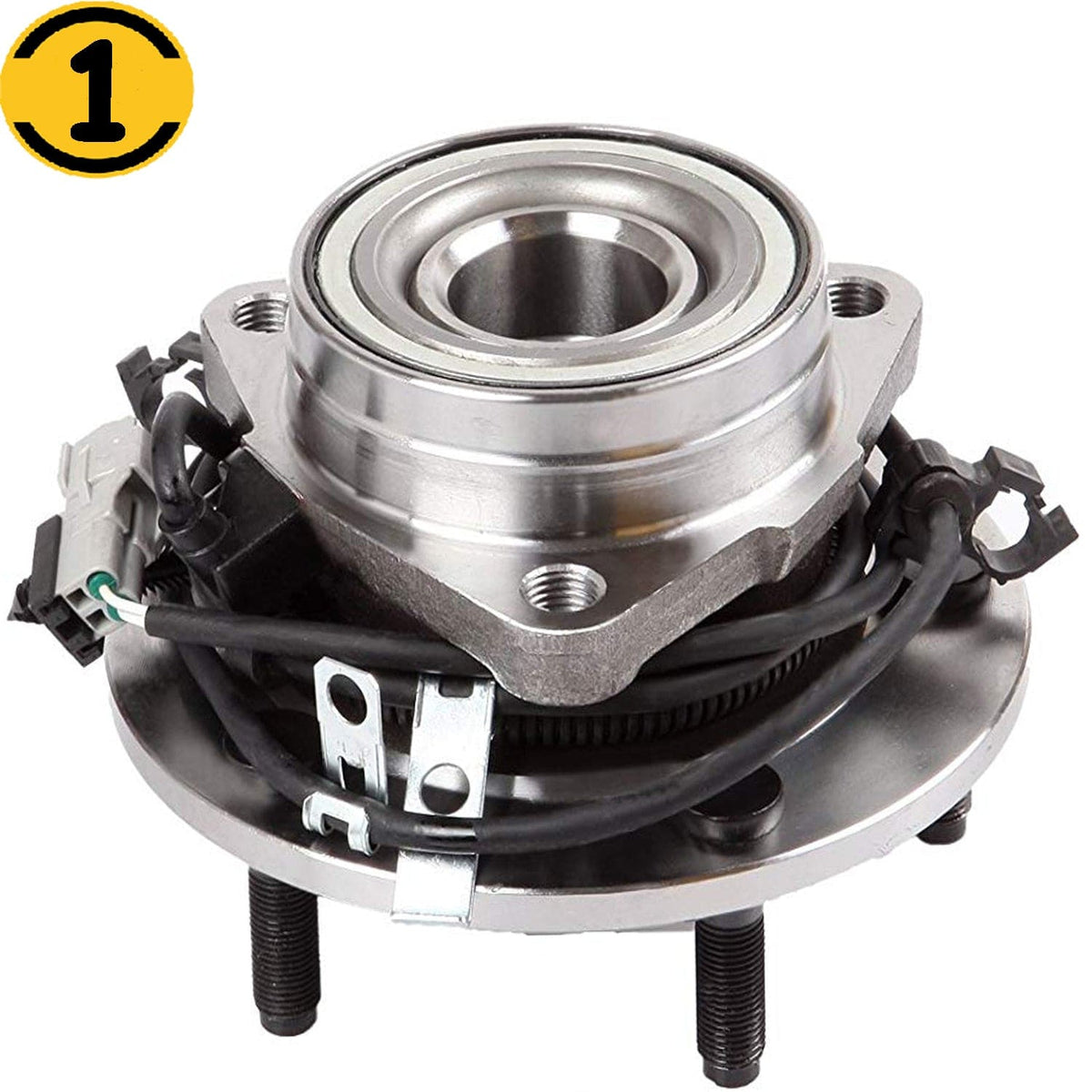

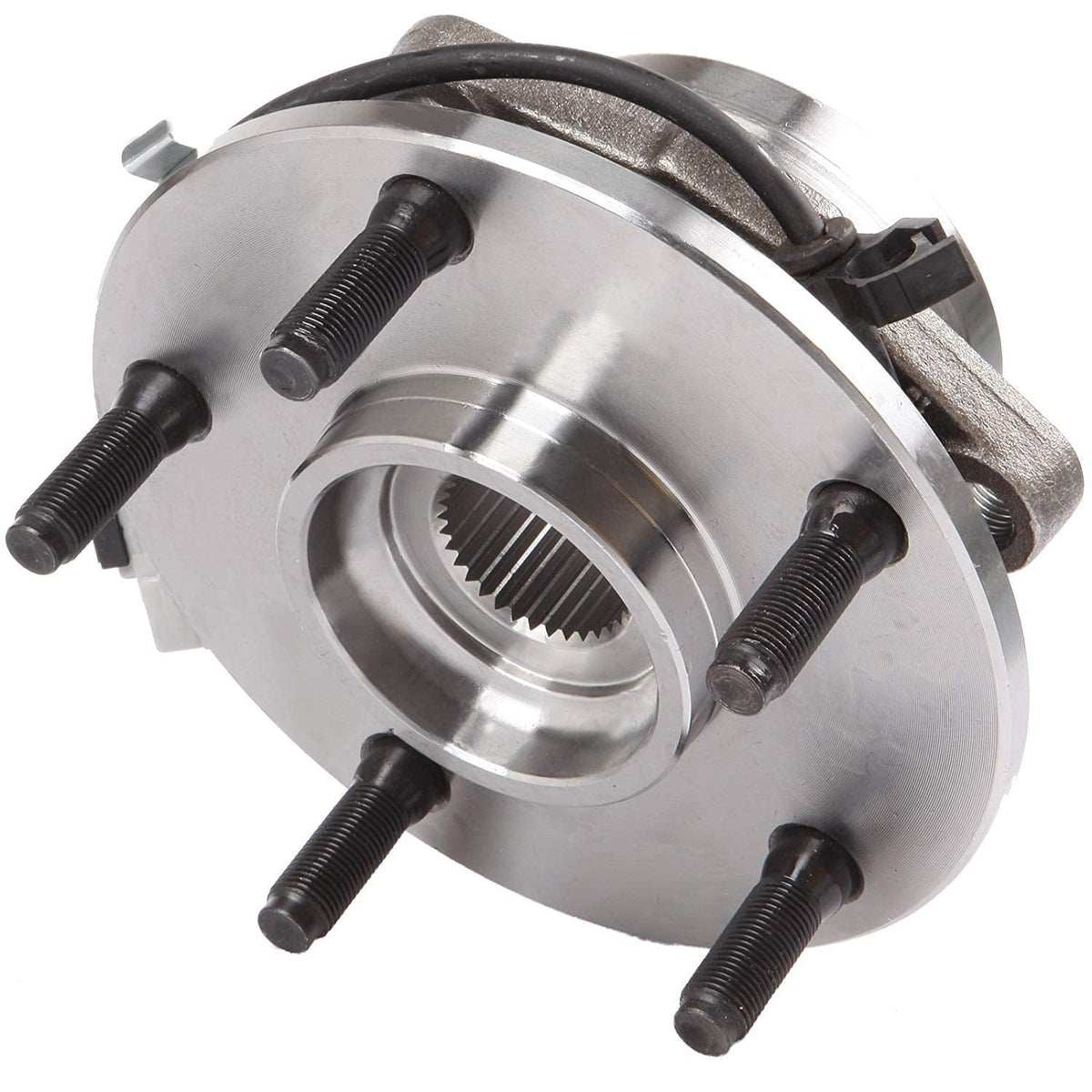

Dodge Ram 1500 Front Right Wheel Bearing Hub Assembly, 5 Lugs 4WD w/ABS -- 515023

Front RH Wheel Bearing Fit 1997-1999 Dodge Ram 1500 Pickup Wheel Hub w/5 Lugs w/ABS, 4WD, Passenger Right Side, 515023

Fit
1997 1998 1999 Dodge Ram 1500 Pickup(Front, 4WD)

Description:

Position:Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 62.99 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 1/2-20 Inch
Total Hub Diameter (in): 6.771 Inch
Total Hub Diameter (mm): 172mm
Hub Centerbore Diameter (in): 5.5 Inch
Hub Centerbore Diameter (mm): 139.7mm
Total Hub Height (in): 4.948 Inch
Total Hub Height (mm): 125.7mm
Flange Diameter (in): 6.771 Inch
Flange Diameter (mm): 172mm
Flange Offset (in): 2 Inch
Flange Offset (mm): 50.8mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.629 Inch
Flange Bolt Size (mm): 41.4mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.082 Inch
Hub Pilot Diameter (mm): 78.3mm
