Ford Fusion Rear Wheel Bearing Hub Assembly, w/ABS Cap, 5 Lugs FWD - 512497 (2 Pack)
Ford Fusion Rear Wheel Bearing Hub Assembly, w/ABS Cap, 5 Lugs FWD - 512497 (2 Pack)
1000 in stock
Couldn't load pickup availability

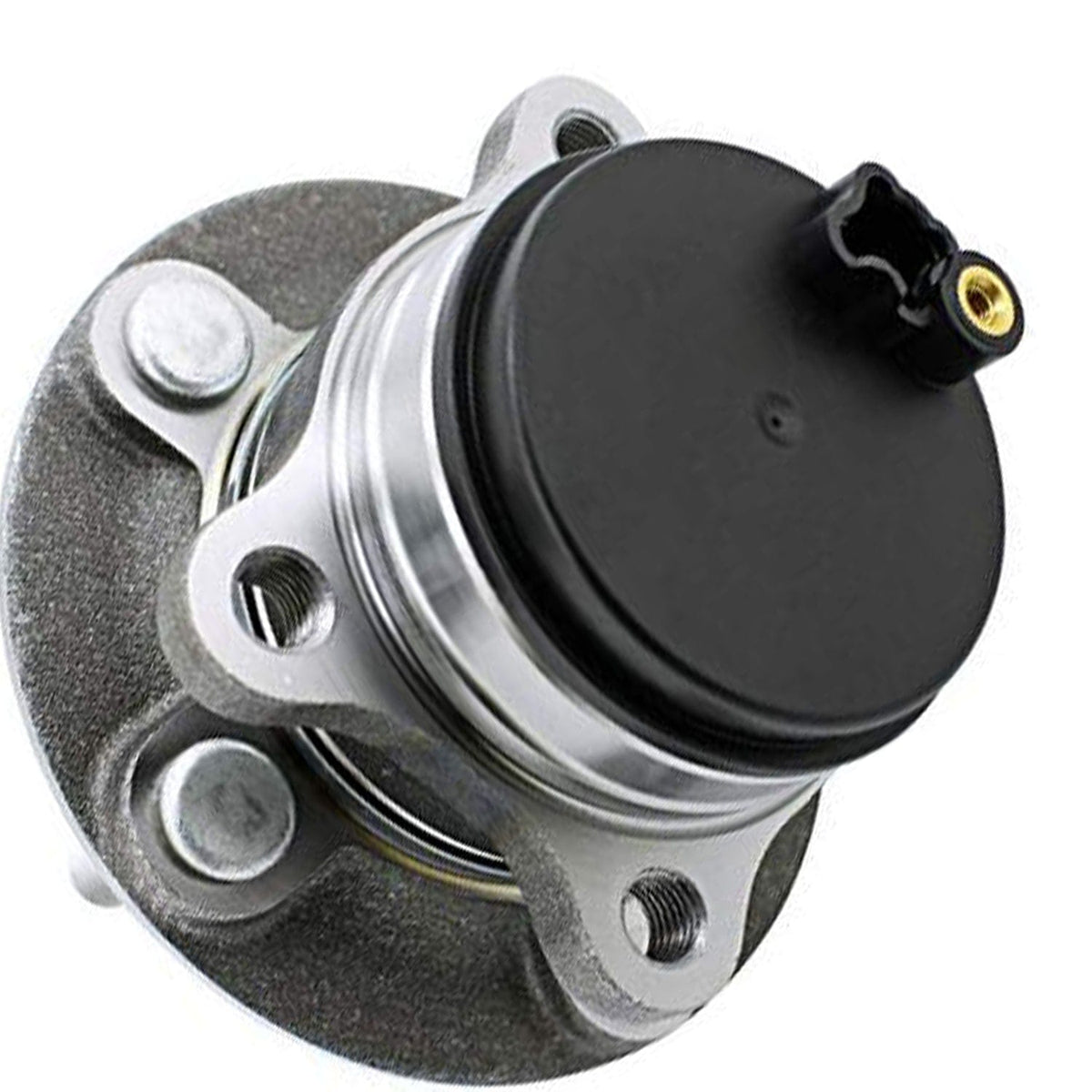

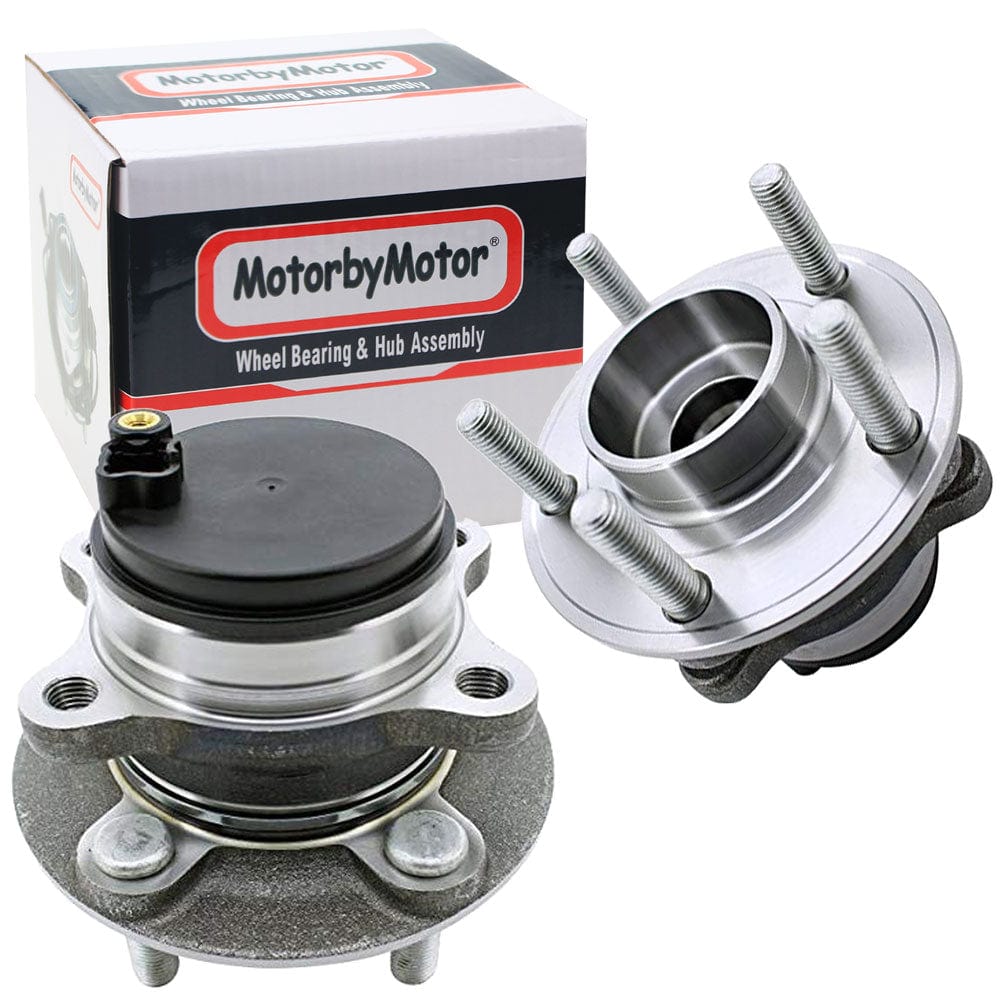

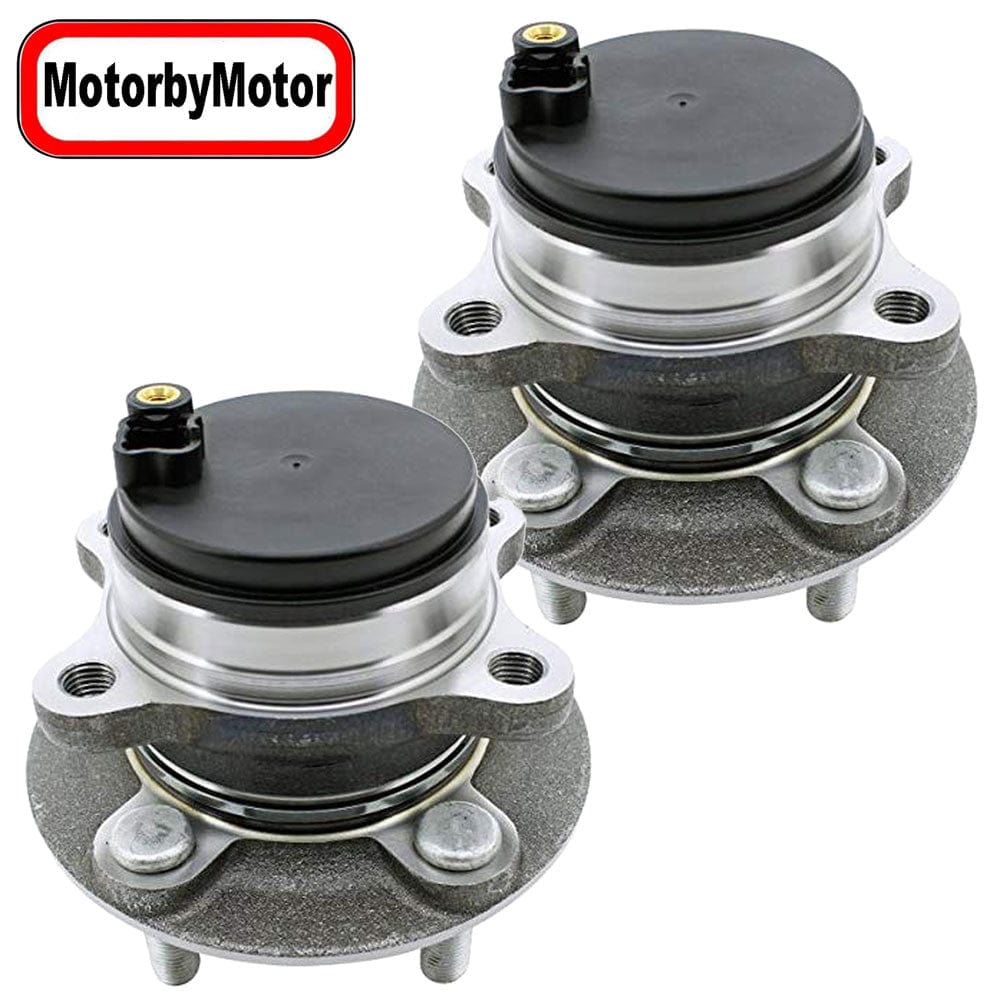

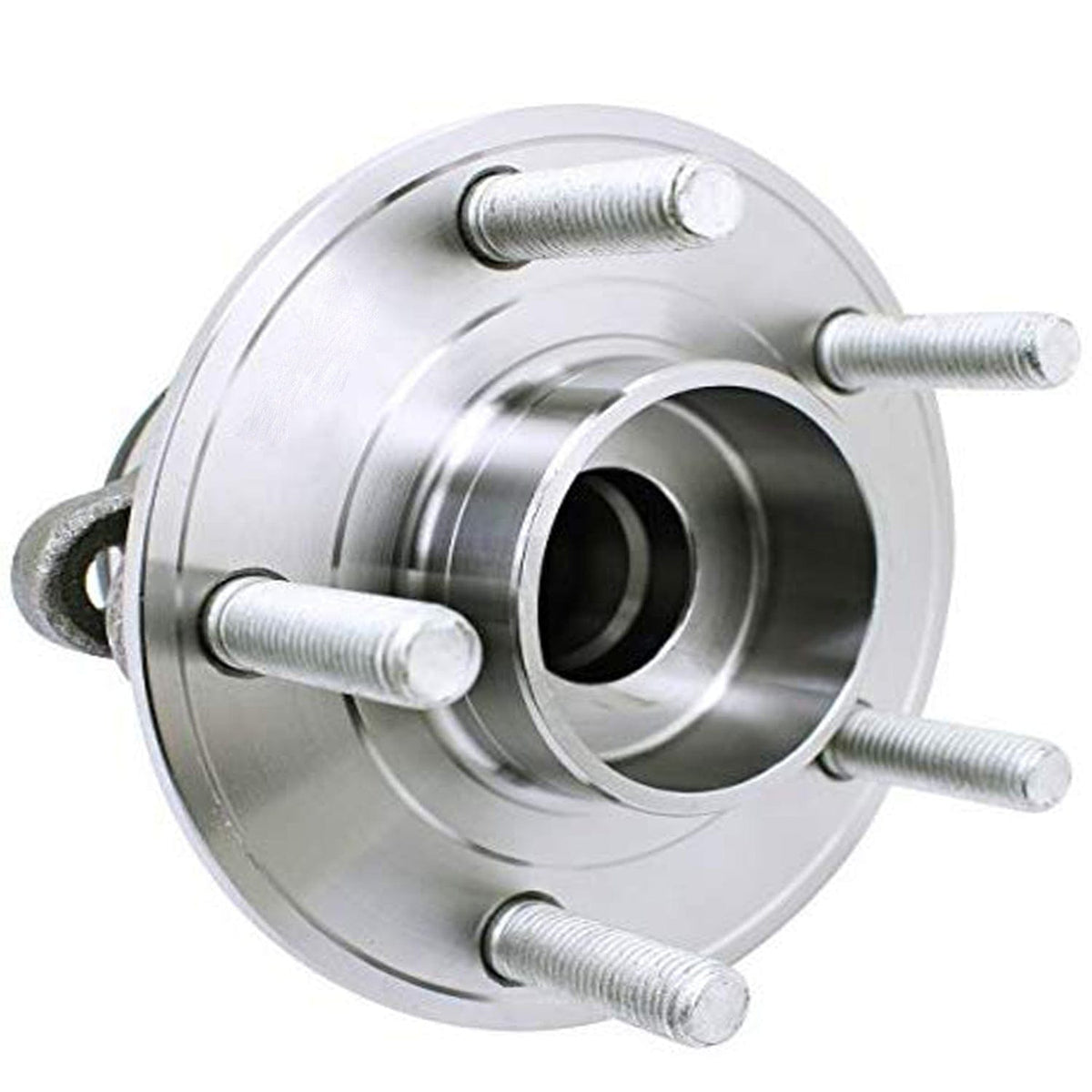

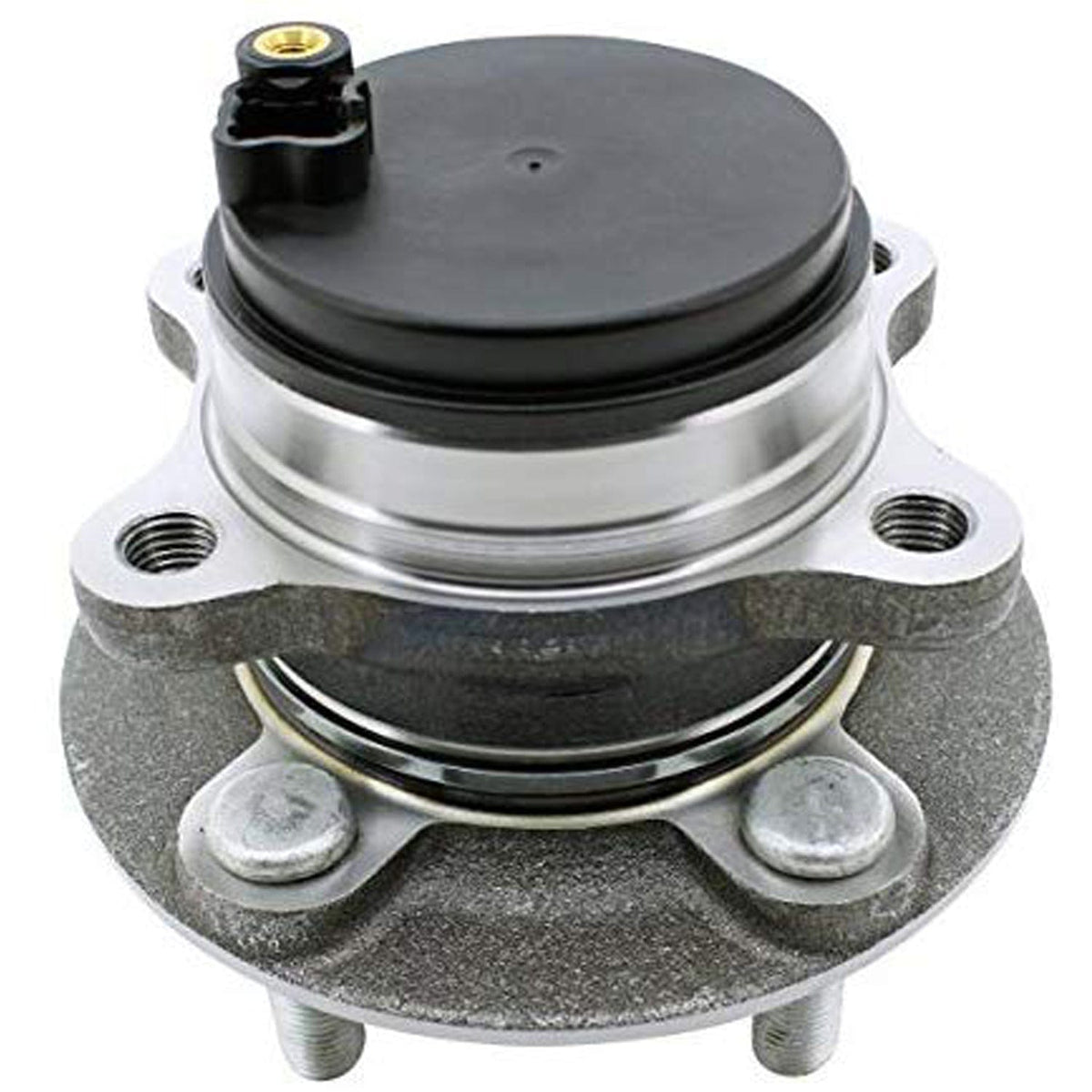

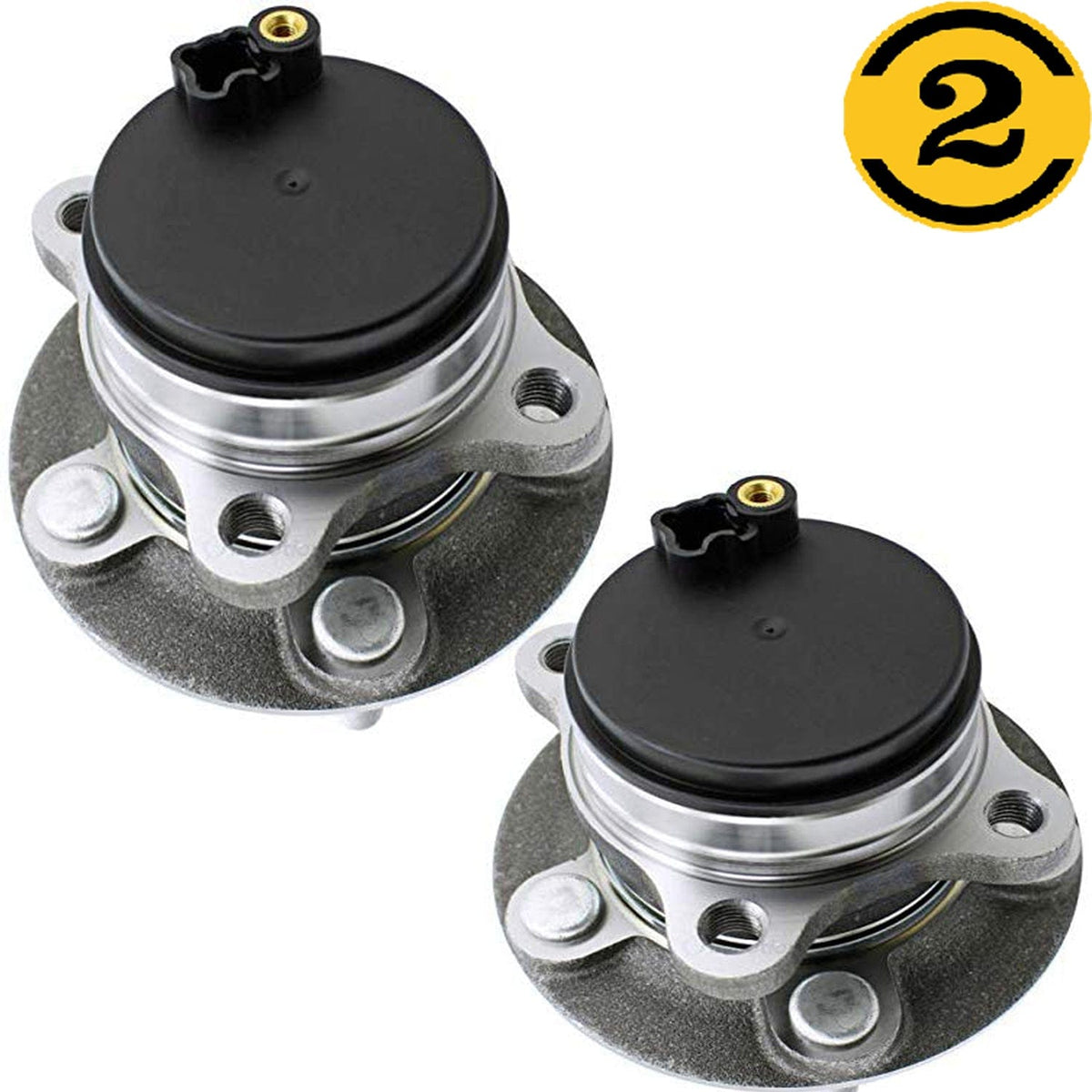

Rear Wheel Bearing Fit 2014-2018 Ford Fusion, 2014-2016 Lincoln MKZ Wheel Hub w/ABS Cap, 5 Lugs 2WD FWD, 512497 (2 PACK)
Rear wheel bearing and hub assembly with ABS sensor. Fits 2014-2018 Ford Fusion and 2014-2016 Lincoln MKZ. Designed for 2WD/FWD with 5 lugs.
What's Included
- 2 Rear Wheel Bearings and Hubs
- Part Number: 512497
Product Specifications
- Position: Driver (LH) or Passenger (RH) Side Rear
- Bearing Type: Ball
- ABS Sensor Included: Yes
- Mounting Bolts to Knuckle: 4
- Total Hub Diameter: 5.35 in (135.8 mm)
- Hub Centerbore Diameter: 4.25 in (108 mm)
- Total Hub Height: 4.92 in (125 mm)
- Flange Diameter: 2.5 in (63.5 mm)
- Flange Offset: 1.89 in (48 mm)
- Flange Shape: Round
- Flange Bolt Size: 1.38 in (35 mm), Thread M12-1.50
- Material: Steel
- Hub Pilot Diameter: 3.15 in (80 mm)
- Wiring Harness Included: No
- Number of Lug Bolts Included: 5
- Driven or Non-Driven: Non-Driven
- ABS Ring Type: Sensor
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2014-2018 | Ford | Fusion | Rear Wheel Bearing, 2WD/FWD |
| 2014-2016 | Lincoln | MKZ | Rear Wheel Bearing, 2WD/FWD |
