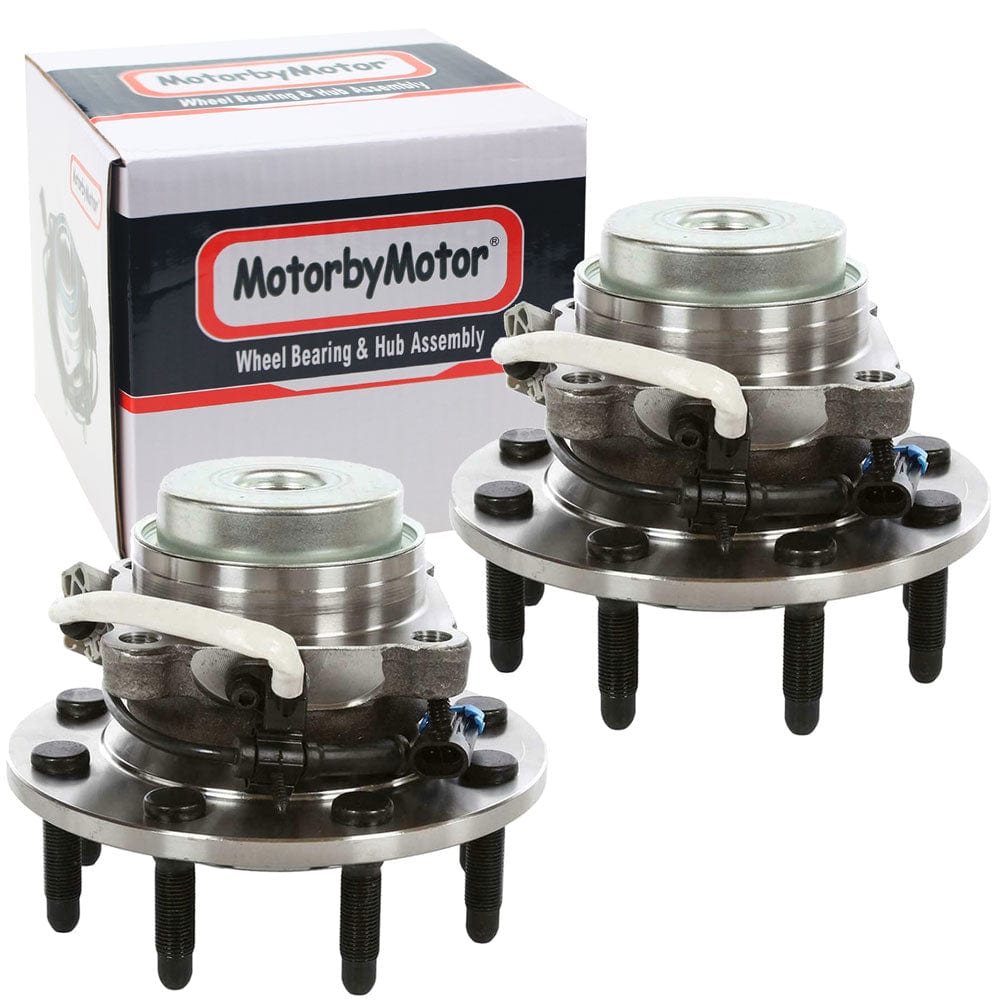

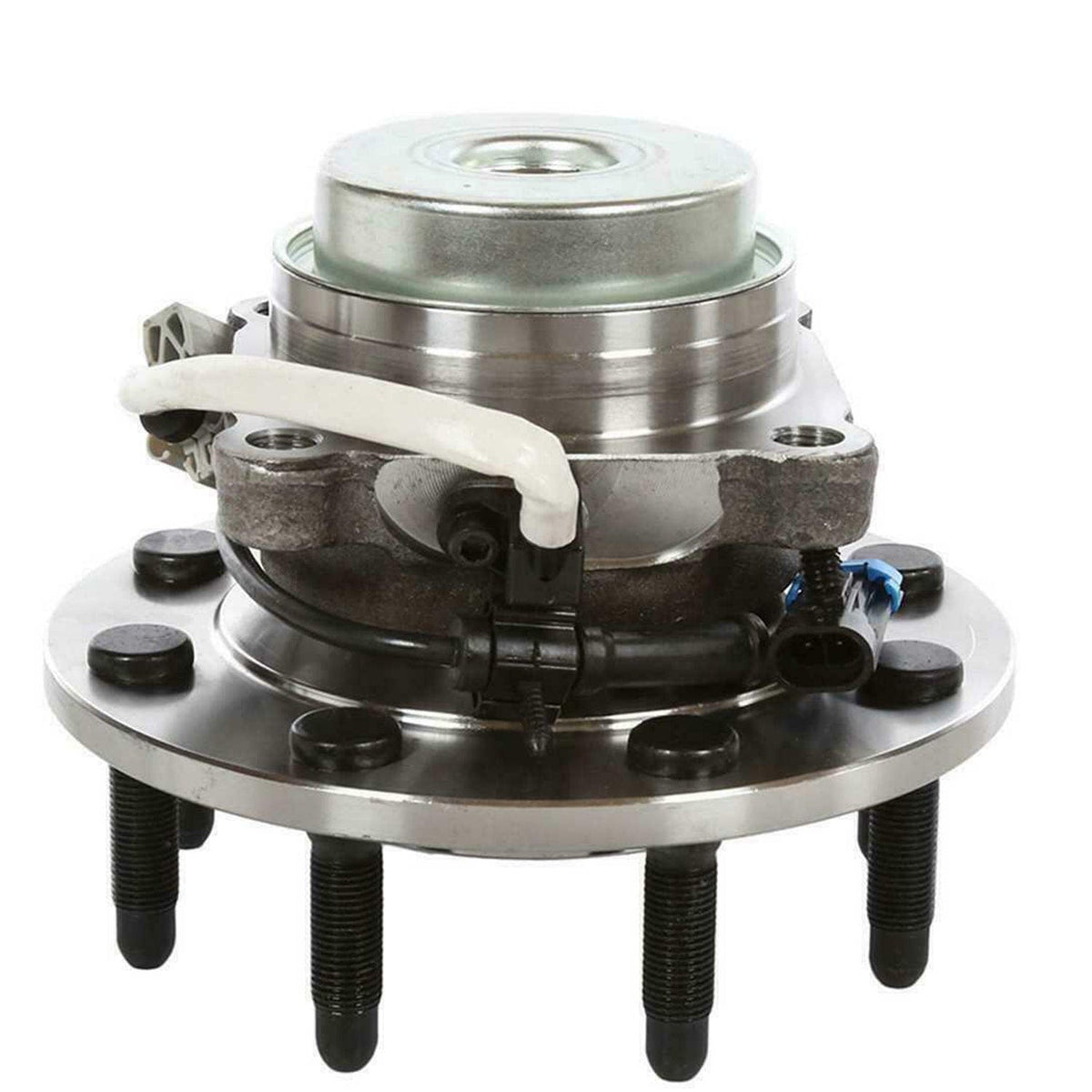

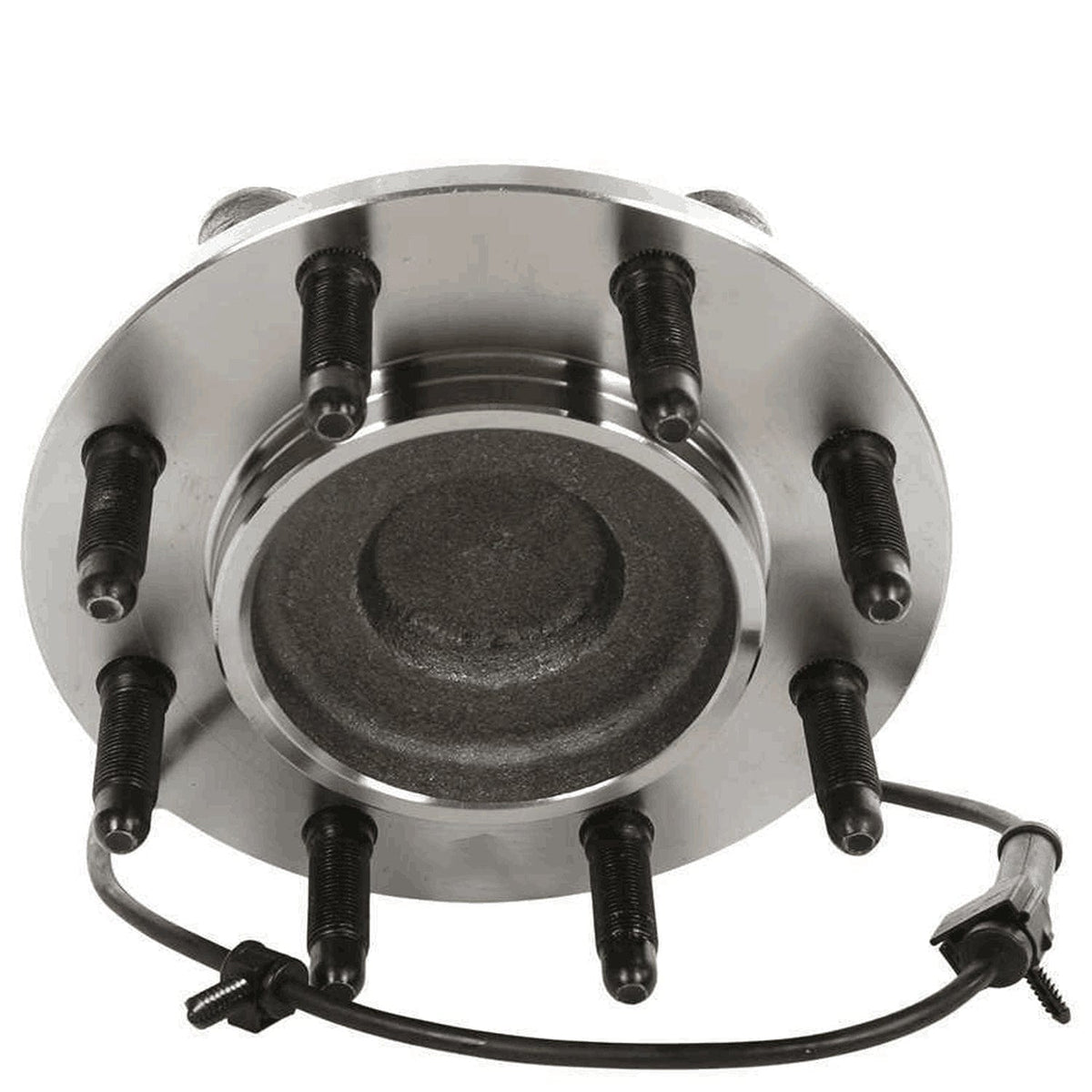

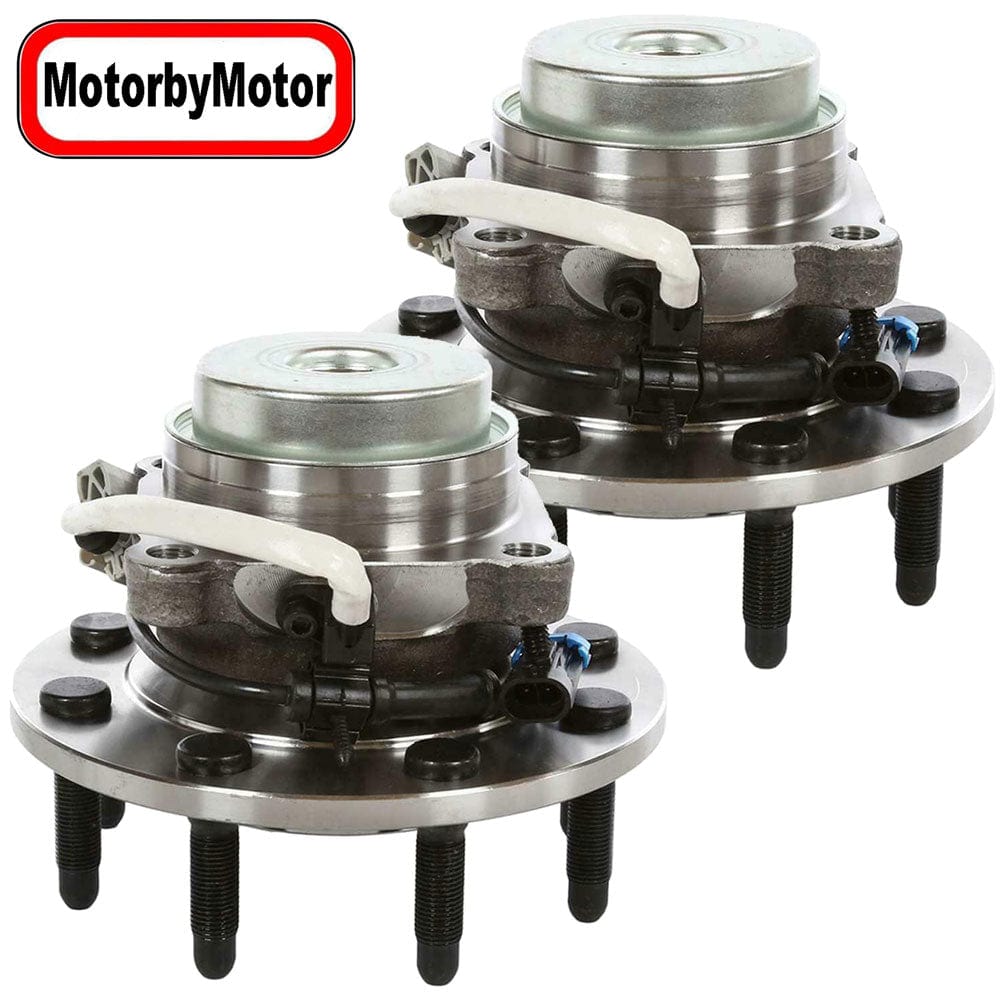

Chevrolet Express 2500 Front Wheel Bearing Hub Assembly, 8 Lugs RWD w/ABS -- 515059 (2 Pack)
Chevrolet Express 2500 Front Wheel Bearing Hub Assembly, 8 Lugs RWD w/ABS -- 515059 (2 Pack)
1000 in stock
Couldn't load pickup availability
Front Wheel Bearing Fit GMC Savana 2500 3500 4500, Chevrolet Express 2500 3500 4500 Wheel Hub w/ABS 8 Lugs, RWD, 515059 (2 Pack)
Fit:
2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 Chevrolet Express 2500
2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 Chevrolet Express 3500
2009 2010 2011 2012 2013 2014 2015 Chevrolet Express 4500
2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 GMC Savana 2500
2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 GMC Savana 3500
2009 2010 2011 2012 2013 2014 2015 GMC Savana 4500
Description:
Position:Driver (LH Left) or Passenger (RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 31.1 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M14-1.50
Total Hub Diameter (in): 7.854 Inch
Total Hub Diameter (mm): 199.5mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 6.523 Inch
Total Hub Height (mm): 165.7mm
Flange Diameter (in): 7.854 Inch
Flange Diameter (mm): 199.5mm
Flange Offset (in): 2.559 Inch
Flange Offset (mm): 65mm
Flange Shape: Square
Flange Bolt Size (in): 2.175 Inch
Flange Bolt Size (mm): 55.25mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.55 Inch
Inner Ring Width (in): 1.07 Inch
Hub Pilot Diameter (in): 4.637 Inch
Hub Pilot Diameter (mm): 117.8mm
