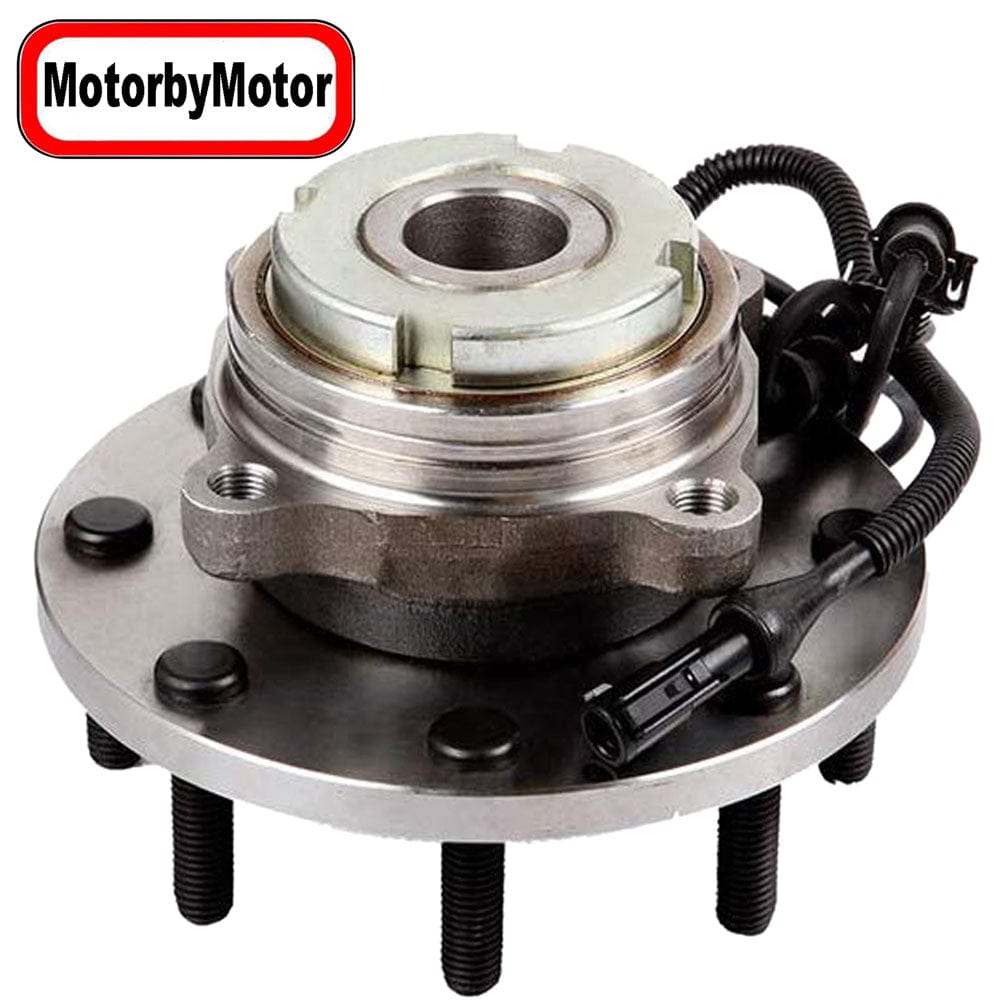

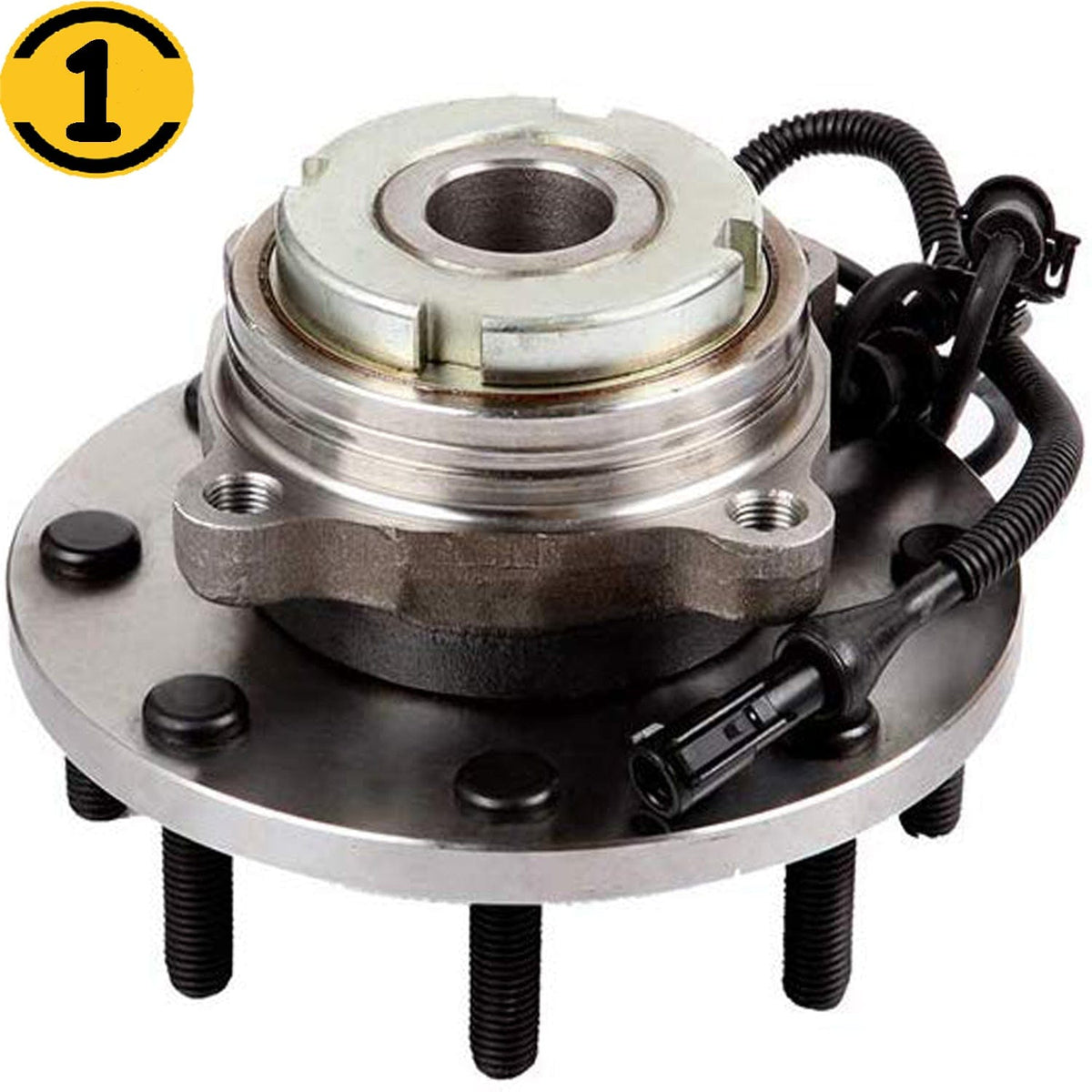

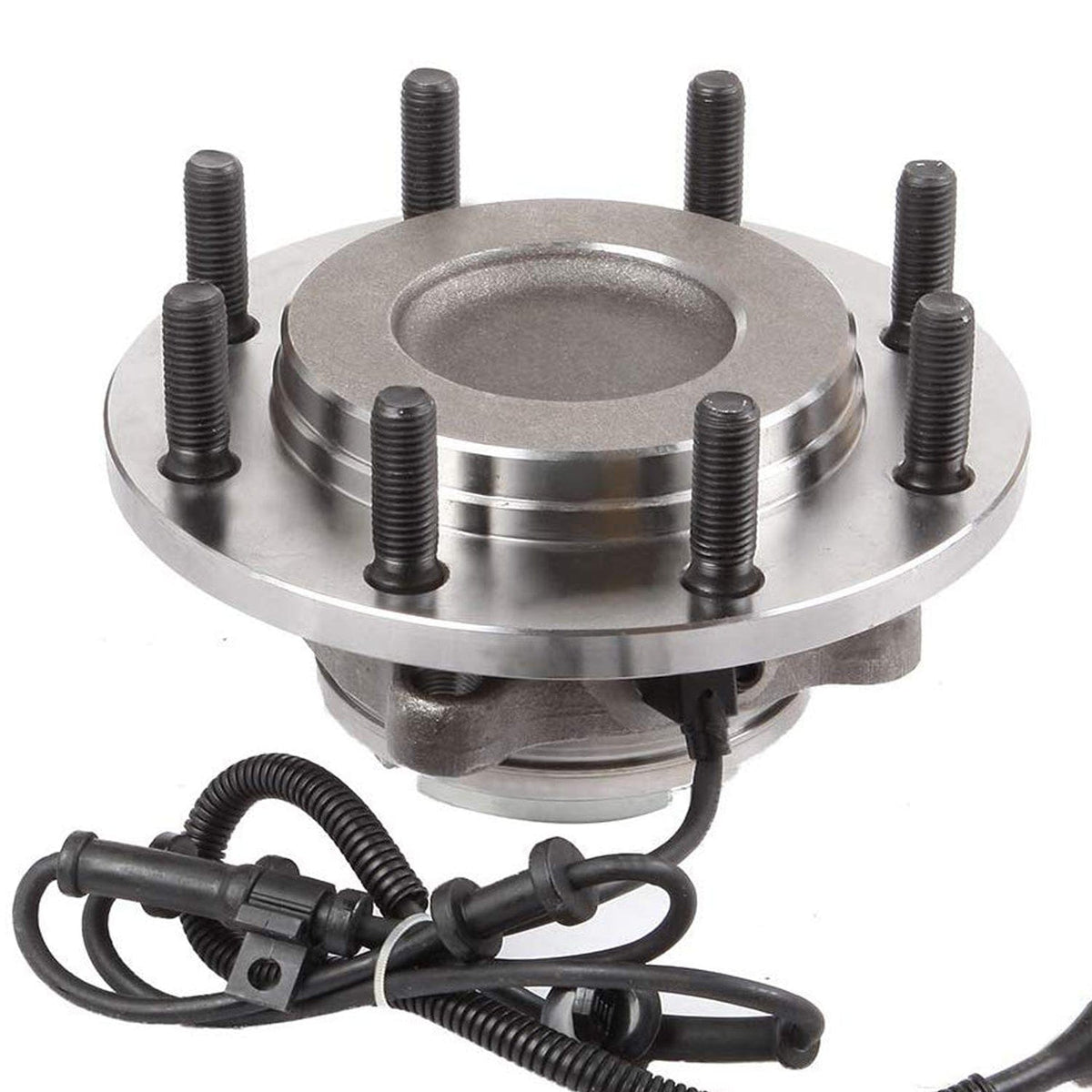

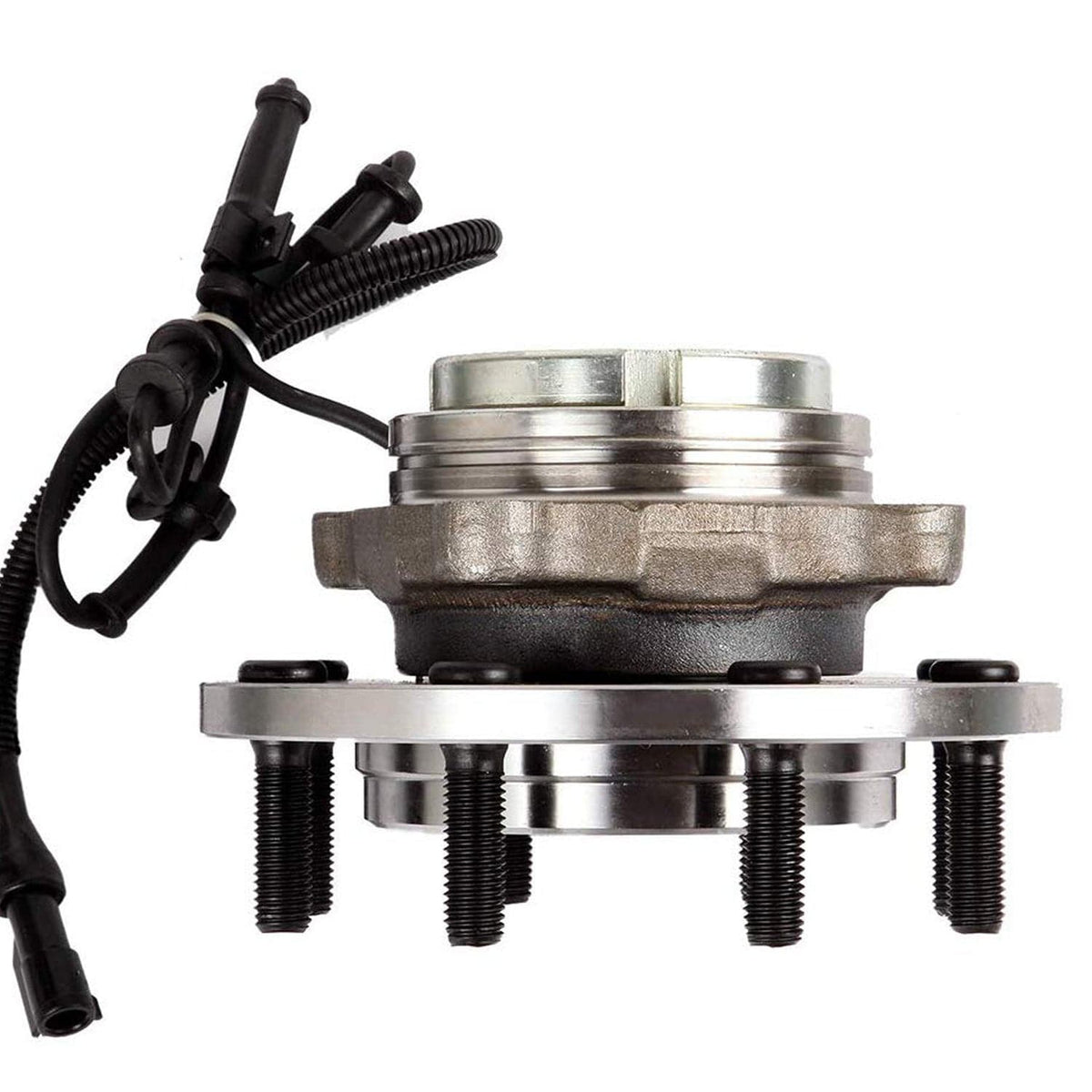

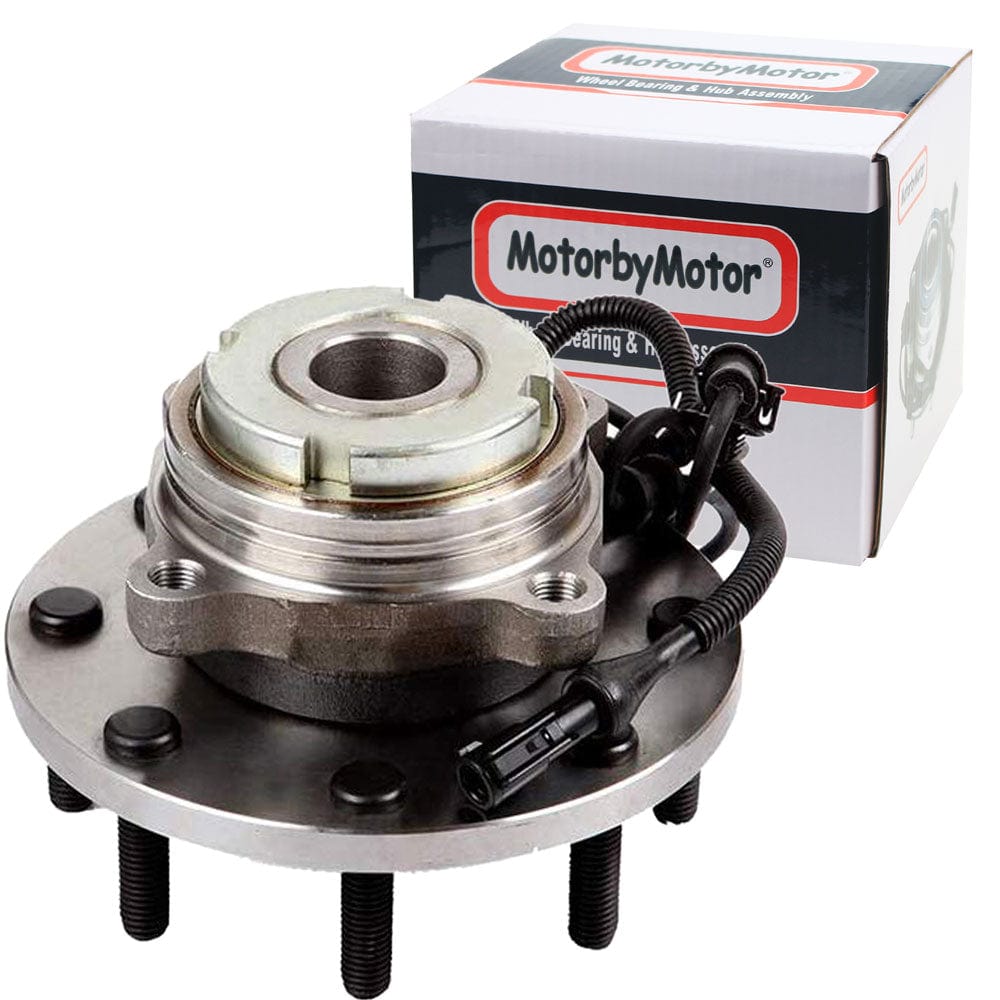

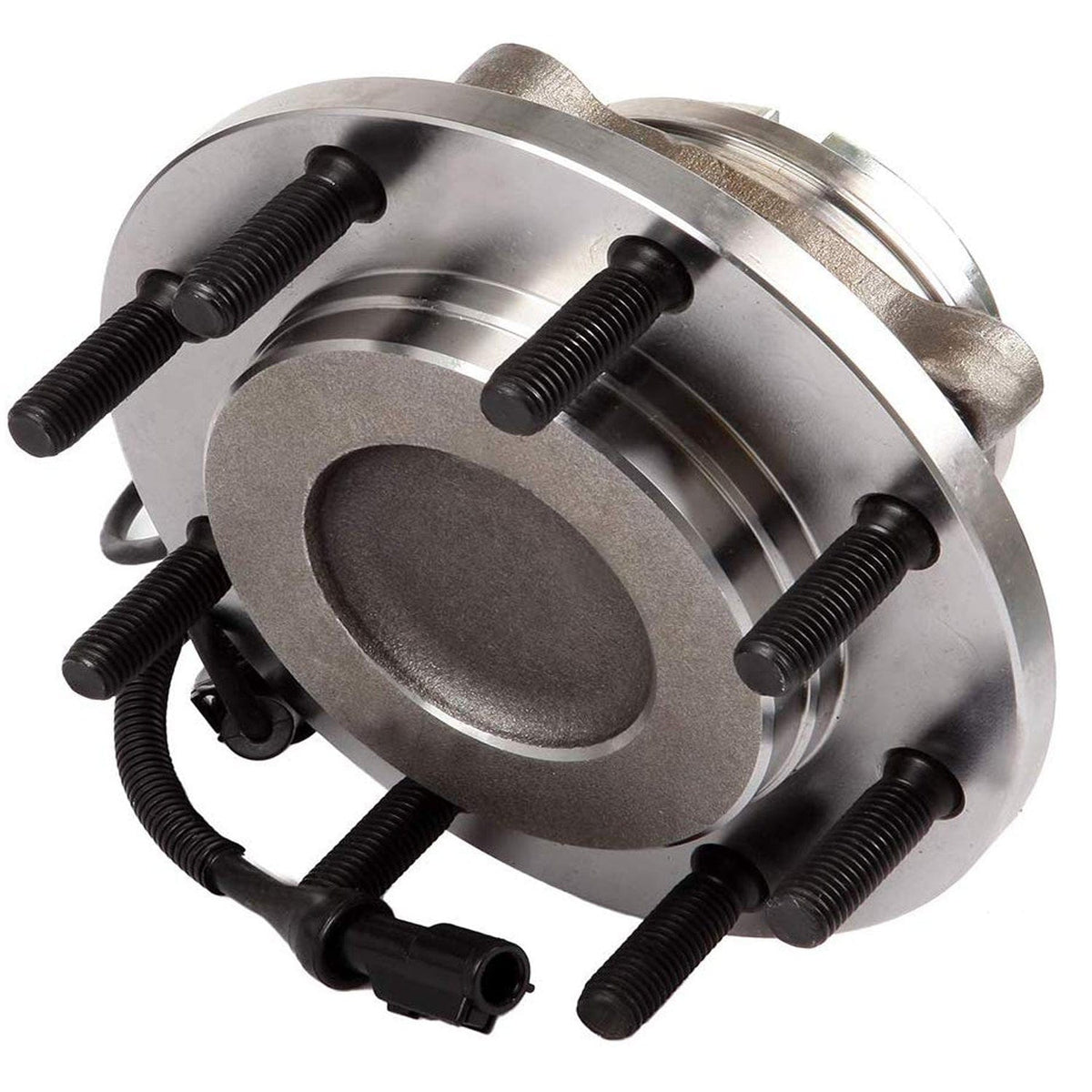

Ford Super Duty Front Wheel Bearing Hub Assembly, 8 Lugs RWD w/ABS -- 515100 (2 Pack)

Front Wheel Bearing Fit Ford F-250, F-350, F-450, F-550 Super Duty 1999-2004 Wheel Hub w/ABS, 8 Lugs RWD-515100 (2 PACK)

Fit:
1999 2000 2001 2002 2003 2004 Ford F-250 Super Duty (Front, 2WD)
1999 2000 2001 2002 2003 2004 Ford F-350 Super Duty (Front, 2WD)
1999 2000 2001 2002 2003 2004 Ford F-450 Super Duty (Front, 2WD)
1999 2000 2001 2002 2003 2004 Ford F-550 Super Duty (Front, 2WD)

Description:

Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 47.24 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 60
Total Hub Diameter (in): 7.99 Inch
Total Hub Diameter (mm): 203mm
Hub Centerbore Diameter (in): 6.69 Inch
Hub Centerbore Diameter (mm): 170mm
Total Hub Height (in): 5.33 Inch
Total Hub Height (mm): 135.4mm
Flange Diameter (in): 5.08 Inch
Flange Diameter (mm): 128.98mm
Flange Offset (in): 2.15 Inch
Flange Offset (mm): 54.5mm
Flange Shape: Round
Flange Bolt Size (in): 1.79 Inch
Flange Bolt Size (mm): 45.4mm
Flange Bolt Thread Size: M14-2.0
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 4.48 Inch
Hub Pilot Diameter (mm): 113.8mm
